Commercial

The Mitsubishi Electric range of Climaveneta Chillers includes air cooled and water cooled heat pump and heat recovery solutions for comfort and process applications. Suitable for commercial centres, data centres, hotels, industrial processes, offices, and residential buildings.

E-Series air cooled R32 chillers are available in 90 kW, 150 kW and 180 kW units. Units are modular and can be combined to provide total system capacity up to 1080 kW, especially desirable where space is at a premium. Available in either cooling only or heat pump.

The City Multi YNW range is available in capacities from 22-150 kW and offers some of the highest levels of efficiency coupled with smaller footprints, reduced noise levels and increased design options.

The City Multi YNW system maximises the space available for plant by reducing the area required for outdoor units thanks to the advanced wrap around heat exchanger.

Greater flexibility for location of outdoor units is possible thanks to multiple external static pressure settings. Extending up to 80Pa will help with long or narrow ducting requirements.

City Multi YNW range is available in capacities from 22-124 kW and offers some of the highest levels of efficiency coupled with smaller footprints, reduced noise levels and increased design options.

City Multi YNW provides our lowest installation costs, running costs and CO2 emissions of a VRF system. This is achieved through the new 4-sided heat exchanger, compressor and fan design, improving both nominal and seasonal efficiency levels.

The new high efficiency models retain the unique flat tube aluminium micro-channel heat exchanger which is a pivotal step change in providing more effective and efficient heat transfer.

The Hybrid VRF is part of the CITY MULTI product range, which consists of VRF air conditioning units that use refrigerant between the outdoor unit and the branch controller, and water between the branch box and the indoor units, designed for medium to large scale applications. Efficiency and reliability are at the very core of the Mitsubishi Electric Hybrid VRF systems.

• Capacity Range: 12.5 – 22.4 kW
• Extended Pipe Runs
• Highly Efficient Heat Exchanger
• Outdoor Unit Fan Design
• Adaptable and Stylish
• Inverter Control

• Capacity Range: 7.1-13.5 Kw
• 4-way airflow
• Wide airflow
• Horizontal airflow
• 3D i-See Sensor (Optional)
• Built-in drain pump

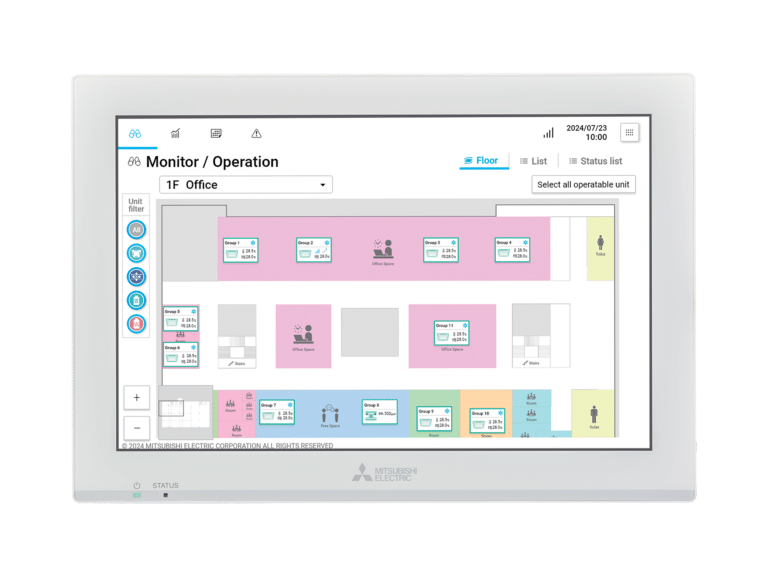

The AE-200E is a state of the art, 10.4″ LCD colour touch screen controller to provide you the ultimate system management tool. The AE-200E’s large, back-lit display makes programming a breeze, giving you control of temperature, fan speed and airflow options at the touch of the screen.

With the added benefit of comprehensive energy consumption monitoring and comparisons with the previous year’s power consumption. Monitor and control 50 indoor units, control up to 200 units by using three AE-50E / EW-50E expansion controllers. One of the most advanced energy monitoring centralised controllers available. The AE-200E allows complete control from one location.

* Some of the advanced functions require additional licence pin registration. Contact your local Mitsubishi Electric representative for more information.
