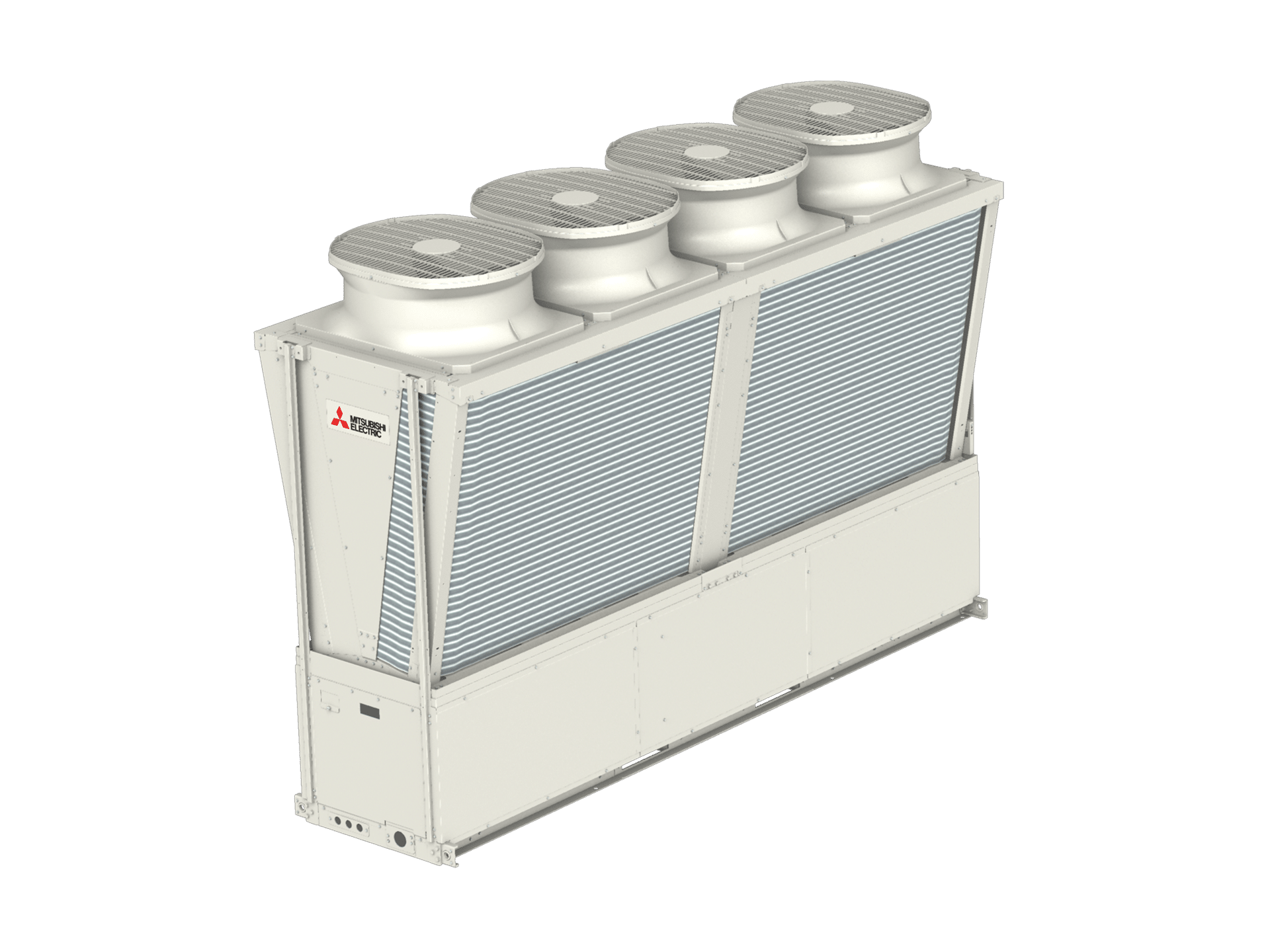

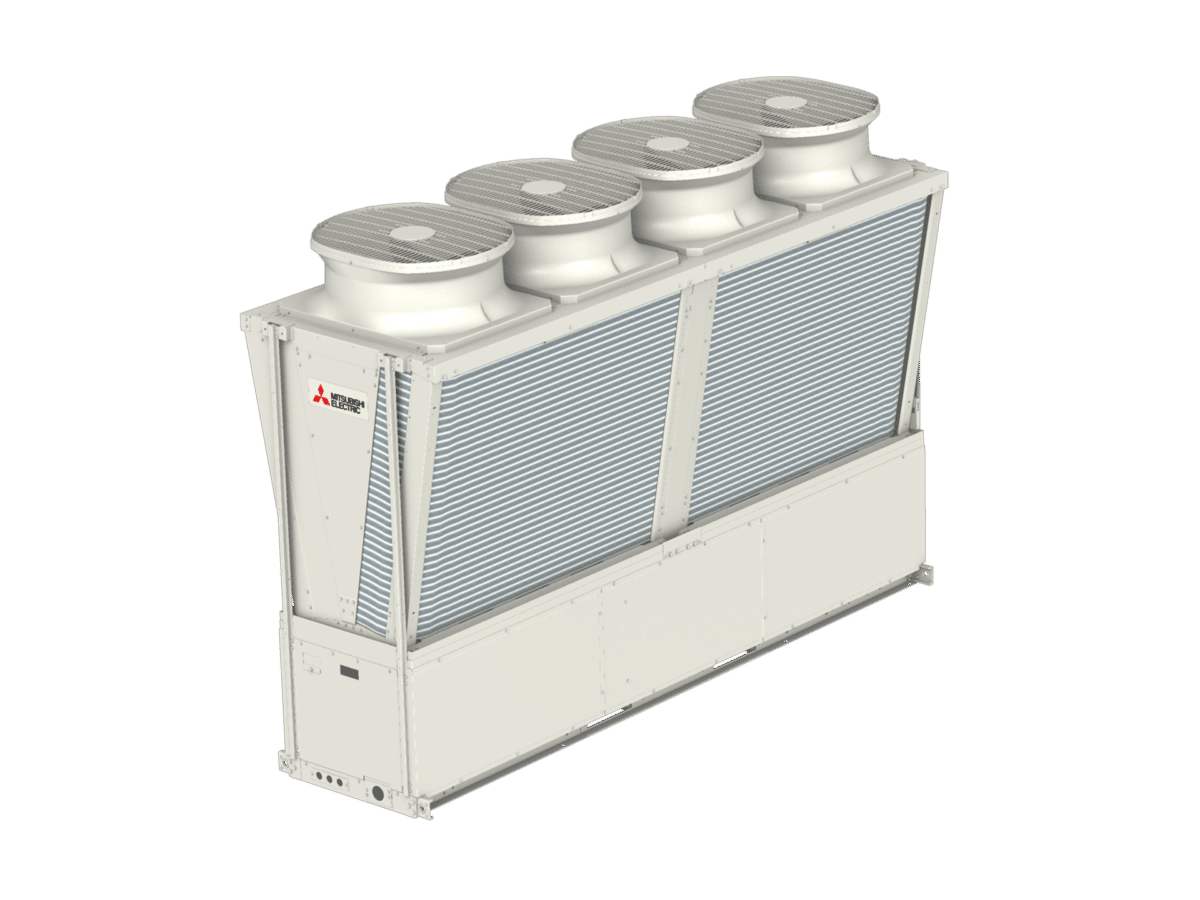

E-Series YCL Modular Chillers

R32 Refrigerant

E-series YCL heat pumps use R32 refrigerant. R32 enables increased energy efficiency compared to R410A; with just one-third of the global warming potential, the risk of environmental harm is greatly reduced.

The use of an R32-compatible compressor and flat tube heat exchanger allows for an approximately 68% reduction in refrigerant volume (approximately 89% reduction in CO2 equivalent).

High Efficiency

Equipped with inverter compressors and inverter fans, YCL modular heat pumps achieve high energy-saving performance, delivering exceptional full load and seasonal efficiencies.

Wide Operating Range in Cooling Mode

Operable in cooling mode at an outdoor air temperature of up to 52⁰C.

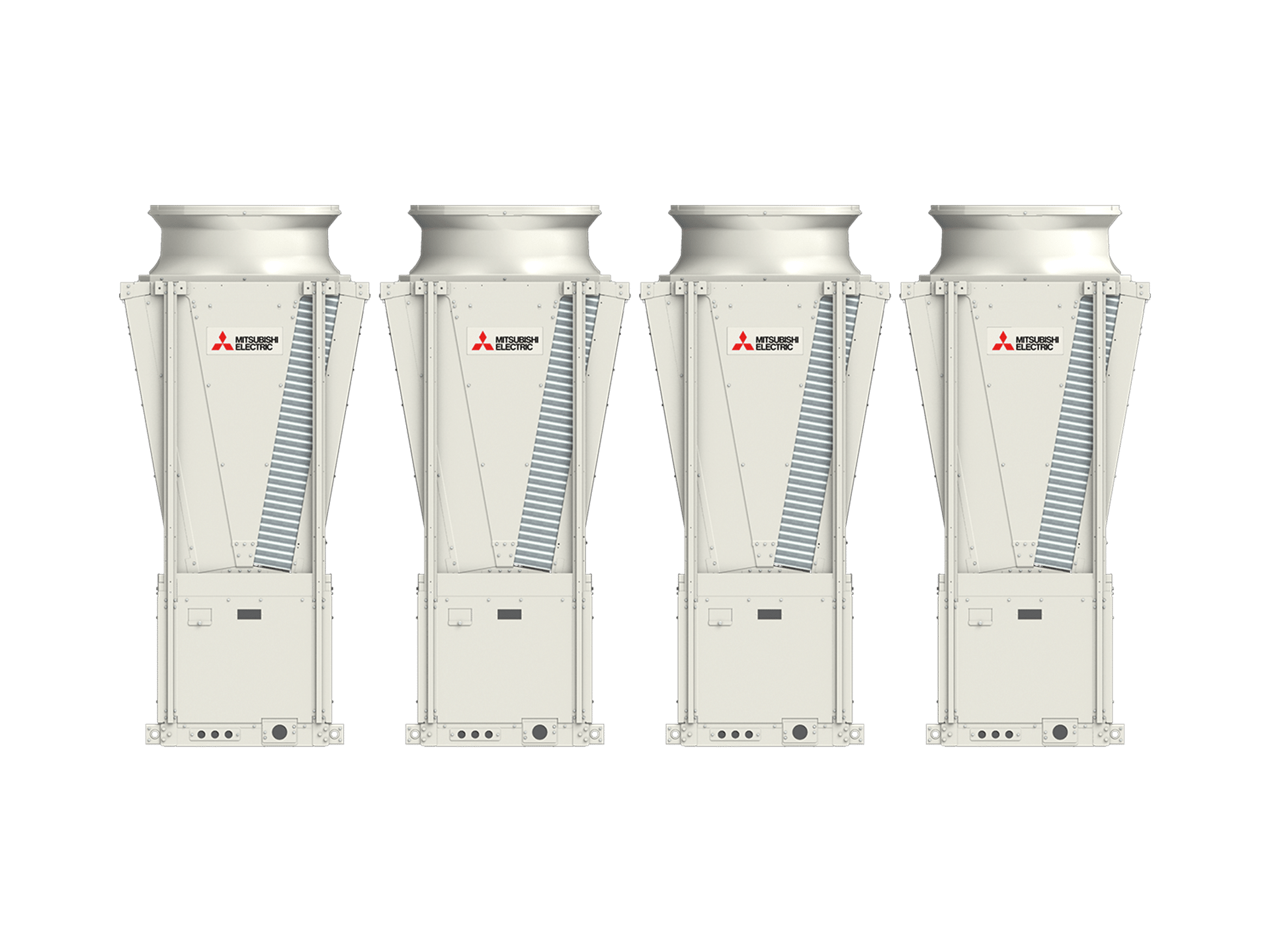

Unique Modular Approach

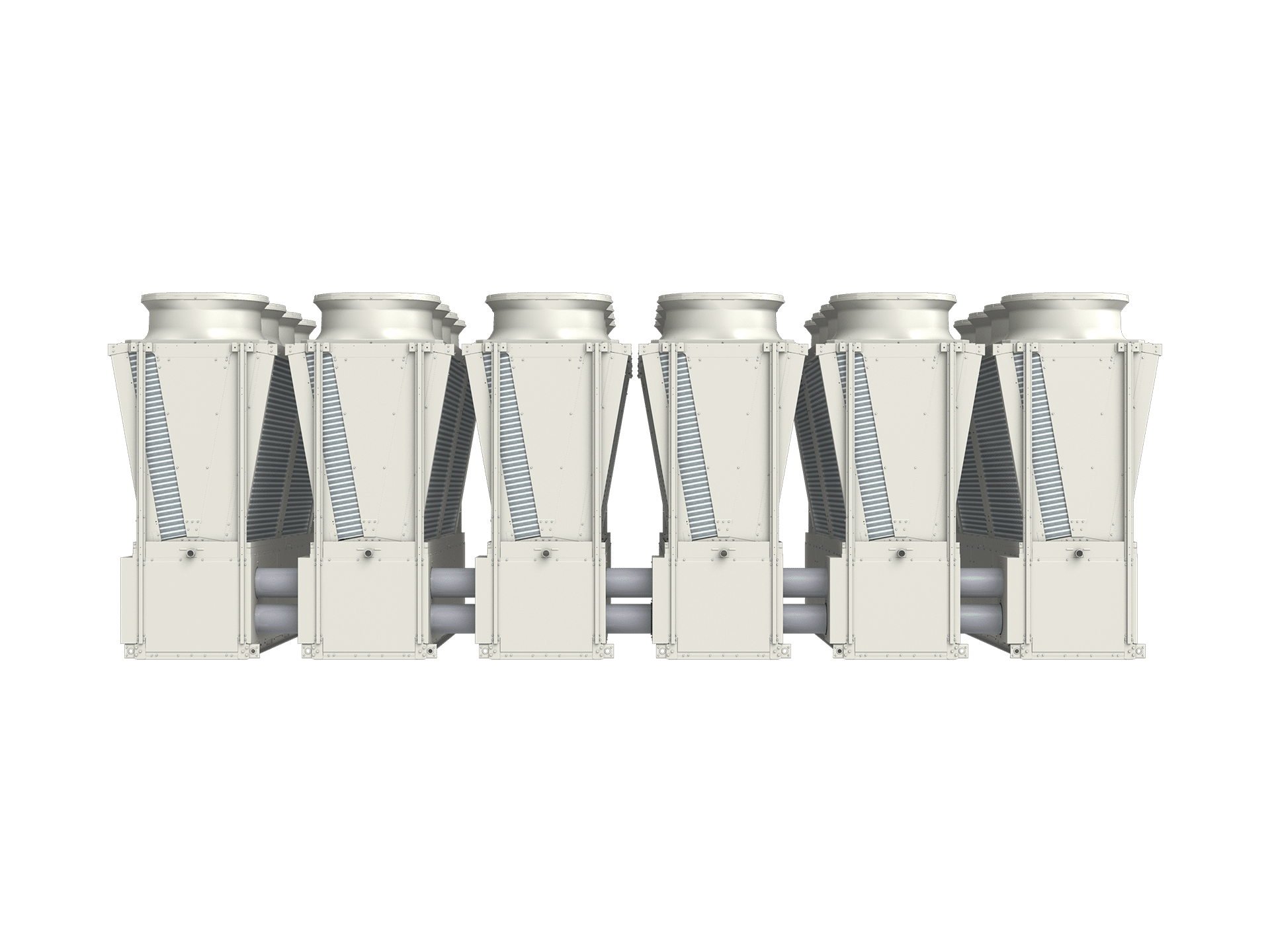

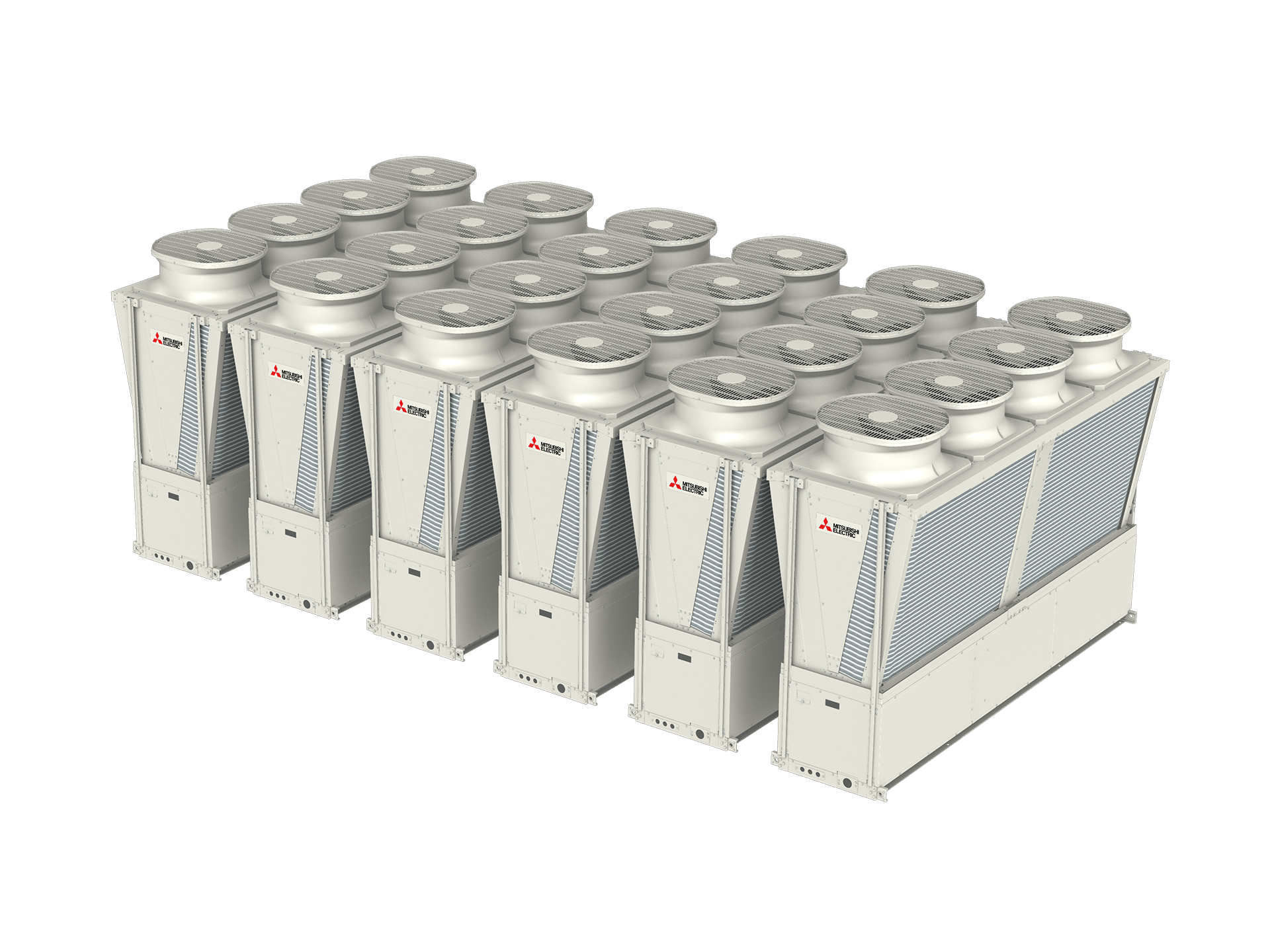

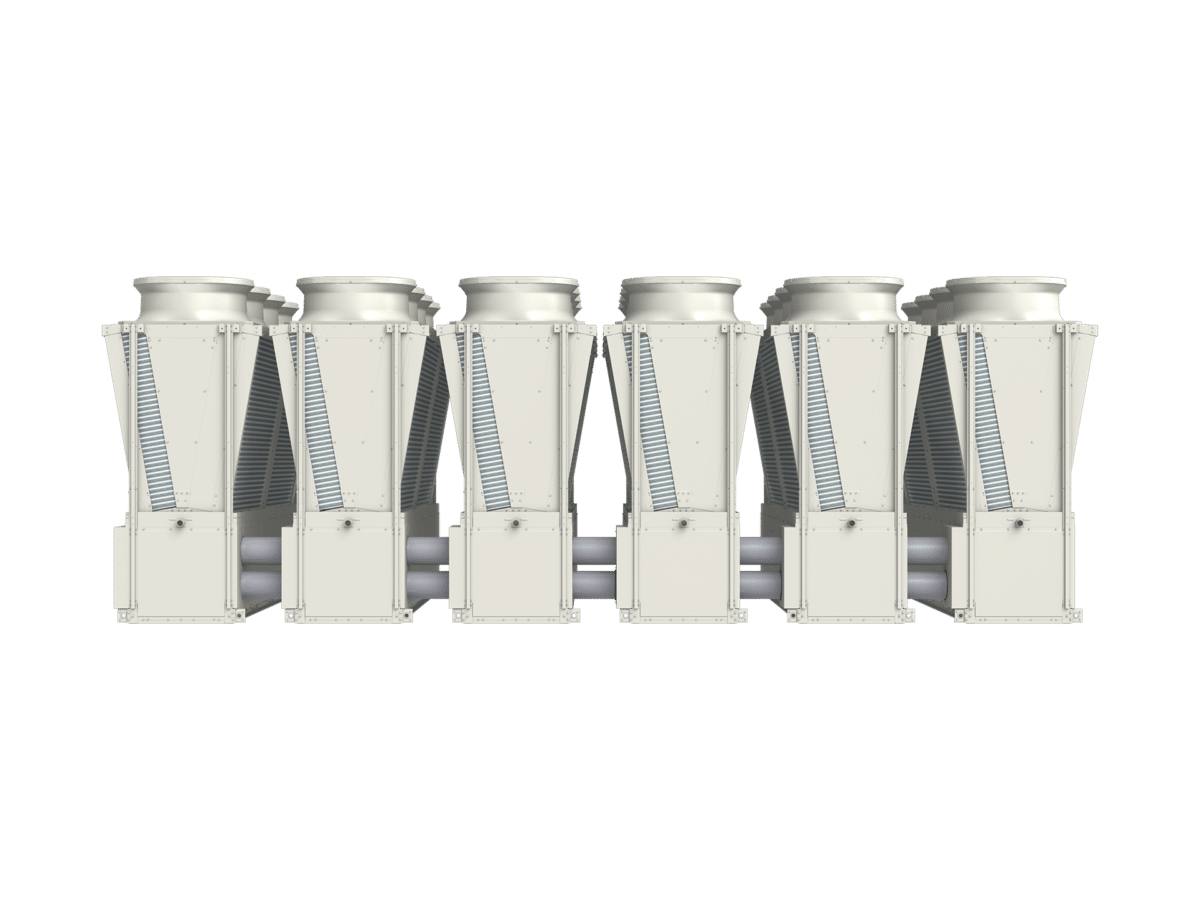

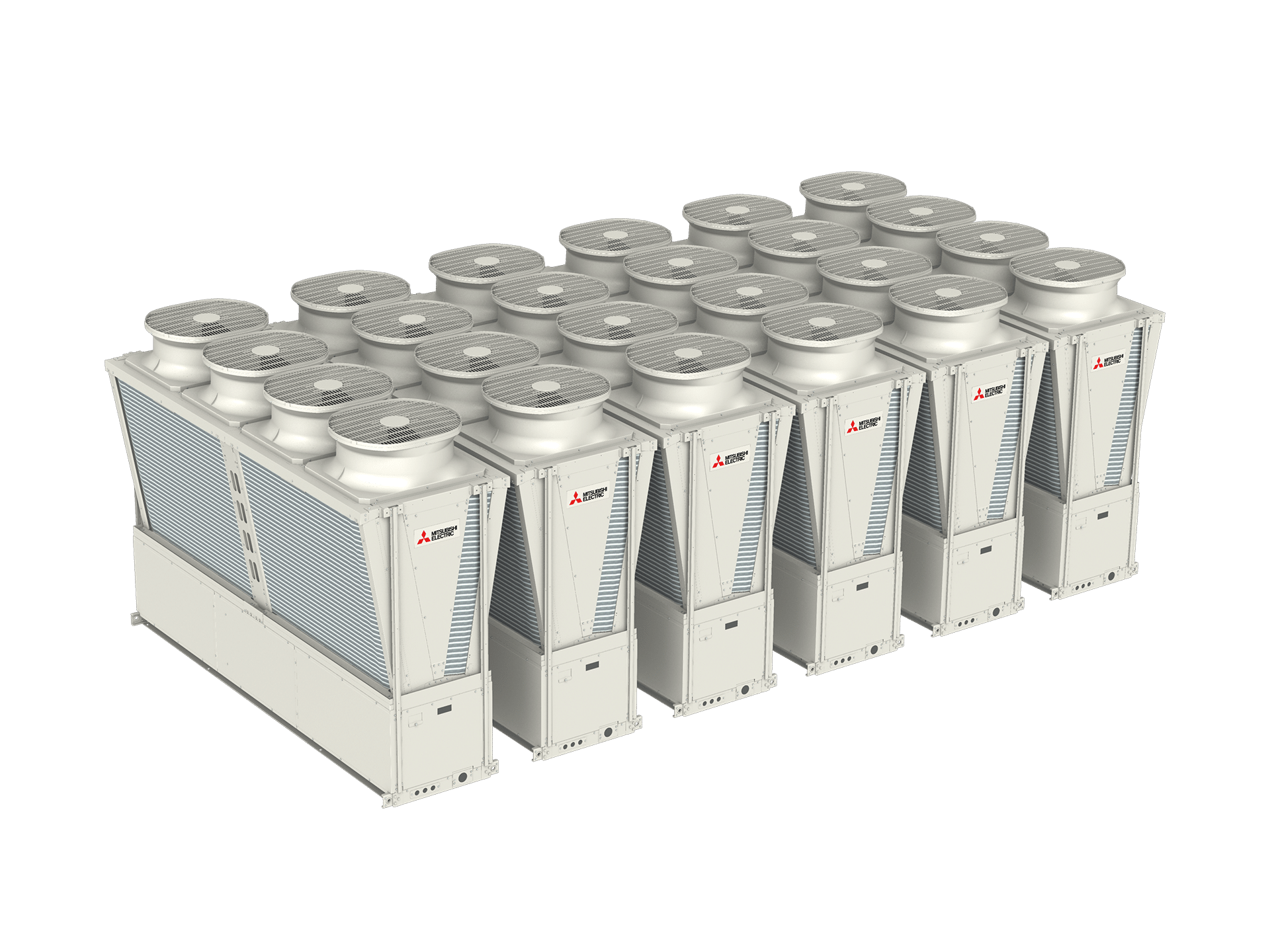

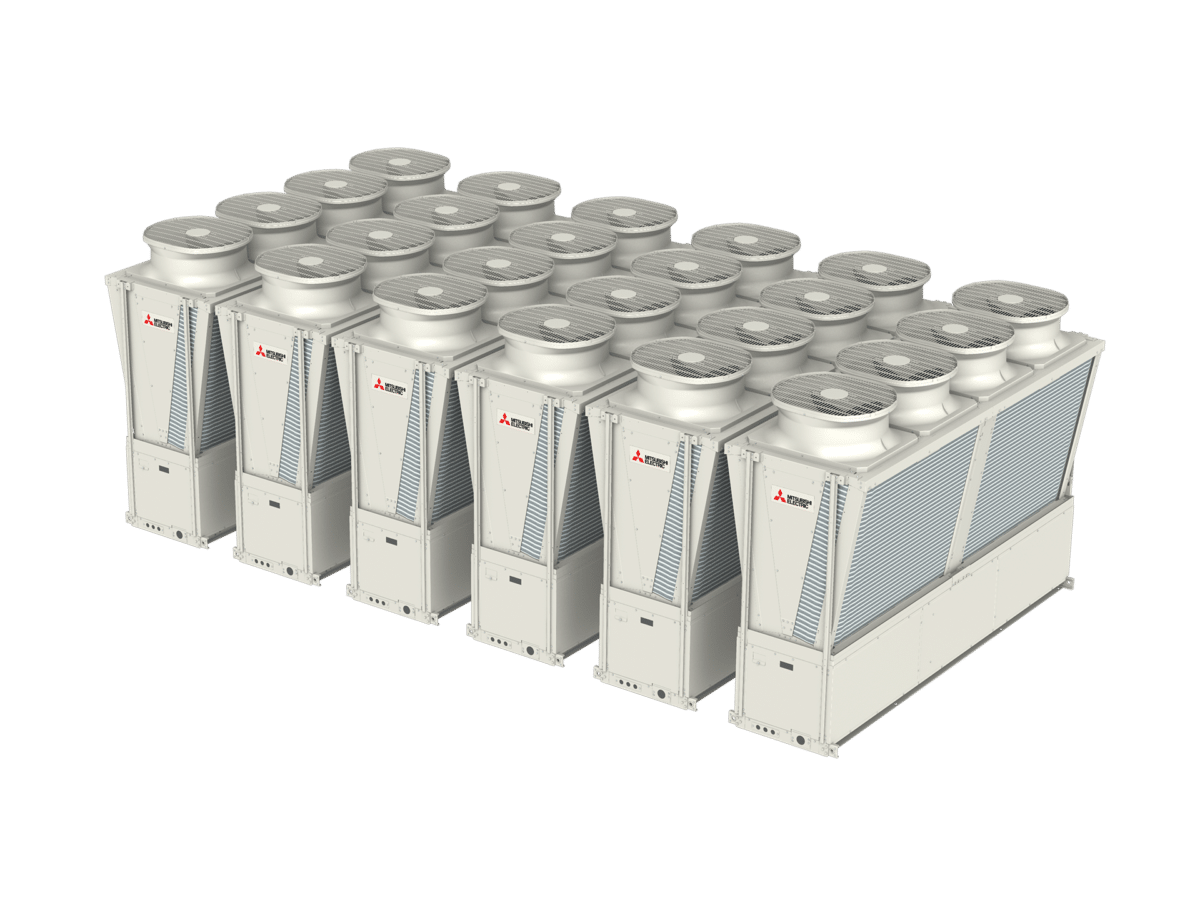

These modular heat pump units are equipped with an automatic Optimum Frequency Control function to achieve maximum efficiency based on the field load demand. This modular system also enables rotation operation and easy maintenance. Maximum capacity of 1080kW in a single group of 6-module combinations.

Compact Installation

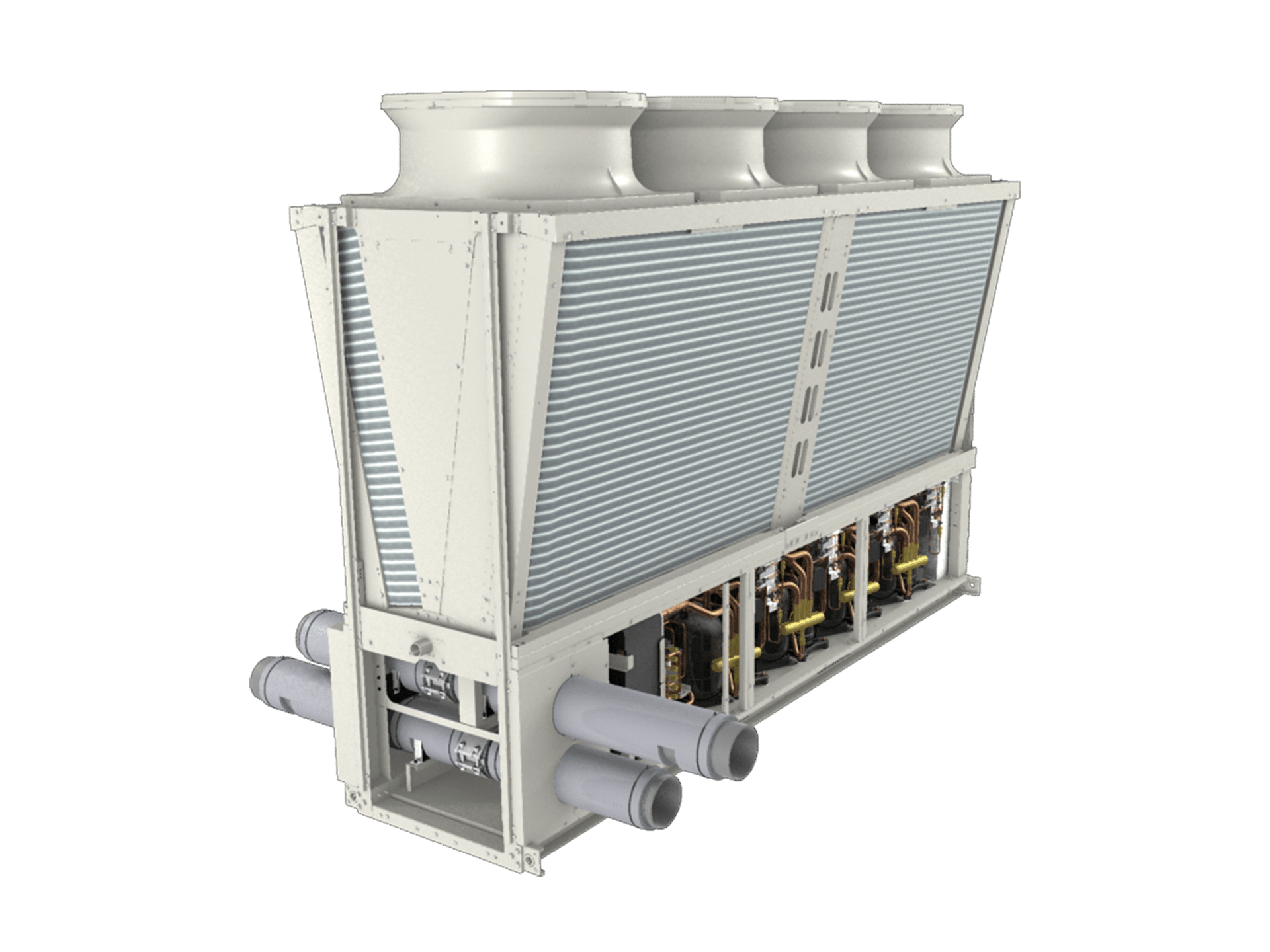

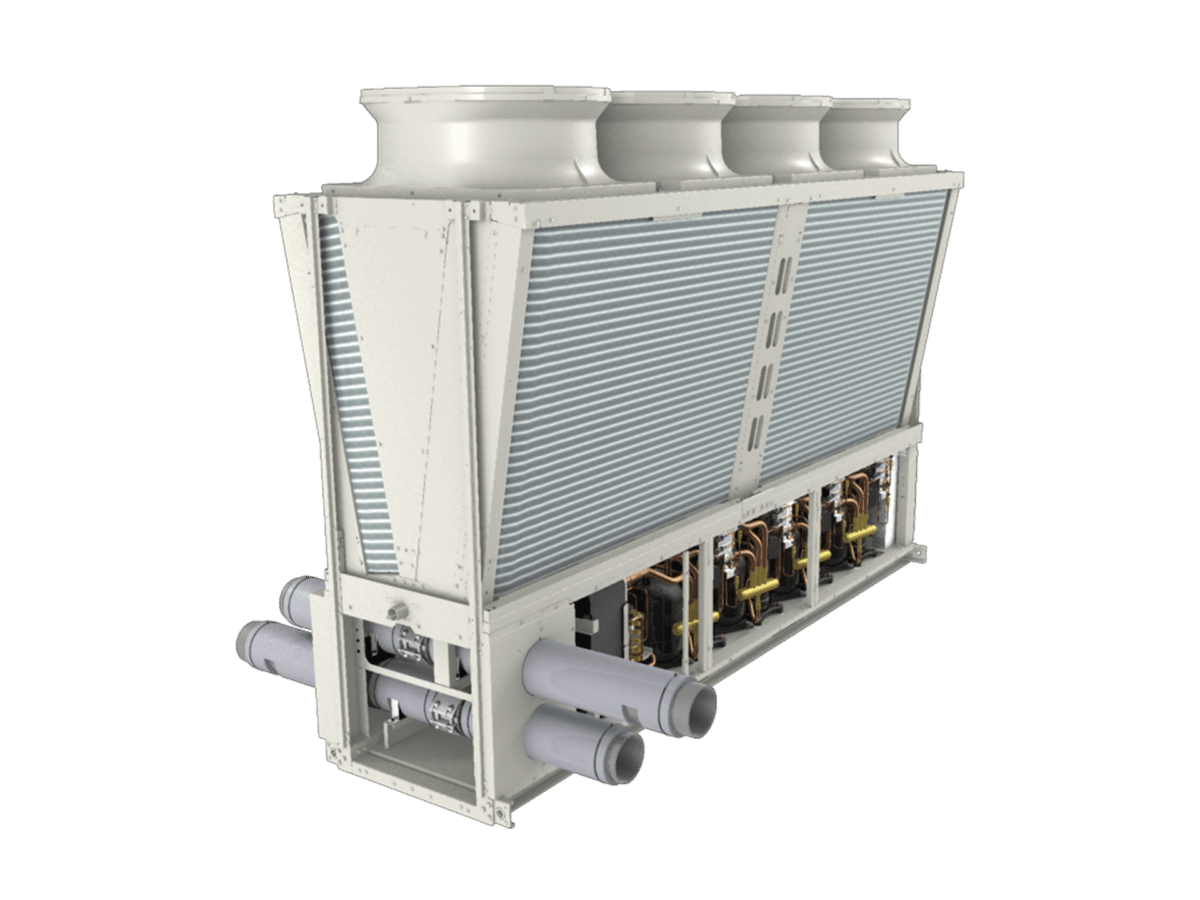

The heat pump’s small footprint and minimal installation space requirements make it suitable for compact plantrooms and refurbishment projects. Built-in header configuration is also available, and pipe connecting kits (EC-01HK and EC-02HK) can be supplied to fit within the unit’s structure for further space saving and simplification of installation.

Easy Control

YCL Modular Heat Pumps can be controlled using the local remote controller PAR-W31MAA or a centralised controller AE-200E. The system can connect to a central monitoring device via AE-200E using BACnet® and via MODBUS with a Procon BEMS Mini (A1M). The control method can be selected at each customer's request.
