Hot Water Systems

• Hot water up to 45°C
• Connects to CITY MULTI R2/WR2
• Underfloor heating water source

Mitsubishi Electric has designed Air to Water (ATW) Series utilising CITY MULTI heat pump and heat recovery technologies to provide hot water.

• Low GWP R454C refrigerant (GWP 148)
• Hot water up to 70°C
• 40 kW Rated Heating Capacity
• Extended ambient operating temperature from -25°C to 43°C
• Domestic hot water heating
• Hydronic space heating
• Underfloor heating

• Capacity Range: 50 – 110 kW
• Heating, cooling, and domestic hot water production
• Optimised for heating (hot water up to 65⁰C)
• Full-inverter technology (VSD compressors, EC Fans, EC Pump)
• High performance in partial load conditions
• Wide operating range

• Capacity Range: 7 – 40 kW
• Heating, cooling, and domestic hot water production
• Variable speed twin-rotary and scroll compressors
• Optimised for heating (up to 60⁰C HHW outlet)
• Full-inverter technology (VSD compressors, EC Fans, EC Pump)
• Packaged Unit (Plug & Play solution)

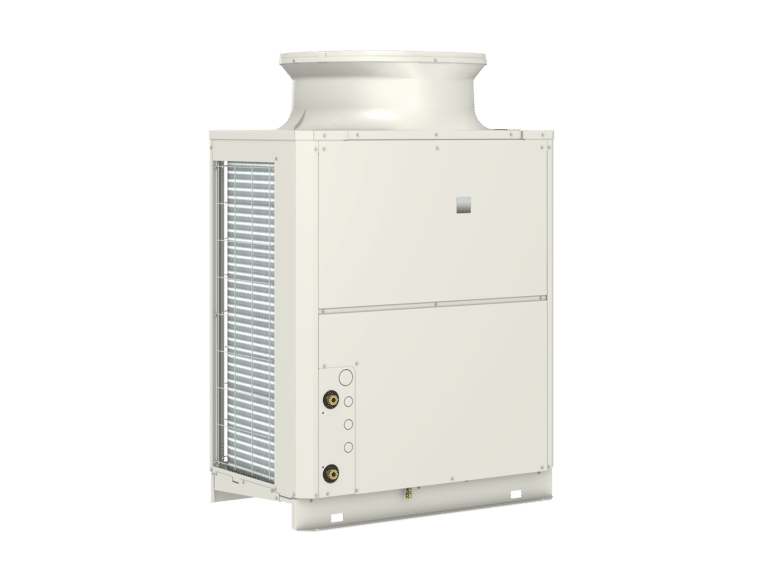

• Hot water up to 90°C
• 40 kW Rated Heating Capacity
• Uses natural refrigerant (CO2)
• High efficiency (COP 3.88)*
• Suitable for sanitary water heating
• Efficient heating

*Under normal heating conditions at outdoor temperature: 16°CDB/12°CWB, inlet water temperature 17°C. outlet water temperature 65°C.

• Hot water up to 70°C
• 45 kW Rated Heating Capacity
• Suitable for sanitary water heating
• Space heating source
• Underfloor heating source
• Community heating for residential developments

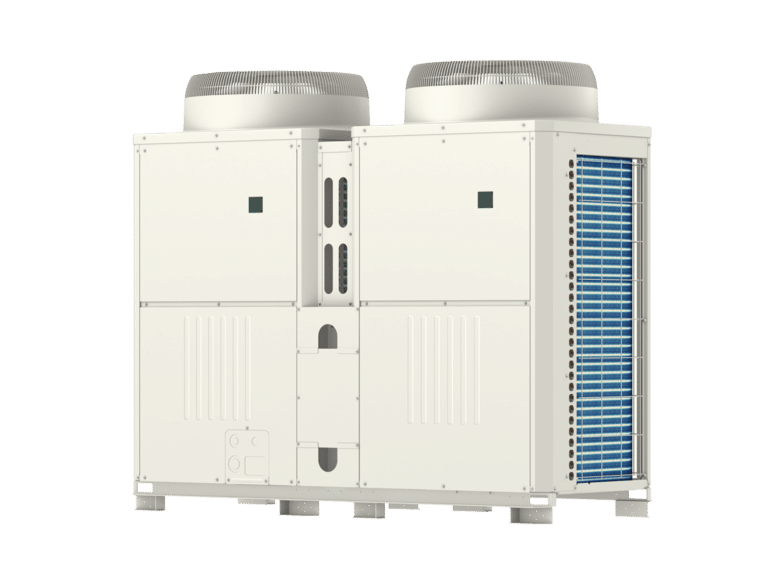

The CAHV air source hot water heat pump system can operate singularly, or form part of a multiple unit system. The CAHV also comes equipped with a wide range of controller features as standard.

• Hot water up to 70°C
• Connects to CITY MULTI WR2
• Suitable for sanitary water heating

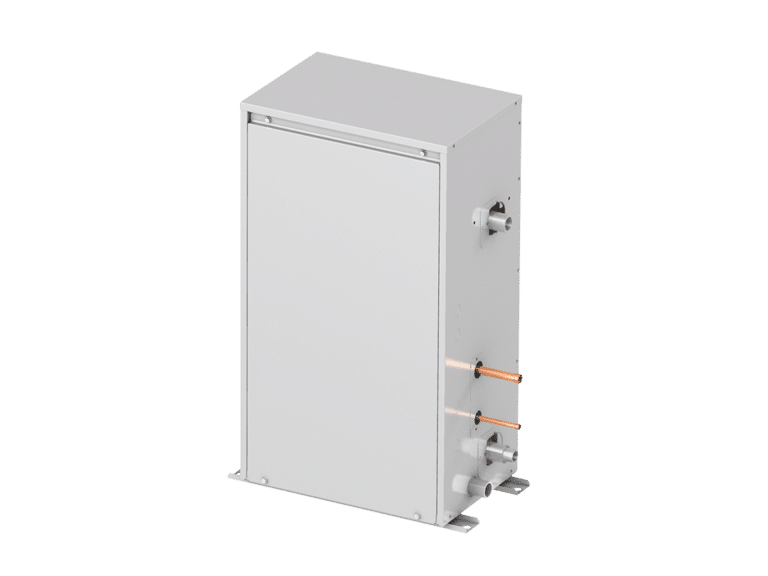

Mitsubishi Electric has designed Air to Water (ATW) Series utilising CITY MULTI heat recovery technology to provide hot water.
