Ducted Air Conditioning

Mitsubishi Electric offers you technology that is quiet, simple to use, energy efficient, and above all, reliable. Mitsubishi Electric ducted air conditioning is climate control at the touch of a button. It provides a central air conditioning solution to maintain total comfort throughout the whole home.

Need help choosing?

Find the best solution for your needs with our Product Selector

PEA-M-LAA Series

Ducted Air Conditioning

PEA-M-LAA Series

PEA-M180-250LAA

  • Capacity Range: 18 kW – 24.5 kW
  • High external static pressure up to 250 Pa
  • New 24.5 kW model with smaller dimensions
  • Flexibility in design
  • Whole home heating and cooling
  • 16 kW and 18 kW single-phase models available
Read More
PEA-M160HAA

Ducted Air Conditioning

PEA-M160HAA

PEA-M160HAA

  • Capacity: 16 kW
  • High external static pressure up to 150 Pa
  • 2 piece construction, ideal for home renovation
  • Whole home heating and cooling
  • Ideal for existing homes
  • Single phase or three phase power options
Read More
PEA-M-GAA Series

Ducted Air Conditioning

PEA-M-GAA Series

PEA-M100-140GAA

  • Capacity Range: 10.0 kW – 14.0 kW
  • High external static pressure up to 150 Pa
  • Flexibility in design
  • Quiet operation
  • Year round comfort
  • Optional Wi-Fi Control*
Read More
PEAD-M-JAAD Series

Ducted Air Conditioning

PEAD-M-JAAD Series

PEAD-M50-140JAAD

  • Capacity Range: 5.0 kW – 14.0 kW
  • External static pressure range 35-125 Pa
  • Low profile design
  • Built-in condensate pump
  • Wide selection of fan speeds
  • Wi-Fi Control*
Read More
PEA-M-HAA Series

Ducted Air Conditioning

PEA-M-HAA Series

PEA-M100-140HAA

  • Three capacities: 10.0, 12.5, 14.0 kW
  • High external static pressure up to 150 Pa
  • 2 piece construction, ideal for home renovation
  • Flexibility in design
  • Ideal for existing homes
  • 4 fan speed settings
Read More

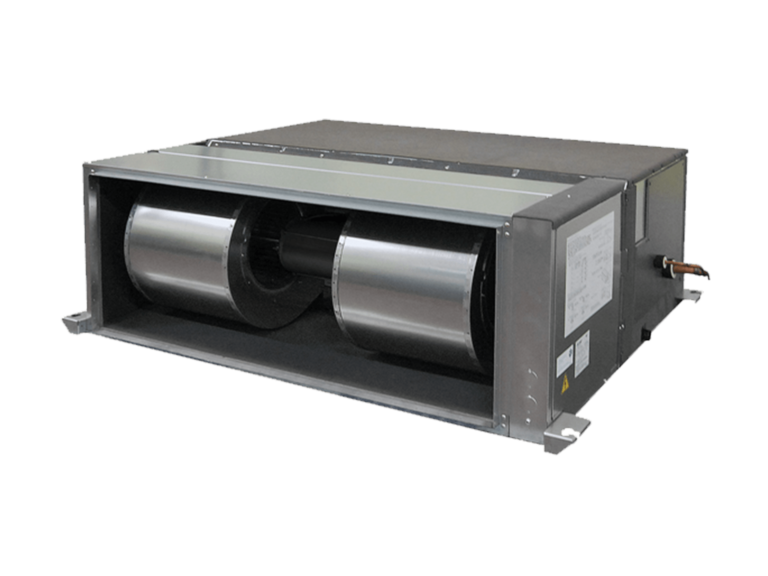

PEA-RP-WJA Series

This Product Has Been Discontinued

Ducted Air Conditioning

PEA-RP-WJA Series

PEA-RP170-200WJA

  • Capacity Range: 16.0 kW – 20.0 kW
  • High external static pressure
  • Flexibility in design
  • Single phase or three phase power options
  • Year round comfort
  • Optional Wi-Fi Control

This product is superceded by PEA-M-LAA Series.

Read More

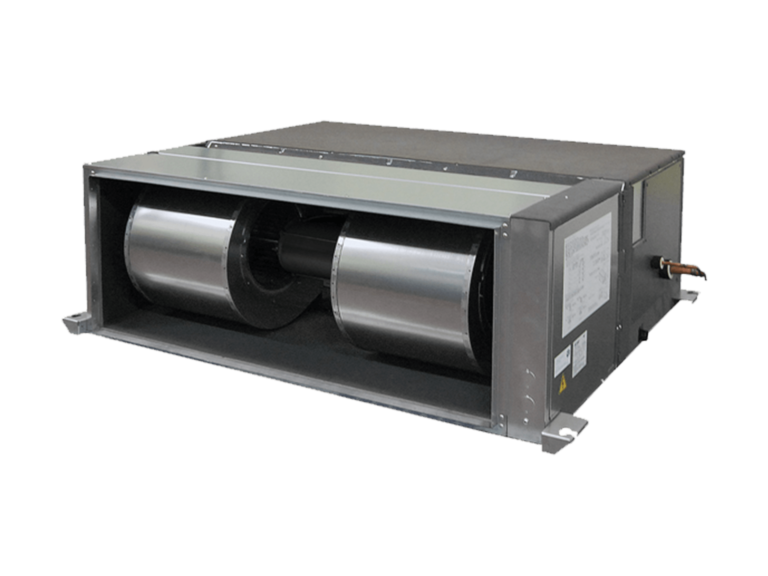

PEA-RP250WHA

This Product Has Been Discontinued

Ducted Air Conditioning

PEA-RP250WHA

PEA-RP250WHA

  • Capacity: 22 kW
  • High external static pressure
  • Flexibility in design
  • Three phase power supply
  • Year round comfort
  • Optional Wi-Fi Control

This product is superceded by PEA-M250LAA.

Read More

Ducted System Air Conditioning

Ducted system air conditioning is a highly efficient and effective solution for cooling and heating multiple rooms in your home. With the ability to provide centralised climate control, ducted air conditioning offers unparalleled comfort and convenience. At Mitsubishi Electric, we are experts in air conditioning, offering a wide range of ducted system units designed to meet the unique needs of your home.

Heating and Cooling for Multiple Rooms

When it comes to maintaining a comfortable indoor environment in multiple rooms, ducted system air conditioning is the ideal choice. This innovative solution allows you to cool or heat your entire home, providing consistent and even temperature distribution. By utilising a network of ducts concealed in the ceiling, conditioned air is delivered to each room through strategically placed vents. Whether you want to cool down during the scorching summer months or stay warm and cosy in winter, ducted air conditioners ensure a pleasant atmosphere throughout your home.

Ducted Air Conditioning Installation

The installation of ducted air conditioning systems requires professional expertise to ensure optimal performance and efficiency. Installation generally requires positioning the indoor unit in a central location, in the ceiling, and connecting it to a series of ducts that run to each room. The outdoor unit, which houses the compressor and condenser, is installed outside the home. It is crucial to have a qualified technician handle the installation to ensure proper duct sizing, tight connections, and efficient airflow.

Mitsubishi Electric: Experts in Air Conditioning

Mitsubishi Electric with nearly 50 years of experience in the industry in Australia, is a trusted leader in air conditioning. Our commitment to quality and innovation makes us the ideal choice for your ducted system air conditioning needs. We offer a comprehensive range of units designed to deliver exceptional comfort and energy efficiency throughout your entire house. Find a Mitsubishi Electric stockist near you and start enjoying premium heating and cooling in your home.

Explore our other ranges of residential air conditioners below.

  • Wall-mounted air conditioners: Known for their easy installation and maintenance, wall-mounted air conditioners are a popular choice. Available in various sizes, these units are well-suited to different types of homes and spaces.
  • Ceiling cassette air conditioners: These air conditioners are installed in the ceiling and feature a diffuser that ensures even distribution of cooled air throughout the room. They are an excellent choice for homes with high ceilings, delivering efficient cooling or heating.
  • Bulkhead air conditioners: Optimal for homes with limited space, bulkhead air conditioners are installed in the wall or ceiling. They come with a louvred door that enables even distribution of conditioned air, making them a practical solution for compact spaces.
  • Floor console air conditioners: These systems are positioned on the floor and deliver effective cooling or heating, making them ideal for spaces with restricted wall or ceiling areas.
  • Multi-head split system air conditioners: Designed for homes with multiple floors or rooms that require cooling or heating, multi-head split system air conditioners consist of a single outdoor unit and multiple indoor units. This configuration offers flexibility and efficient temperature control.

FREQUENTLY ASKED QUESTIONS

The key components of a ducted air conditioning system are an outdoor unit, an indoor unit that is typically installed inside the ceiling space, as well as Mitsubishi Electric controls, and a range of field supplied accessories, including air ducting to distribute air throughout your home.

All current Mitsubishi Electric ducted air conditioning units are compatible with the optional Mitsubishi Electric Wi-Fi control. Wi-Fi control requires the installation of an additional adaptor called MAC-568IF-E Wi-Fi Controller (available from your Mitsubishi Electric air conditioner installer).

Zoning is the ability to turn off a section of your ducted air conditioning system when not in use. The Mitsubishi Electric Zone Controller expands functionality, delivering conditioned air where you want it in the home/office. With the ability of creating up to 4 or 8 separate zones, why condition air in unoccupied areas?

Yes, the zone control is compatible with the Wi-Fi module.

Single-phase power is the standard method of power distribution for electrical power and lighting in residential applications at 240 Vac.

Three Phase power is generally used for large capacity air conditioning units at 415 Vac

When selecting an air conditioner please consult a specialist to ensure the correct power supply is available.

Ducted and bulkhead units are both ceiling mounted systems, but essentially a bulkhead system is designed to provide air conditioning to a single room whereas a ducted system provides air conditioning to multiple rooms.

Static Pressure is the amount of pressure an AC unit needs to overcome friction inside the ductwork. The longer the duct the more static you need. High Static ducted systems are suitable for larger houses or commercial spaces with greater amounts of ductwork. Medium Static ducted systems are used in smaller/medium sized homes that have a shorter duct requirement.

A heat-pump air conditioner provides both heating and cooling. This allows you to ensure comfortable temperatures in your home all year round.

EER stands for Energy Efficiency Ratio and represents an air conditioner’s cooling efficiency

COP stands for Co-efficient of performance and represents an air conditioner’s heating efficiency

R32 is a low GWP (global warming potential) Refrigerant. R32 enables increased energy efficiency compared to R410A, with just one third of the GWP, the risk of environmental harm is greatly reduced.

For an energy-efficient home during winter, ducted air conditioning can be a great choice. If you have multiple rooms or large open spaces to keep warm during winter, installing a ducted air conditioning system can have many benefits. While a wall-mounted split system or portable heater heats a single room, a ducted air conditioning system has the benefit of being hidden in the roof space with ductwork going to each room, which allows you to heat multiple areas in your home at once.



A ducted system can save on installation space outside by using a single outdoor unit, reducing the area required compared to installing multiple split systems. And inside, a ducted unit is discreet and out of the way, as the ductwork runs through the roof space to each room and does not use valuable wall or floor space, which also makes it a very quiet and unobtrusive form of heating.

Read more about using an air conditioner for heating in our blog post Is ducted aircon a good choice for winter heat?

Ducted air conditioning operates by drawing air from the home through a return air grille, passing it over a refrigerant coil in the indoor unit, and then distributing the cooled (or heated) air through a network of ducts. The ducts are strategically placed in the ceiling, delivering the air to each room through vents or diffusers.

Ducted systems have an outdoor unit that houses the compressor and condenser. This outdoor unit is responsible for releasing the heat extracted from the indoor air during the cooling process. The outdoor unit is positioned outside the home, in a ventilated position, ensuring efficient operation and minimising noise inside the home.

The installation of a ducted air conditioning system involves positioning the indoor unit in a central location, inside the ceiling, and connecting it to a network of ducts that distribute the cooled. or heated air throughout the home. The outdoor unit is installed outside the home, in a ventilated position with interconnecting refrigerant pipes and electrical wiring to the ducted indoor unit. Professional installation is essential to ensure proper sizing, sealing, and insulation of the ductwork, as well as the correct placement of the indoor and outdoor units.

For new home builds, your installer may install the indoor unit, ductwork, refrigerant piping and electrical work before the gyprock is installed. The outdoor unit can be installed and connected at a later stage. Speak to your installer about this process.

The installer must have the appropriate Refrigerant Handling Licence (RHL) to install a ducted air conditioner.

Your nearest Mitsubishi Electric Specialist Dealer has the required RHL and can provide you with advice and a quote for installation of a ducted air conditioner.

Ducted air conditioning systems offer precise and customisable temperature controls. With optional zoning capabilities, you can turn different rooms or zones in your home on or off. This level of control ensures that you can achieve the desired heating or cooling in specific areas of your home without wasting energy on unoccupied spaces.

The addition of optional temperature sensors can improve temperature monitoring which assists in maintaining comfort in the home.

A Mitsubishi Electric ducted air conditioner can be purchased from authorised dealers across Australia. Our authorised dealers can provide expert advice to ensure you get the best ducted system air conditioning solution for your home. Request a quote today.
