Lossnay Ventilation

Lossnay ventilation system  comprises of an outside air supply fan, an exhaust air fan and a heat exchanger  There are two separate airflows inside the unit to supply outside air and extract stale air. They are both passed through a heat exchanger to retain the heat energy from the extracted air and transfer it to the incoming outside air.

Unlike traditional ventilation systems, Lossnay ventilation combines advanced heat exchanger with mechanical ventilation system. It supplies fresh air effectively while recovering heat energy from the extracted stale air, offering superior indoor air quality and energy efficiency.

Mitsubishi Electric Lossnay ventilation systems can be seamlessly integrated with Mitsubishi Electric ducted systems, providing a comprehensive solution for indoor air quality and climate control.

Mitsubishi Electric offers a range of Lossnay ventilation models, each designed to cater to specific ventilation needs and space requirements. The choice of the Mitsubishi Electric Lossnay ventilation model depends on the size of your space, your ventilation requirements, and any specific features you prioritise.

Whether you need a compact and straightforward solution, a model with enhanced heat recovery, or one that provides exhaust ventilation from bathrooms, kitchens, toilets or the laundry, our Lossnay ventilation lineup offers versatile options to suit your indoor air quality and ventilation needs.

Explore the specifications and features of each model below.

Sensible Core Lossnay Heat Exchanger—VL-220CZGV-E

• Sensible core (water-resistant paper) heat exchanger
• Compact ceiling concealed design suitable for domestic applications
• Quiet operation (14 dBA)
• Wired controller options: PZ-61DR-E or PZ-43SMF-EStandard G3 filter with optional medium efficiency G4 and high efficiency M6 filters
• Optional bypass damper for free cooling
• Air flow rate up to 64 L/s (high fan speed)

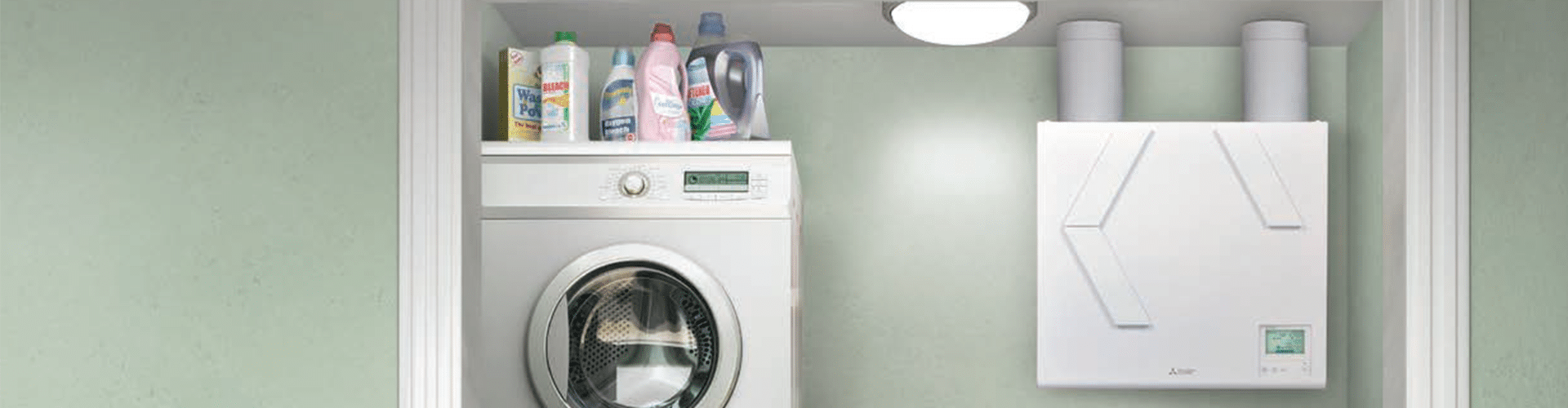

Sensible Core, Vertical Lossnay—VL-250-500CZPVU

• Sensible core (plastic) heat exchangerCompact vertical designwith flexible configurations
• Quiet operation (15 dBA)
• Built-in LCD controller for user friendly control interfaceStandard G3 filter with optional medium efficiency G4, high efficiency M6 and NOx filters
• Built-in automatic bypass mode and settable parameters
• Input and output terminals including fan boost function with time delay and overrun timer
• Compatible with Wi-Fi Controller for remote monitoring and control(require optional MAC-588IF-E)
• Air flow range from 69 to 139 L/s

Sensible Core Lossnay Heat Exchanger—LGH-50-100RVS-E:

• Sensible core (plastic) heat exchangerCeiling concealed design
• Wired controller with LCD display PZ-62DR-E
• Standard G3 filter with optional high efficiency M6 and F8 filters
• Built-in automatic bypass mode and settable parameters
• Flexible control interlock including Mr Slim, VRF and M-Net central controllerAir flow range from 139 to 278 L/s

Mitsubishi Electric’s Lossnay ventilation systems are available through our extensive network of authorised dealers and retailers across Australia. You can explore our range of ventilation solutions at specialised air conditioning stores. Find a stockist near you or request a quote online today.
