Whole Home Air Conditioner

PEA-M-LAA Series

PEA-M180-250LAA

  • Capacity Range: 18 kW – 24.5 kW
  • High external static pressure up to 250 Pa
  • New 24.5 kW model with smaller dimensions
  • Flexibility in design
  • Whole home heating and cooling
  • 16 kW and 18 kW single-phase models available

Mitsubishi Electric introduces the NEW Mr Slim large capacity ducted units in R32 refrigerant. 18 kW indoor models can be connected to a single or three-phase Mr Slim outdoor unit, making the 18 kW model one of the largest ducted units available in the market with a single-phase power supply. The Mr Slim outdoor unit PUZ-ZM250YKA-A is now  a side discharge model with twin fans, compared to the previous PUHZ-RP250YKM-A top discharge model. The new model is only 1,338 mm high and 139 kg, making it possible to install the outdoor unit in discrete locations and easier to transport to sites.

The new PEA-M-LAA Series is designed to suit Australian homes with guaranteed cooling performance at higher ambient temperatures and heating performances at low ambient conditions. It complements the aesthetically designed house with concealed installation, a wide range of capacities and airflows to best suit the comfort conditions.

Experience comfort throughout your entire home or office

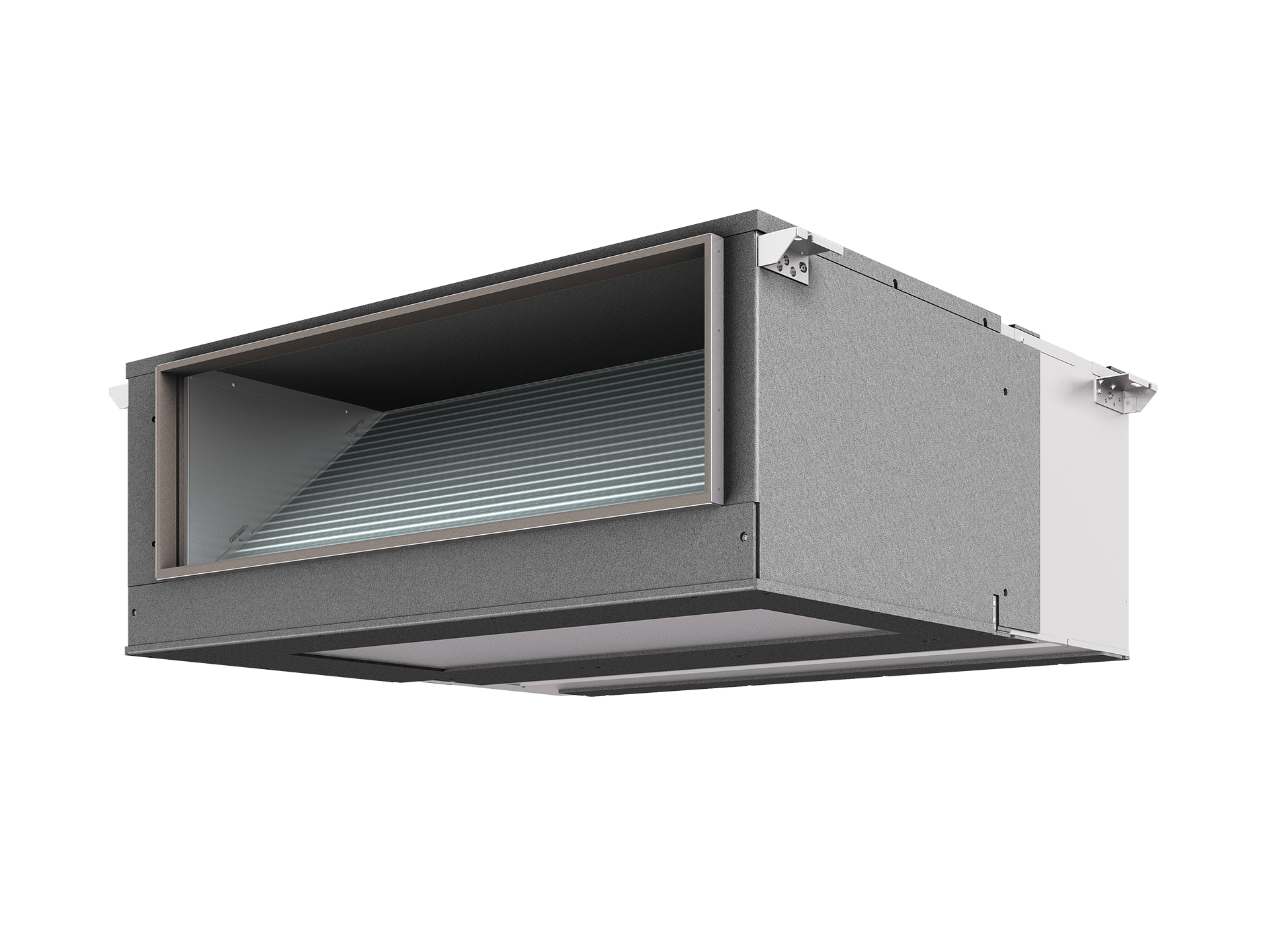

PEA-M-LAA large capacity ducted air conditioner.

Large capacity ducted in single or three-phase

Get ready for a breath of fresh, powerful air! Mitsubishi Electric introduces the NEW Mr. Slim ducted units, with their large capacity up to 24.5 kW. The 18 kW model connects to either single or three-phase Mr. Slim outdoor units, making it one of the largest capacity single-phase models on the market. Saving you from hiring a Level 2 electrician for a potentially expensive power upgrade. The new PEA-M Series are designed to suit Australian homes with guaranteed cooling performance at higher ambient temperatures and heating performances at low ambient conditions.

Wi-Fi Control for smart air conditioner automation

Enjoy ultimate control right from your phone

After a long day, there’s nothing better than coming back to a comfortable home. The Mitsubishi Electric PEA-M-LAA series ducted air conditioning unit is ideal for just that, with optional Wi-Fi control that’s perfect for the whole family or workplace. Smart home integration means you can control your air con the way that works for you, using your smartphone, Google Assistant or Amazon Alexa devices. Turn specific zones on or off (requires optional zone controller), control your desired temperature or adjust your settings and schedules from anywhere in the world.

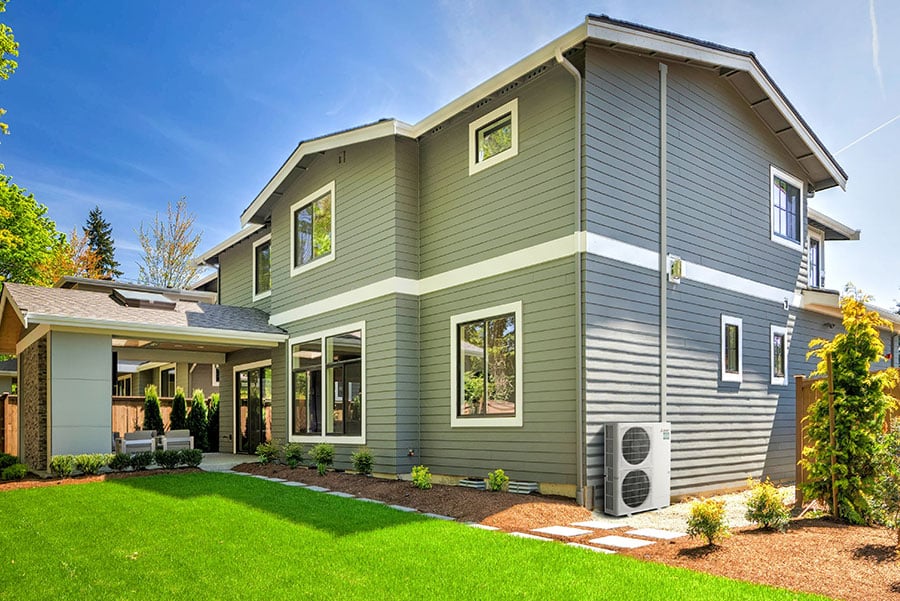

Enjoy whole home comfort with Mitsubishi Electric air conditioner

Enjoy a whole home air conditioning solution

Mitsubishi Electric ducted air conditioning is climate control at the touch of a button. A whole home air conditioning solution suitable for most existing or new homes. Ducted air conditioning system is an effective and convenient solution, with unobtrusive installation in the ceiling cavity or bulkhead space. The addition of an optional zone controller can allow this whole home application be connected to up to 8 zones to distribute air where it is needed, whilst being hidden from view with subtle diffusers or grilles. Ducted air conditioning allows cool or warm air to flow throughout the home.

*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Large capacity single-phase power supply_PEA-M-LAA

Large capacity single-phase power supply

Mitsubishi Electric introduces the NEW Mr Slim large capacity ducted units in R32 refrigerant. The 18 kW indoor model can be connected to a single or three-phase Mr Slim outdoor unit, making the 18 kW model one of the largest ducted units available in the market with a single-phase power supply.

New side discharge outdoor unit

New side discharge outdoor unit

The Mr Slim outdoor unit PUZ-ZM250YKA-A is now a side discharge model with twin fans, compared to the previous PUHZ-RP250YKM-A top discharge. The new model is only 1,338 mm high and 139 kg, making it possible to install the outdoor unit in discrete locations and easier to transport to sites.

Long pipe lengths

Long pipe lengths

The Mr Slim outdoor units feature power inverter technology with superior turndown capacity and long piping lengths up to 100m for PUZ-ZM200/250YKA-A. For installations with a pipe length of 50m or less, it is possible to use 7/8” soft-drawn copper pipe for Mr Slim outdoor units PUZ-ZM200/250YKA-A. These two models do not require additional refrigerant charge when the installed pipe length is 50m or less and helps reduce installation cost and time.

Low input with new fan design

Low input with new fan design

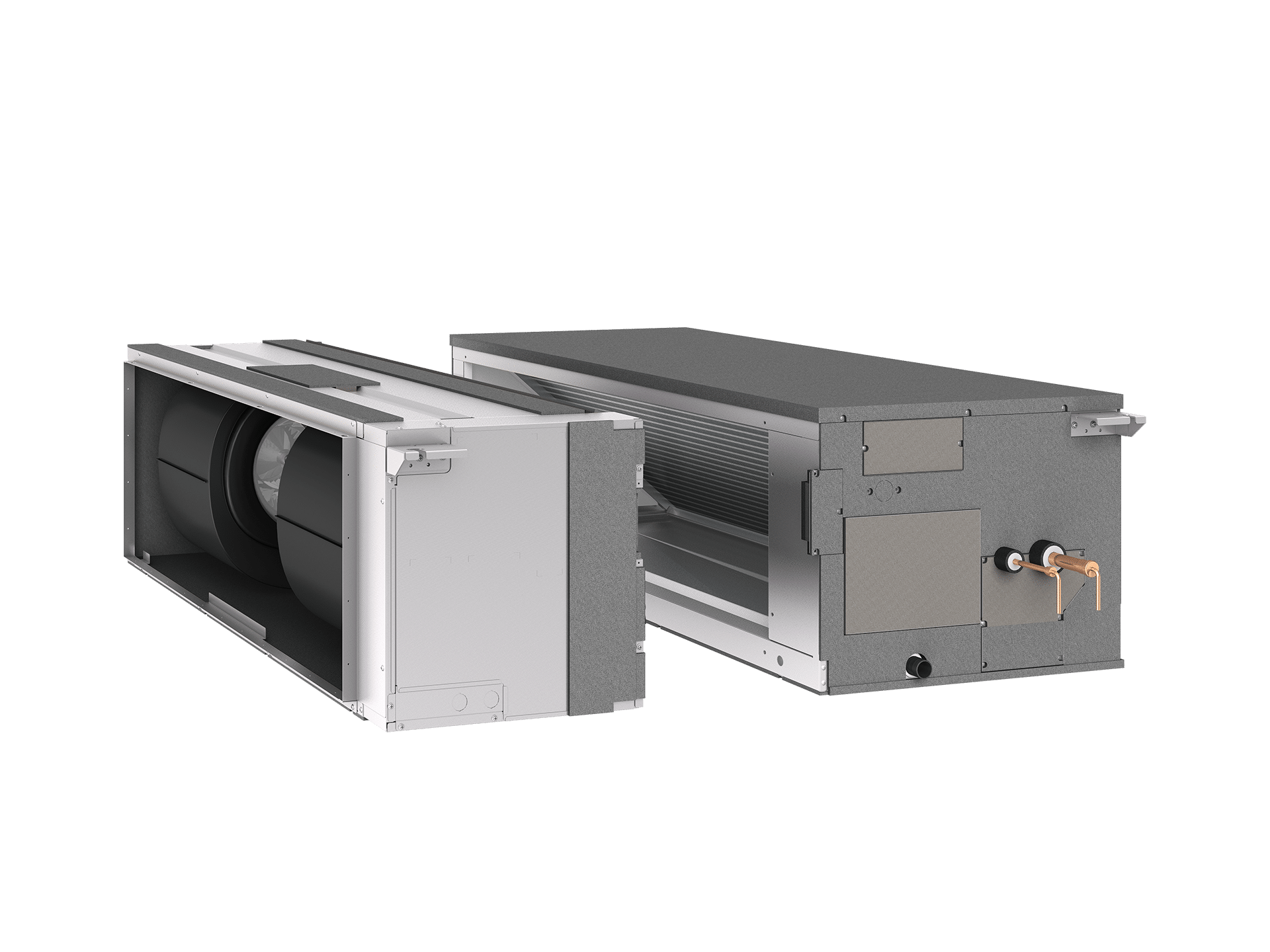

The PEA-M LAA Series fan motor has been upgraded with a maximum external static pressure of up to 250 Pa and has four fan speed settings. We can achieve this with a newly designed patented Turbo In Sirocco fan that delivers high efficiency with lower power input.

Flexible ducting design

Flexible ducting design

With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

Wi-Fi Control

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Optional zone controller

Optional zone controller

Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

High external static pressure_PEA-M-LAA

High external static pressure

The PEA-M-LAA ducted air con series incorporates five-stage external static pressure conversions and four fan speed selections, offering the ultimate in comfort solutions. These units are designed for human comfort and to be installed in a wide range of building types with broad static pressure requirements ranging from 75 to 250Pa. *Application dependent on site conditions.

R32 refrigerant

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation

Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation

Mitsubishi Electric ducted air conditioning system can be integrated with optional Lossnay heat recovery ventilation to improve indoor air quality and energy efficiency. The Lossnay system provides tempered fresh air into your home by recovering the heat from the stale air from inside. Both systems can be controlled from one controller.

Reverse cycle heating

Reverse cycle heating

Activate the heating mode to provide a warm and cosy space. Reverse cycle air conditioning can be a relatively efficient and economical way of heating and cooling compared to gas and electric space heaters. Mitsubishi Electric air conditioners are a quiet and clean source of heating for your home.

Full Inverter

Full Inverter

The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.

Other Features

  • R32 refrigerant
  • Year round comfort
  • Optional Wi-Fi Control
  • Optional Zone Control
Indoor unit PEA-M180LAA PEA-M180LAA PEA-M200LAA PEA-M250LAA
Outdoor unit PUZ-ZM180VKA PUZ-ZM180YKA PUZ-ZM200YKA PUZ-ZM250YKA
Refrigerant R32 R32 R32 R32
Cooling Capacity (Min-Rated*1-Max) kW 4.9-18.0-20.0 4.9-18.0-20.0 4.9-20.0-22.4 6.3-24.5-24.5
Air Volume (In) Lo-Mid-Mid2-Hi L/S 600-833-1017-1200 600-833-1017-1200 600-833-1017-1200 700-967-1200-1400
Total Input (Rated)*1 kW 5.92 5.92 6.40 8.00
Heating Capacity (Min-Rated*1-Max) kW 5.4-20.0-22.4 5.4-20.0-22.4 5.7-22.4-25.0 7.9-28.0-29.0
Air Volume (In) Lo-Mid-Mid2-Hi L/S 600-833-1017-1200 600-833-1017-1200 600-833-1017-1200 700-967-1200-1400
Total Input (Rated)*1 kW 5.10 5.10 5.90 7.50
 Indoor unit Dimensions (HxWxD) mm 470x1370x1120 470x1370x1120 470x1370x1120 470x1370x1120
Weight kg 88 88 88 88
Outdoor unit Dimensions (HxWxD) mm 1338×1050×330(+40) 1338×1050×330(+40) 1338×1050×330(+40) 1338×1050×330(+40)
Weight kg 115 116 136 139
System Name PEAM180LAAVKIT PEAM180LAAYKIT PEAM200YKIT PEAM250YKIT

*1 The rated capacity, total input power and running current are determined under conditions T1 (cooling) and H1 (heating) of AS/NZS 3823.1.2
Cooling: Indoor 27°CDB/19°CWB, Outdoor 35°CDB/24°CWB
Heating: Indoor 20°CDB/15°CWB, Outdoor 7°CDB/6°CWB
