Whole Home Air Conditioner
PEAD-M50-140JAAD
The PEAD series is a slim and discrete climate control option with a height of just 250 mm. This makes ducted air conditioning installation possible even in homes with low ceilings and minimal ceiling installation space.
Quality, reliability and comfort
If you’ve ever considered ducted air conditioning but are concerned your home’s design may not be able to accommodate it, then the PEAD series could be the perfect solution. The PEAD series is a slim, discreet climate control option with a height of just 250 mm. This makes ducted air conditioning installation possible even in homes with low ceilings and minimal ceiling installation space.
In addition to its conveniently lean design, the PEAD series also provides variable airflow settings that further enhance the unit’s versatility. No matter the layout of your home, a PEAD ducted air conditioner can ensure optimal performance and even airflow distribution throughout the entire house. Five-stage external static pressure conversions ranging from 35 to 125 Pa and three fan speeds provide flexibility in designing ductwork to suit a wide range of building types with varying static pressure requirements. All of this means the PEAD series can deliver comfort to where you need it.
For simple and easy maintenance, the PEAD ducted system series comes with a long life filter that can be easily removed for cleaning when needed. This series of air conditioners also feature a drainage pump installed as standard, meaning it’s one less component you need to buy. The drain pump lift water up to 700 mm from the lower surface of the indoor unit’s main body. When it comes to ducted air conditioning units, the purpose of the pump is to help channel away the condensation water that forms during the cooling process to avoid pooling, leakage and water damage. You can rest assured knowing that any condensation water that forms will be efficiently and quickly drained by the powerful drainage pump.
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.

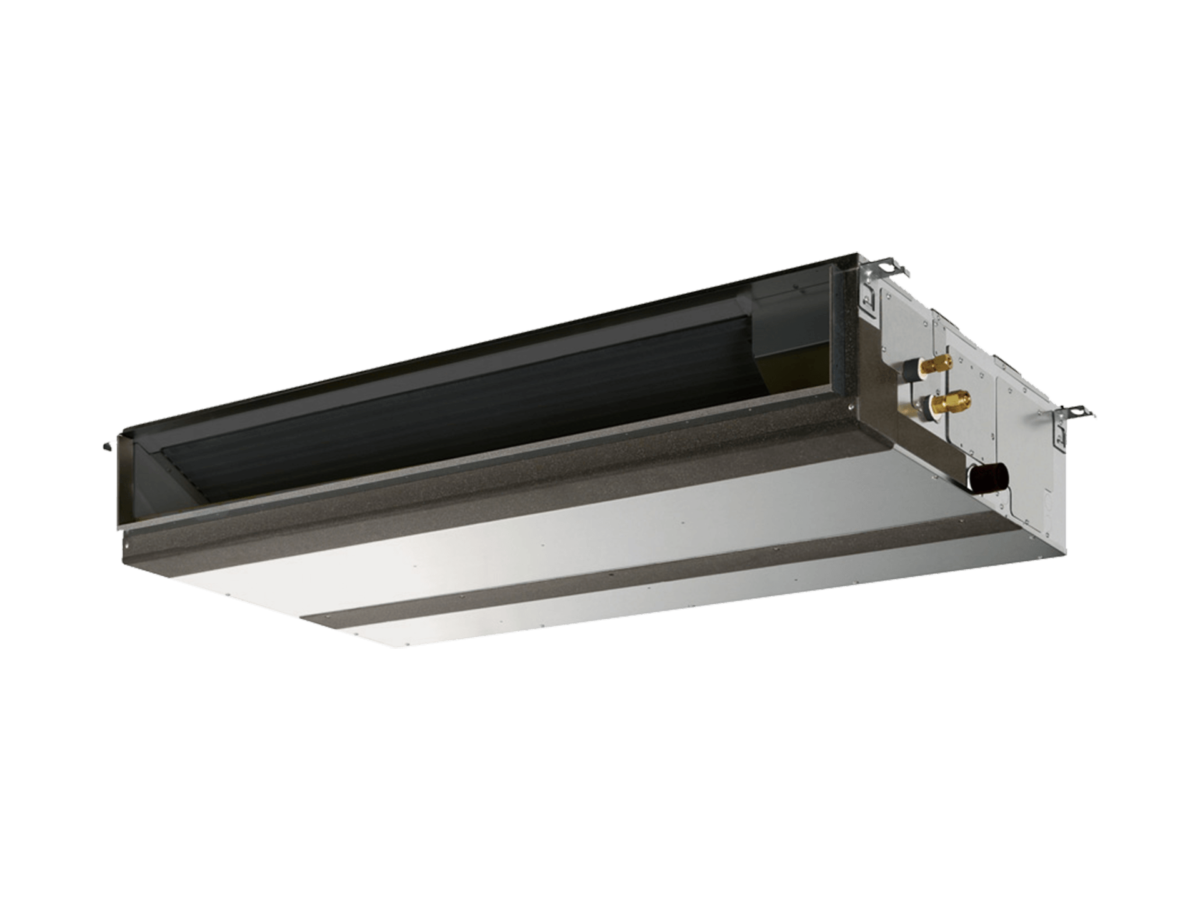

The height of the PEAD Series (5.0kW-14.0kW) has been unified to 250mm making installation possible in low ceilings with minimal clearance space. It has variable airflow settings to establish the best operation to match different room layouts. The drainage pump lift is 700mm from the lower surface of the indoor unit’s main body.
The PEAD Series has five-stage external static pressure conversions and three fan speed options, giving you flexibility in comfort options. PEAD Series is designed with human comfort in mind and can be installed in a wide range of building types with broad static pressure requirements ranging from 35 to 125Pa. *Application dependent on installation conditions.
A long life filter supplied as standard and is removable for cleaning.
A flexible duct design and increased variation in airflow options allow operation that best matches room layouts.
Unlock the door to smarter heating and cooling, for total home comfort. View and control your air conditioner from anywhere in the world, set up schedules and get true two-way feedback.
* Account, Internet Connection, and Wi-Fi Adapter add-on required

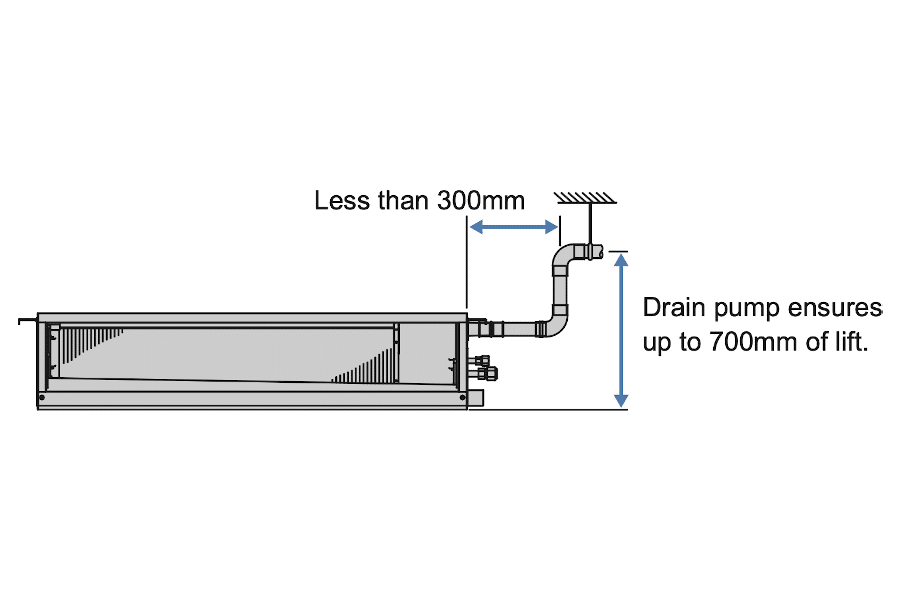

The built-in drain pump means one less component is required for installation. Refer to the installation manual for an explanation.
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.
| Indoor unit | PEAD-M50JAA(D) | PEAD-M60JAA(D) | PEAD-M71JAA(D) | PEAD-M71JAA(D) | PEAD-M100JAA(D) | PEAD-M125JAA(D) | PEAD-M140JAA(D) | PEAD-M100JAAD | PEAD-M100JAAD | PEAD-M125JAAD | PEAD-M125JAAD | PEAD-M140JAAD | PEAD-M140JAAD | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Outdoor unit | SUZ-M50VAD-A | SUZ-M60VAD-A | SUZ-M71VAD-A | PUZ-ZM71VHA-A | PUZ-M100VKA | PUZ-M125VKA | PUZ-M140VKA | PUZ-ZM100VKA-A | PUZ-ZM100YKA-A | PUZ-ZM125VKA-A | PUZ-ZM125YKA-A | PUZ-ZM140VKA-A | PUZ-ZM140YKA-A | ||
| Refrigerant | R32 | ||||||||||||||
| Cooling | Capacity (Min-Rated-Max) | kw | 2.3-5.0-6.2 | 2.3-6.0-6.5 | 2.8-7.1-8.1 | 3.3-7.1-8.1 | 4.0-10.0-10.6 | 6.0-12.0-13.5 | 6.2-14.0-15.3 | 4.9-10.0-11.4 | 4.9-10.0-11.4 | 5.5-12.5-14.0 | 5.5-12.5-14.0 | 6.2-14.0-15.3 | 6.2-14.0-15.3 |
| Air Volume (In) Lo-Mid-Hi | L/S | 200-242-283 | 242-300-350 | 292-350-417 | 292-350-417 | 400-483-567 | 492-592-700 | 533-650-767 | 400-483-567 | 492-592-700 | 533-650-767 | ||||
| Heating | Capacity (Min-Rated-Max) | kw | 1.7-6.0-7.4 | 2.8-7.0-8.0 | 2.6-8.0-10.2 | 3.5-8.0-10.2 | 2.8-12.5-12.5 | 4.1-14.0-15.5 | 5.7-16.0-18.0 | 4.5-11.2-14.0 | 4.5-11.2-14.0 | 5.0-14.0-16.0 | 5.0-14.0-16.0 | 5.7-16.0-18.0 | 5.7-16.0-18.0 |
| Air Volume (In) Lo-Mid-Hi | L/S | 200-242-283 | 242-300-350 | 292-350-417 | 292-350-417 | 400-483-567 | 492-592-700 | 533-650-767 | 400-483-567 | 492-592-700 | 533-650-767 | ||||
| Indoor unit | Input[Cool/Heat] (Rated) | kw | 0.11/0.09 | 0.12/0.10 | 0.17/0.15 | 0.17/0.15 | 0.25/0.23 | 0.36/0.34 | 0.39/0.37 | 0.25/0.23 | 0.36/0.34 | 0.39/0.37 | |||
| Dimensions (HxWxD) | mm | 250x900x732 | 250x1100x732 | 250x1100x732 | 250x1100x732 | 250x1400x732 | 250x1400x732 | 250x1600x732 | 250x1400x732 | 250x1400x732 | 250x1400x732 | 250x1400x732 | 250x1600x732 | 250x1600x732 | |
| Weight | kg | 26 | 29 | 29 | 29 | 39 | 40 | 44 | 39 | 40 | 44 | ||||
| Outdoor unit | Dimensions (HxWxD) | mm | 714x800x285 | 880x840x330 | 880x840x330 | 943x950x330(+25) | 981-1050-330(+40) | 981-1050-330(+40) | 1338-1050-330(+40) | 1338-1050-330(+40) | 1338-1050-330(+40) | 1338-1050-330(+40) | 1338-1050-330(+40) | 1338-1050-330(+40) | 1338-1050-330(+40) |
| Weight | kg | 41 | 54 | 55 | 70 | 76 | 84 | 99 | 111 | 112 | 111 | 112 | 111 | 112 | |
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.
PEAD-M50-140JAA low profile series ducted air conditioner Installation Manual.
Ducted air conditioning is an innovative solution that brings comprehensive climate control to your entire home or office space. This advanced system operates through a network of concealed ducts, allowing conditioned air to be distributed efficiently and evenly throughout multiple areas or rooms. By drawing in air, cooling or heating it, and then circulating it through the ducts, centralised ducted air conditioning ensures that every corner of your space is maintained at your desired temperature. Whether you need to control a single room or multiple rooms in your home, ducted air conditioning offers the flexibility to customise temperature settings based on individual preferences.
Professional installation is required for ducted air conditioning installation. These systems are complex and require expert knowledge in electrical work, ductwork, and other specialised skills to ensure efficient and safe operation. It is best to rely on a qualified air conditioner installer with the necessary expertise to ensure accurate unit installation and temperature sensor placement for optimal performance. The installer is also required to have the appropriate electrical and refrigerant handling licence.
Zoning refers to the capability of deactivating specific sections of your ducted air conditioning system when they are not required. The optional Zone Controller enhances the system’s functionality by allowing you to direct conditioned air precisely where you need it within your home or office. With the ability to create up to 4 or 8 separate zones, this enables increased energy efficiency. The Zone Controller provides the flexibility to tailor your comfort preferences by selectively activating the air conditioning in occupied zones only. Enjoy the benefits of personalised climate control and energy efficiency by utilising the advanced zoning features of the Mitsubishi Electric Zone Controller.
Troubleshooting common problems with your air conditioner can often be resolved without the need for professional assistance.
If your air conditioner is not cooling or heating properly, check if the desired temperature is correctly set and ensure it is in the correct mode. If the airflow seems weak, inspect and clean the air filters, particularly the return air filter to remove any dust or debris that may be obstructing the airflow. Inadequate cooling or heating could also be a result of blocked or restricted vents, so ensure that they are open and unobstructed. If your unit is leaking water, it may be due to a clogged condensate drain, which depending on the severity could easily be dealt with alone or with a technician.
In the case of unusual noises or strange odours, it is advisable to turn off the unit and contact a professional to inspect and resolve the issue.
At Mitsubishi Electric, our customers are our priority. If you need after-sales support for your Mitsubishi Electric air conditioner, then our Customer Care team is here to help.
