Ducted Air Conditioning

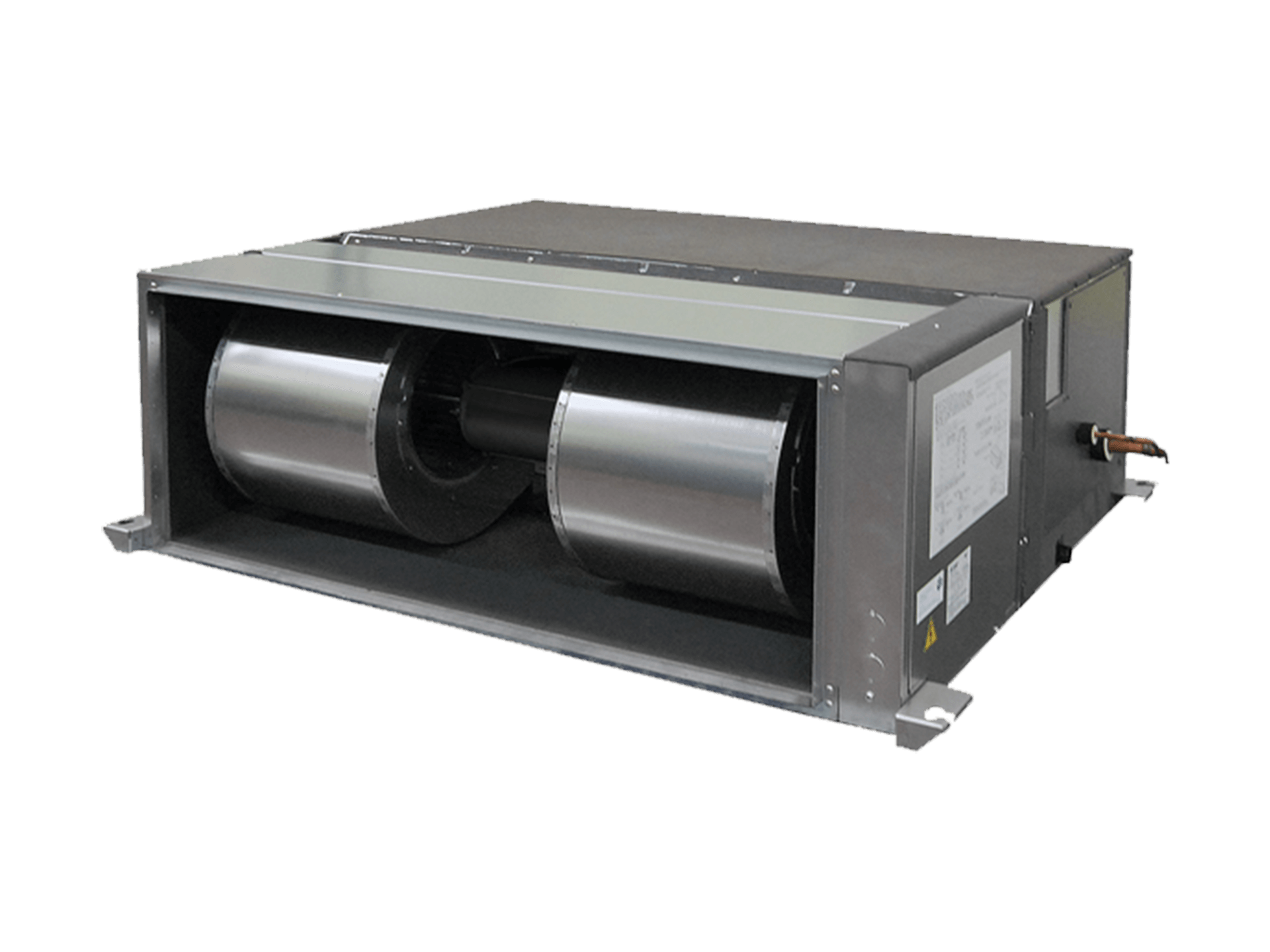

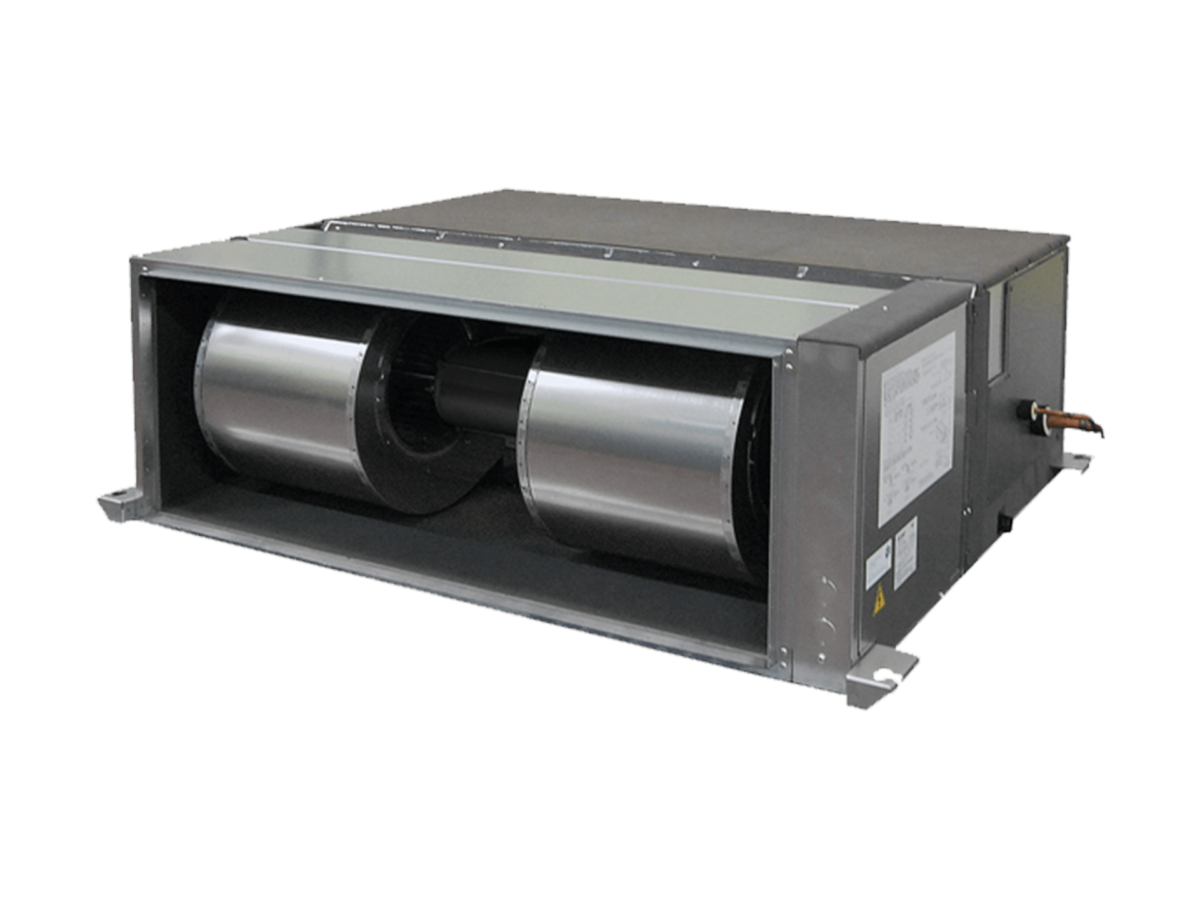

PEA-RP250WHA

PEA-RP250WHA

  • Capacity: 22 kW
  • High external static pressure
  • Flexibility in design
  • Three phase power supply
  • Year round comfort
  • R32 refrigerant
Flexible ducting design

Flexible ducting design

With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

High external static pressure_PEA-RP250WHA

High external static pressure

External Static Pressure: 50/100/150 Pa

Longer maximum piping length

Longer maximum piping length

Refrigerant can be piped up to 75 metres to the concealed ceiling unit, therefore creating a wide range of layout possibilities for unit installation.

Optional PAR-40MAA Wall mounted controller

Optional PAR-40MAA Wall mounted controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.

Optional PAR-CT01MAA MA Touch Remote Controller

Optional PAR-CT01MAA MA Touch Remote Controller

The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.

Optional zone controller

Optional zone controller

Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

R32 refrigerant

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Wi-Fi Control

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Indoor unit PEA-RP250WHA
Outdoor unit PUHZ-RP250YKM
Refrigerant R410A
Cooling Capacity (Min-Rated-Max) kw 11.2-22.0-27.0
Air Volume (In) Lo-Mid-Hi L/S 967-1183-1400
Heating Capacity (Min-Rated-Max) kw 12.5-25.0-29.0
Air Volume (In) Lo-Mid-Hi L/S 967-1183-1400
Indoor unit Input [Cool/Heat] (Rated) kw 0.66/0.66
Dimensions (HxWxD) mm 470x1370x1120
Weight kg 108
Outdoor unit Dimensions (HxWxD) mm 1650-920-740
Weight kg 199
