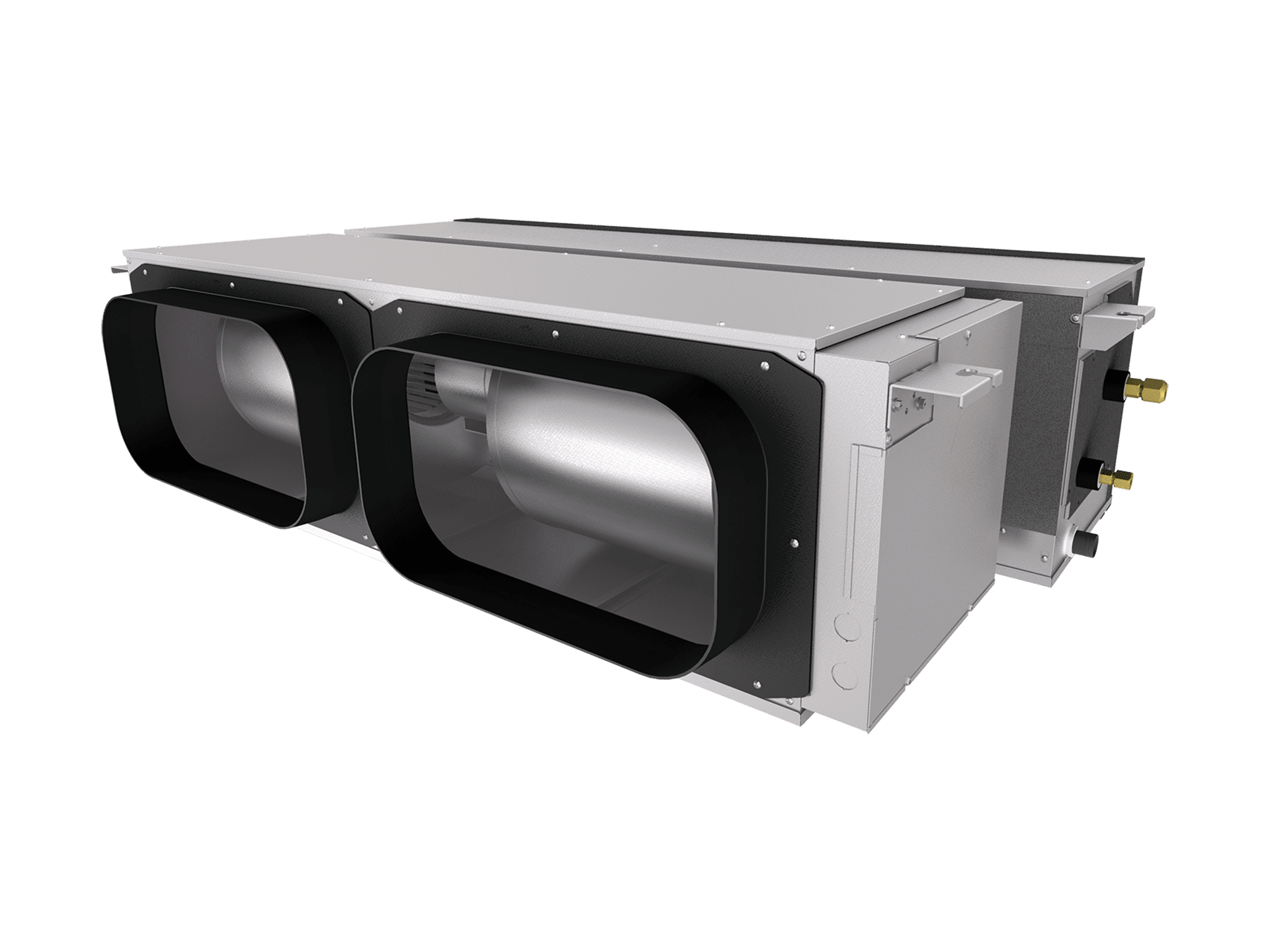

PEA-M-HAA Series

PEA-M100-140HAA

  • Three capacities: 10.0, 12.5, 14.0 kW
  • High external static pressure up to 150 Pa
  • 2 piece construction, ideal for home renovation
  • Flexibility in design
  • Ideal for existing homes
  • 4 fan speed settings

Keep your home at the ideal temperature all year long with the PEA-M100-140HAA ducted air conditioning unit, with a 2-piece design, optional zoning and smart home integration for ultimate control.

Experience comfort throughout your entire home or office

two-piece ducted air conditioner

Perfect solution for home renovation

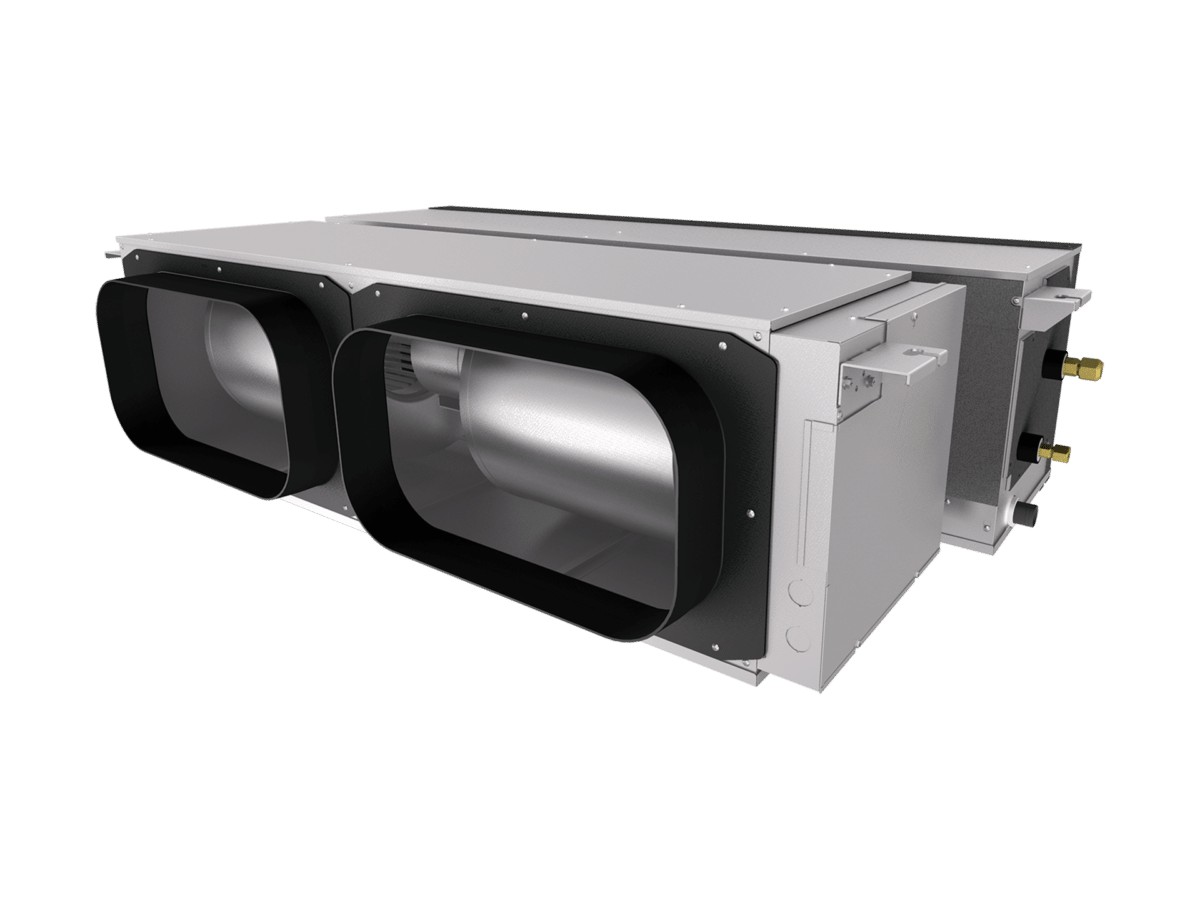

The PEA-M100-140HAA ducted air conditioning system is designed to split into two pieces making it ideal for existing home renovation with restricted roof space and access. The fan section can be separated from the heat exchanger for easier handling of the unit into the roof space before final assembly. With typical Australian house design in mind, the unique flange between the two section allows installation in narrow roof space between roof trusses.

Take comfort to the next level with Mitsubishi Electric ducted air conditioning

Take comfort to a new level in your existing home

Great air conditioning isn’t just for new homes. Optional zone control takes your ducted air conditioning system up a notch, giving you the choice of up to 4 or 8, there is no need to condition air in unoccupied rooms. The PEA-M100-140HAA ducted air conditioning system has 4 fan speeds settings to allow for more precise airflow and temperature. The fan external static pressure can be set up to 150 Pa to allow for more flexible ductwork design and maintain the required airflow to each zone, even with all zones are activated.

Enjoy whole home comfort with Mitsubishi Electric air conditioner

Enjoy a whole home air conditioning solution

Mitsubishi Electric ducted air conditioning is climate control at the touch of a button. A whole home air conditioning solution suitable for most existing or new homes. Ducted air conditioning system is an effective and convenient solution, with unobtrusive installation in the ceiling cavity or bulkhead space. The addition of an optional zone controller can allow this whole home application be connected to up to 8 zones to distribute air where it is needed, whilst being hidden from view with subtle diffusers or grilles. Ducted air conditioning allows cool or warm air to flow throughout the home.

2 piece construction

2 piece construction

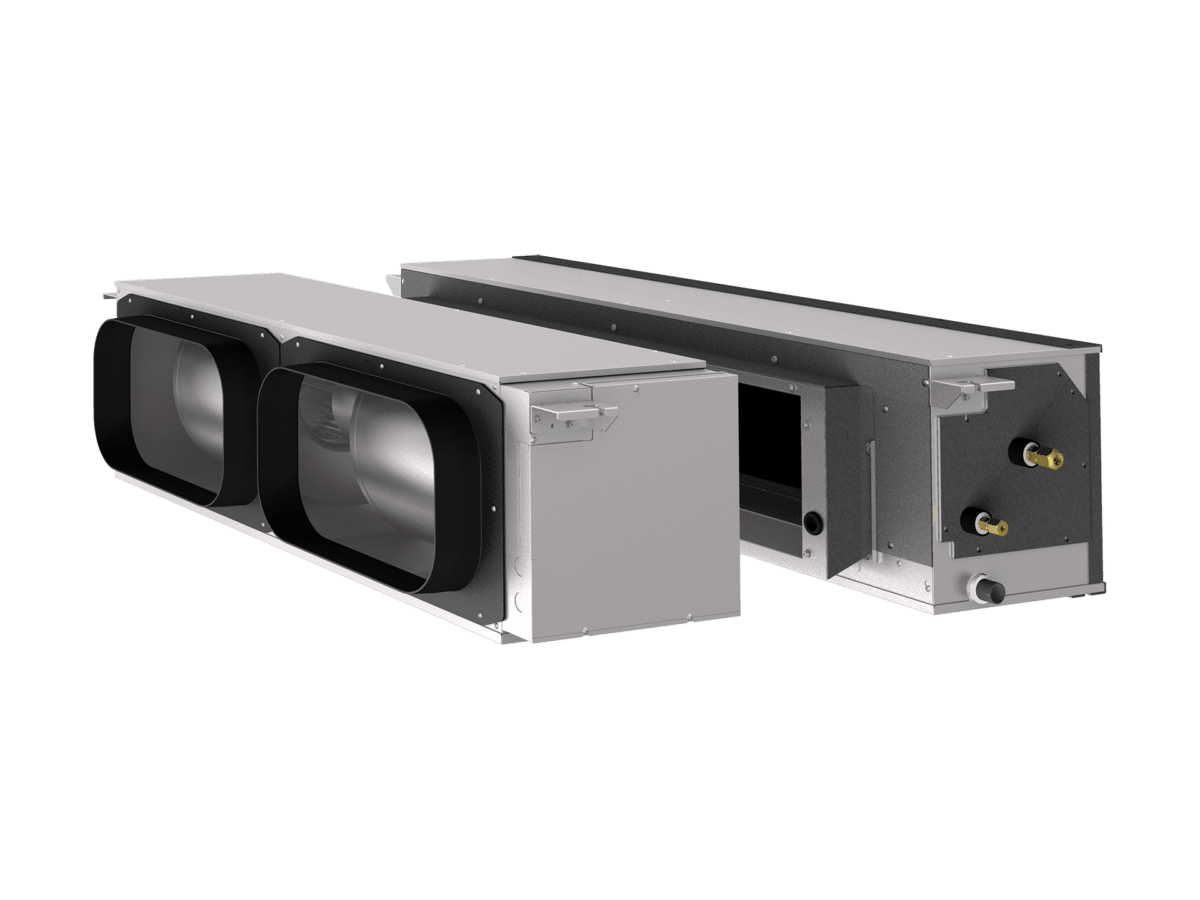

This ducted fan coil has a two-piece construction, which allows for the separation of the indoor unit heat exchanger and the fan deck assembly. This is beneficial for installation into the roof space, for greater room capacities and increased variation in airflow; ensuring operation that suits most room layouts.

Ideal for remodelling of existing houses_PEA-M100/125/140HAA

Ideal for remodelling of existing houses

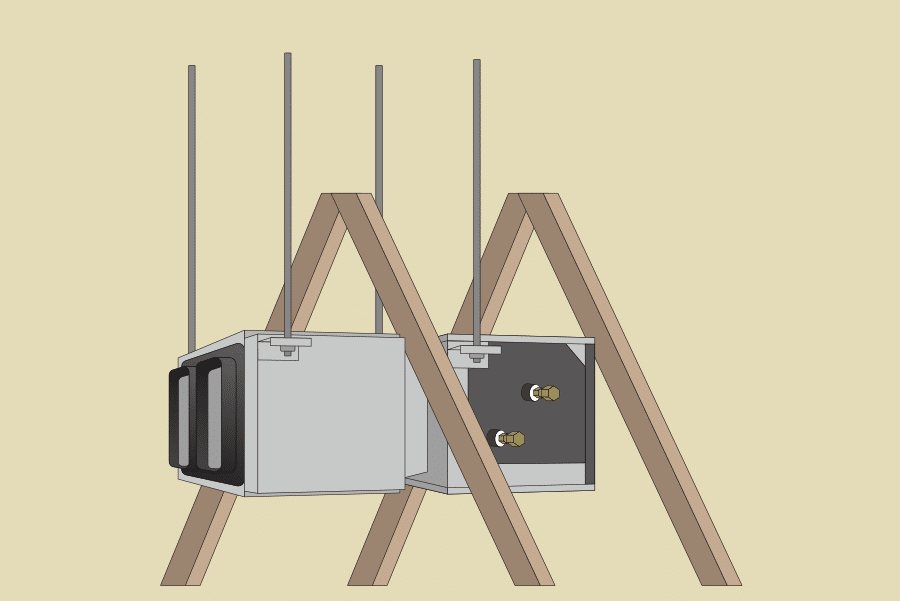

The unit can be installed in roof trusses thanks to the two-piece structure.

Easier Installation_PEA-M100/125/140HAA

Easier Installation

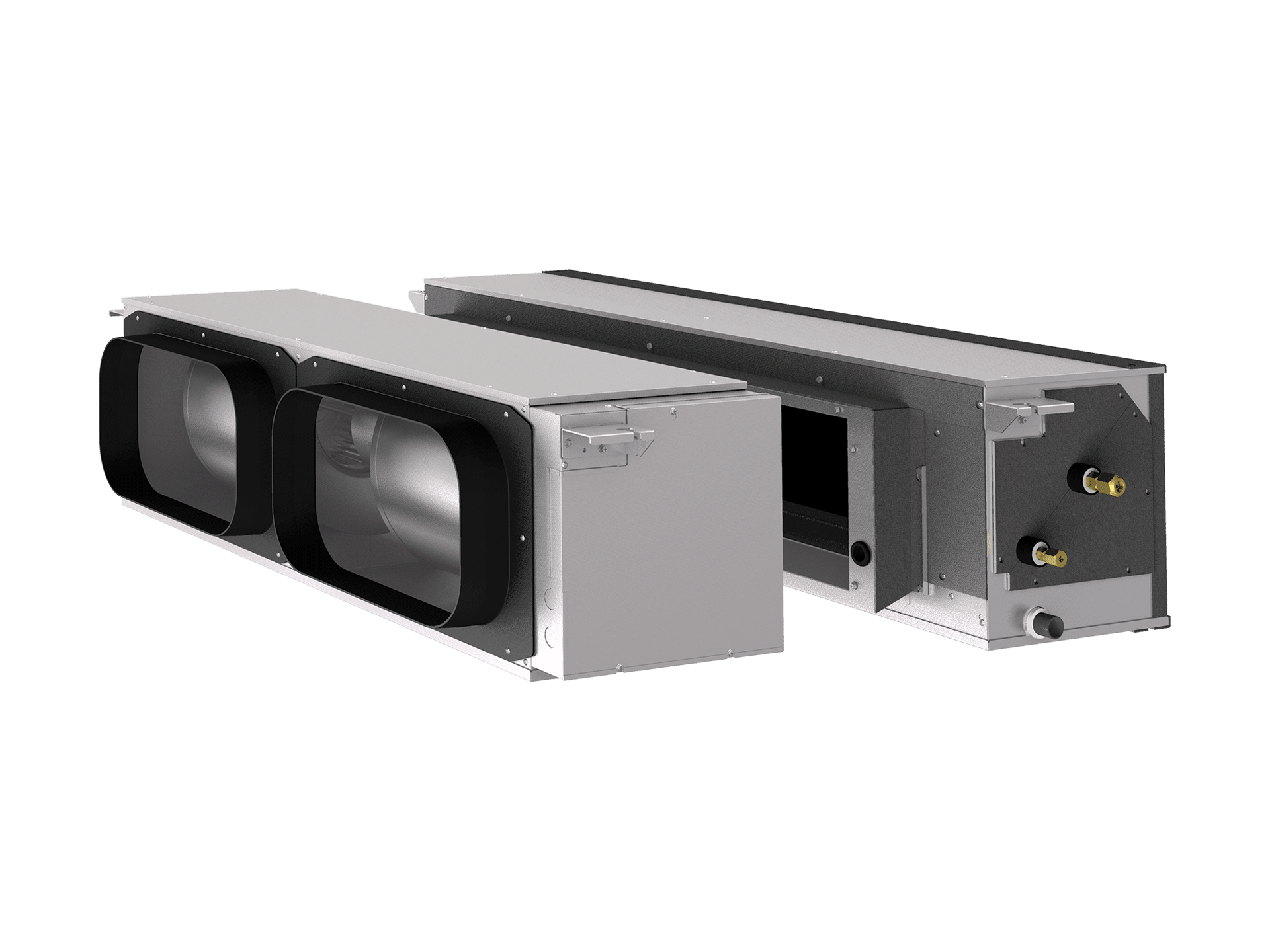

The fan deck section and the heat exchanger can be separately transported and assembled in the ceiling space. This feature requires an access panel large enough to pass each part through.

High external static pressure_PEA-M100/125/140HAA

High external static pressure

The HAA Series incorporate three-stage external static pressure conversions and four fan speed selections, offering the ultimate in comfort solutions. HAA Series units are designed for human comfort and to be installed in a wide range of building types with broad static pressures requirements ranging from 50 to 150Pa. *Application dependent on site conditions.

4 fan speed settings

4 fan speed settings

The inclusion of 4 fan speed settings to maximise the indoor climate to suit the load throughout the day. A lower fan speed can be selected when the temperature is mild or bring up the temperature slowly (which is more efficient). Boost the unit with a high fan speed during a hot, sunny day or when there is a party with lots of guests.

Optional zone controller

Optional zone controller

Upgrading to an optional zone controller gives the option of up to 4 or 8 zones, to provide control to different rooms of the home. Zone Controller is compatible with the optional Wi-Fi Control interface and app.

Easy Maintenance_PEA-M_HAA

Easy Maintenance

The fan section is accessible from either the bottom or the top, while the heat exchanger is accessible from the bottom or the side. This helps ease maintenance of the unit where access can be limited.

Wi-Fi Control

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Flexible ducting design

Flexible ducting design

With the flexibility of ducted design and 150Pa external static high-pressure are incorporated. The increased variation in airflow options ensures operation that best matches virtually all room layouts.

Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation

Improved Ventilation & Energy Efficiency with Optional Lossnay Heat Recovery Ventilation

Mitsubishi Electric ducted air conditioning system can be integrated with optional Lossnay heat recovery ventilation to improve indoor air quality and energy efficiency. The Lossnay system provides tempered fresh air into your home by recovering the heat from the stale air from inside. Both systems can be controlled from one controller.

R32 refrigerant

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Indoor unit PEA-M100HAA PEA-M125HAA PEA-M140HAA PEA-M100HAA PEA-M100HAA PEA-M125HAA PEA-M125HAA PEA-M140HAA PEA-M140HAA

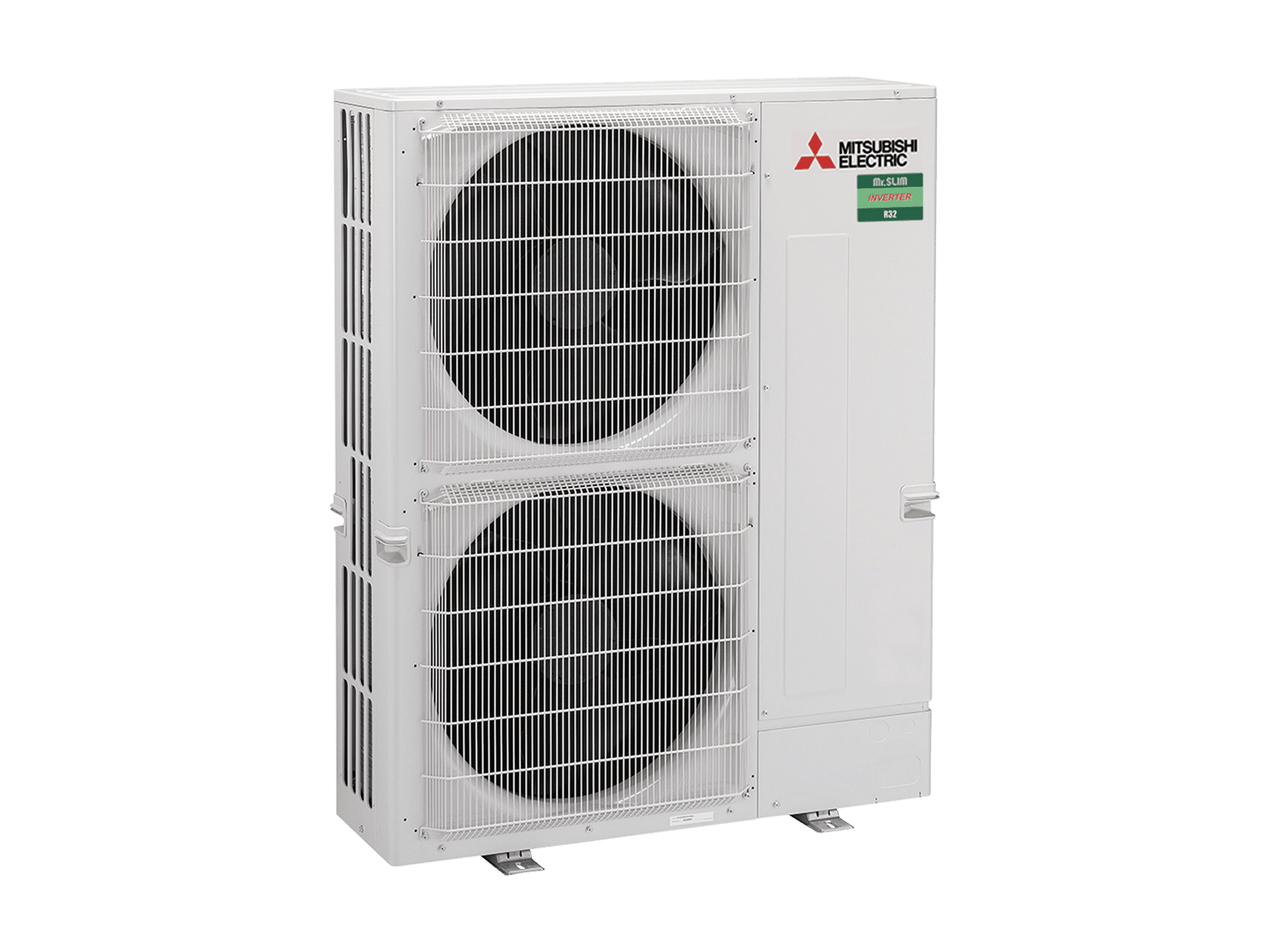

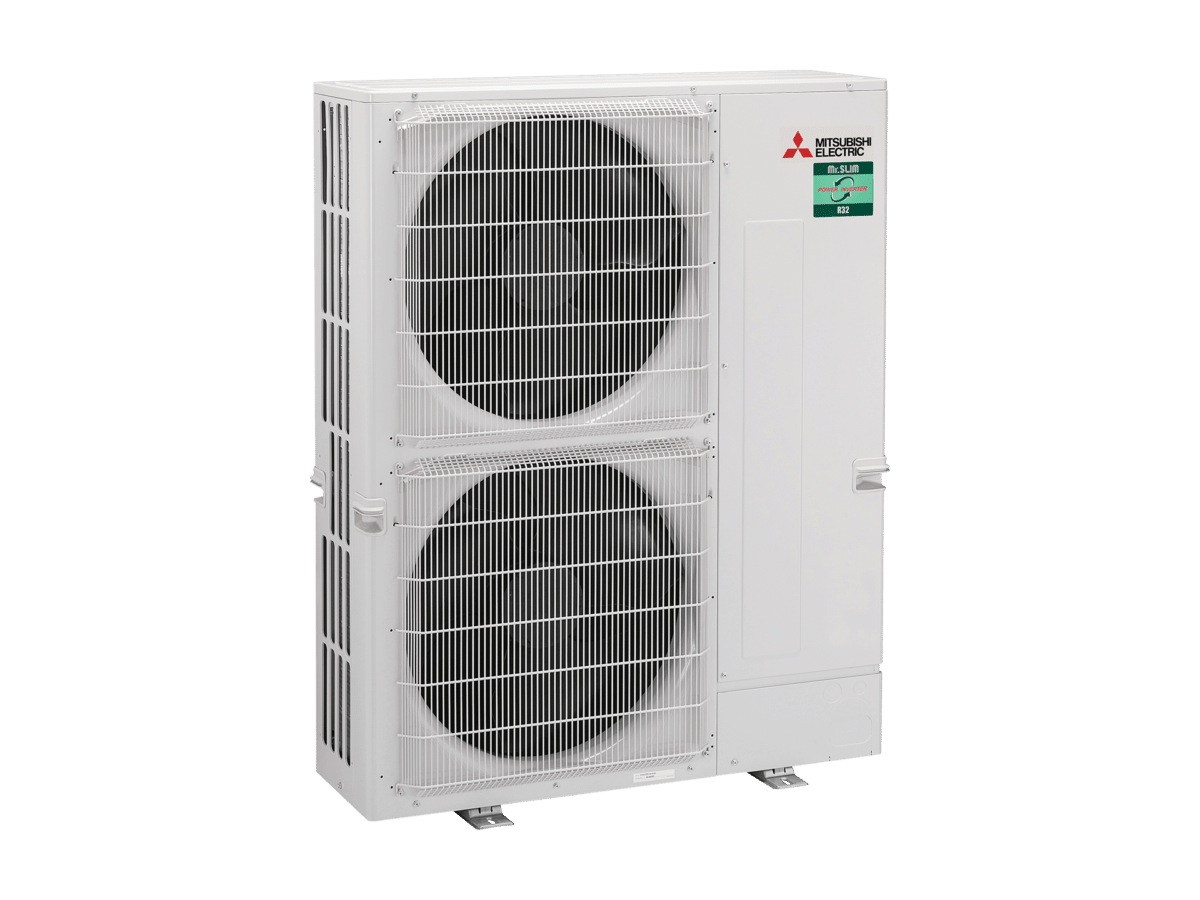

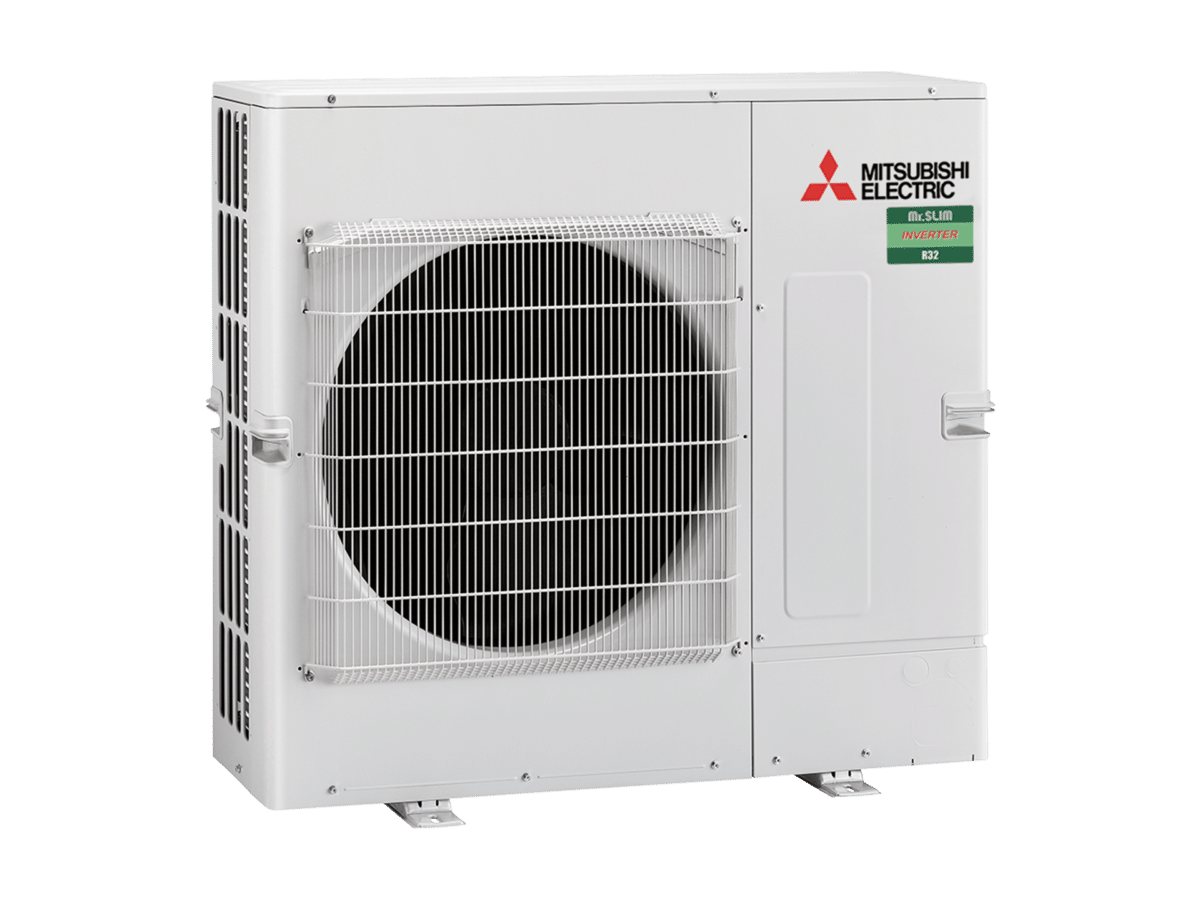

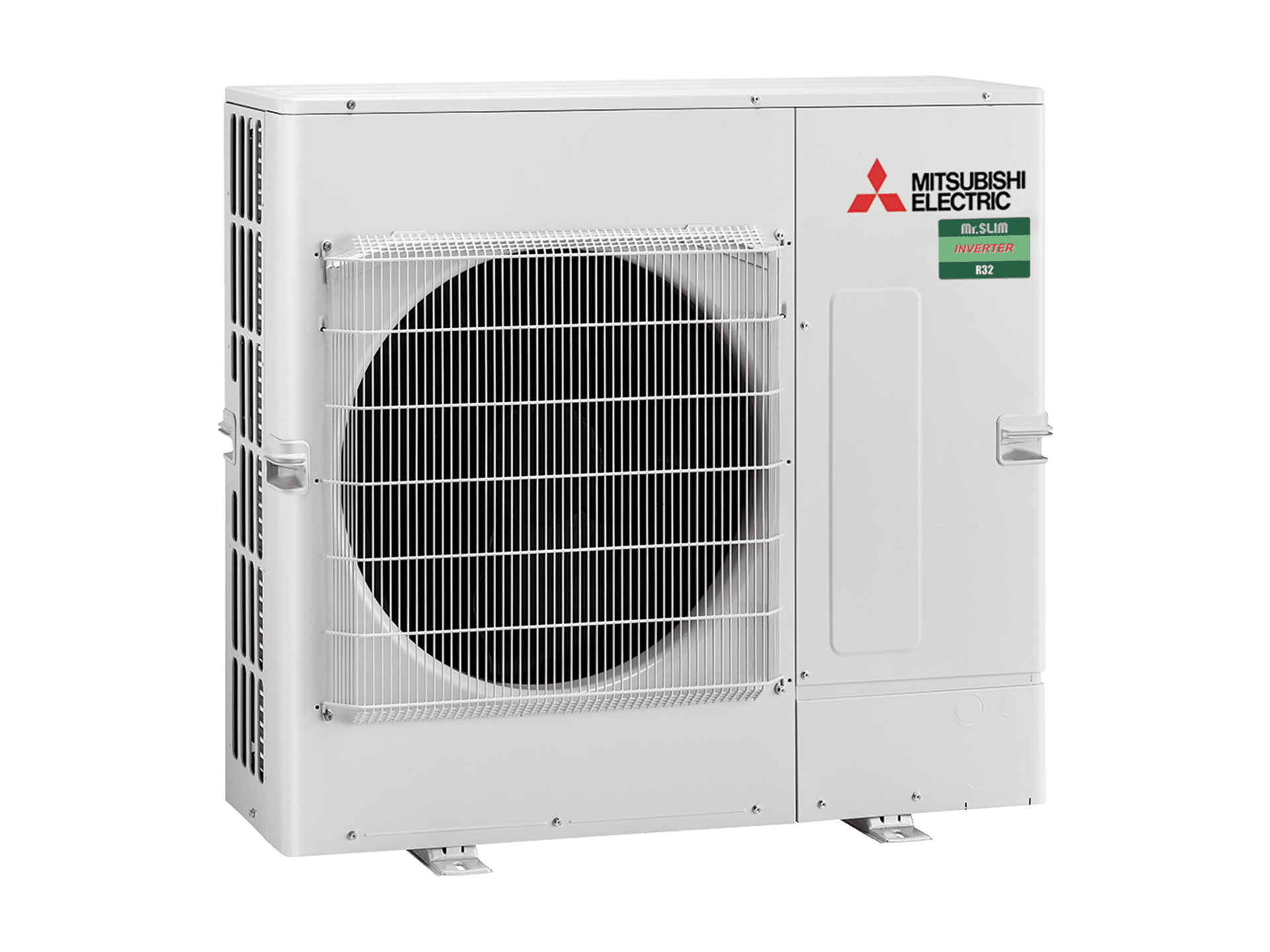

Outdoor unit PUZ-M100VKA-A PUZ-M125VKA-A PUZ-M140VKA-A PUZ-ZM100VKA-A PUZ-ZM100YKA2-A PUZ-ZM125VKA-A PUZ-ZM125YKA-A PUZ-ZM140VKA-A PUZ-ZM140YKA-A
Refrigerant R32 R32 R32 R32 R32 R32 R32 R32 R32
Cooling Capacity (Min-Rated-Max) kW 4.0-10.0-10.6 6.0-12.0-13.5 6.2-14.0-15.3 4.9-10.0-11.4 4.9-10.0-11.4 5.5-12.5-14.0 5.5-12.5-14.0 6.2-14.0-15.3 6.2-14.0-15.3
Air Volume (In) Lo-Mid-Hi L/S 500-567-633-700 700-800-900-1000 700-800-900-1000 500-567-633-700 500-567-633-700 700-800-900-1000 700-800-900-1000 700-800-900-1000 700-800-900-1000
Heating Capacity (Min-Rated-Max) kW 2.8-12.5-12.5 4.1-14.0-15.5 5.7-16.0-18.0 4.5-11.2-14.0 4.5-11.2-14.0 5.0-14.0-16.0 5.0-14.0-16.0 5.7-16.0-18.0 5.7-16.0-18.0
Air Volume (In) Lo-Mid-Hi L/S 500-567-633-700 700-800-900-1000 700-800-900-1000 500-567-633-700 500-567-633-700 700-800-900-1000 700-800-900-1000 700-800-900-1000 700-800-900-1000
Indoor unit Input[Cool/Heat] (Rated) kW 0.187 0.477 0.477 0.187 0.187 0.477 0.477 0.477 0.477
Dimensions (HxWxD) mm 380×1405×900 380×1405×900 380×1405×900 380×1405×900 380×1405×900 380×1405×900 380×1405×900 380×1405×900 380×1405×900
Weight kg 63 66 66 63 63 66 66 66 66
Outdoor unit Dimensions (HxWxD) mm 981×1050×330(+40) 981×1050×330(+40) 1338×1050×330(+40) 1,338-1,050-330(+40) 1,338-1,050-330(+40) 1338×1050×330(+40) 1338×1050×330(+40) 1338×1050×330(+40) 1338×1050×330(+40)
Weight kg 76 84 99 113 114 113 114 113 114

Optional air protection guide is required where ambient temperature is lower than -5℃.
