City Multi Indoor Units

Types of VRF indoor units

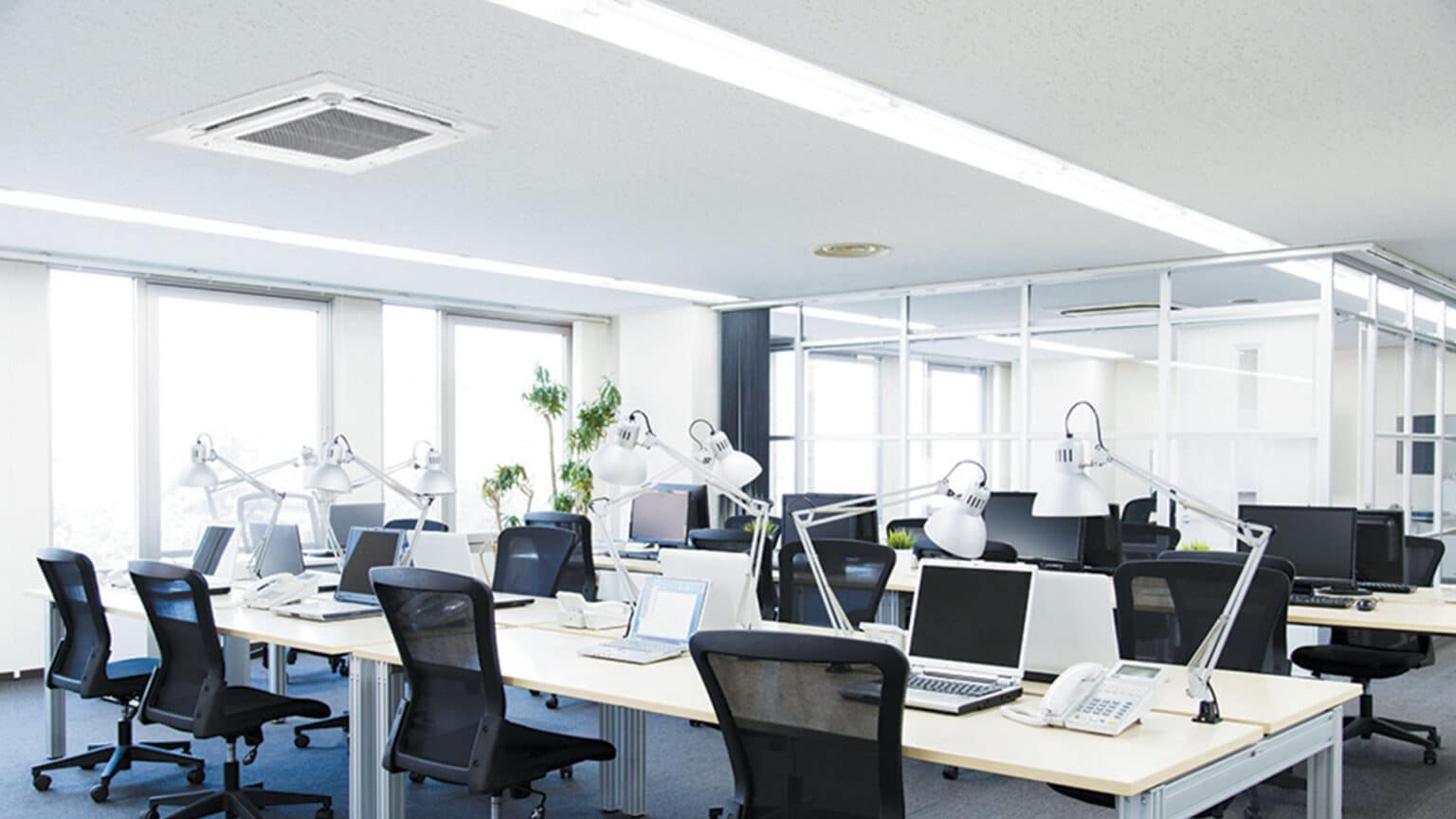

Ceiling cassette type

PLFY-P VEM-A 4-Way Ceiling Cassette

Ceiling cassette air conditioning systems are an ideal option for rooms with no available walls to mount a split system or with limited ceiling space for a ducted system.

Benefits:

Their whisper-quiet operation is suitable for both home and commercial purposes, offering internal comfort for varying room conditions. Providing easy installation and cleaning, this ceiling cassette air conditioner is a convenient addition to any space, from offices and restaurants to bedrooms and living areas.

Features:

The PLFY-P VEM-A 4-Way Ceiling Cassette air conditioner features:

• A 2-,3-, and 4-way airflow pattern selection.
• High and low-ceiling operation modes which make it possible to switch the airflow volume to match a room’s height and horizontal airflow.
• Air supply that is horizontally fed into the space to reduce the feeling of a cold draft.

An optional 3D i-See Sensor that detects people’s position, number and body temperature to calculate room occupancy rate to enable energy-saving mode.



PLFY-P VFM-E 4-Way Ceiling Cassette

A compact square design to easily install into limited ceiling spaces, this slim ceiling cassette air conditioning system can provide comfort in any room.

Benefits:

The PLFY-P VFM-E has a compact and lightweight square design, with dimensions of 600 mm x 600 mm, suitable for 2 x 2 ceiling construction specifications. Its low height design at 245 mm, enables convenient installation into narrow ceiling spaces.

Features:

This ceiling cassette air conditioning series features:

• Horizontal airflow creates a gentle and uniform air distribution across the ceiling, reducing air blown directly on room occupants.
• The optional 3D i-See Sensor takes a thermal scan of the room to detect people’s position, number, and body temperature and adjusts the temperature accordingly or enables energy-saving mode.



PLFY-P VLMD-E 2-Way Ceiling Cassette

With a simple and slim design, the 2-way ceiling cassette air conditioner integrates seamlessly into narrow ceiling spaces without disrupting the lighting of home and commercial spaces.

Benefits:

Boasting a slimline body and a compact 290 mm height, the PLFY-P VLMD-E is ideal for narrow ceiling spaces and can replace obsolete air conditioning equipment in older buildings.

Features:

This ceiling cassette air conditioner features:

• A built-in drain lift-up mechanism that can lift condensate up to 583 mm from the ceiling’s surface, providing greater freedom with long cross-piping and allowing more versatility with piping layouts.
• Vane control with 5 different airflow directions, including a “Horizontal fix” and “Swing” setting, is customisable according to individual preference.



PMFY-P VBM-E 1-Way Ceiling Cassette

Built for commercial purposes, the PMFY-P VBM-E 1-Way Ceiling Cassette air conditioner provides efficient cooling while maintaining a clean and open room aesthetic. Its ceiling-mounted installation helps create a more spacious feel while enhancing room comfort.

Benefits:

Available in various capacities, ranging from 2.2 – 4.5 kW, you can select the ideal unit based on your space’s needs. The PMFY-P VBM-E maintains a standardised body size for all models, regardless of the capacity, with a 230 mm height x 395 mm depth x 812 mm width. This narrow design provides a solution ideal for limited ceiling space applications.

The overhead format is also beneficial when lighting fixtures are centrally installed or when bookshelves and other furniture occupy wall surfaces, ensuring layout flexibility.

Additionally, its placement makes it an excellent option for rooms with large windows, as it helps distribute airflow efficiently without obstruction.

Features:

This unit offers a range of unique features. Some include:

• A drain pump that can be positioned anywhere up to 600 mm from the ceiling’s surface, allowing greater freedom with long cross-piping and versatility with piping layouts.
• One of the lightest models in the industry, with a body weight of only 14 kg for the main unit and 3 kg for the panel, ensuring easy commercial air conditioning installation.



Ducted or ceiling concealed type

PEFY-P VMR-E-L/R Low Noise Ceiling Concealed

This ducted air conditioner operates with minimal sound, creating a comfortable room environment. Its low-noise design makes this model suitable for spaces where quiet operation is essential, such as hotels, museums, libraries, and hospitals. A single unit can also serve adjacent rooms, making it a versatile choice for multi-room applications.

Benefits:

This unit is whisper quiet, with a minimum noise level of 20 dB when the air flow rate is low and a maximum of 35 dB when the air flow rate is high. The PEFY-P VMR-E-L/R provides models with various capacities, ranging from 2.2 – 3.6 kW, offering options for different spaces.

Features:

This unit has an abundance of premium features, including:

• Refrigerant, drain piping and a control box on either the right or left sides, allowing flexible installation in rooms with a bilateral symmetrical shape.
• A re-configurable return air inlet that can be changed from the factory-supplied rear inlet to the bottom inlet.
• An interlock option that can be switched ON/OFF by inserting or removing a key card, reducing power consumption (optional accessory is required).
• A screwless fan that can be easily removed, allowing for convenient maintenance.



PEFY-P VMX(L)-E(1) Compact Depth Ceiling Concealed

The PEFY-P VMX(L)-E(1) has seven different models available, varying capacities from 1.7 to 7.1 kW. While performing at various levels, all models in the range (P15 to P63) feature a compact depth of 450 mm and height of 200 mm, a size perfect for offices, living spaces, apartments and hotels.

Benefits:

Ideal for limited installation spaces, this ducted air conditioner can be easily integrated into tight spaces, such as ceiling cavities, bulkheads, or above wardrobes.

Easy to maintain, clean and change settings, this is a convenient and efficient home or commercial air conditioner.

Features:

Equipped with the latest features, the PEFY-P VMX(L)-E(1) includes:

• Three return air inlets from the rear, bottom or top and rear. The rear provides a low sound pressure level suitable for installation where quietness is required. The bottom inlet requires less clearance space allowing for installation in a tight space. The top and rear inlets require the same amount of installation space as the bottom inlet models, but are quieter.
• A built-in drain pump option that allows for more freedom in piping layout design.
• Units with a “L” at the end of the model name are without a built in drain pump. An external drain pump is recommended where low noise is required.
• A maximum pressure setting (levels dependent on the model) with three fan speed settings.



PEFY-P VMS1(L)-E Low Static Pressure Ceiling Concealed

The PEFY-P VMS1(L)-E ultra thin ducted air conditioner is available in 7 models (P15 to P63) with capacities ranging from 1.7 – 7.1 kW.

Benefits:

Operating as quiet as 22-30 dB at low speed, these units are suitable for quiet spaces such as offices, hotel rooms, and bedrooms. All models are made with a height of 200 mm, enabling installation in ceilings with small cavity spaces.

Features:

This ducted air conditioner provides the following features:

• An External static pressure that can be selected from 5, 15 (factory shipment default), 35 and 50 Pa.
• PEFY-P VMS1 models feature a factory-fitted drain pump with a maximum lifting height of 550 mm, eliminating the need for a drain pump.
• PEFY-P VMSL models do not have a built-in drain pump, but it is sold separately.
• Centrifugal fan and coil design that allows the unit to operate at a low noise level.



PEFY-P-VMA(L)-E4 Medium Static Pressure Ceiling Concealed

There are 11 models available in the VMA series (P20-P140), allowing for various ducted cooling and heating options for every kind of commercial space.

Benefits:

With an capacity range of 2.2 – 16 kW and a uniform 250mm height and 732 mm depth, the PEFY-P-VMA(L)-E4 delivers efficient performance while fitting seamlessly into narrow ceiling spaces. Despite its compact design, this unit demonstrates a maximum external static pressure of 150 Pa, ensuring strong airflow even in challenging duct layouts. Its five-stage external static pressure settings provide flexibility for duct extension, branching, and air outlet configuration, making it adaptable to different application conditions.

Features:

These ducted air conditioners are equipped with advanced features for flexible installation and enhanced performance, including:

• Five external static pressure settings, with a maximum of 150 Pa that offer versatility for duct designs and air outlet configuration.
• A re-configurable return air inlet that allows for easy installation in tight spaces.
• An optional built-in drain pump, providing more freedom in piping layout and design.



PEFY-P-VMHS-E High Static Pressure Ceiling Concealed

The PEFY-P-VMHS-E series offers models ranging from 4.5 kW to 28 kW (P40-P250) with high static pressure capabilities, allowing for flexible ducted air conditioning in commercial spaces. Models P40-P140 provide 50-200 Pa, while larger capacity models P200/P250 support up to 250 Pa, enabling long duct runs and powerful airflow distribution. This makes it ideal for high-ceiling interiors, such as double-height spaces, hotels, museums, libraries, and other large commercial environments.

Benefits:

With its flexible duct design, the PEFY-P-VMHS-E ducted air conditioner allows for long duct runs, providing greater freedom in system layout and air outlet configuration. High static pressure ensures stable performance across extended duct networks, making it well-suited for large or high-ceiling spaces requiring strong airflow.

Features:

The PEFY-P-VMHS-E is equipped with the following features:

• Four external static pressure levels (50-200 Pa for P40-P140, 50-250 Pa for P200/P250), ensuring optimal operation and adaptability to different layouts.
• A lightweight DC fan motor that reduces power consumption by 59% compared to previous AC fan motor models, while also making transport and installation easier.
• Three fan speed settings to suit varying preferences.
• An optional drain pump that raises the drain connection as high as 550 mm for P40-P140VMH(S) models and 700 mm for P200/P250VMHS models, allowing more flexibility in piping layout design and reducing horizontal piping requirements.



PEFY-P VMHS-E-F Fresh Air Intake Ceiling Concealed

Supplying pre-treated outside air to the room, this ducted air conditioner provides fresh air intake, enabling optimised room comfort. Available in models from 14 kW to 28 kW, this design can suit any commercial space.

Benefits:

Fresh air intake, available in each air conditioning zone, contributes to the room temperature’s stability and reduces the unit’s load, ensuring energy-efficient operation.

Features:

This unit includes the following features:

• An optional drain pump that allows drain connection to be raised as high as 550 mm for P125VMHS-E-F models and 700 mm for P200 & P250VMHS-E-F models.
• A high-efficiency DC fan motor that enables adjustable external static pressure and airflow rates, creating a more flexible design.
• Fresh air intake that provides pre-treated outside air to the room.



PEFY-P-VMH-E-F Fresh Air Intake Ceiling Concealed

The PEFY-P-VMH-E-F is a fresh air intake ducted unit designed to supply pre-treated outside air to a room, helping to stabilise indoor temperature and enhance occupant comfort. Its capacity range of 9 – 28 kW provides a reliable solution for various commercial environments requiring continuous ventilation. By conditioning outside air before introducing it into the space, this unit reduces the load on the primary air conditioning system, contributing to energy-efficient operation. This fresh air intake type indoor unit is not intended to handle internal thermal loads.

Benefits:

With its fresh air intake capabilities, this unit ensures that each air conditioning zone receives pre-treated outside air, which helps stabilise room temperature and maintain a comfortable indoor environment. Reducing the load on the primary air conditioning system also supports energy efficiency while continuing to deliver high-performance climate control. The ability to pre-condition incoming air enhances occupant comfort, making this unit ideal for commercial spaces where a constant supply of fresh air is required.

Features:

The PEFY-P-VMH-E-F includes:

• Fresh air intake which provides room temperature stabilisation through pre-tempered outside air.
• An optional drain pump that allows the drain connection to be raised as high as 550 mm, which enables more freedom in piping layout design.



Ceiling Suspended or Under Ceiling

PCFY-P VKM-E Ceiling Suspended

The PCFY-P VKM-E ceiling-suspended air conditioner provides efficient climate control for spaces where floor, in-ceiling, or wall-mounted installation is impractical. With capacities ranging from 4.5 kW to 14 kW, this unit is ideal for commercial environments such as retail stores, classrooms, offices, and restaurants. Its sleek, slim design ensures seamless integration with various interiors while delivering powerful and evenly distributed airflow.

Benefits:

Designed for practicality and convenience, the PCFY-P VKM-E offers ultra-quiet operation, ensuring a comfortable environment in schools, libraries, and office spaces where noise control is essential. The unit requires zero ductwork, making installation simple and cost-efficient, particularly in renovations or buildings with space constraints. Its stylish indoor unit design and easy maintenance make it a reliable choice for commercial applications requiring effective cooling and heating.

Features:

The PCFY-P VKM-E includes:

• A sleek and slim design to naturally blend with any interiors.
• An optional drain pump allows the drain connection to be raised as high as 600 mm, expanding flexibility in choosing the unit’s location during installation work.
• An Auto Vane Control Outlet that moves the vanes up and down using the remote controller. This improved airflow control feature solves the problem of drafts.
• An automatic airspeed mode adjusts airflow speed automatically to maintain consistent and comfortable room conditions.



Wall mounted

PKFY-P VLM-E Wall Mounted

A stylish wall-mounted indoor unit seamlessly fits small meeting rooms, apartment living spaces, offices, restaurants, and schools. This unit offers efficient and whisper-quiet operation with a capacity range of 1.2 – 5.6 kW (P15-P50).

Benefits:

The PKFY-P VLM-E is ideal for spaces where duct installation or ceiling space is limited or unavailable. Its sleek, modern design allows for flexible installation in single rooms and medium-sized open-plan areas, providing effective climate control while blending in with interior designs.

Features:

This wall-mounted air conditioner features:

• An optional drain pump that allows the drain connection to be raised as high as 800 mm, increasing flexibility with piping layout design.
• Adjustable 4-fan speed settings for improved airflow control.
• 5 vane angle settings for increased air distribution, with horizontal airflow available to eliminate the feeling of a cold draft.
• A reduced noise level with a minimum of 22 dB.



PKFY-P-VKM-E Wall Mounted

With a capacity range of 7.1 – 11.2 kW (P63-P100), the PKFY-P-VKM-E is one of the largest wall-mounted air conditioner models available, making it ideal for large open areas such as classrooms, offices, restaurants and other commercial spaces.

Benefits:

Designed with a sleek, square profile, this air conditioner seamlessly blends into any interior decor while delivering efficient and reliable performance. Its powerful airflow ensures consistent comfort in large open-plan areas, making it a practical choice for commercial applications.

Features:

This wall-mounted air conditioner offers:

• An optional drain pump that raises the drain connection as high as 800 mm, providing greater flexibility in piping layout design.
• A clean, modern white finish that complements various interior styles.



Floor Console

PFFY-P-VKM-E2 Floor Console – Exposed

The PFFY-P-VKM-E2 floor-standing air conditioner from Mitsubishi Electric perfectly offers a sleek design and powerful performance. With a capacity range of 2.2 – 4.5 kW (P20-P40), this unit is ideal for living rooms, bedrooms, and offices, providing efficient cooling and heating while maintaining a compact, elegant form. Its Glossy Pure White finish complements various interiors, creating a modern and sophisticated look.

Benefits:

Engineered to keep walls and ceilings free, this unit offers versatile installation in spaces where traditional air conditioning solutions may not be suitable. It’s quiet yet powerful operation maintains a comfortable environment, while Rapid Heating Technology ensures faster temperature adjustment. The upper and lower air outlets provide optimum air distribution, helping to keep room conditions consistently pleasant.

Features:

This floor-mounted air conditioner is equipped with:

• Rapid Heat Technology, which reaches the desired temperature faster by recirculating the air.
• Upper vane angle control allows the outlet to be set almost vertically, eliminating uncomfortable direct airflow.
• 5 airflow directions and 4 fan speeds, customisable to individual preference, with Swing and Auto modes for enhanced comfort.
• Compact dimensions (700 mm width x 600 mm height x 200 mm depth) make it an ideal fit for living rooms, bedrooms, and more.
• A removable and washable front panel, making regular cleaning simple while maintaining energy-efficient operation.



PFFY-P-VEM-E Floor Console – Exposed

The PFFY-P-VEM-E floor-standing air conditioner is designed for efficient perimeter air conditioning in commercial and living spaces. With a capacity range of 2.2 to 7.1 (P20-P63), this unit is ideal for areas where wall or ceiling space is limited. Its low-height design prevents obstruction of daylight from windows, while the compact 220 mm body depth ensures minimal floor space usage. The unit can be freestanding, floor-mounted, or installed along the perimeter, making it highly versatile for different applications.

Benefits:

This unit is well-suited for heritage-listed buildings, offices, apartments, and commercial spaces where ceiling voids are unavailable, or wall modifications are restricted. Low noise levels from 23 dBA (P20 model) provide a comfortable and quiet environment without disruption. Energy-efficient operation, combined with an improved heat exchanger design and DC fan motor, ensures lower running costs while delivering reliable performance.

Features:

The PFFY-P-VEM-E floor console includes the following:

• A high-efficiency DC fan motor and improved heat exchanger design, optimising energy consumption and reducing operating costs.
• Three fan speed settings (Low, Mid, High) for customised airflow control.
• A remote controller compartment is built into the unit for easy access, and an optional PAR-41MAA MA remote controller can be installed on top.
• Freestanding installation capability, when fitted with an optional back decoration panel, allowing placement away from walls.



PFFY-P-VCM-E Floor Console – Concealed

The PFFY-P-VCM-E is a compact concealed floor-standing air conditioner designed for efficient perimeter air conditioning in commercial spaces and heritage-listed buildings. With a capacity range of 2.2 – 7.1 kW (P20-P63), this unit provides effective climate control while remaining discreetly hidden behind a wall or within a joinery cupboard. Its compact dimensions (200 mm depth x 700 mm width) make it ideal for space-conscious installations without compromising performance.

Benefits:

This unit is designed to maximise space efficiency while delivering quiet and energy-efficient operation. The concealed installation keeps walls and ceilings clear, making it a practical choice for offices, hotels, apartments, and other commercial environments where unobtrusive air conditioning is preferred.

It is also ideal for heritage-listed buildings with sandstone or brick walls, with restricted wall modifications. Installing the unit behind a joinery or perimeter enclosure allows climate control without altering the building’s historical integrity. Reduced power consumption and low noise levels enhance indoor comfort while maintaining optimal energy efficiency.

Features:

• Adjustable airflow with three fan settings which can be adjusted according to the condition.
• Flexible installation options, including a return air inlet that can be switched between bottom or front, and mounting on the floor (with supplied legs) or wall to suit the application.
