Wall Mounted Air Conditioners

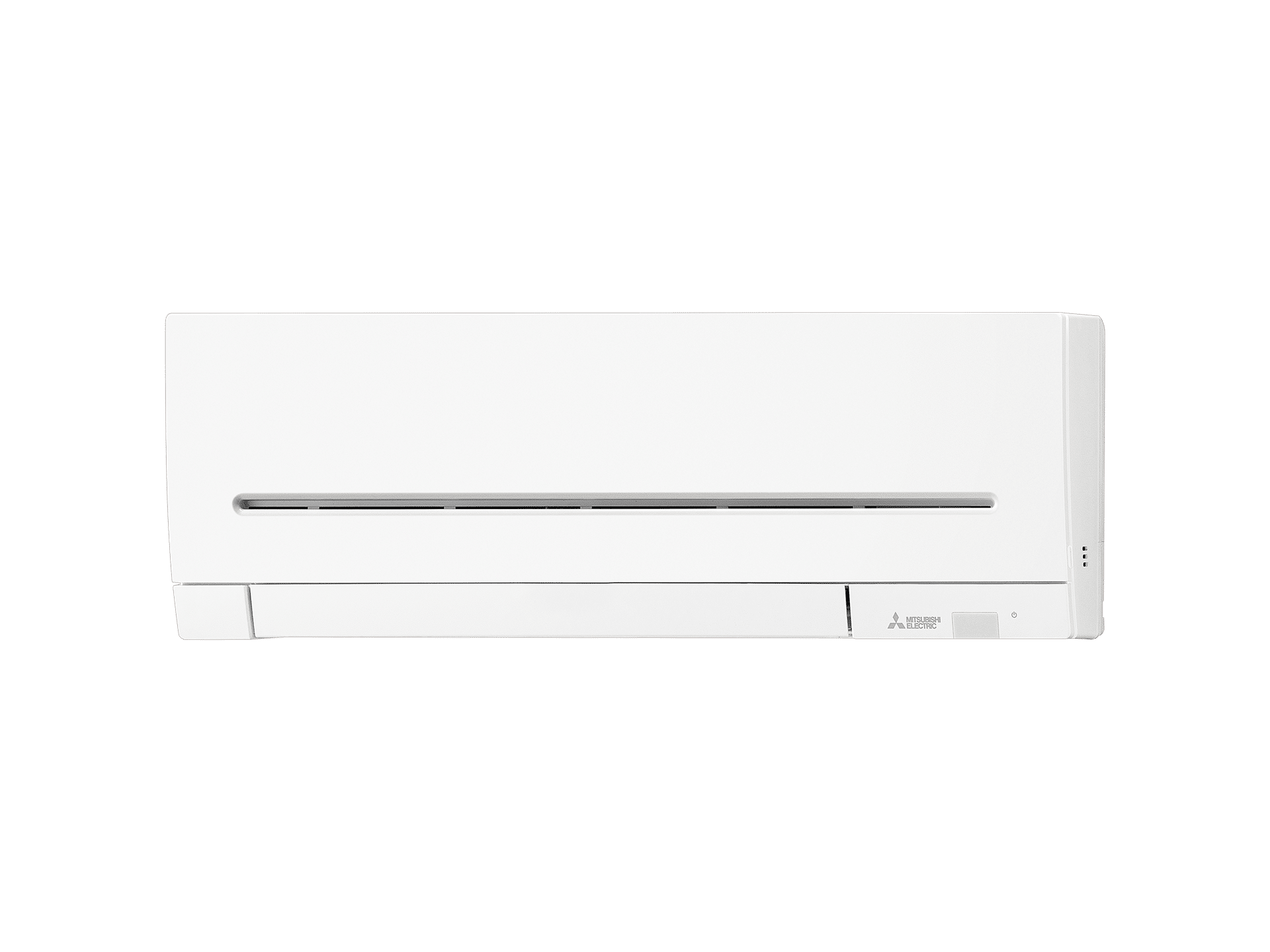

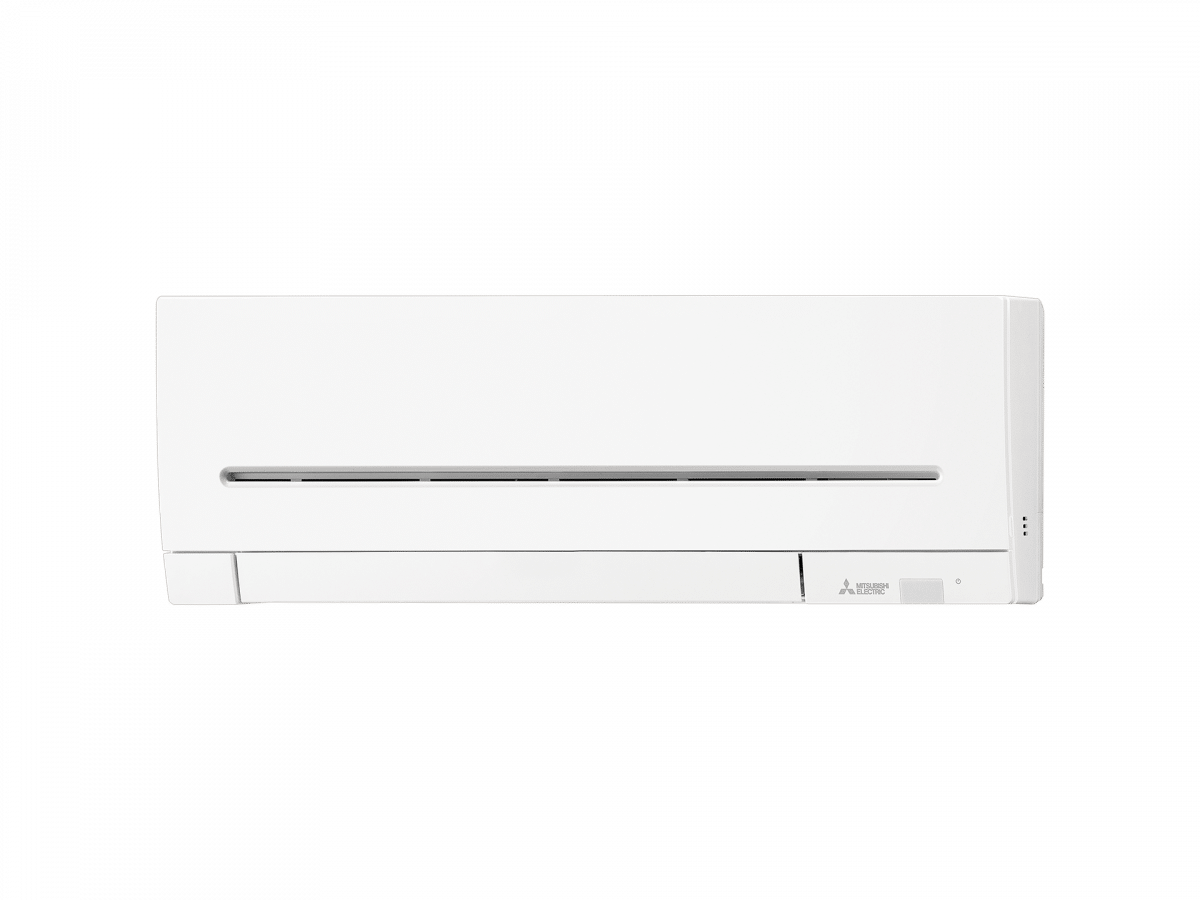

MSZ-AP20VG(D)-A
Stay comfortable all year long with the MSZ-AP Mini Wall-Mounted Air Conditioner—a versatile cooling and heating solution specially designed for small spaces. This exceptional air conditioner offers both cooling and heating functionalities, ensuring an ideal temperature no matter the season. Stay cool and comfortable during the sweltering summer months, and when winter arrives, enjoy a cosy and pleasant indoor environment.
Compact yet powerful heating and cooling solutions
With a 16.4% reduction in height and a 5% reduction in width compared to the AP22-50 models, the MSZ-AP Mini wall-mounted air conditioner can fit into much smaller spaces than larger models. The compact design of this mini air conditioner makes it small enough to fit above doorways instead of being installed in a corner. This 2 kW air conditioner is a fantastic heating and cooling solution for smaller living spaces such as bedrooms or home offices.
Ambience is a priority in small spaces, which is why the MSZ-AP Mini can ensure optimal comfort without sacrificing style or disrupting tranquillity. Thanks to Night Mode, you can enjoy peaceful and uninterrupted sleep with reduced LED brightness of the operation indicator light, disables beep noises and limits the noise of the outdoor unit. In addition, the Dual Barrier Coating on the air conditioner’s heat exchanger and facial surfaces reduces dust and greasy dirt from adhering to it.
Take advantage of the elevated convenience of Wi-Fi control, allowing you to control your air conditioner from anywhere remotely. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, allowing you to change your settings even when you’re not at home. Adjust settings, set timers, and master your comfort with ease, whether you’re on the commute home or relaxing in bed.
Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.
With a 16.4 percent reduction in height and a 5 percent reduction in width compared to the AP-22-50 models, they can be installed in smaller spaces, previously not achievable; such as over doorways.
Dual Barrier Coating reduces dust and greasy dirt from collecting in the air conditioner. Dirt is generally classified into two groups: hydrophilic dirt such as fibre dust and sand dust, and hydrophobic dirt such as oil and cigarette smoke.
The Mitsubishi Electric Dual Barrier Coating works as a two-barrier coating with blended “fluorine particles” that reduce hydrophilic dirt penetration and “hydrophilic particles” that reduce hydrophobic dirt from sticking to the air conditioner. This dual barrier coating on the inner surface helps to keep the air conditioner clean year-round, helping with product longevity.*
* Regular maintenance required; please refer to the product's user manual
Night mode is a selectable function via the remote controller that is designed to increase comfort at night. This is achieved by reducing the LED brightness on the indoor unit, disabling the alert beeps and reducing the outdoor units operational noise levels by up to 3dB(A).
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
Anti-corrosion treatment has been applied to the heat exchanger of the outdoor unit. This coating inhibits corrosion of the aluminium fins; salt in the air causes this, especially in coastal areas. Corrosion of the heat exchanger will affect the efficiency and performance of the AC.
The “i-save” Mode is a simplified setting function that recalls the preferred (preset) temperature by pressing a single button on the remote controller. Press the same button twice in repetition to immediately return to the previous temperature setting.
Temperature settings and On/Off control can be managed over a period of one week using the Weekly Timer.
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
Activate the heating mode to provide a warm and cosy space. Reverse cycle air conditioning can be a relatively efficient and economical way of heating and cooling compared to gas and electric space heaters. Mitsubishi Electric air conditioners are a quiet and clean source of heating for your home.
While the compressor is the heart of the system, the Inverter is the brain of the system. An Inverter receives information from sensors monitoring operating conditions and adjusts the frequency of the compressor to control the refrigerant flow rate thereby consuming less current and power. Mitsubishi Electric Inverters ensures high performance and maximum comfort can be achieved.
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.
| Indoor unit | MSZ-AP20VGD2 | |||
|---|---|---|---|---|
| Outdoor unit | MUZ-AP20VGD2 | |||
| Cooling | Capacity [Min – Rated*1 – Max] | kW | 0.6 – 2.0 – 2.7 | |
| Total Input [Min – Rated*1 – Max] | kW | 0.23 – 0.46 – 1.16 | ||
| ZERL Star Rating *2 (Residential) | Hot / Average / Cold | 4.5 / 4 / 4.5 | ||
| Heating | Capacity [Min – Rated*1 – Max] | kW | 0.5 – 2.5 – 3.5 | |
| Total Input [Min – Rated*1 – Max] | kW | 0.25 – 0.60 – 1.20 | ||
| ZERL Star Rating *2 (Residential) | Hot / Average / Cold | 3 / 2.5 / 2 | ||
| Air Volume | Min – Max*3 (Fan Speeds) | L/s | 58 – 122 (5) | |
| Sound Pressure Level*4 | Indoor Min – Max [Cool/Heat] | dBA | 21-42 / 21-42 | |
| Out (PWL) | dBA | 48 (61) | ||
| Dimensions | Indoor [H×W×D] | mm | 250 x 760 x 178 | |
| Outdoor [H×W×D] | mm | 550 x 800 x 285 | ||
| View full specs | ||||
| Indoor Unit | MSZ-AP20VGD2 | |||
|---|---|---|---|---|
| Outdoor Unit | MUZ-AP20VGD2 | |||
| Refrigerant | R32 | |||
| Cooling | Capacity [Rated]*1 | kW | 2 | |
| Capacity [Min-Max] | kW | 0.60 – 2.70 | ||
| Total Input [Rated]*1 | kW | 0.46 | ||
| Total Input [Min-Max] | kW | 0.23 – 1.16 | ||
| EER | 4.35 | |||
| AEER | 4.31 | |||
| TCSPF (Residential) | Hot | 6.31 | ||
| Average | 5.93 | |||
| Cold | 6.11 | |||
| ZERL (Residential) Star Rating*2 | Hot | 4.5 | ||
| Average | 4 | |||
| Cold | 4.5 | |||
| Running Current [Rated]*3 | A | 2.6 | ||
| Sound Pressure Level*4 | In [Quiet-SHi] | dBA | 21 – 26 – 30 – 35 – 42 | |
| Out (PWL) | dBA | 47 (59) | ||
| Air Volume (In) Quiet – Shi (Speeds) | L/s | 58 – 115 (5) | ||
| Heating | Capacity [Rated]*1 | kW | 2.5 | |
| Capacity [Min-Max] | kW | 0.50 – 3.50 | ||
| Total Input [Rated]*1, 5 | kW | 0.6 | ||
| Total Input [Min-Max] | kW | 0.25 – 1.20 | ||
| COP | 4.17 | |||
| ACOP | 4.14 | |||
| HSPF (Residential) | Hot | 4.61 | ||
| Average | 4.28 | |||
| Cold | 3.94 | |||
| ZERL (Residential) Star Rating*2 | Hot | 3 | ||
| Average | 2.5 | |||
| Cold | 2 | |||
| Running Current [Rated]*3 | A | 3.2 | ||
| Sound Pressure Level | In [Quiet-Lo-Mid-Hi-SHi] | dBA | 21 – 26 – 30 – 35 – 42 | |
| Out (PWL) | dBA | 48 (61) | ||
| Air Volume (In) [Quiet-SHi] | L/s | 62 – 122 | ||
| Max. Running Current | A | 7.1 | ||
| Indoor Unit | Input [Rated] (Cooling/Heating) | W | 19/19 | |
| Dimensions [HxWxD] | mm | 250 x 760 x 178 | ||
| Weight | kg | 8.2 | ||
| Outdoor Unit | Dimensions [HxWxD] | mm | 550 x 800 x 285 | |
| Weight | kg | 31 | ||
| Breaker Size | A | 10 | ||
| Piping | Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | |
| Max. Length/Height | m | 20/12 | ||
| Guaranteed Operating Range [Outdoor] | Cooling | °C | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 0.55 | ||
| System model name | MSZAP25VGKD2KIT | |||
Notes:
*1 The Capacity (rated), Total Input (rated) and Running Current (rated) are determined under conditions T1 (cooling) or H1 (heating) of AS/NZS 3823.1.1 Cooling: Indoor 27°CDB/19°CWB, Outdoor 35°CDB/24°CWB Heating: Indoor 20°CDB/15°CWB, Outdoor 7°CDB/6°CWB
*2 ZERL (Residential) refers to ‘Zoned Energy Rating Label’ residential star rating based on GEMS 2019 Determination.
*3 Cooling and Heating have slightly different air volumes. The table shows absolute minimum and maximum air volumes of the unit.
*4 Sound Pressure Level measured in anechoic room at 1m.
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.
Information about the effectiveness and testing criteria of Mitsubishi Electric split systems filters.
MSZ-AP15-20VGD
MFXZ-KW25-50VG
SLZ-M25-60FA
Split system air conditioners—like the Mitsubishi Electric MSZ-AP—offer efficient and precise cooling for your home or business. A split system air conditioner is made up of two ‘split’ parts: the indoor unit that provides you with cool or warm air and the outdoor unit.
Split system units offer an aesthetically pleasing solution for your heating and cooling needs, as the indoor unit can be discreetly mounted on a wall. This saves you valuable floor space. In the case of the MSZ-AP Mini, it is even small enough to be discreetly positioned above a doorway.
Reverse cycle air conditioners, also known as heat pumps, can provide both heating and cooling functions. In the warmer months, the reverse cycle air conditioner extracts warm air from inside the home and expels it outside. During the colder months, this process is simply reversed: heat is taken from outside, transferred to the indoor unit via refrigerant piping and dispersed inside the room.
This versatile operation allows reverse cycle air conditioners to provide efficient heating and cooling throughout the year, making them a popular choice for maintaining a comfortable indoor environment regardless of the outside temperature.
There are a few factors to consider when determining the right size air conditioner for your space. The first and most important is the size of the space you want to cool or heat. A larger area will typically require a more powerful air conditioner. However, other factors such as insulation, ceiling height, number of windows, window coverings, and the climate in your region also influence the size of the air conditioner needed. The Mitsubishi Electric MSZ-AP Mini is ideal for smaller spaces, designed to fit above a door or window frame.
To ensure accurate sizing, it is best to consult with a professional air conditioning specialist Dealer.
When it comes to installing a split system air conditioner, entrusting the task to a professional with expert knowledge is crucial for achieving peak performance, efficiency, and safety. The installation process involves mounting the indoor unit on an interior wall and positioning the outdoor unit in a suitable outdoor location. These two units are then interconnected using refrigerant lines and electrical wiring. To ensure optimal connections, sufficient insulation, and accurate unit placement, the installer must hold a Refrigerant Handling Licence and appropriate electrical licence.
Find your nearest Specialist Dealer or ask us to arrange a quote from a qualified Specialist Dealer for you.
Dual Barrier Coating technology developed by Mitsubishi Electric offers significant advantages in maintaining a cleaner and more efficient air conditioner. This innovative coating is featured on the air conditioner’s heat exchanger and facial surfaces, and effectively reduces the accumulation of dust and greasy dirt on the surfaces of the unit. This minimises the need for frequent cleaning and prevents airborne contaminants from adhering to the air conditioner, ensuring that the unit remains cleaner for longer periods.

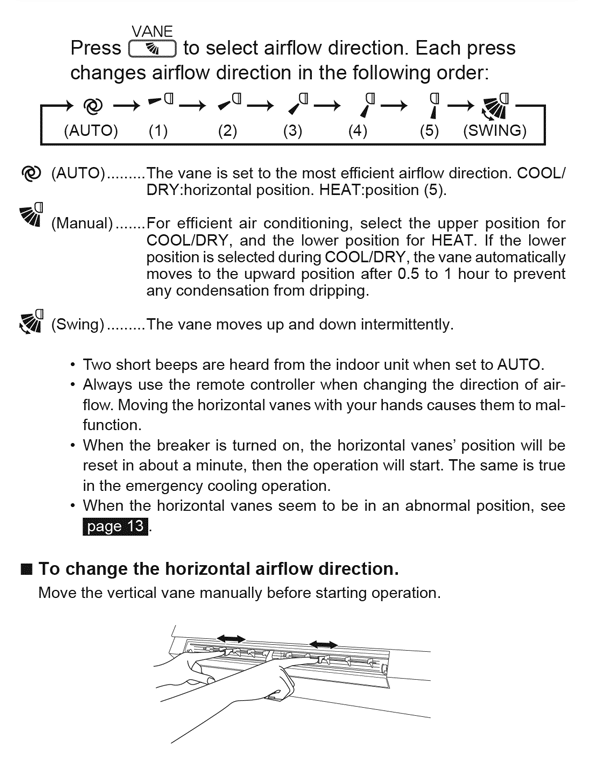

The vertical (up and down) airflow direction can be adjusted by pressing the VANE button on the remote control. Each press of the button changes the direction and will cycle through the options from AUTO, positions 1-5 and Swing.
Horizontal (left-right) airflow direction can be set by manually moving the vane before starting operation.
Refer to page 7 of the User Manual for more details.

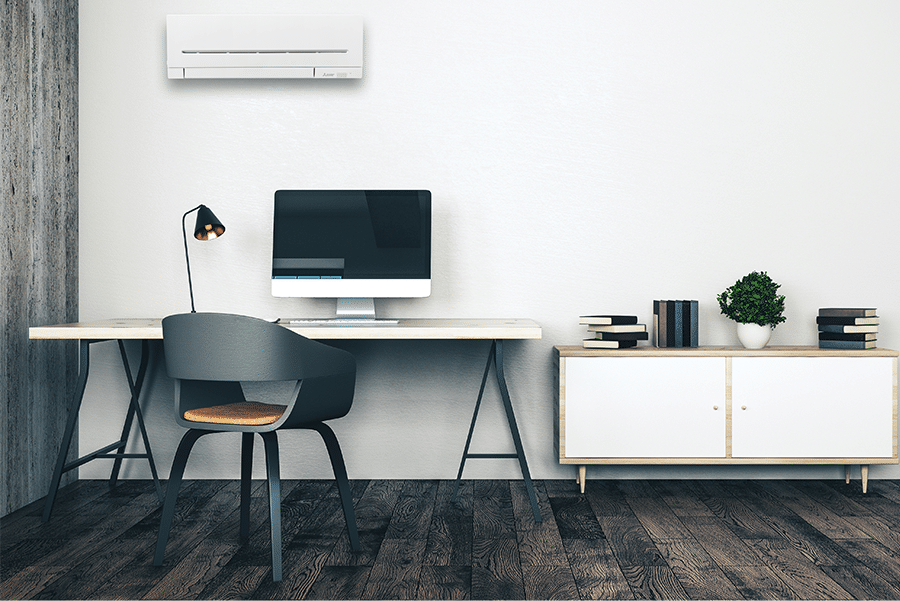

The Mitsubishi Electric MSZ-AP20 Mini is a great option for small spaces like home offices. It’s specifically designed for smaller rooms and has the smallest indoor unit dimensions in the Australian market, making it perfect for installation above a door or window frame. With a 2.0 kW operating capacity, it provides effective heating and cooling without over-investing in a system that’s too large. Additionally, it has optional Wi-Fi control, allowing you to switch it on and off remotely, and it’s energy-efficient with a high efficiency rating, making it a cost-effective solution for your home office.
Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
