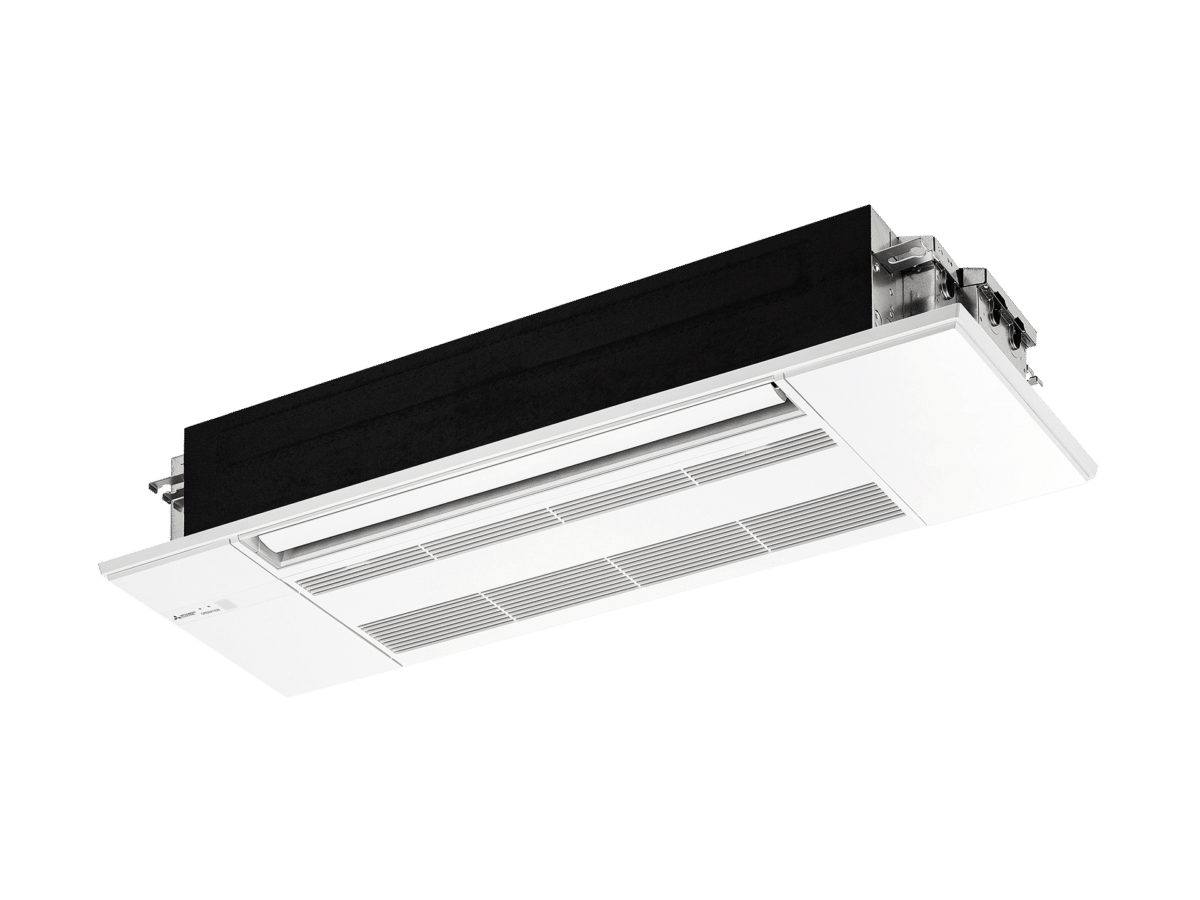

Single Room Air Conditioner
MLZ-KP25-50VG
Designed to suit modern interiors, the MLZ-KP Series 1 way ceiling cassette air conditioner delivers quiet, efficient comfort in a low-profile design. Its slimline form fits neatly into tight ceiling spaces, offering reliable performance without compromising room layout or aesthetics—ideal for homes with limited wall space.
Slim, innovative airflow and climate control for every space

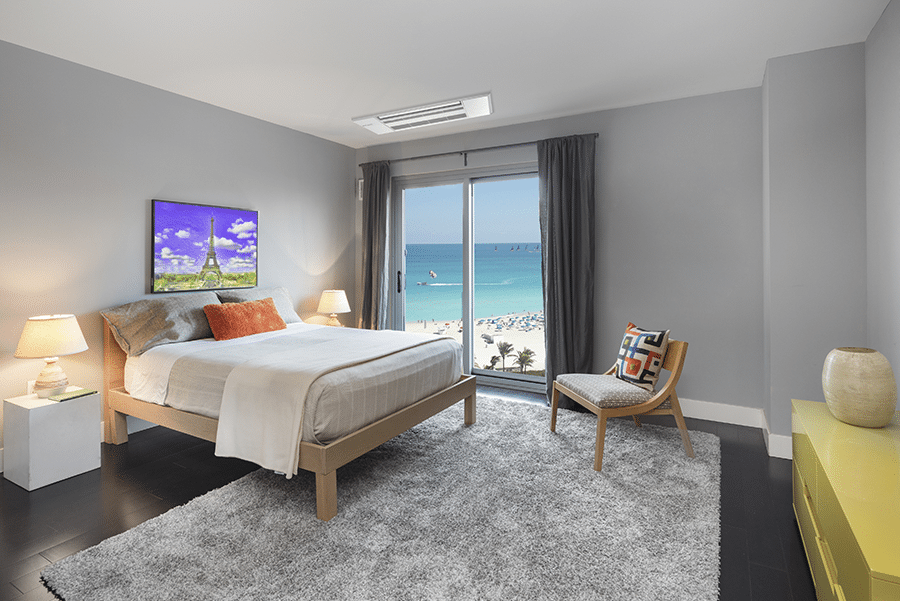

The MLZ-KP Series ceiling cassette air conditioning system by Mitsubishi Electric is built for low-profile installation, making it ideal for rooms with limited wall space or design constraints. Its slim, ceiling-mounted form creates a sense of openness, especially where pendant lighting or shelving occupies wall areas. This model is a practical solution for interiors dominated by glass, stone, or concrete, where running wall-mounted piping is often not feasible. Finished in flat natural white, it blends subtly into contemporary interiors, delivering quiet, efficient climate control without interrupting the room’s design flow.

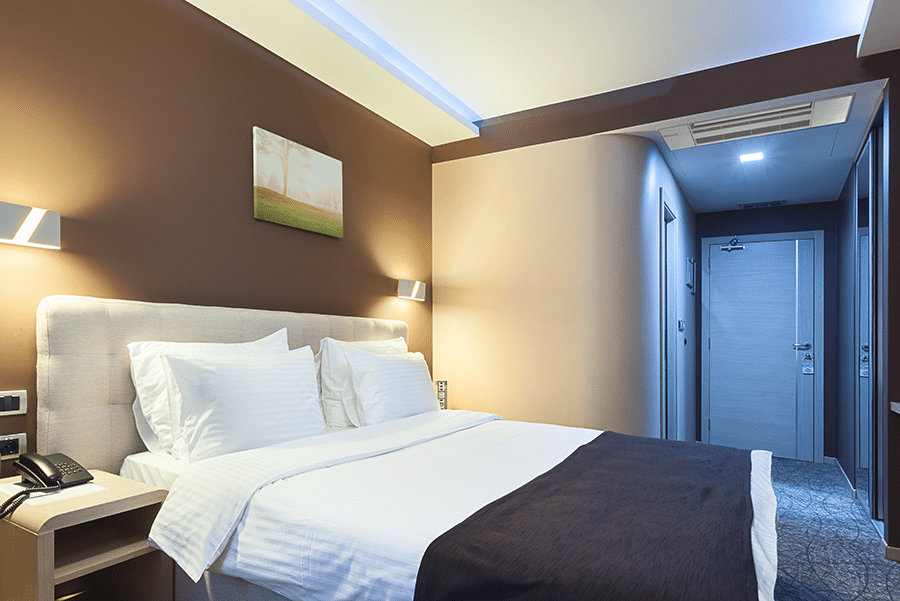

The MLZ-KP Series ceiling cassette air conditioner combines a low-profile design with reliable performance, making it a smart choice for discreet installation. With a slim height of just 185 mm, it’s designed to fit between standard 450 mm centred joists—ideal for rooms with limited ceiling space. Its streamlined form supports clean integration into a wide range of interiors, whether at home or in commercial settings. Despite its compact size, it delivers consistent, energy-efficient heating and cooling, offering practical comfort without compromising appearance or installation flexibility.
The MLZ-KP Series is designed to deliver a more comfortable indoor environment through advanced airflow features. Auto Vane Control allows users to adjust airflow direction via the remote control, helping to distribute cool or warm air evenly throughout the space. This reduces direct drafts and supports a more balanced room temperature. Combined with horizontal airflow, the unit gently circulates air across the ceiling rather than pushing it downward, making the space feel more comfortable for everyone, especially in areas where consistent airflow is essential.
At just 185mm in height, the MLZ Series is the perfect solution for low ceiling cavities, whilst the flat, natural white finish provides a sleek and discreet installation. The unit is designed to fit between standard 450mm centred joists.
Outlet vanes can be moved left and right when in Econo Cool mode, and up and down using the remote controller. This improved airflow control feature reduces drafts.

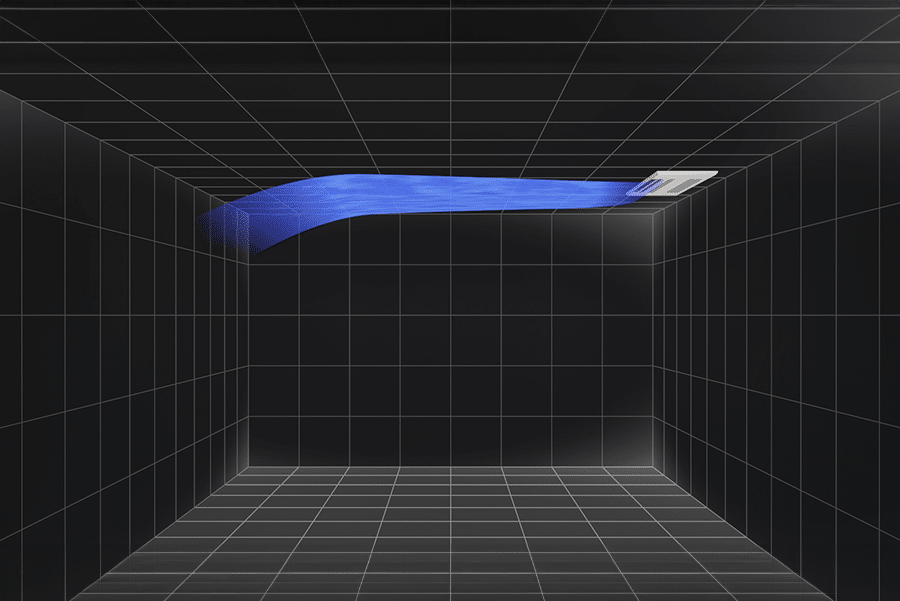

The airflow control reduces that uncomfortable drafty feeling with the introduction of a horizontal airflow that distributes across the ceiling.
The unit is designed to fit between standard 450mm centred joists and the 185mm high slim body design enables installation in restricted ceiling spaces.
Dual-level airflow selection is engineered to accommodate specific ceiling heights. This is a key feature for adjusting airflow effectively when ceilings are of different heights. *Set by installer.
The controller features a weekly and 24 hour On/Off timer to set operating times on a daily basis.
The MLZ-KP Series one-way cassette can be connected to a Mitsubishi Electric MXZ multi-split system or City Multi PUMY-SP and PUMY-P systems. City Multi PUMY-SP and PUMY-P series will require a branch box (up to two branch boxes per system) to connect the MLZ-KP series one-way cassette units.
The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.
This product can be controlled alongside Mitsubishi Electric City Multi, Mr Slim, e-Series chillers and other products.
Demand Response mode is activated in response to signals sent from the power distributor at times when it is necessary to reduce peak demand.
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
| Indoor unit | MLZ-KP25VG | MLZ-KP35VG | MLZ-KP50VG | ||
|---|---|---|---|---|---|
| Outdoor unit | SUZ-M25VAD-A | SUZ-M35VAD-A | SUZ-M50VAD-A | ||
| Cooling | Capacity (Min-Rated-Max) | kw | 1.5-2.5-3.2 | 1.5-3.5-4.1 | 2.3-5.0-5.5 |
| Star rating | 3.5 | 3.0 | 2.5 | ||
| Sound Pressure Level | In (Slo-Lo-Mid-Hi) | 27-31-34-38 | 27-32-36-40 | 29-36-41-47 | |
| Out (PWL) | 45 (59) | 48 (62) | 48 (64) | ||
| Air Volume (In) Lo-Mid-Hi | L/S | 100-120-133-147 | 100-122-140-157 | 100-138-163-190 | |
| Heating | Capacity (Min-Rated-Max) | kw | 1.3-3.2-4.2 | 1.3-4.1-4.7 | 1.7-6.0-6.8 |
| Star rating | 3.5 | 2.5 | 2.0 | ||
| Sound Pressure Level | In (Slo-Lo-Mid-Hi) | 26-29-34-37 | 26-32-36-40 | 26-37-42-48 | |
| Out (PWL) | 46 (59) | 48 (63) | 49 (66) | ||
| Air Volume (In) Lo-Mid-Hi | L/S | 100-117-137-153 | 100-128-147-165 | 100-147-172-197 | |
| Indoor unit | Input (Rated) | kw | 0.04 | 0.04 | 0.04 |
| Dimensions (HxWxD) | mm | 185 x 1102 x 360 | 185 x 1102 x 360 | 185 x 1102 x 360 | |
| Panel | mm | 24 x 1200 x 424 | 24 x 1200 x 424 | 24 x 1200 x 424 | |
| Weight (Panel) | kg | 15.5(3.5) | 15.5(3.5) | 15.5(3.5) | |
| Outdoor unit | Dimensions (HxWxD) | mm | 550 x 800 x 285 | 550 x 800 x 285 | 714 x 800 x 285 |
| Weight | kg | 30 | 35 | 41 | |
All Mitsubishi Electric air conditioning units come equipped with inverter technology to minimise energy consumption while maximising cooling performance, ensuring a comfortable indoor climate without excessive power usage.
Inverter air conditioners use a variable frequency output to control the speed of the compressor. The compressor is then able to ramp up and down to meet the cooling or heating load. When the cooling or heating demand is met the compressor will slow down, in return helping to reduce running costs.
Inverter air conditioners reach the desired room conditions faster and then constantly adjust to maintain the desired set point. Inverter air conditioners are more economical to operate and quieter to run than fixed-speed units but need to be correctly sized by an air conditioning specialist.
The MLZ-KP series is capable of providing both cool air and warm air, making it an excellent choice for year-round climate control. This dual functionality is particularly beneficial in regions with varying temperatures, ensuring that whether it’s a hot summer day or a chilly winter evening, your home remains comfortable. Reverse cycle air conditioning can be a relatively energy efficient and economical way of heating and cooling compared to gas and electric space heaters. Mitsubishi Electric air conditioners are a quiet and clean source of heating for your home.
The MLZ-KP25-50VF series, with its varying cooling capacity of 2.5 kW to 5.0 kW, is designed to cool a range of room sizes efficiently. While it excels in medium-sized areas, its performance in larger spaces depends on factors like room layout, insulation, and external temperature. For very large spaces, it might be necessary to consider additional units or other models within the Mitsubishi Electric range to ensure optimal coverage. However, for most residential and smaller commercial settings, the MLZ-KP25 offers efficient cooling and a balance of performance and energy consumption, making it an excellent choice for a variety of environments. Contact a Mitsubishi Electric specialist Dealer for sizing to suit your space.
Find your nearest stockist or request a quote and find the right air conditioner for your home or commercial application.
The MLZ-KP Series one-way cassette can be connected to a Mitsubishi Electric MXZ multi-split system or City Multi PUMY-SP and PUMY-P systems. City Multi PUMY-SP and PUMY-P series will require a branch box (up to two branch boxes per system) to connect the MLZ-KP series one-way cassette units.
