WiFi Air Conditioning Controllers

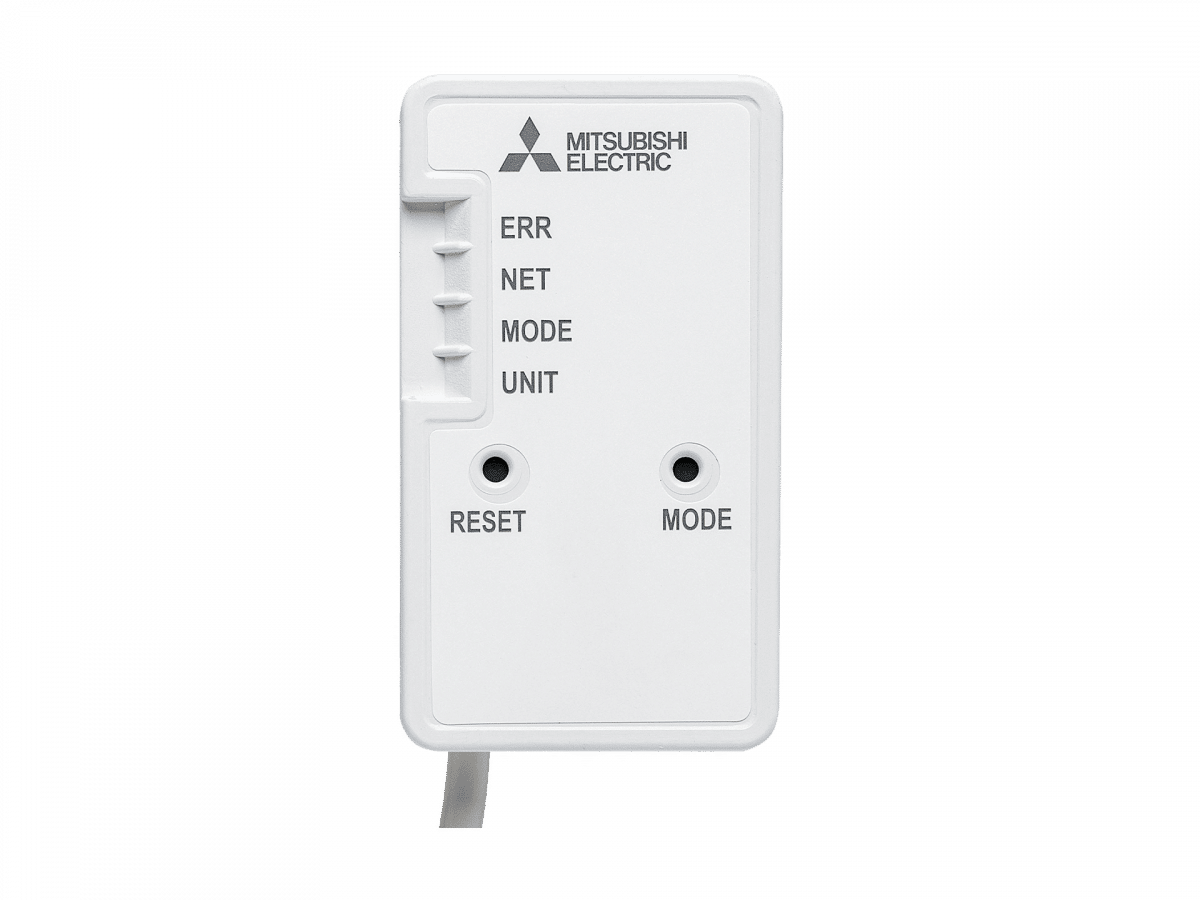

MAC-568IF-E Wi-Fi Controller

Wi-Fi Control unlocks the door to smarter heating and cooling, for total home comfort wherever you are.

This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an Internet connection from anywhere in the world.

Optional Wi-Fi adapter required per unit (excludes LN Series due to built-in capabilities).

Requires an Internet connection and the Wi-Fi Control App downloaded from the App Store or Google Play Store on your smartphone or tablet with the latest Operating System available.

Wi-Fi Voice Control with Amazon Alexa and Google Assistant

Wi-Fi Voice Control with Amazon Alexa and Google Assistant

Mitsubishi Electric air conditioning systems connected with Wi-Fi Control*1 are now also Amazon Alexa*2 and Google Assistant*3 enabled! This means you can enjoy hands-free control.

*1 Optional Wi-Fi adapter required per unit (excludes LN Series due to built-in capabilities).
Requires an Internet connection and the App downloaded from the App Store or Google Play Store on your smartphone or tablet with the latest Operating System available.
*2 To use Amazon Alexa to control your air conditioner, you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner, you will need a Google Home smart speaker.

Control Multiple Air Conditioning Systems

Control Multiple Air Conditioning Systems

Our easy-to-use Wi-Fi smart AC controller allows you to customise the settings of each air conditioning unit in your home. Purchase multiple adapters to manage all Mitsubishi Electric air conditioners independently on the same account to ensure complete control over your system. The result is a tailored system to your needs.

Compatible with full current range of M Series, P Series and City Multi.

Two Way Communication

Two Way Communication

Equipped with advanced two-way communication, the Wi-Fi Control App provides you with confirmation that your command has been received by your air conditioner.

This means you can be confident that your air conditioner will do exactly what you want it to.

Set Minimum Room Temperature Limit

Set Minimum Room Temperature Limit

The minimum room temperature feature enables everyone to enjoy a happy and comfortable home or workplace. Using advanced technology, the air conditioner senses when the room temperature drops below the set minimum temperature and automatically turns on to ensure the minimum temperature is maintained. Ideal for children’s bedrooms and offices, you can rest assured your family will stay comfortable.

Set Maximum Room Temperature Limit

Set Maximum Room Temperature Limit

The maximum room temperature feature enables you to comfortably enjoy the summer heat. Using advanced technology, your air conditioner will automatically turn on when it reaches the set maximum temperature, cooling the air and allowing you to enjoy the warm seasons in ultimate comfort.

Compatible Units

Compatible Units

The MAC-568IF-E smart controller is compatible with Mitsubishi Electric M Series, P Series and CITY MULTI indoor units manufactured after January 2015.

Operating rules for smarter heating and cooling

Operating rules for smarter heating and cooling

Create your own Wi-Fi Control rules to turn the unit off and on at specific times (such as on in the morning and off when you leave the house) or turn on before you get home to pre-cool or pre-heat your home.

Other Features

  • Wi-Fi Control compatible with Amazon Alexa and Google Assistant
  • View and control your air conditioner from anywhere in the world*1
  • Enhance energy savings
  • Set up of 7-day weekly schedule
  • True two-way feedback
  • Control of individual zones when connected to ducted indoor units with a Zone Controller
Model MAC-568IF-E
Input voltage DC12.7 V (from indoor unit)
Power consumption MAX 2 W
Size H×W×D (mm) 79 x 44 x 18.5
Weight (g) 105 g (including cable)
Transmitter power level (MAX) 17.5 dBm @IEEE 802.11b
RF channel 1ch ~ 13ch (2412~2472 MHz)
Radio protocol IEEE 802.11b/g/n (20)
Encryption AES
Authentication WPA2-PSK
Length of cable (mm) 2,040
