Mitsubishi Electric air curtains efficiently insulate temperature, preventing the loss of cool air during cooling and heat loss during heating. They act as a protective barrier, safeguarding your premises from unpleasant elements commonly found in the external environment.
Need help choosing?
GK-3509-3512SA-AUS
Mitsubishi Electric air curtains are the perfect way to provide your premises with a comfortable, clean and hygienic environment while saving energy with a quiet, efficient and powerful operation.
The air curtain not only insulates temperature efficiently (i.e. preventing loss of cool air during cooling and heat loss during heating) it can protect your premises from unpleasant elements found in the external environment.
GK-2509-3012AS2-CE
Mitsubishi Electric air curtains are the perfect way to provide your premises with a comfortable, clean and hygienic environment while saving energy with a quiet, efficient and powerful operation.
The air curtain not only insulates temperature efficiently (i.e. preventing loss of cool air during cooling and heat loss during heating) it can protect your premises from unpleasant elements found in the external environment.
Air curtains work by utilising a series of fans to blow air either downwards or horizontally. This creates an airflow volume and velocity that forms an invisible barrier between the outside air and the inside air.

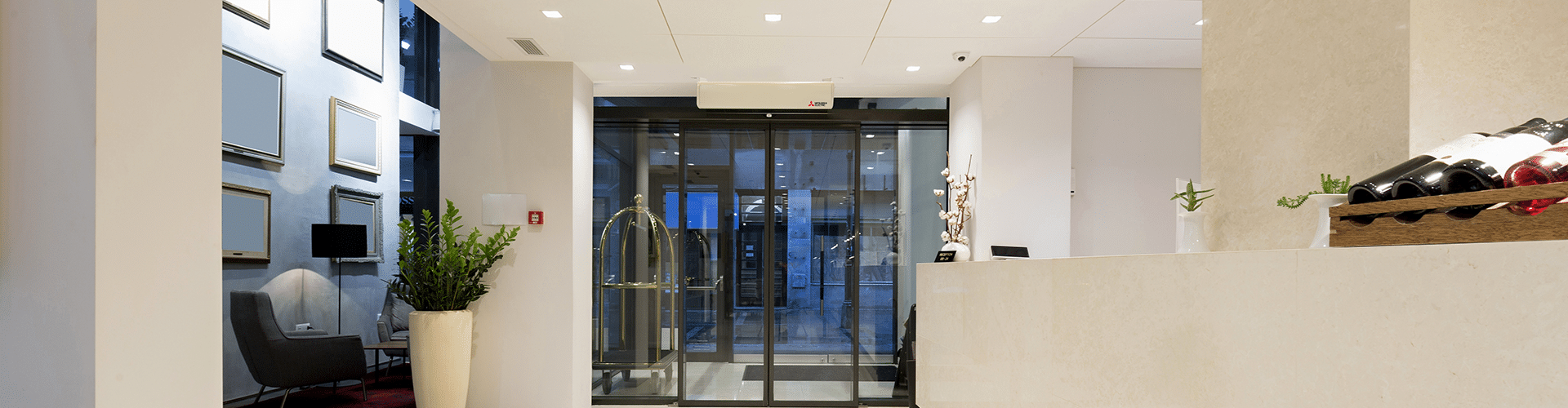

Air curtains are typically installed above doors that are open to the outside air, which can lead to temperature control issues. The invisible airstream barrier they create helps prevent the loss of cool air during cooling and heat loss during heating, thus maintaining temperature control and reducing the load on the air conditioning system. Additionally, air curtains contribute to a hygienic environment by keeping insects from entering the premises.
Air curtains can assist with preventing loss of cool air during cooling and heat loss during heating which helps to reduce load on the air conditioning system.
Air curtains, such as the Mitsubishi Electric GK-25/30 Series Air Curtain, feature strong airflow volume and velocity that can effectively prevent the entry of flies and other insects into a premises. This makes them especially beneficial for food service areas like cafes and restaurants where keeping bugs out is crucial.
Top inlet type air curtain models to suit residential and light commercial applications. Airflow rates range from 336 l/s to 483 l/s.
Front inlet type air curtains are used in commercial and industrial applications as they feature stronger airflow rates of 650 l/s to 867 l/s which make them an ideal choice in food production sites and in areas where temperature control and hygiene is critical.
Mitsubishi Electric aircurtains are available in 900 mm and 1180 mm widths models.
Typical applications include supermarkets, cafés, restaurants, healthcare facilities and industrial doorways where busy thoroughfares make temperature control and cleanliness difficult.
Selected top inlet models are suitable for residential foyers and small shops. Speak with an installer to confirm suitability for your doorway width, mounting height and exposure before choosing an air curtain for your home.
For residential and light commercial applications, the GK-25/30 series is a suitable option. For more demanding sites, choose the GK-35 series, which is better suited to larger indoor-to-outdoor temperature differences and locations exposed to stronger outdoor wind.
Front inlet models can be fitted close to the ceiling because they draw air from the front. Top inlet models require a 100 mm clearance above the unit for intake.
