Air Curtain

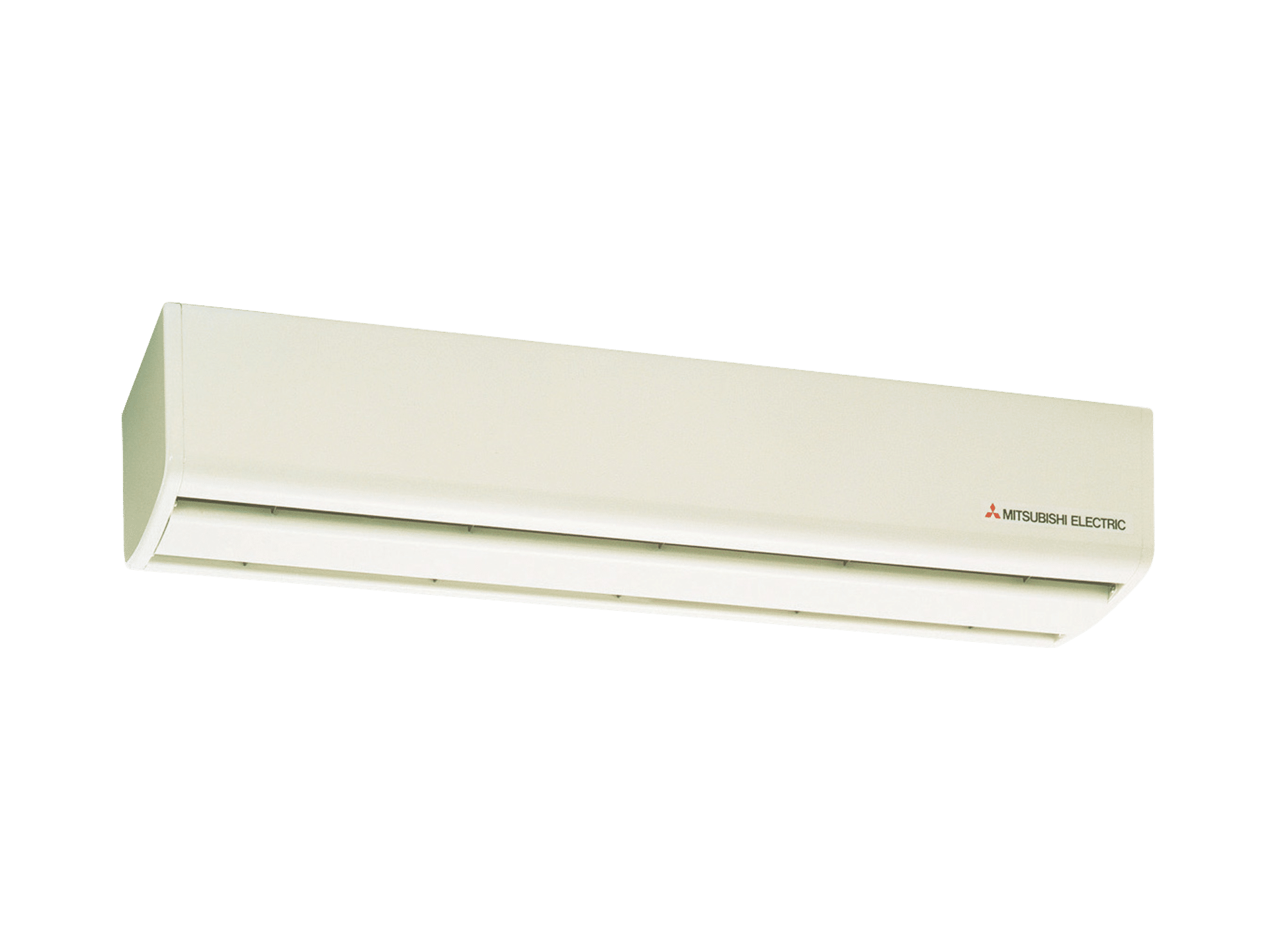

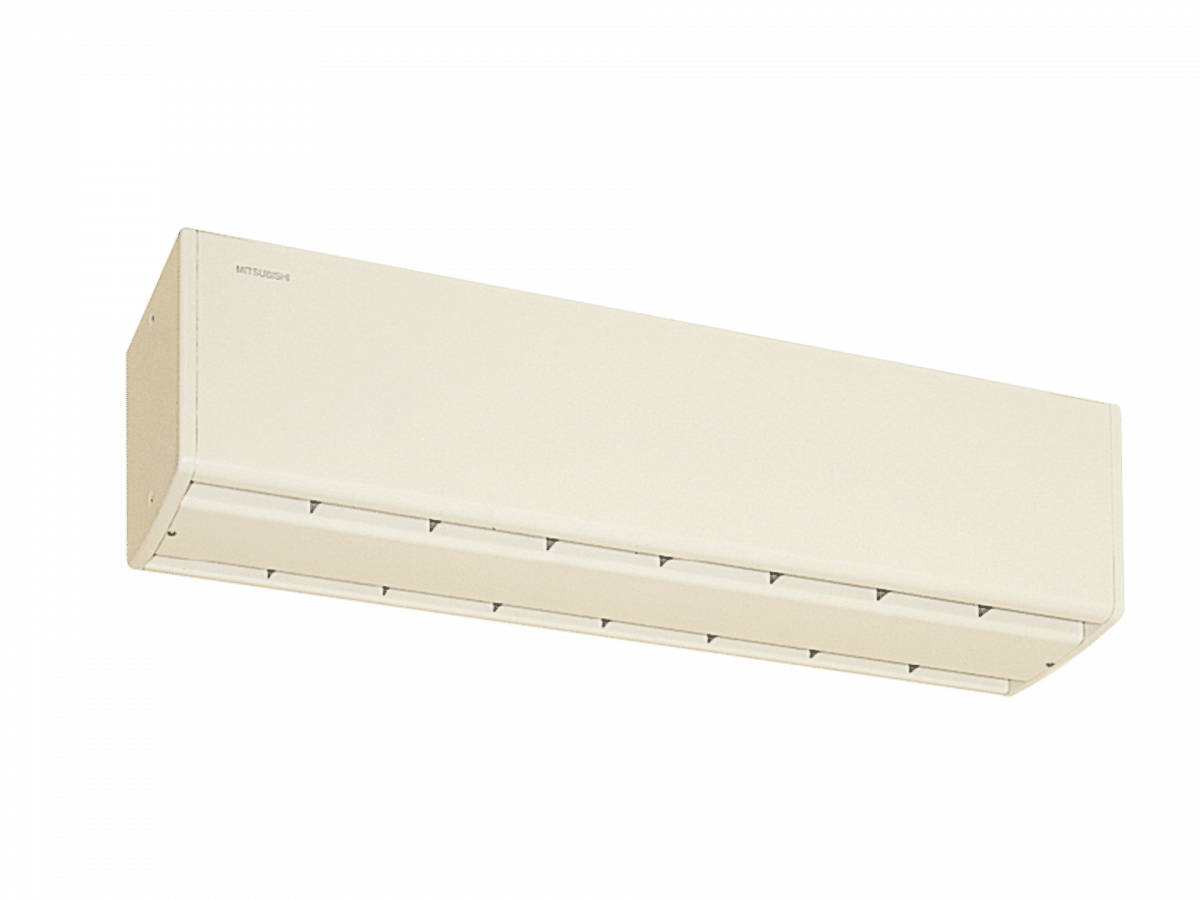

GK-25/30 Series Air Curtain

GK-2509-3012AS1-CE

Mitsubishi Electric air curtains are the perfect way to provide your premises with a comfortable, clean and hygienic environment while saving energy with a quiet, efficient and powerful operation.

The air curtain not only insulates temperature efficiently (i.e. preventing loss of cool air during cooling and heat loss during heating) it can protect your premises from unpleasant elements found in the external environment.

Easy Maintenance

The use of the axial fan (quiet propeller design) makes the unit easier to maintain and keep the unit in top condition at all times. Additionally, an improvement resulted from a change of fan, from line flow fan to axial flow fan extends the lifespan of the unit.

Flexible Installation

The airflow angle can be adjusted both internally and externally. The unit can be installed vertically or horizontally according to the available space.

Quiet Propeller Design

The hydromechanical technology applied to Mitsubishi Electric’s quiet fan provides substantial airflow with low noise. Our quiet fan has achieved significant improvements in energy efficiency and operation cost compared to the previous model using a line flow fan.

Shut-Out

Powerful airflow lock out. Keeps out dust, insects, and noxious odours. Helping maintain a pleasant environment.

* In an insect shut out test, a 40 w mercury lamp was placed inside an Air Curtain ejected from a 4 cm wide vent at a velocity of 8 m/sec. The insect shut out rate was 70-80%.

Sustains Temperature

In a cold-storage facility without an Air Curtain, the temperature inside increases from -5 to 4ºC in as little as two minutes. If an Air Curtain is used, this time is extended to about 10 minutes, or approximately five times as long. Tests show that when an Air Curtain was used, 50% less energy was required to reduce the inside temperature to -5ºC.

Twin Nozzle

The twin nozzle design allows the Air Curtain to generate larger air velocity distribution with less air intake. Resistance to the influence of external airflow has been strengthened considerably improving insulation against heat and cold.

Other Features

  • Airflow 336 to 483 l/s
  • 900 & 1194 mm width models
  • Modern slim design
  • Top inlet
  • Prevent heating/cooling loss
  • Quiet Propeller Design
  • Twin nozzle
  • Easy maintenance
  • Flexible installation
  • Shut-out dust & insects
Model GK-2509YS1-CE GK-2512AS1-CE GK-3009AS1-CE GK-3012AS1-CE
Fan Speed High Low High Low High Low High Low
Airflow rate l/s 336 394 402 483
Air Volume m3 /h 1210-1230 980-1000 1420-1440 1150-1170 1450-1470 1100-1200 1740-1760 1350-1400
Running Current A 0.25-0.26 0.24-0.25 0.35-0.37 0.31-0.33 0.43-0.46 0.35-0.37 0.52-0.56 0.44-0.46
Input Power 54-61 52-59 76-83 67-78 90-105 76-87 107-125 95-109
Air Velocity Max. m/sec 9.5 7 9.5 7 12 8 12 8
Noise dB 43-44.5 38-41 46-47 40.5-44 46-47 43-45.5 49-50 46-47
Air Volume m3/h 1170 930 1410 1090 1640 1150 1950 1330
Power supply Single-phase, 50Hz 220-240V Single-phase, 50Hz 220-240V Single-phase, 50Hz 220-240V Single-phase, 50Hz 220-240V
Running Current A 0.29 0.25 0.39 0.33 0.47 0.39 0.58 0.48
Input Power W 63 54 84 71 102 84 125 104
Air Velocity Max. m//sec 9.5 7 9.5 7 12 8 12 8
Noise dB 43 35 46.5 38 49.5 42.5 52 45
Starting Current A 0.43 0.62 0.86 1.05
Width mm 900 1194 900 1194
Weight kg 10.5 13.3 11 14
