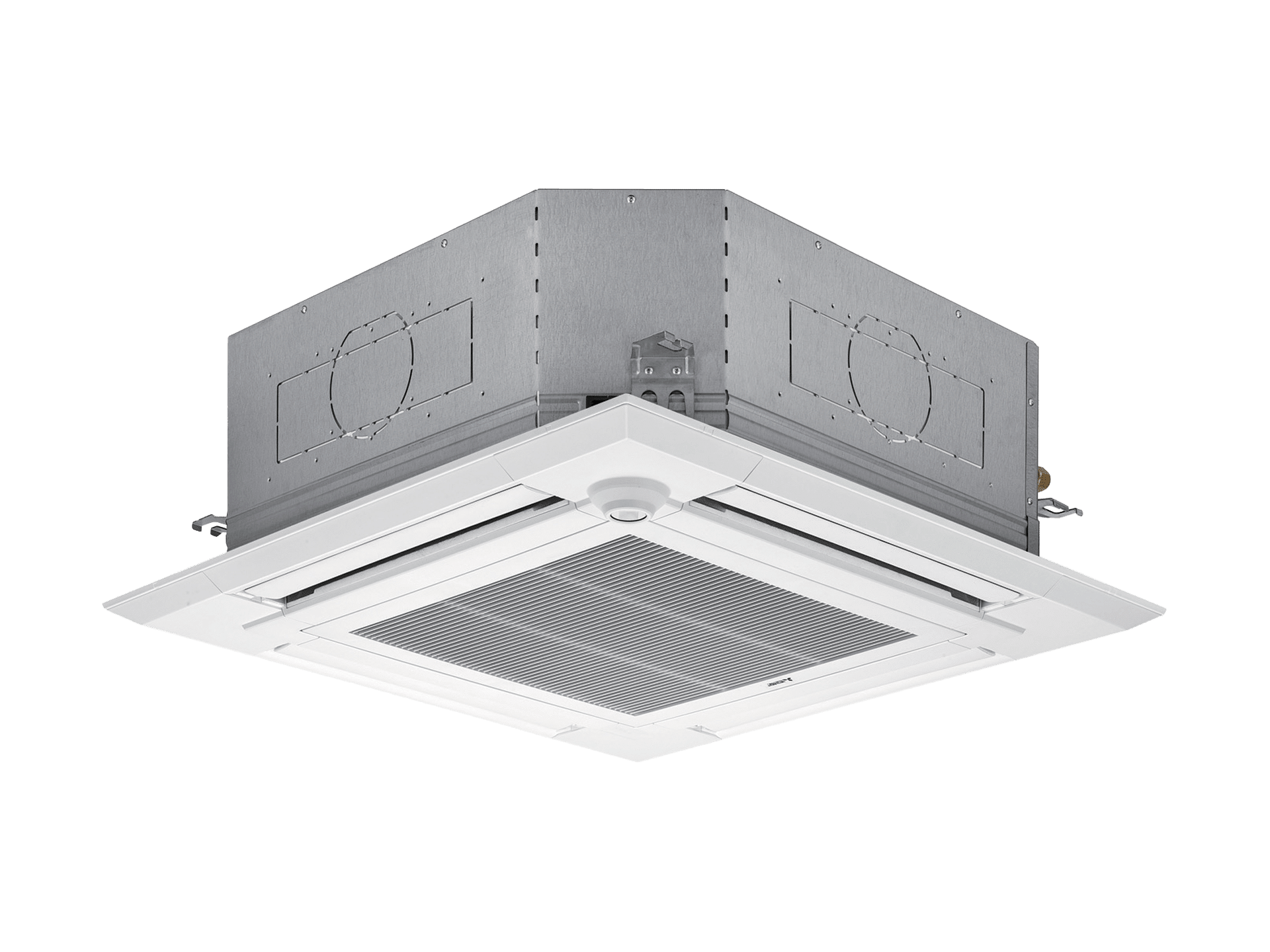

Ceiling Cassette Air Conditioning

PLA-M-EA Series

PLA-M71-140EA-A

  • Capacity Range: 7.1-13.5 Kw
  • 4-way airflow
  • Wide airflow
  • Horizontal airflow
  • 3D i-See Sensor (Optional)
  • Built-in drain pump
Wide airflow

Wide airflow

PLA-M Series ceiling cassettes have the capacity to circulate air evenly throughout a room, ensuring that the room temperature is consistent throughout the entire space, through the use of wide-angle outlets. PLA-M Series ceiling cassettes feature a 20% reduction in horizontal airflow and fan speed, when compared to conventional models, in order to increase the comfort experienced by occupants.

Horizontal airflow

Horizontal airflow

Horizonal mode spreads airflow across the ceiling to help reduce reduces that uncomfortable drafty feeling usually associated with ceiling cassette air conditioners, ideal airflow for offices and restaurants.

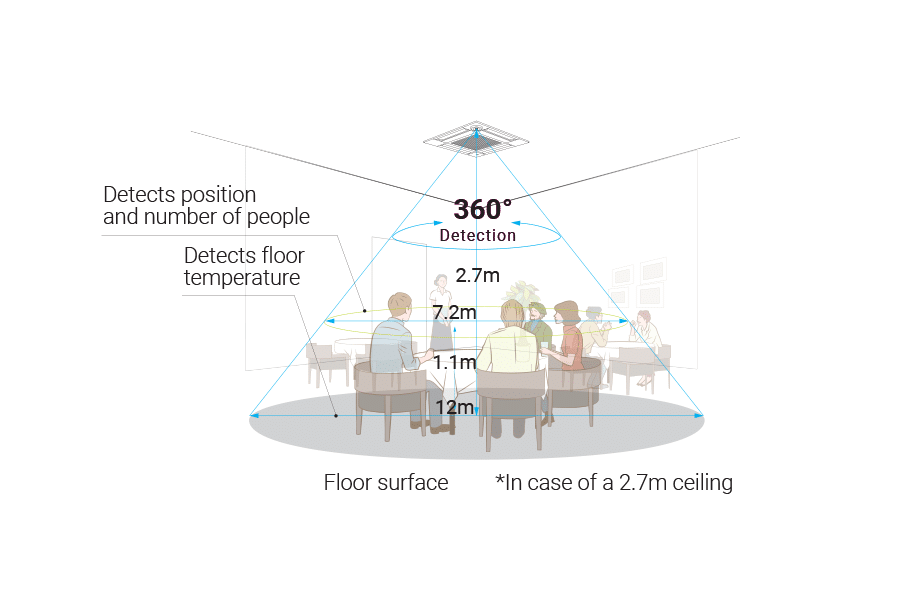

3D i-See Sensor (Optional)

3D i-See Sensor (Optional)

3D i-See Sensor detects the occupancy of people in the room and sets the air conditioning settings accordingly. This makes automatic power-saving operation possible in high traffic areas/places. Additionally, when the area is continuously unoccupied, the system switches to an enhanced power-saving mode. 3D i-See sensor functionality requires the optional PAC-SF1ME-E Corner Panel with 3D i-see Sensor part.

Indirect airflow (i-See Sensor function)

Indirect airflow (i-See Sensor function)

Direct settings allow for airflow directly onto occupants for rapid cooling. When set to "Indirect Airflow", uncomfortable drafty-feeling is substantially reduced. 3D i-See sensor functionality requires the optional PAC-SF1ME-E Corner Panel with 3D i-see Sensor part.

Built-in drain pump

Built-in drain pump

The built-in drain pump means there is one less extra component required for installation.

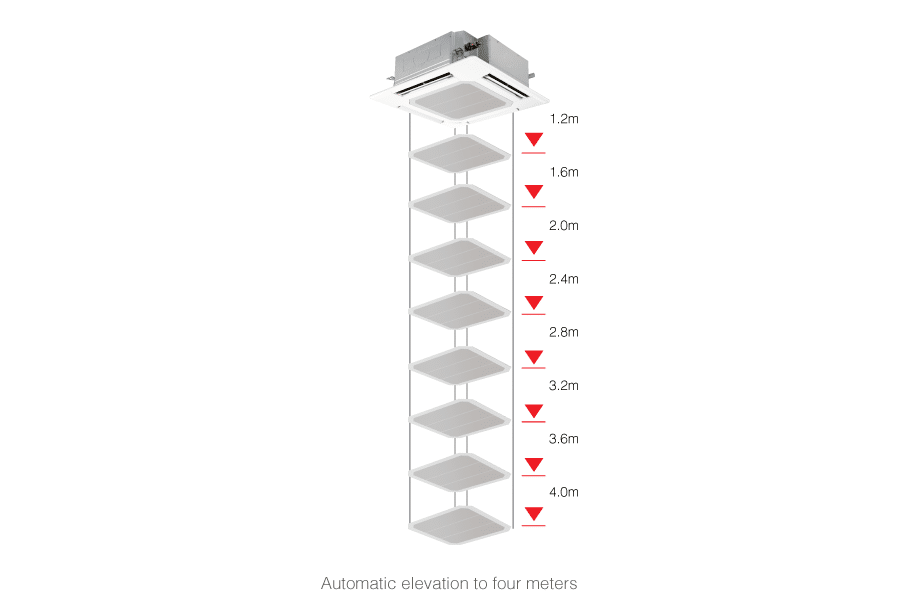

Automatic grille lower function (Optional)

Automatic grille lower function (Optional)

An automatic grille lowering function is available as an option on our range of PLA 4-way blow cassette indoor units. This unique product allows for easy filter maintenance without the need for towers or ladders to gain access to high ceilings. The grille can be lowered to a maximum of 4 m from the ceiling in eight stages and the filter can simply be unclipped, cleaned and re-inserted easily. Keeping filters clean maintains performance of the unit and reduces the stains and smudging on ceiling tiles caused when filters become dirty. Optional part required: PLP-6EAJ.

Wi-Fi Control*1

Wi-Fi Control*1

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.

*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.

*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.

*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Optional PAR-CT01MAA MA Touch Remote Controller

Optional PAR-CT01MAA MA Touch Remote Controller

The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.

Plasma Quad Connect air purifying filter_PAC-SK-51FT-E

Plasma Quad Connect air purifying filter

Optional secondary air purifying filter that connects to your air conditioner. Plasma Quad technology significantly improves indoor air quality by inhibiting six key indoor pollutants; Influenza virus, bacteria, PM2.5, allergens, mould and dust. Plasma Quad Connect helps improve indoor air quality, which is not only good for a healthier environment but can provide peace of mind and reassurance for the home, school or office. Optional part: PAC-SK-51FT-E
