Bluefin

Bluefin

Anti-corrosion treatment has been applied to the heat exchanger of the outdoor units. This coating prevents corrosion of the aluminium fins caused by salt in the air especially in coastal areas. Corrosion of the heat exchanger will affect the efficiency and performance of the AC.

Cooling only

Cooling only

The MSY-GN Series cooling only wall mounted split air conditioner availability is limited to Northern Australia (Northern Western Australia, Northern Territory and Northern Queensland).

I-Save Mode

I-Save Mode

The “i-save” Mode is a simplified setting function that recalls the preferred (preset) temperature at the press of a button on the remote controller. The function ensures the most suitable air conditioning settings are used contributes to reduced power consumption.

Nano Platinum Filter

Nano Platinum Filter

The Nano Platinum Deodorising Filter reduces airborne bacteria while improving air quality. The optional Electro Static Anti-Allergy Enzyme Filter assists in the reduction of common allergens.*2 *2 Testing Standard JIS L1902.

Plasma Quad Connect air purifying filter_MAC-100FT-E

Plasma Quad Connect air purifying filter

Optional secondary air purifying filter that connects to your air conditioner. Plasma Quad technology significantly improves indoor air quality by inhibiting six key indoor pollutants; Influenza virus, bacteria, PM2.5, allergens, mould and dust. Plasma Quad Connect helps improve indoor air quality, which is not only good for a healthier environment but can provide peace of mind and reassurance for the home, school or office. Optional part: MAC-100FT-E.

Quiet operation_v3

Quiet operation

A ‘Quiet Mode’ setting has been added to the fan speed settings, ensuring super quiet operation below 19dB*1. Perfect for the bedroom; it’s so quiet you’ll check to see if it’s on. *1 Models MSY-GN25/35 only

R32 refrigerant

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Wi-Fi Control

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Wide & Long Airflow

Wide & Long Airflow

Wide and long airflow modes allow the airflow direction to be adjusted. It is especially beneficial for large spaces, helping to ensure that the air is well circulated and reaches every corner of the room. This can be activated at the touch of a button on your remote controller. Models MSY-GN50-80 only.

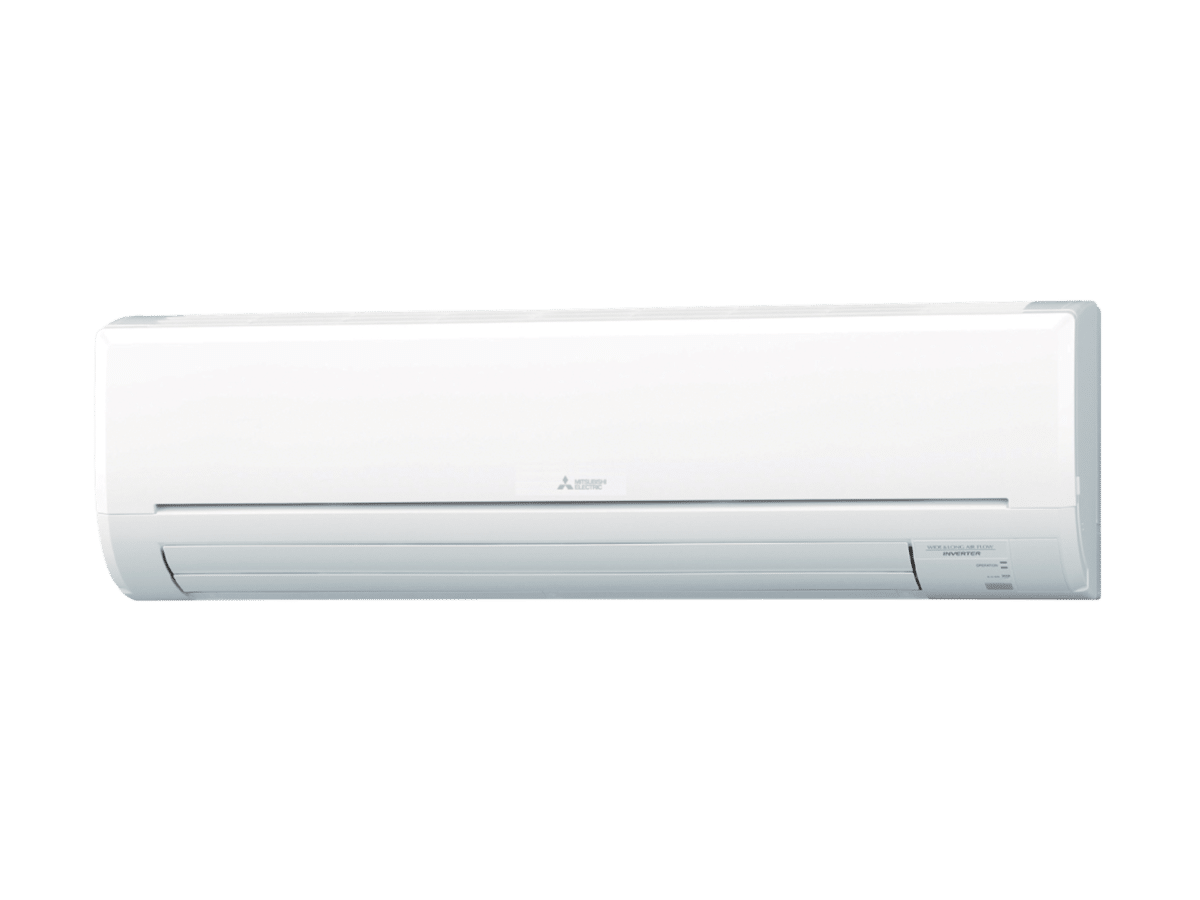

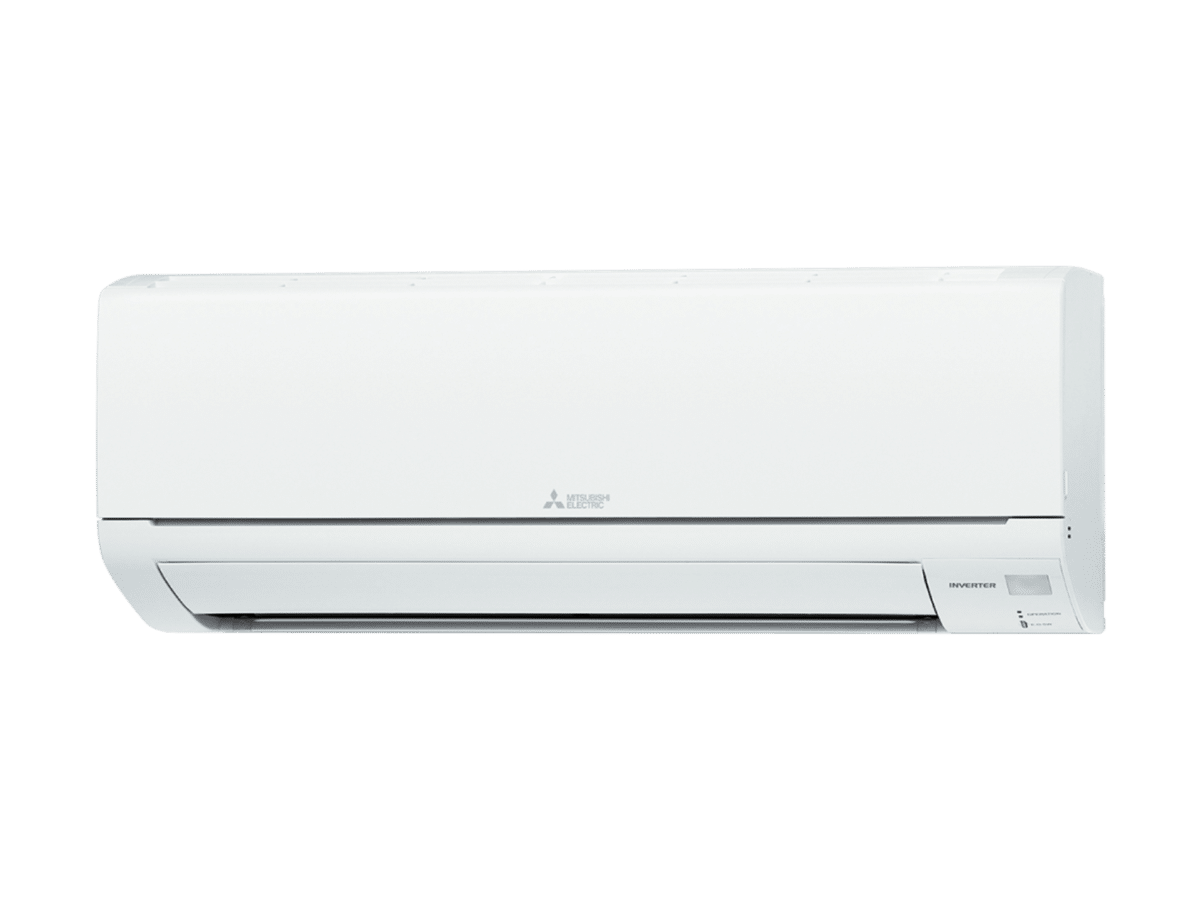

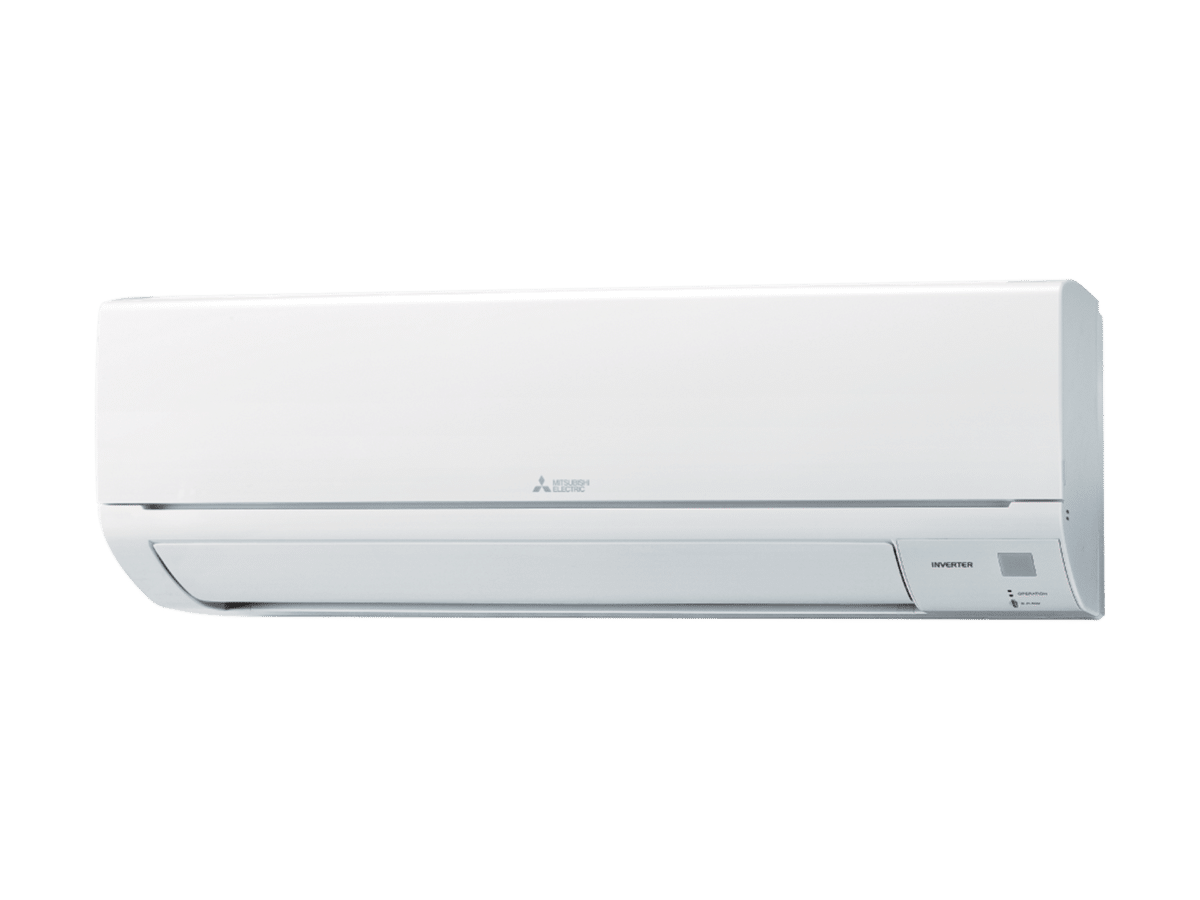

Indoor Unit MSY-GN25VF MSY-GN35VF MSY-GN42VF MSY-GN50VF MSY-GN60VF MSY-GN71VF MSY-GN80VF

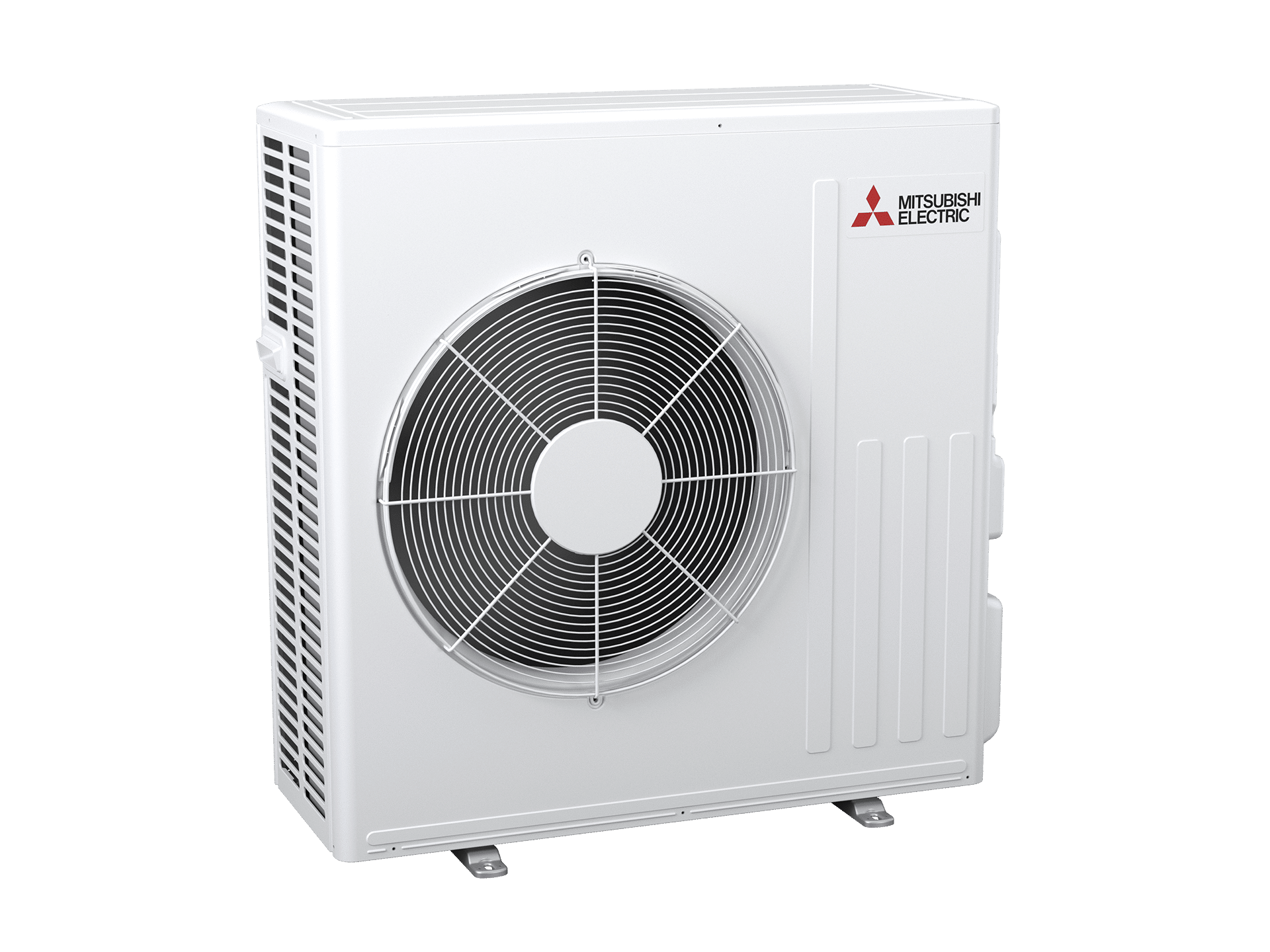

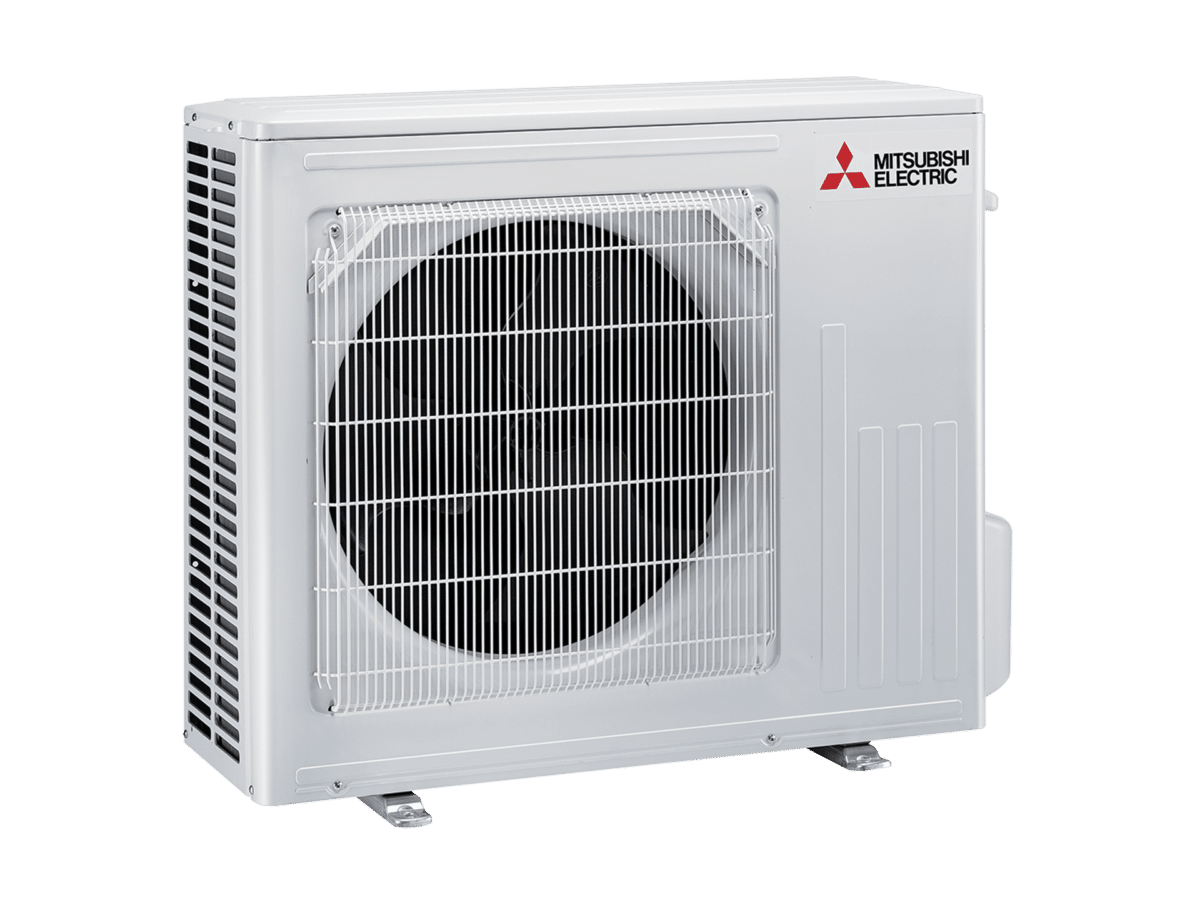

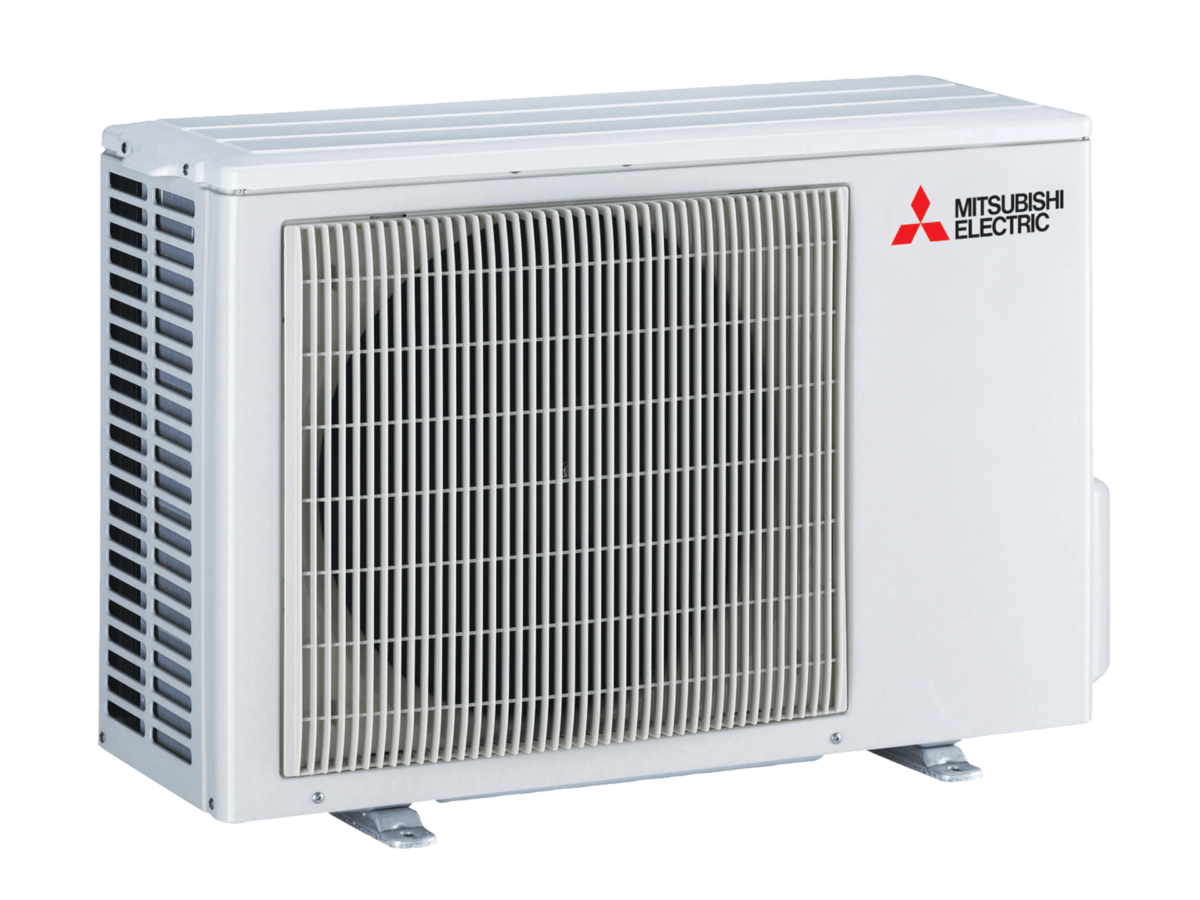

Outdoor Unit MUY-GN25VF MUY-GN35VF MUY-GN42VF MUY-GN50VF MUY-GN60VF MUY-GN71VF MUY-GN80VF
Refrigerant R32 R32 R32 R32 R32 R32 R32
Cooling Capacity [Min-Rated-Max] kW 1.10 – 2.50 – 3.40 1.10 – 3.50 – 4.10 0.90  4.20 – 4.80 1.50 – 4.80 – 6.00 1.50 – 6.00 – 7.20 2.40 – 7.10 – 8.70 2.40 – 8.00 – 9.20
Star Rating 4 3 2.5 3 3 3 2
SPL In [Quiet-Lo-Mid-Hi-SHi*1] dB(A) 19 – 24 – 31 – 38 – 44 19 – 24 – 31 – 38 – 44 26 – 29 – 35 – 40 – 46 28 – 33 – 38 – 44 – 49 29 – 37 – 41 – 45 – 49 30 – 37 – 41 – 45 – 51 30 – 37 – 41 – 45 – 51
Out [PWL] dB(A) 46 (59) 50 (62) 51 (64) 52 (69) 55 (69) 57 (69) 57 (69)
Indoor unit Dimensions [HxWxD] mm 290 x 799 x 232 290 x 799 x 232 290 x 799 x 232 305 x 923 x 250 305 x 923 x 250 325 x 1100 x 238 325 x 1100 x 238
Weight kg 9 9.5 9.5 12.5 12.5 15 15
Outdoor unit Dimensions [HxWxD] mm 550 x 800 x 285 550 x 800 x 285 550 x 800 x 285 550 x 800 x 285 714 x 800 x 285 880 x 840 x 330 880 x 840 x 330
Weight kg 28.5 32 32 32 37 48.5 48.5

Notes:

*1 SHi = Super High
