Multi Head Split System Air Conditioners

4-Port Multi-Split

MXZ-4F80VGD

  • Capacity: 8.0 kW
  • Energy efficient
  • Wi-Fi Control
  • Quiet operation
  • Individual Temperature Control for Each Room
  • Demand Response Capable
4-port multi split system

4-port multi split system

Connect up to four indoor units to a single outdoor unit.

Demand Response Capable

Demand Response Capable

Based on connection of a demand response enabling device (DRED), Demand Response Mode is activated in response to signals sent from the electric power company at times when it is necessary to reduce peak demand. Based on AS/NZS 4755.3.1:2014 (excludes MXZ-2F52VF).

Flexible indoor unit choice

Flexible indoor unit choice

Compatible indoor units range from wall mounted, floor standing, ceiling concealed, ceiling cassettes to ceiling suspended units; offering end-users flexibility, with a wide range of options to satisfy most application requirements.

Guaranteed Operating Range

Guaranteed Operating Range

The MXZ series has a guaranteed operating range of -10°C to 46°C (Cooling), -5°C (-15°C*1) to 24°C (Heating). Optional air protection guide is required where ambient temperature is lower than -5°C.

Individual Temperature Control for Each Room

Individual Temperature Control for Each Room

The capability of a Multi Split System lies in the capacity to individually control the temperature of all air conditioner units, even if a combination of different models have been used. Individual air conditioner control allows occupants in different rooms to select a temperature (within the same mode) that suits their needs, without affecting the temperature settings in other rooms. The capacity to individually control each air conditioner unit may also result in savings on your electricity bill, with the ability to turn a single air conditioner unit off when it isn’t required.

Keep Exterior Clutter-Free

Keep Exterior Clutter-Free

Multi Split Systems are conveniently designed to keep the exterior of your home clutter free, with the ability to connect multiple (2-8) indoor air conditioning units to a single outdoor unit.

R32 refrigerant

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Wi-Fi Control

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

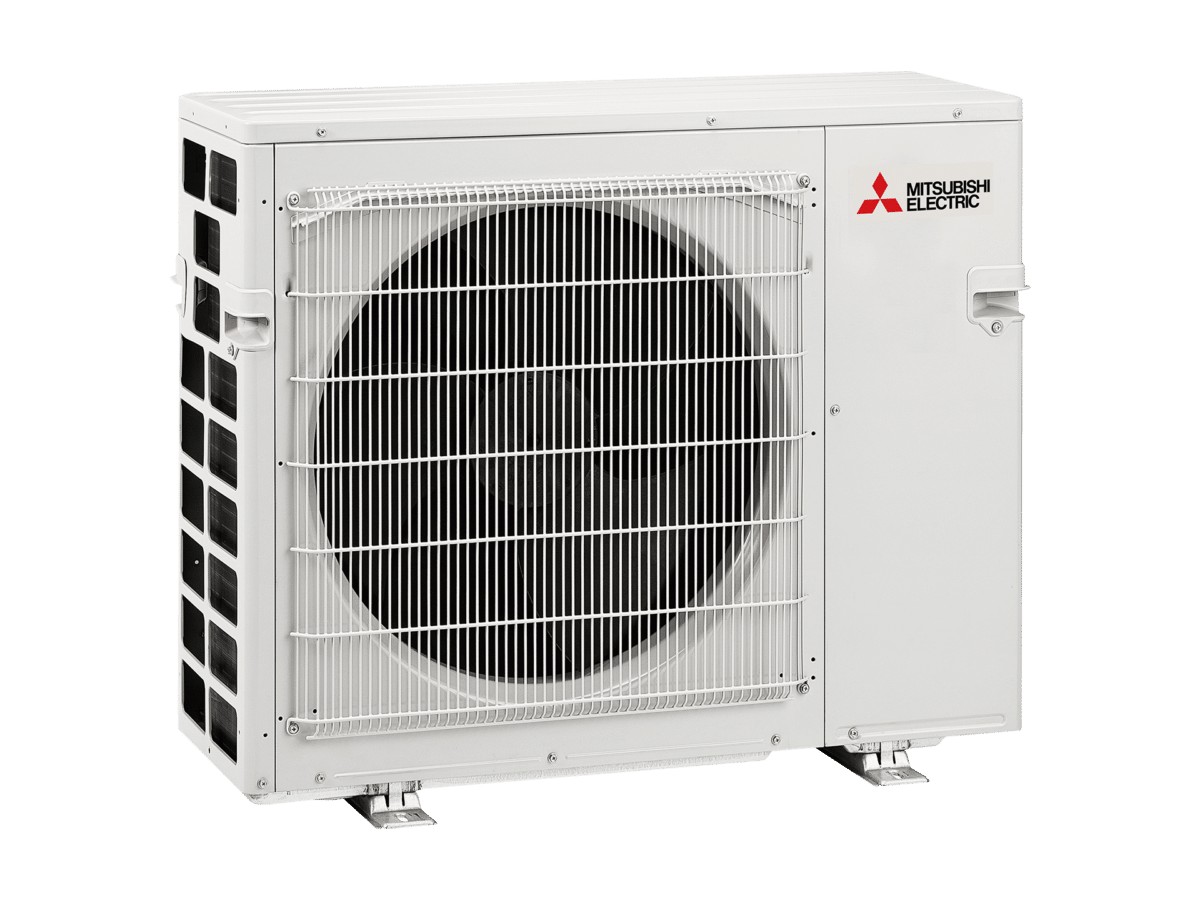

Outdoor unit MXZ-4F80VGD
Refrigerant R32
Cooling Capacity (Min-Rated-Max) kw 3.7-8.0-9.2
Heating Capacity (Min-Rated-Max) kw 3.4-8.8-11.6
Outdoor unit Dimensions (HxWxD) mm 796 x 950 x 330
Weight kg 61
Number of connectable indoor units 4

Download the brochure for full specifications.
