Multi Rooms Air Conditioner

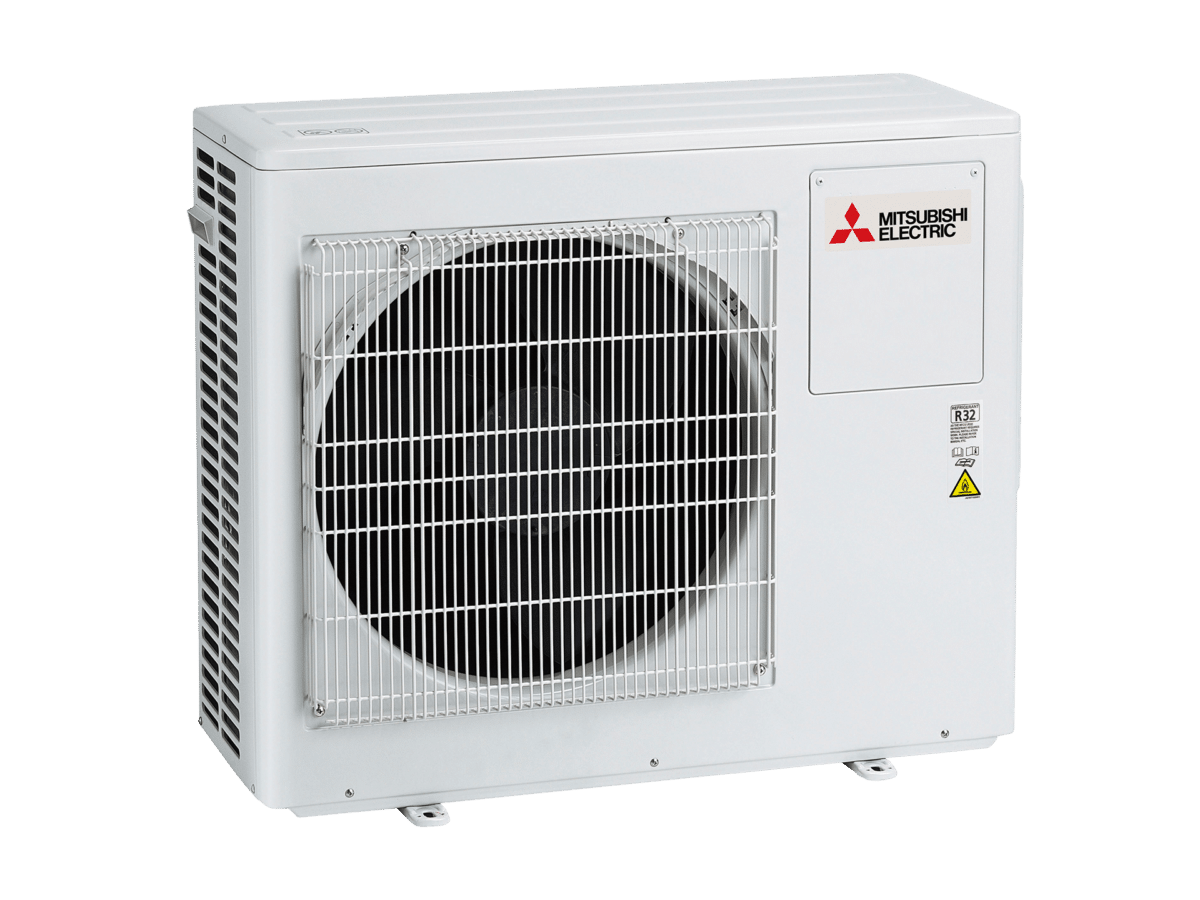

MXZ-3F54VGD-A1
The MXZ-3F54VGD-A is specifically designed for cooling multiple smaller spaces such as bedroom zones in homes and apartments. This versatile split-system air conditioner connects up to three indoor units to a single outdoor unit, making it an efficient solution for properties with three bedrooms. Its adaptable design allows you to choose from various indoor unit styles to suit individual room layouts while maintaining consistent performance across all connected spaces.
Versatile room options with quiet, personalised temperature control
Experience precise climate control without compromising on peace and quiet. The MXZ-3F54VGD-A reverse-cycle air conditioner operates at just 46dBA* in cooling mode – quieter than a typical library. This exceptional quiet performance, achieved through Silent Mode technology, ensures undisturbed sleep and peaceful living spaces while maintaining optimal comfort year-round. Each connected indoor unit operates independently, allowing individual temperature control within the same operating mode (heating or cooling). This means one bedroom can be set cooler or warmer than others, depending on personal preference. When rooms are unoccupied, individual units can be switched off, optimising both energy efficiency and quietness throughout your home in all seasons. *Measured in an Anechoic chamber for outdoor unit in cooling mode.
Blending an elegant design that minimises outdoor clutter and maximises performance, the 3-Port Multi-Split air conditioner is ideal for homes and apartments. Its sleek, space-saving outdoor unit complements your home’s aesthetics while allowing you to connect it to three compatible indoor units of your choice. Prepared for any weather, this air conditioner comes with a guaranteed operating range suitable for diverse climates. Capable of cooling your home in outdoor temperatures ranging from -10°C to 46°C and heating your space from -5°C to 24°C, you can enjoy the reliable delivery of warm air or cool relief year-round. This performance, coupled with its sophisticated appearance, makes the MXZ-3F54VGD a perfect choice for those seeking a blend of style and functionality from their air conditioning units.
The MXZ-3F54VGD-A lets you mix and match up to three indoor units from our comprehensive range to suit each room's requirements. Choose from premium MSZ-LN wall-mounted units with advanced filtration, reliable MSZ-AP wall-mounted units for versatile applications, MFXZ-KW floor-standing units where wall mounting isn't suitable, or space-saving MLZ-KP ceiling cassettes. For minimal visual impact, select SLZ-M ceiling cassettes or concealed SEZ-M ducted units. This flexibility means you can install different styles across your bedrooms – such as a wall-mounted unit in one room and a ceiling cassette in another – while connecting to just one outdoor unit.
Connect up to three indoor units to a single outdoor unit.
Compatible indoor units range from wall mounted, floor standing, ceiling concealed, ceiling cassettes to ceiling suspended units; offering end-users flexibility, with a wide range of options to satisfy most application requirements.
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
Thanks to a clever Silent Mode feature, Multi Split Systems are able to operate whilst keeping noise to the minimum. Whilst in operation, the sound levels of outdoor units can remain as low as 46dBA*, which will greatly please both you and your neighbours.
*MXZ-2F52VGD-A1 / MXZ-3F54VGD-A1 in cooling mode. Measured in an Anechoic chamber.
The capability of a Multi Split System lies in the capacity to individually control the temperature of all air conditioner units, even if a combination of different models have been used. Individual air conditioner control allows occupants in different rooms to select a temperature (within the same mode) that suits their needs, without affecting the temperature settings in other rooms. The capacity to individually control each air conditioner unit may also result in savings on your electricity bill, with the ability to turn a single air conditioner unit off when it isn’t required.
Multi Split Systems are conveniently designed to keep the exterior of your home clutter free, with the ability to connect multiple (2-8) indoor air conditioning units to a single outdoor unit.
Based on connection of a demand response enabling device (DRED), Demand Response Mode is activated in response to signals sent from the electric power company at times when it is necessary to reduce peak demand. Based on AS/NZS 4755.3.1:2014 (excludes MXZ-2F52VF).
The MXZ series has a guaranteed operating range of -10°C to 46°C (Cooling), -5°C (-15°C*1) to 24°C (Heating). Optional air protection guide is required where ambient temperature is lower than -5°C.
| Outdoor unit | MXZ-3F54VGD | ||
|---|---|---|---|
| Refrigerant | R32 | ||
| Cooling | Capacity (Min-Rated-Max) | kw | 2.9-5.4-6.8 |
| Heating | Capacity (Min-Rated-Max) | kw | 2.6-7.0-9.0 |
| Outdoor unit | Dimensions (HxWxD) | mm | 710 x 840 x 330 |
| Weight | kg | 58 | |
| Number of connectable indoor units | 3 | ||
Download the brochure for full specifications.
Compatibility & capacity tables for MXZ, PUMY-SP & PUMY-P Multi Split Systems.
MXZ-2F52VGD/MXZ-3F54VGD/MXZ-4F71VGD Installation Manual
When choosing between air conditioners, it’s essential to consider the layout of your home to ensure efficient cooling. By selecting the right size air conditioner (capacity measured in kW) for your space, you can ensure that your whole home is effectively heated or cooled comfortably, without having to operate additional accessories such as fans or portable heaters.
Request a quote today and allow us to help you find the right air conditioner for your home.
The MXZ-3F54VGD is a fixed system. At Mitsubishi Electric, we offer a range of fixed air conditioner units and systems for permanent, energy-efficient, and customisable home cooling and heating. EnergyRating.gov.au explains that portable air conditioners with a single duct to vent hot air display a Zoned Energy Rating Label of zero stars. By drawing in warm air from other areas, a portable air conditioner’s performance is negatively impacted and, therefore, inefficient.
By utilising a fixed indoor and outdoor unit design, Mitsubishi Electric offers efficiency as an air conditioner brand and allows you to manage the climate and comfort of your whole home. Contact us today and request a quote so we can help you find the best air conditioner for your space.
In addition to the MXZ-3F54VGD-A1, the MXZ Series includes other models catering to different needs:
MXZ-2F52VGD-A1: This model has a capacity of 5.2 kW and is celebrated for its energy efficiency and quiet operation. It allows the connection of up to two indoor units to a single outdoor unit, offering a flexible choice of indoor units like wall-mounted, floor-standing, and ceiling cassettes. The model is available with optional Wi-Fi control, enabling remote management via a smartphone or tablet. This feature not only provides convenience but also contributes to energy savings by allowing individual temperature control for each room.
MXZ-4F71VGD-A1: This unit boasts a higher capacity of 7.1 kW, maintaining the series’ focus on energy efficiency. It can connect up to four indoor units to a single outdoor unit, ensuring a clutter-free exterior and flexibility in indoor unit choice. Like the MXZ-2F52VGD-A1, it also offers optional Wi-Fi control for easy management of each unit’s settings remotely. The model is demand response capable, for areas that require that feature. It also has a wide operating range, ensuring functionality in various climatic conditions.
Contact us today and request a quote or find your nearest stockist here.
