Multi Rooms Air Conditioner
The MXZ-4F71VGD-A1 multi split system reverse-cycle air conditioner is specifically designed for properties with three bedrooms, though it can support up to four indoor units connected to a single outdoor system. While it offers the flexibility to mix and match different indoor unit styles, it performs optimally when paired with three 2.2kW indoor units – making it an efficient solution for bedroom zones in homes and apartments. You can choose from wall-mounted, floor-standing, ceiling cassette and ducted options to suit each bedroom’s layout while maintaining consistent performance in both heating and cooling modes.
Optimal climate control for every space
Set different temperatures in each bedroom while using the same operating mode (heating or cooling). For example, if your west-facing bedroom gets afternoon sun, you can set it cooler than east-facing rooms. When bedrooms aren't in use, simply switch off individual units without affecting other rooms – perfect for guest rooms or when children are away. This practical control helps manage energy use by cooling or heating only the spaces you need, potentially reducing electricity costs. Each room's temperature can be adjusted using individual remote controllers, letting everyone in the family set their preferred comfort level.
Enhance the way you use the MXZ-4F71VGD-A1 air conditioning units through advanced Wi-Fi Control*1. This feature allows users to adjust settings and manage their new air conditioner remotely via your smart device ensuring optimal comfort at the touch of a button. Compatibility with Amazon Alexa*2 and Google Assistant*3 elevates this convenience further, introducing voice-controlled adjustments to your indoor climate. Offering a seamless blend of technology and comfort, the MXZ-4F71VGD-A1 is the ideal air conditioner for any smart home or business aiming for effortless climate control. *1 Optional Wi-Fi adapter required per indoor unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available. *2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device. *3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
The MXZ-4F71VGD-A1 lets you mix and match up to four indoor units to suit each bedroom's specific requirements and design preferences. While ideally suited for three small bedrooms using 2.2kW units, you can select from our comprehensive range including premium MSZ-LN wall-mounted units with advanced filtration, designer MSZ-EF wall-mounted units for contemporary spaces, reliable MSZ-AP wall-mounted units for versatile applications, MFXZ-KW floor-standing units where wall mounting isn't suitable, space-saving MLZ-KP ceiling cassettes with single-direction airflow, discreet SLZ-M ceiling cassettes for rooms requiring minimal visual impact, and PEAD-M bulkhead units for specialised installations. This flexibility means you can install different styles of indoor units across your bedrooms while maintaining efficient performance and connecting to just one outdoor unit.
Connect up to four indoor units to a single outdoor unit.
Compatible indoor units range from wall mounted, floor standing, ceiling concealed, ceiling cassettes to ceiling suspended units; offering end-users flexibility, with a wide range of options to satisfy most application requirements.
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
The capability of a Multi Split System lies in the capacity to individually control the temperature of all air conditioner units, even if a combination of different models have been used. Individual air conditioner control allows occupants in different rooms to select a temperature (within the same mode) that suits their needs, without affecting the temperature settings in other rooms. The capacity to individually control each air conditioner unit may also result in savings on your electricity bill, with the ability to turn a single air conditioner unit off when it isn’t required.
Multi Split Systems are conveniently designed to keep the exterior of your home clutter free, with the ability to connect multiple (2-8) indoor air conditioning units to a single outdoor unit.
Based on connection of a demand response enabling device (DRED), Demand Response Mode is activated in response to signals sent from the electric power company at times when it is necessary to reduce peak demand. Based on AS/NZS 4755.3.1:2014 (excludes MXZ-2F52VF).
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
The MXZ series has a guaranteed operating range of -10°C to 46°C (Cooling), -5°C (-15°C*1) to 24°C (Heating). Optional air protection guide is required where ambient temperature is lower than -5°C.

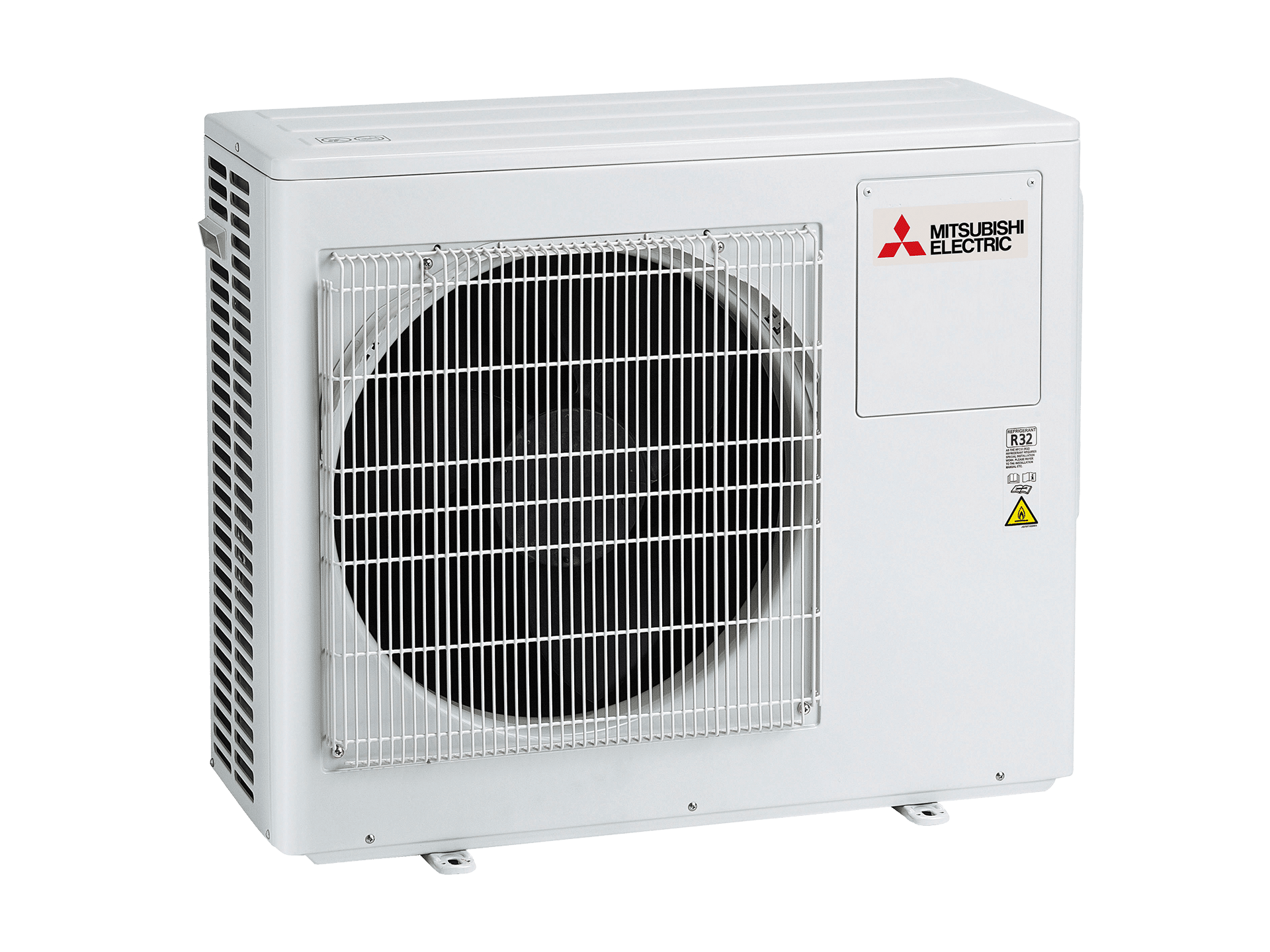

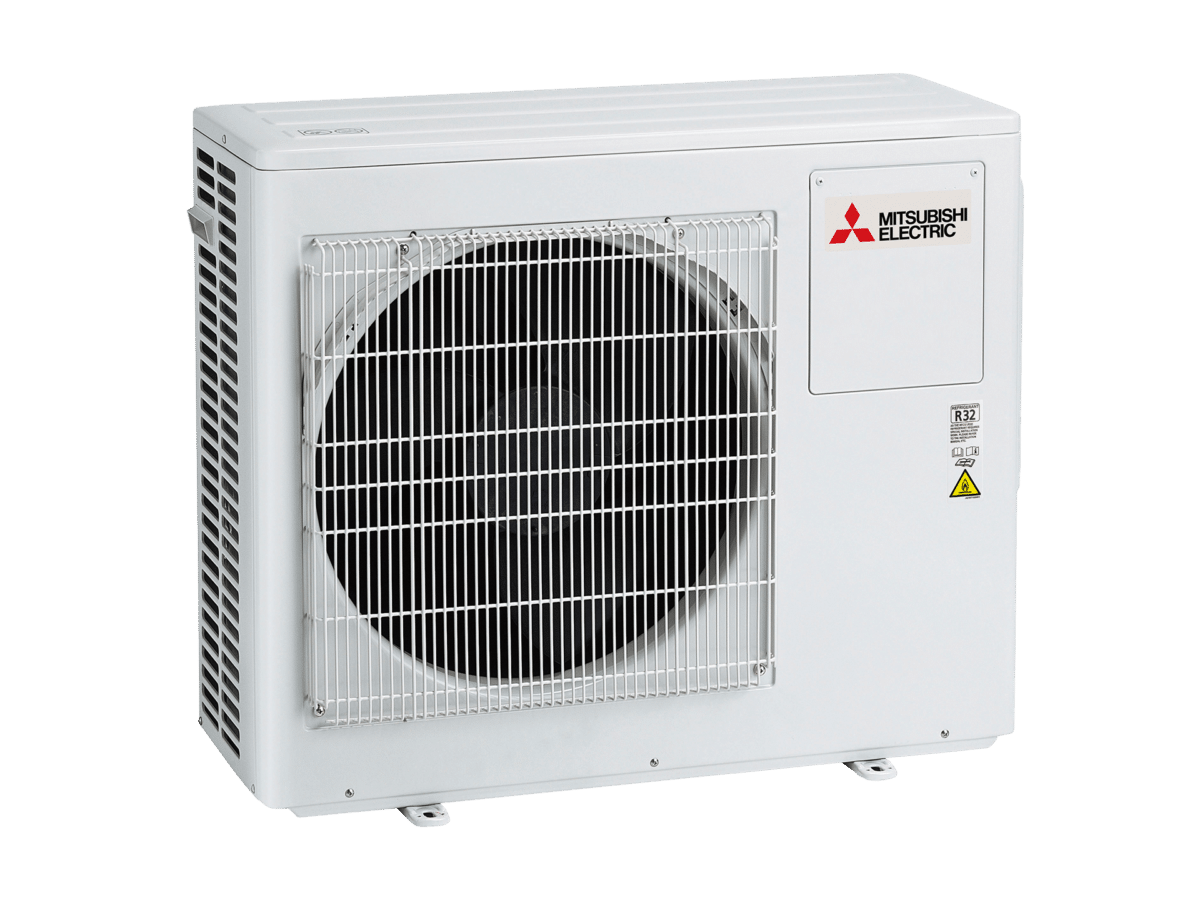

| Outdoor unit | MXZ-4F71VGD | ||
|---|---|---|---|
| Refrigerant | R32 | ||
| Cooling | Capacity (Min-Rated-Max) | kw | 3.7-7.1-8.8 |
| Heating | Capacity (Min-Rated-Max) | kw | 3.4-8.0-10.7 |
| Outdoor unit | Dimensions (HxWxD) | mm | 710 x 840 x 330 |
| Weight | kg | 59 | |
| Number of connectable indoor units | 4 | ||
Download the brochure for full specifications.
Compatibility & capacity tables for MXZ, PUMY-SP & PUMY-P Multi Split Systems.
MXZ-2F52VGD/MXZ-3F54VGD/MXZ-4F71VGD Installation Manual
MXZ-6F120VGD
MXZ-5F100VGD
The MXZ-4F71VGD-A1 is designed for flexibility, accommodating various indoor units to suit diverse requirements. This outdoor unit can be paired with multiple indoor units:
This adaptability ensures customised comfort across different spaces, making it ideal for intentionally planned climate solutions in residential and commercial settings.
Control each indoor unit remotely by adding our optional Wi-Fi adapters. Install a Wi-Fi adapter on each indoor unit you want to control, then download our free app to manage your air conditioning from your smartphone or tablet. While all connected units must operate in the same mode (heating or cooling), you can:
Each Wi-Fi adapter needs to be purchased separately and installed by a qualified technician.
Flexibility in installation is a hallmark of the MXZ-4F71VGD-A1 system, offering a customisable solution to meet a wide range of air conditioning needs. This system supports the connection of up to four indoor units to a single outdoor unit, providing a versatile approach to climate control across different environments. Whether it’s a compact apartment, a sprawling residence, or a commercial setting, the MXZ-4F71VGD-A1 can be designed to fit the specific requirements of any space.
This flexibility ensures that each room achieves optimal climate conditions with efficient and effective cooling and heating. The system’s design also caters to aesthetic preferences and spatial constraints, allowing discreet and harmonious integration into any architectural style. With the MXZ-4F71VGD-A1, Mitsubishi Electric continues demonstrating its commitment to providing innovative, high-quality solutions that prioritise comfort, efficiency, and customisation.
MXZ-4F71VGD-A1 multi-port split systems are designed to elevate personalised comfort within residential and commercial spaces. Each indoor unit can be independently controlled, offering the advantage of setting distinct temperature levels for different rooms.
This individualised temperature control feature ensures that every room’s temperature setting can be customised, catering to individual needs. Whether maintaining a cooler environment in one room or keeping another warm and cosy, the MXZ-4F71VGD-A1 adapts to your lifestyle and preferences seamlessly. All connected units must operate in the same mode (heating or cooling).
