Multi Head Split System Air Conditioners

2-Port Multi-Split – MXZ-2F52VF-A1

  • Capacity: 5.2 kW
  • Two connectable indoor units
  • Flexible indoor unit choice
  • Quiet operation
  • Individual room control
  • Optional Wi-Fi Control

Integrating comfort and convenience seamlessly, the 2-port Multi-Split Air Conditioner ensures a harmonious balance of functionality and aesthetic appeal for your space. Enjoy individualised comfort throughout your home by connecting two indoor units to a single outdoor unit with individual room temperature control.

Tailored and seamless comfort in every corner

Quiet air conditioning for children's bedrooms

Quiet operation for a peaceful environment

Featuring a Silent Mode that minimises noise levels, the 2-port Multi-Split air conditioning system is an unobtrusive addition to any living space. With its single outdoor unit operating at sound levels as low as 46 dBA, your comfort comes with consideration for both you and your neighbours.

Quiet multi split system air conditioner

Versatile and efficient design

Designed to save space and maintain the visual appeal of your home’s exterior, the 2-port Multi-Split air conditioner is made to connect one outdoor unit to two indoor units. This flexibility allows you to save space and keep the exterior of your home clutter-free while giving you the ability to condition multiple rooms (within the same mode). Paired with a flexible choice of indoor units ranging from wall-mounted to ceiling-concealed styles, these Multi-Split systems offer added versatility and seamless design choices.

MSZ-AP indoor unit for multi split system air conditioning.

Individualised comfort

Enjoy individually controlled temperatures in each room, thanks to the innovative design of multi split systems. Occupants of different room sizes, orientation and usage can enjoy air conditioning tailored to their personal comfort levels (within the same operating mode) without impacting the comfort of the other. With optional Wi-Fi Control, you can manage your air conditioner from anywhere, providing the ultimate convenience in achieving your desired room temperature for whole-home comfort. A separate Wi-Fi adaptor is required for each indoor unit. Wi-Fi Control requires an Internet connection and the Wi-Fi Control App downloaded from the App Store or Google Play Store on your smartphone or tablet with the latest Operating System available.

2-port multi split system

2-port multi split system

Connect up to two indoor units to a single outdoor unit.

Flexible indoor unit choice

Flexible indoor unit choice

Compatible indoor units range from wall mounted, floor standing, ceiling concealed, ceiling cassettes to ceiling suspended units; offering end-users flexibility, with a wide range of options to satisfy most application requirements.

Wi-Fi Control

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Quiet operation_v5

Quiet operation

Thanks to a clever Silent Mode feature, Multi Split Systems are able to operate whilst keeping noise to the minimum. Whilst in operation, the sound levels of outdoor units can remain as low as 46dBA*, which will greatly please both you and your neighbours.
*MXZ-2F52VGD-A1 / MXZ-3F54VGD-A1 in cooling mode. Measured in an Anechoic chamber.

Individual Temperature Control for Each Room

Individual Temperature Control for Each Room

The capability of a Multi Split System lies in the capacity to individually control the temperature of all air conditioner units, even if a combination of different models have been used. Individual air conditioner control allows occupants in different rooms to select a temperature (within the same mode) that suits their needs, without affecting the temperature settings in other rooms. The capacity to individually control each air conditioner unit may also result in savings on your electricity bill, with the ability to turn a single air conditioner unit off when it isn’t required.

Keep Exterior Clutter-Free

Keep Exterior Clutter-Free

Multi Split Systems are conveniently designed to keep the exterior of your home clutter free, with the ability to connect multiple (2-8) indoor air conditioning units to a single outdoor unit.

Guaranteed Operating Range

Guaranteed Operating Range

The MXZ series has a guaranteed operating range of -10°C to 46°C (Cooling), -5°C (-15°C*1) to 24°C (Heating). Optional air protection guide is required where ambient temperature is lower than -5°C.

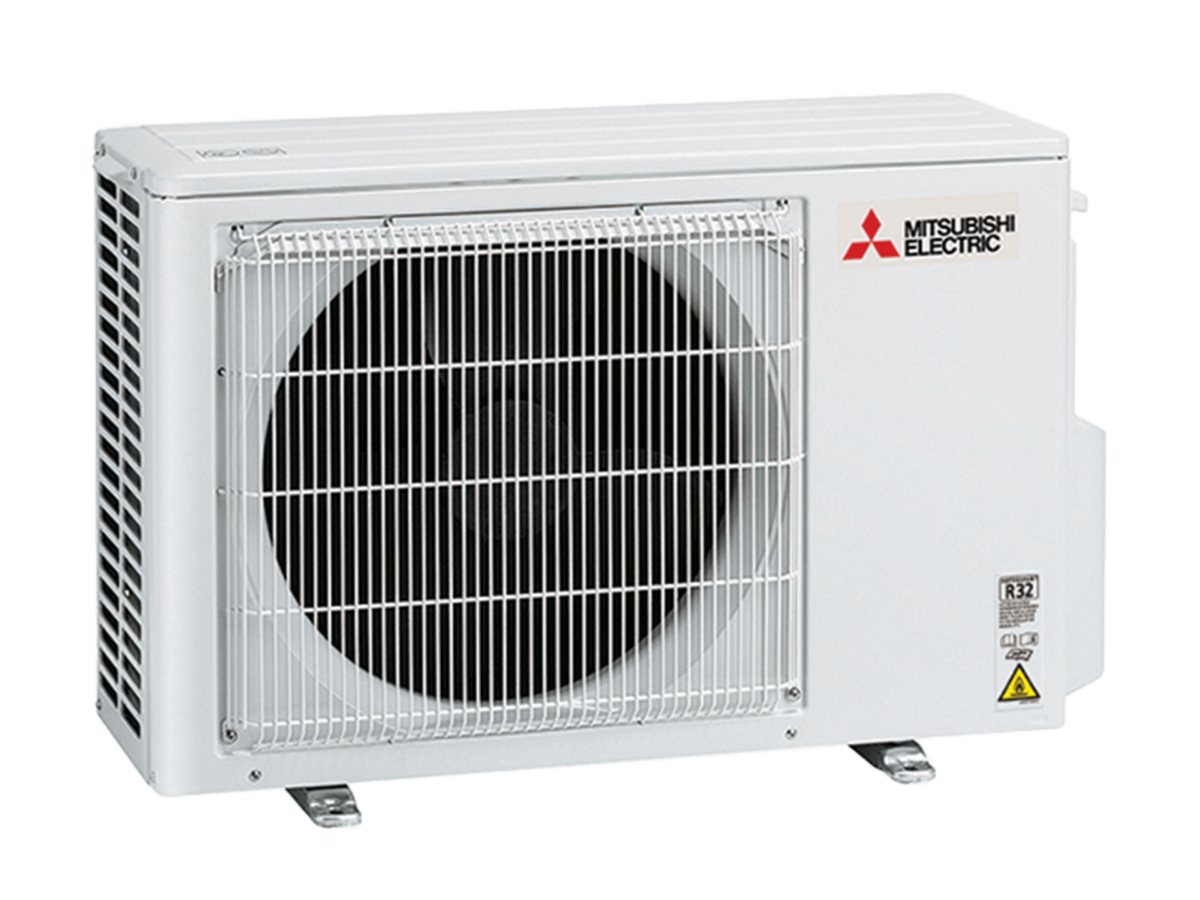

Outdoor unit MXZ-2F52VF
Refrigerant R32
Cooling Capacity (Min-Rated-Max) kw 1.1-5.2-5.6
Heating Capacity (Min-Rated-Max) kw 1.0-6.1-7.0
Outdoor unit Dimensions (HxWxD) mm 550×800×285
Weight kg 37
Number of connectable indoor units 2

Download the brochure for full specifications.

DOWNLOADS

Model:

Brochure

Multi Split Systems

Explore the range of multi split system air conditioners.

Download

Flyer

MXZ Multi Split Kits

Indoor unit combination examples for MXZ Multi Split Systems.

Download

Flyer

MXZ Series

Explore the MXZ Series multi-split air conditioners.

Download

Guide

Multi Split Guide

Compatibility & capacity tables for MXZ, PUMY-SP & PUMY-P Multi Split Systems.

Download

Installation Manual

MXZ-2F52VF

MXZ-2F52VF Installation Manual

Download

SUGGESTED FOR YOU

PUMY-P Series

Outdoor Air Conditioning Units

PUMY-P Series

PUMY-P112-300Y/VKMD2/YBMD

  • Capacity Range: 12.5 – 33.5 kW
  • Extended Pipe Runs
  • Highly Energy Efficiency
  • Outdoor Unit Fan Design
  • Adaptable and Stylish
  • Inverter Control
Read More
5-Port Multi-Split

Multi Head Split System Air Conditioners

5-Port Multi-Split

MXZ-5F100VGD

  • Capacity: 10.0 kW
  • Energy efficient
  • Wi-Fi Control
  • Quiet operation
  • Individual Temperature Control for Each Room
  • Demand Response Capable
Read More
4-Port Multi-Split – MXZ-4F80VGD

Multi Head Split System Air Conditioners

4-Port Multi-Split – MXZ-4F80VGD

  • Capacity: 8.0 kW
  • Energy efficient
  • Wi-Fi Control
  • Quiet operation
  • Individual Temperature Control for Each Room
  • Demand Response Capable
Read More

FREQUENTLY ASKED QUESTIONS

By connecting multiple indoor units to only one outdoor unit, the multi split systems keep your home’s exterior free from clutter of having multiple outdoor units, preserving the aesthetic appeal of your property

Likewise, the ability to connect to two indoor units allows for not only added customisation, but a reduced impact on your home decor. Our large range of available indoor units means that you don’t have to worry about intrusive installations clashing with your furnishings.

With wall mounted, floor standing, ceiling concealed, ceiling cassette and ceiling suspended units to choose from, your home’s air conditioner needs are sure to be fulfilled. By choosing the right indoor unit for each room and its decor, the impact on your home’s aesthetics is minimal and in some cases, an enhancement.

Each indoor unit can be individually controlled, allowing you to cool multiple rooms to different temperatures or heat them based on your individual preferences and usage. Occupants in different rooms can adjust their own climates, so long as they operate in the same mode (Heat or Cool), without affecting the temperatures of other rooms.

Individual controls also include turning the unit on/off, timers, fan speed, and vane position (in the case of wall mounted units).

The option to individually control each indoor unit may also allow you to save more on electricity, with a single air conditioner capable of being turned off when not in use. This allows you to determine how much energy your household consumes more effectively.

The flexibility of the 2-port Multi-Split system ensures that whether you’re installing your indoor units in a small study and a bedroom or two small bedrooms, you’ll find the perfect fit to cool or heat the space efficiently.

The size, orientation, and usage of each room will determine what indoor unit capacity is required to condition the space effectively. Our expert dealers will be able to select the appropriate indoor units and suitable multi-split outdoor unit.

Offering a range of indoor unit designs, you can enjoy evenly distributed and conditioned air for any room. Whether you’re in need of wall mounted, ceiling suspended, ceiling cassette, ceiling concealed or floor standing styles, this air conditioning system allows for easy installation of each design.

The 2-port Multi-Split air conditioner outdoor unit operates at just 46 dBA, keeping noise to a minimum. Ensuring the exterior of your home maintains its peaceful, calm environment, you and your neighbours will appreciate its silent mode feature.
