Wall Mounted Air Conditioners
MSZ-EF22-50VG(B/S/W)

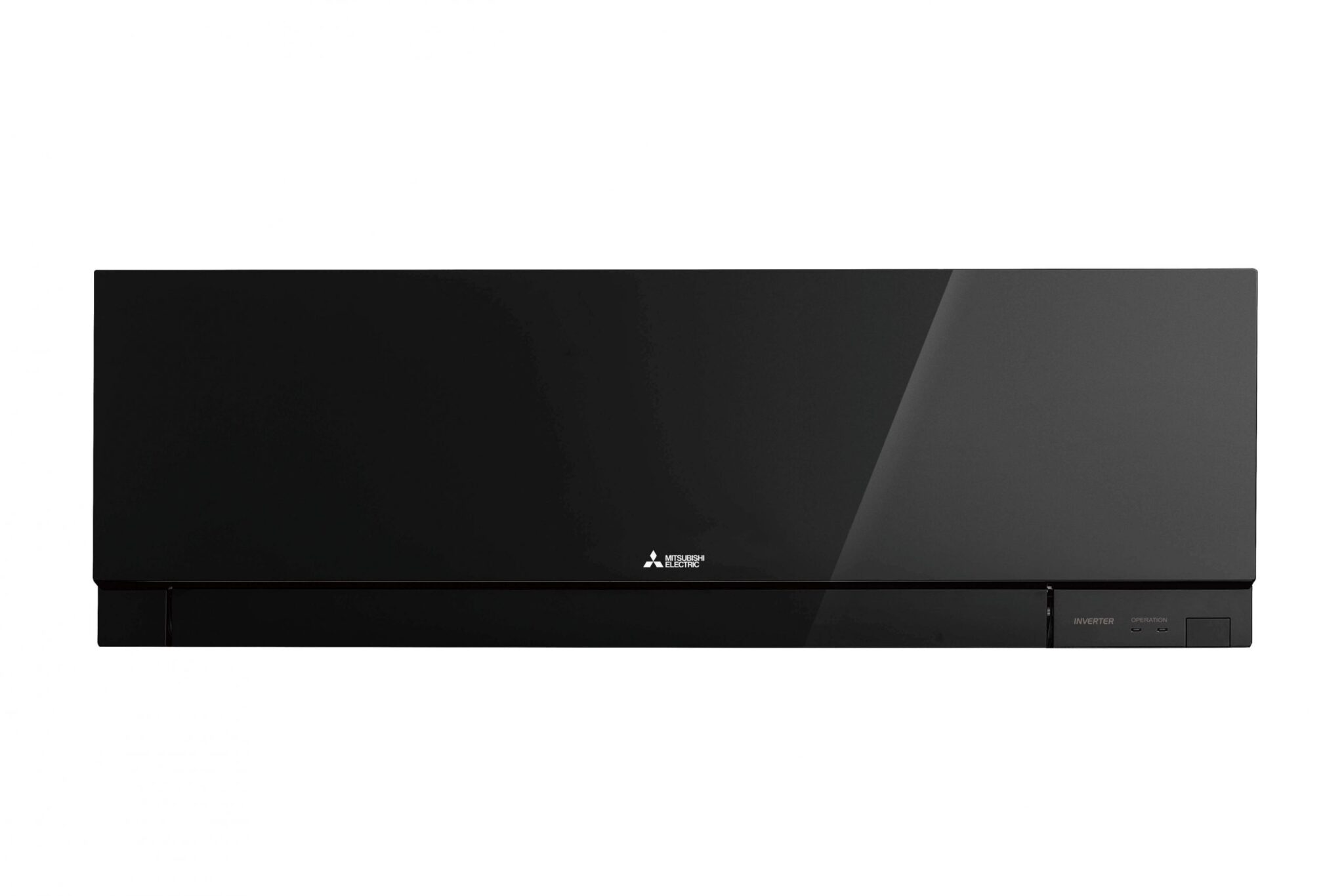

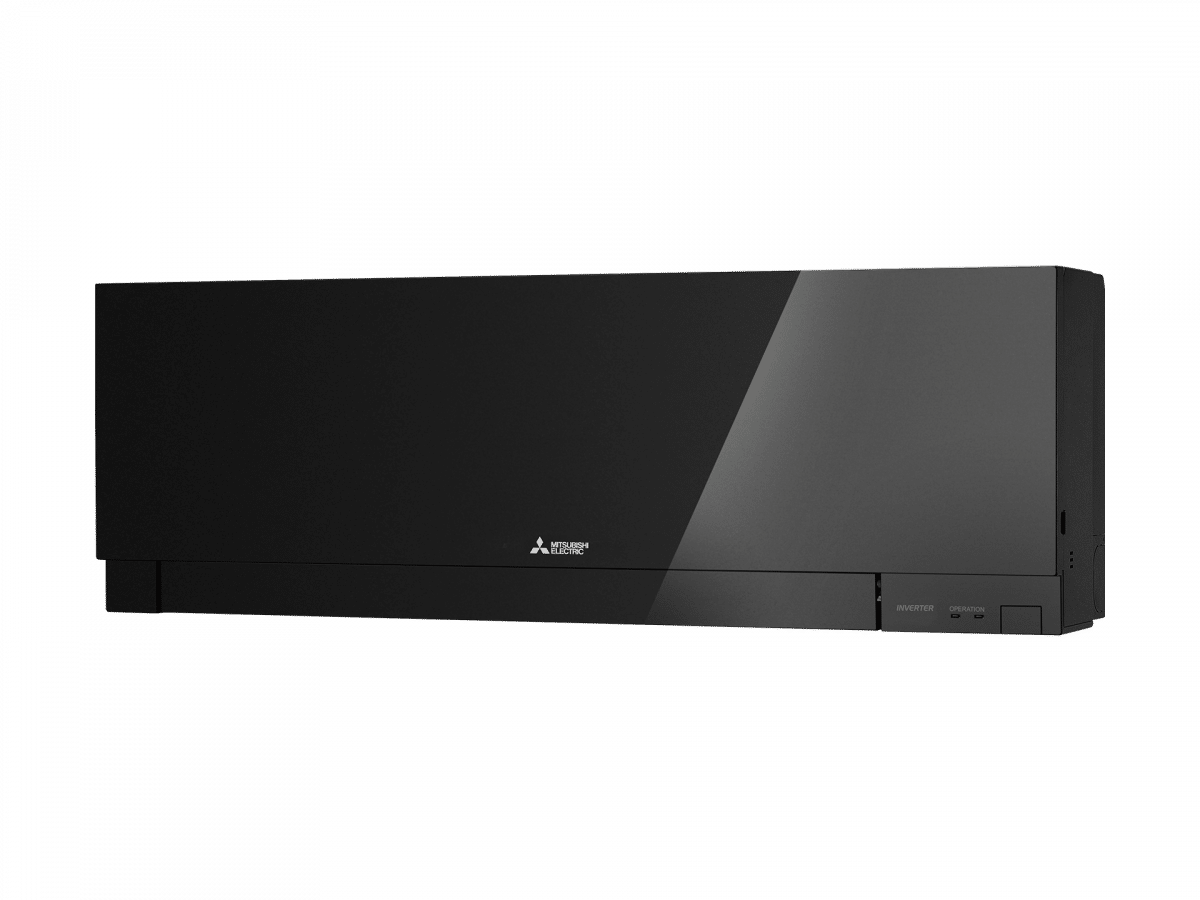

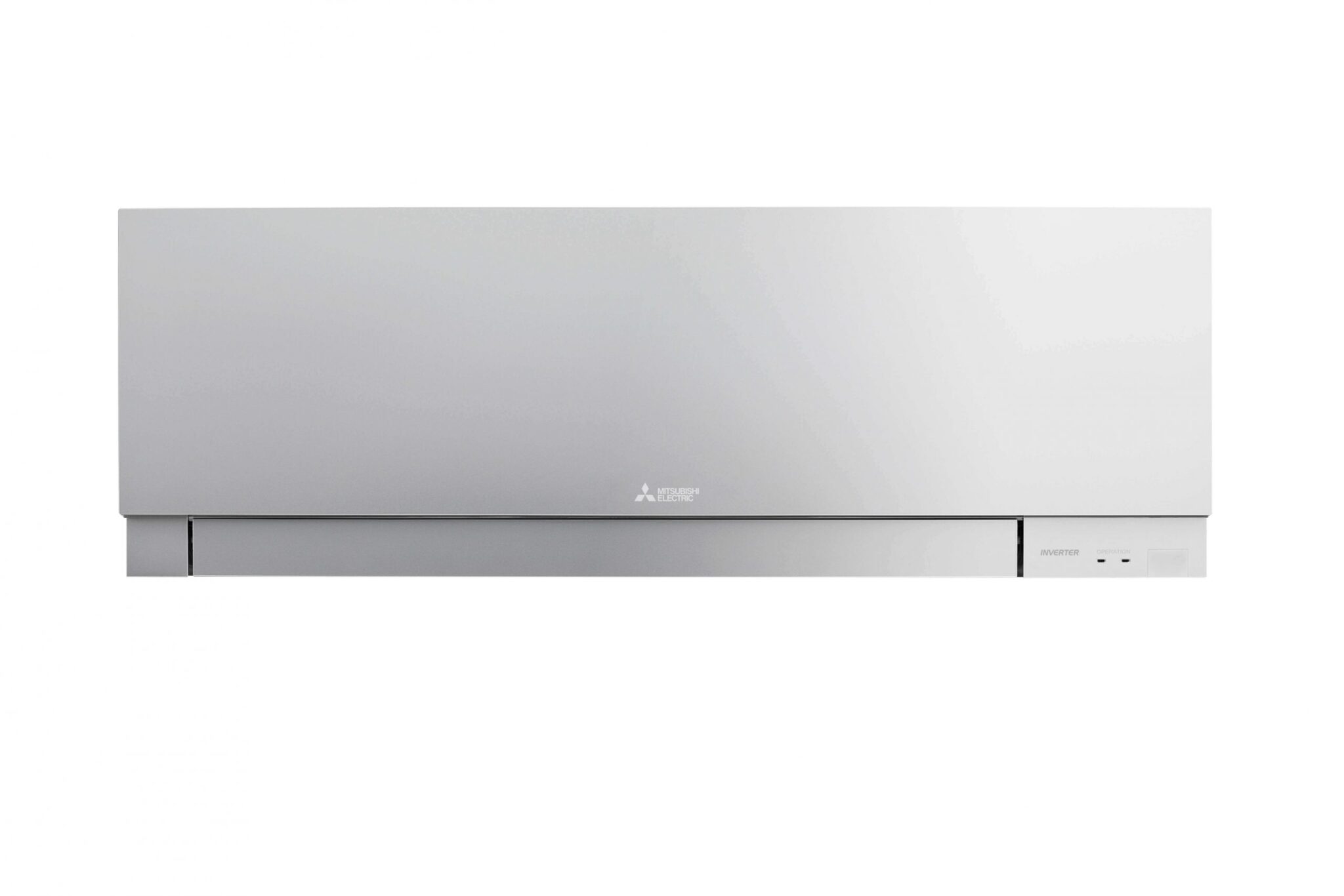

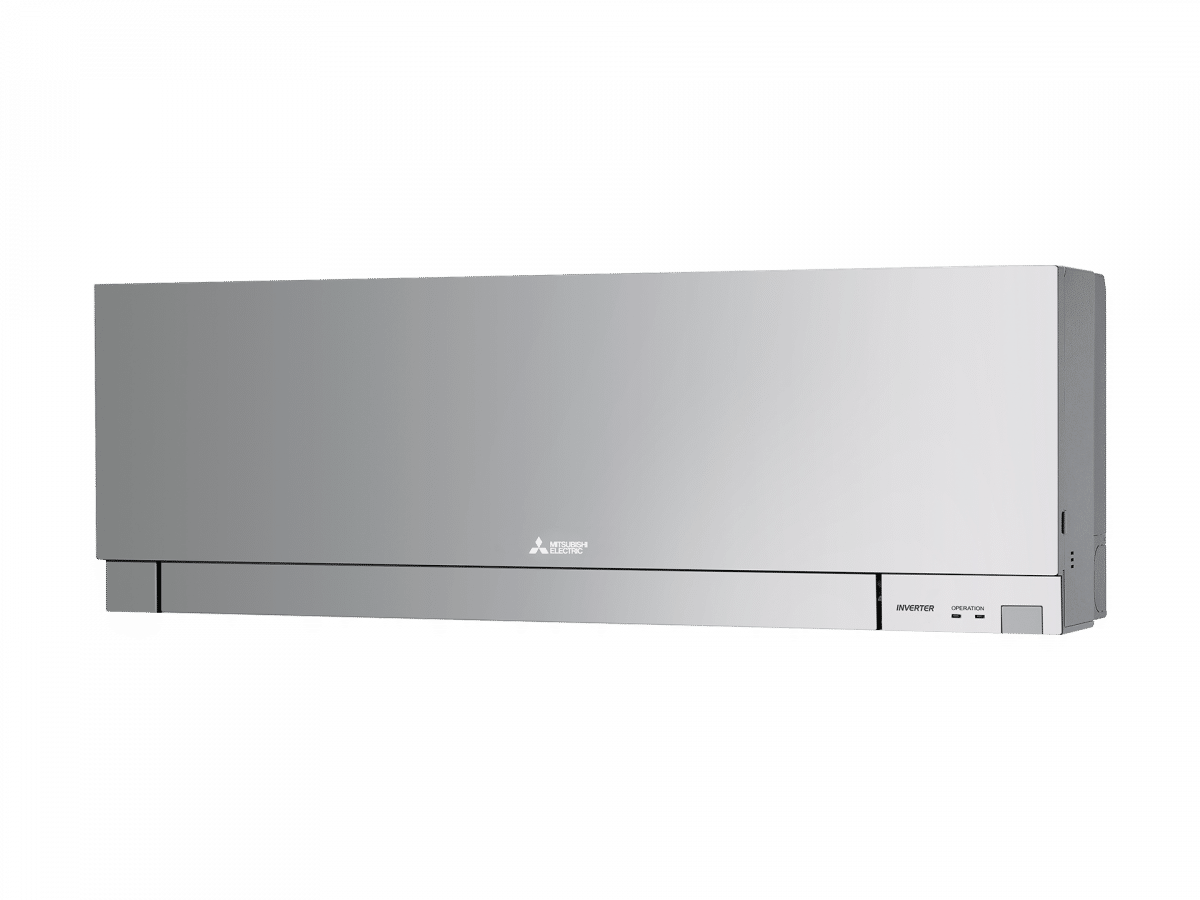

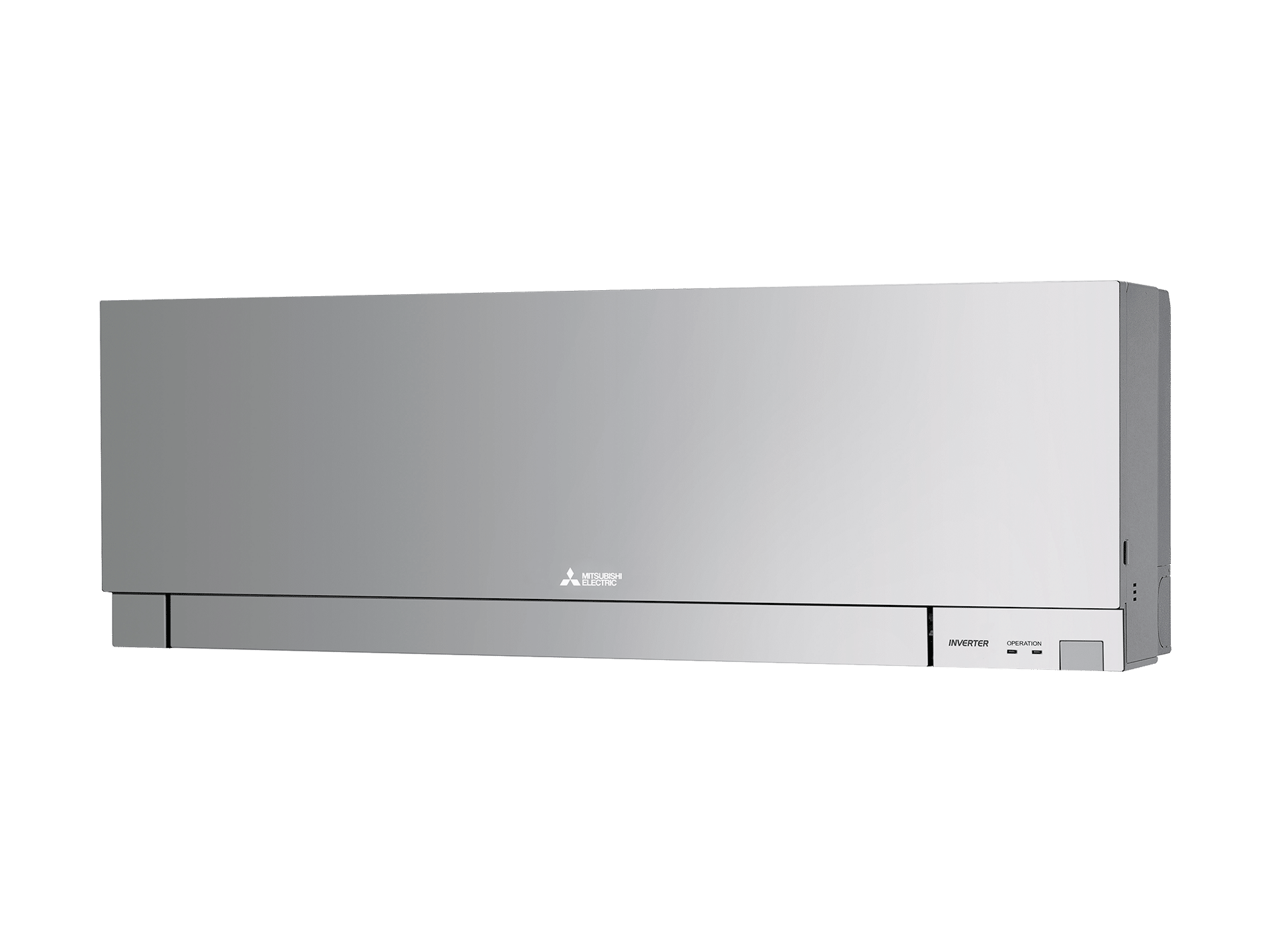

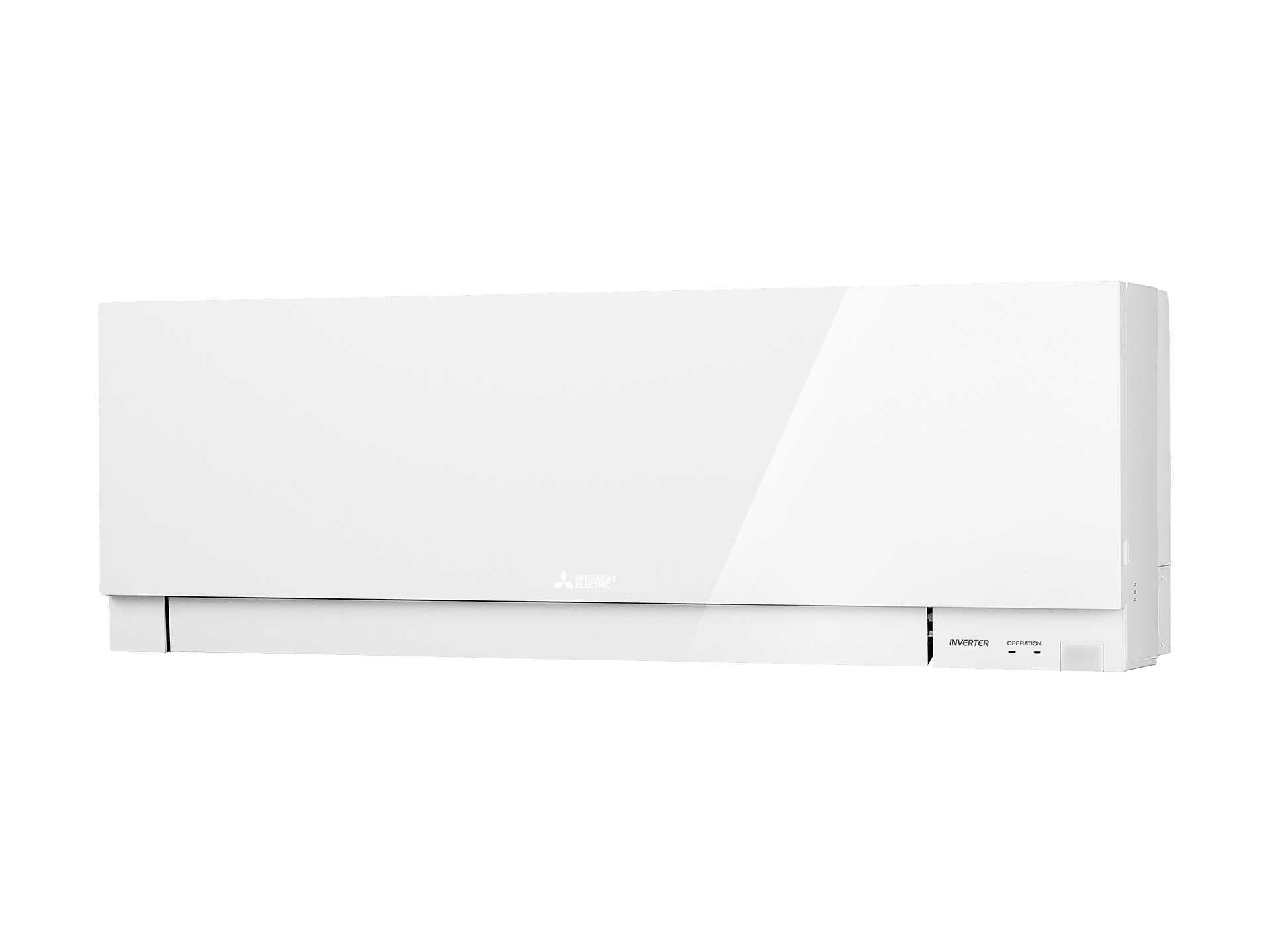

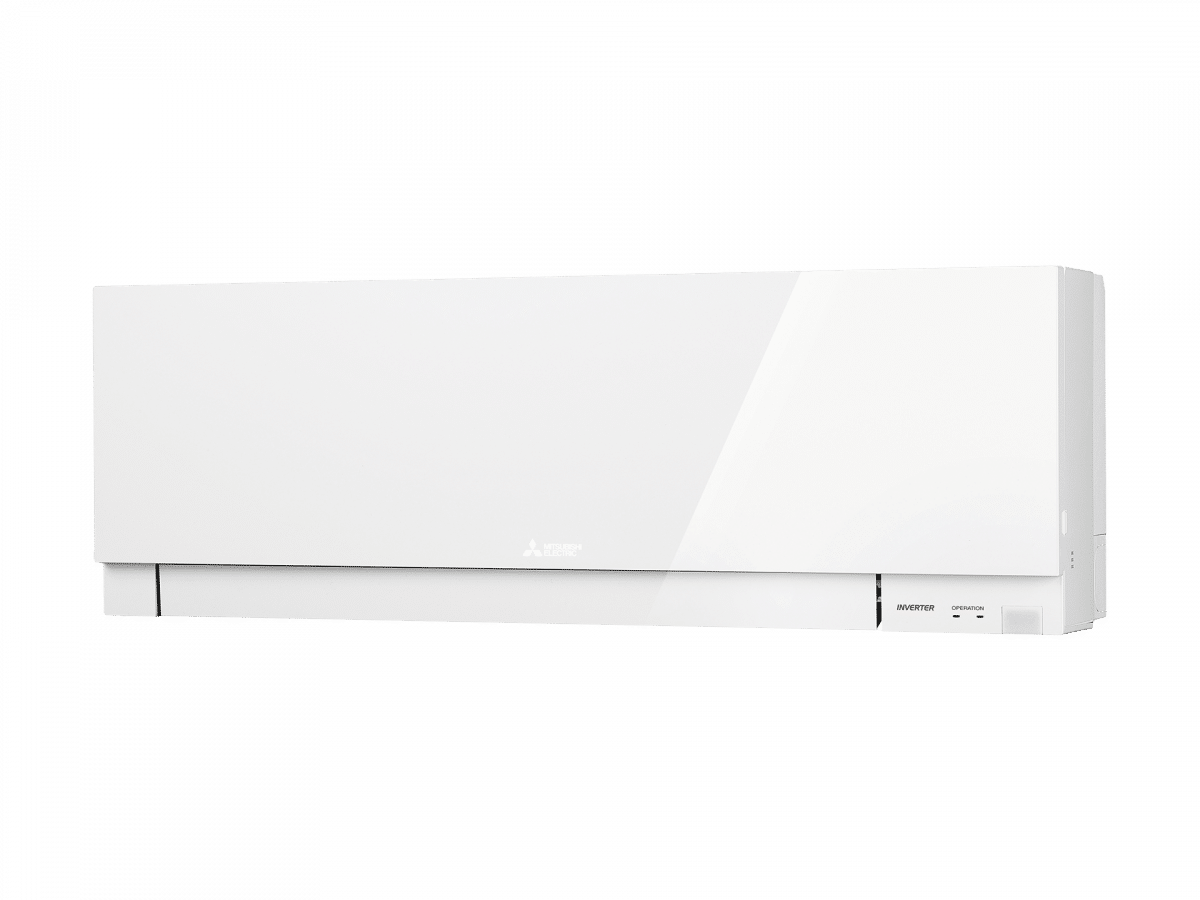

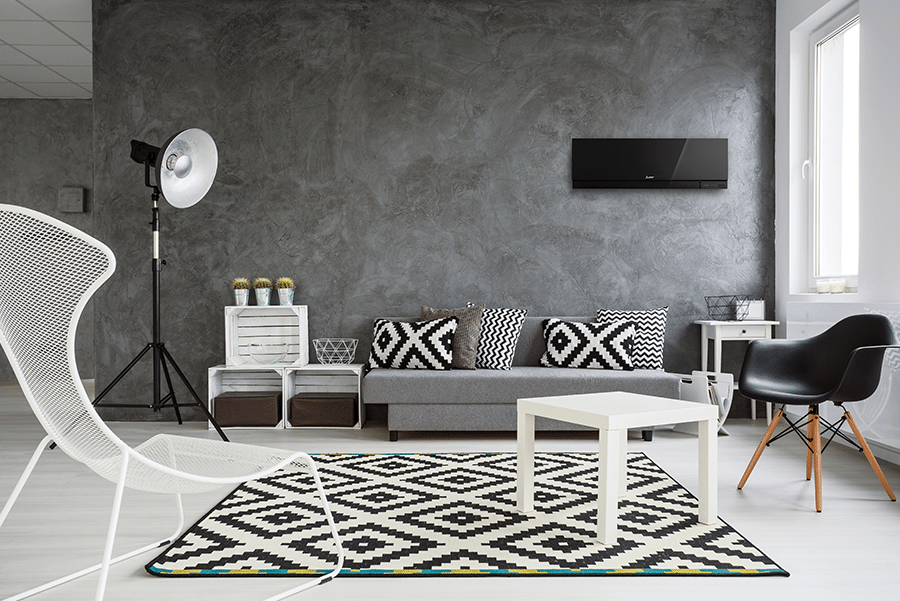

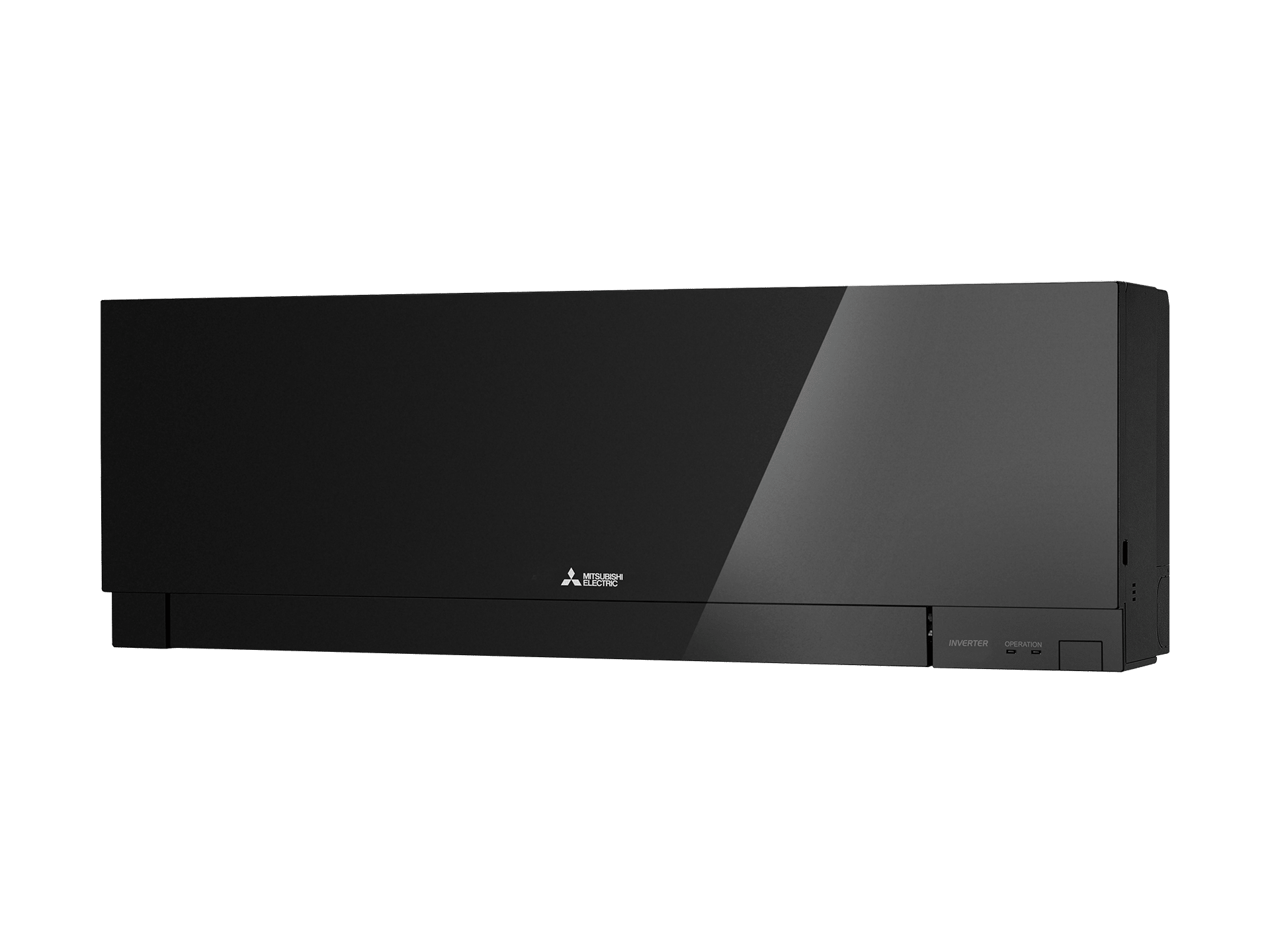

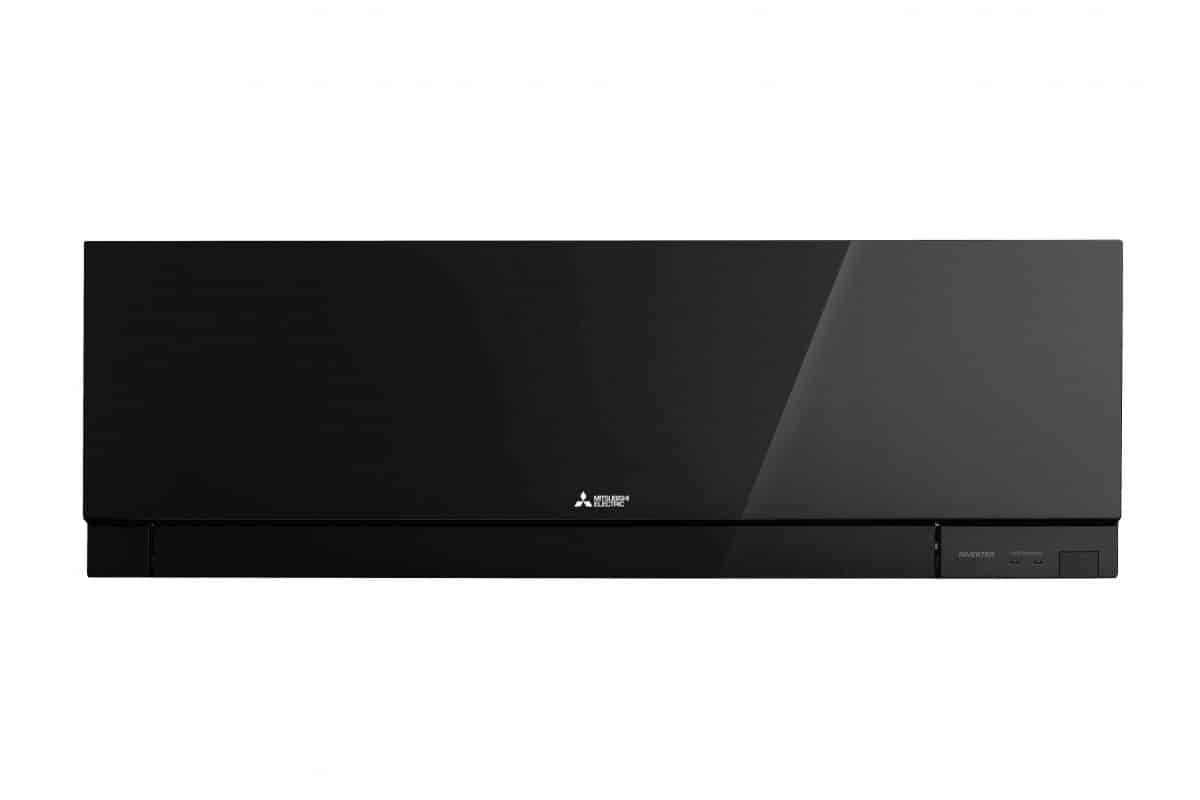

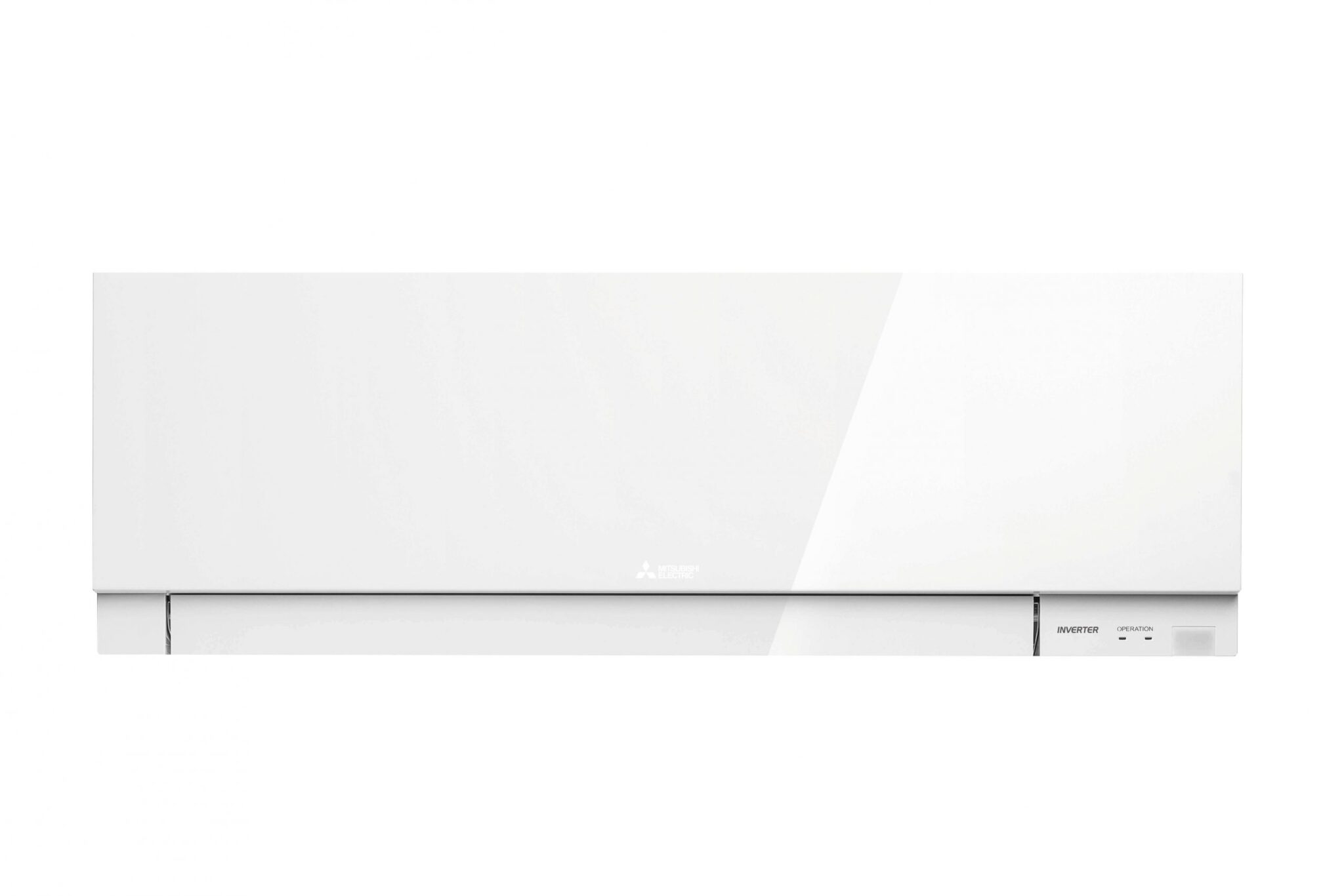

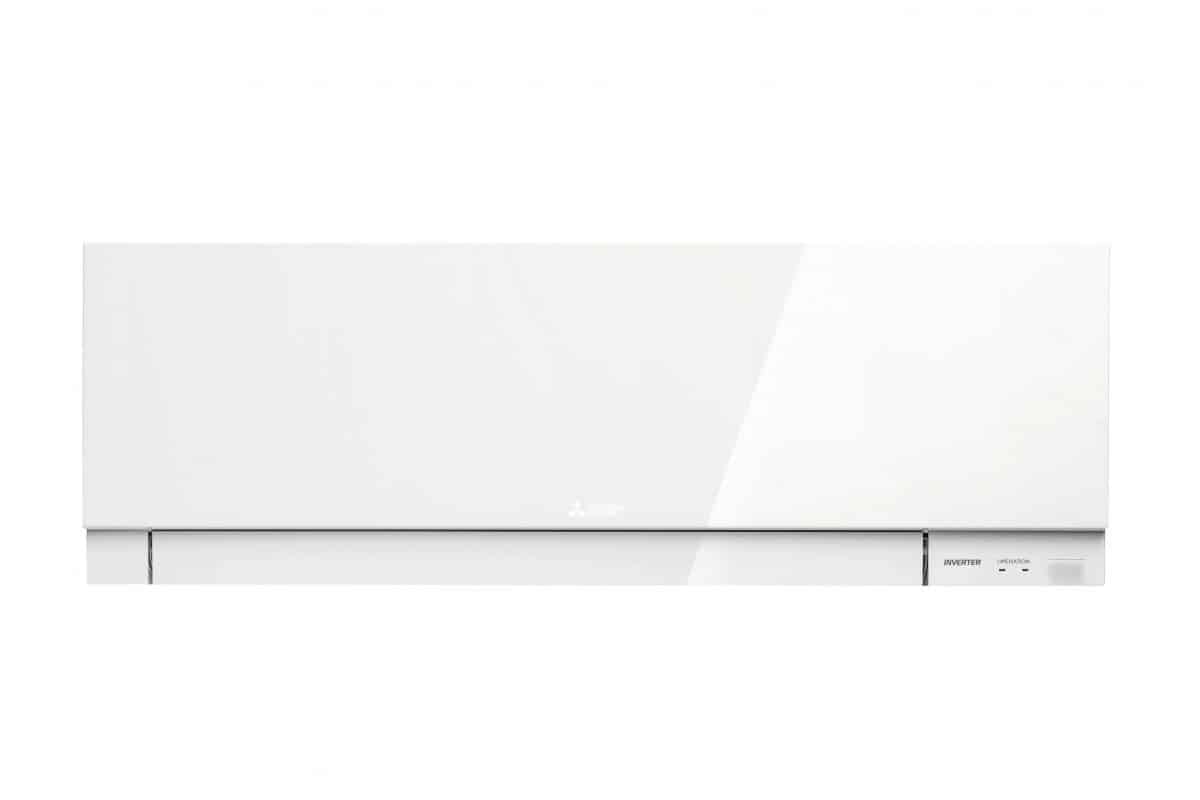

The streamlined wall mounted indoor units have contemporary clean lines, expressing sophistication and quality, in a modern design and is available in Natural White, Matte Silver and Glossy Black.
The MSZ-EF series has received International recognitioning, picking up awards such as Red Dot Design Award 2015, IF Design Award 2011 and Good Design Award 2014.
An easy to read backlit display and a variety of operating modes at the touch of a button. This controller features a weekly and 24 hour timer, On/Off timer to set operating times on a daily basis. The ‘i-Save’ mode recalls the preset temperature.
Temperature settings and On/Off control can be managed over a period of one week using the Weekly Timer. Up to eight setting patterns per calendar day are possible.
The Nano Platinum Deodorising Filter reduces airborne bacteria while improving air quality. The optional Electro Static Anti-Allergy Enzyme Filter assists in the reduction of common allergens.*2 *2 Testing Standard JIS L1902.
Optional secondary air purifying filter that connects to your air conditioner. Plasma Quad technology significantly improves indoor air quality by inhibiting six key indoor pollutants; Influenza virus, bacteria, PM2.5, allergens, mould and dust. Plasma Quad Connect helps improve indoor air quality, which is not only good for a healthier environment but can provide peace of mind and reassurance for the home, school or office. Optional part: MAC-100FT-E.
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.
| Indoor unit | MSZ-EF25VG | MSZ-EF35VG | MSZ-EF42VG | MSZ-EF50VG | ||||
|---|---|---|---|---|---|---|---|---|

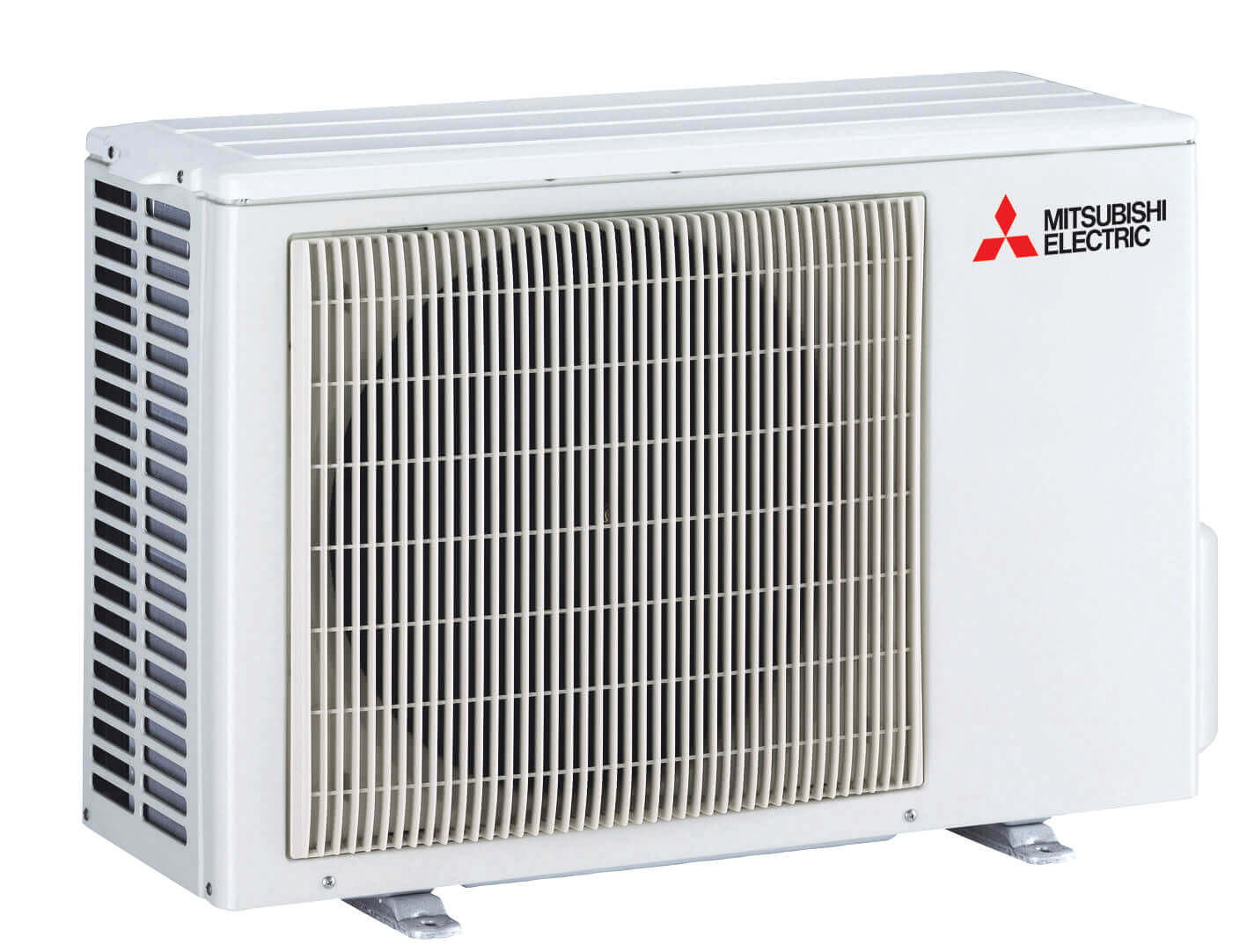

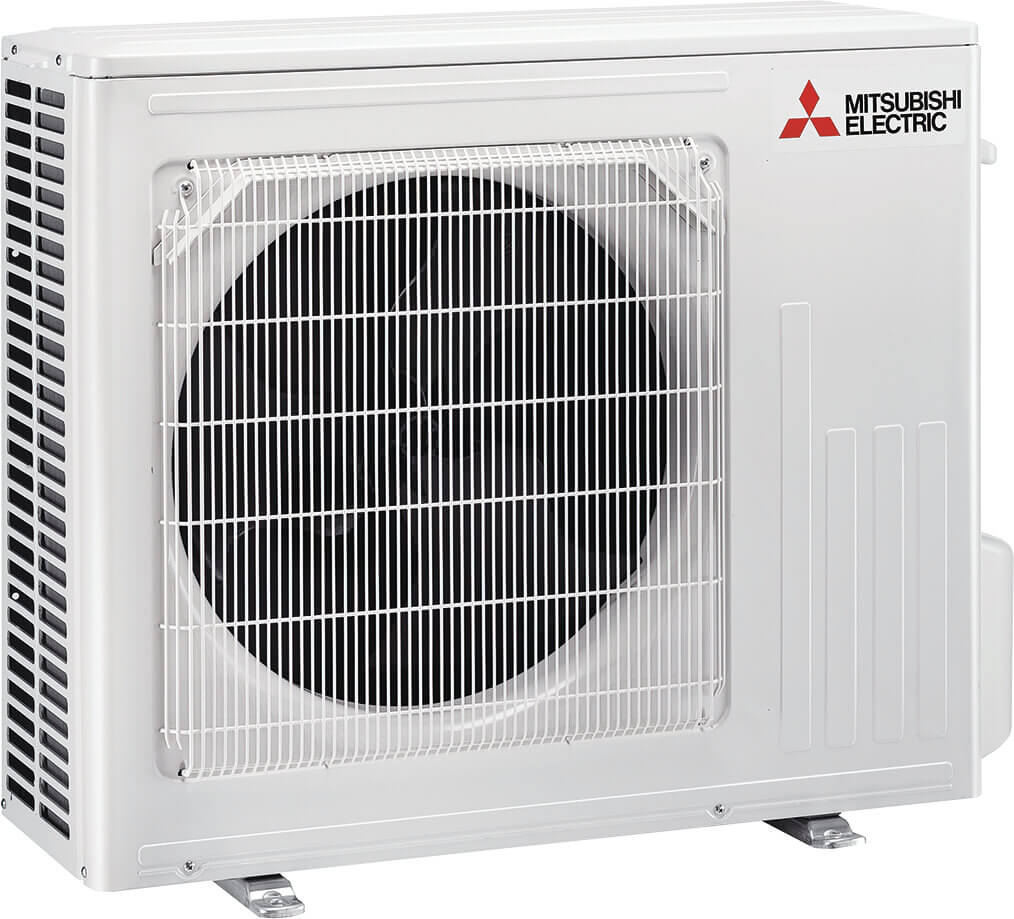

| Outdoor unit | MUZ-EF25VG | MUZ-EF35VG | MUZ-EF42VG | MUZ-EF50VG | ||||
| Refrigerant | R32 | R32 | R32 | R32 | ||||
| Cooling | Capacity [Rated] | kW | 2.5 | 3.5 | 4.2 | 5.0 | ||
| ZERL Star Rating | Hot | 4.5 | 3.5 | 3 | 3 | |||
| Average | 4 | 3.5 | 3 | 3 | ||||
| Cold | 4 | 3.5 | 3 | 3 | ||||
| SPL | In [Quiet-Lo-Mid-Hi-SHi] | dB(A) | 19 – 42 | 21 – 42 | 28 – 43 | 30 – 43 | ||
| OUT (PWL) | dB(A) | 47 (58) | 49 (62) | 50 (62) | 52 (65) | |||
| Heating | Capacity [Rated] | kW | 3.2 | 4.0 | 5.4 | 5.8 | ||
| ZERL Star Rating | Hot | 3.0 | 3.0 | 3.0 | 2.5 | |||
| Average | 2.5 | 2.5 | 2.5 | 2.5 | ||||
| Cold | 2.5 | 2.0 | 2.0 | 2.0 | ||||
| SPL | In [Quiet-Lo-Mid-Hi-SHi] | dB(A) | 21 – 45 | 21 – 46 | 28 – 48 | 30 – 49 | ||
| OUT (PWL) | dB(A) | 48 (61) | 50 (63) | 51 (64) | 52 (65) | |||
| Indoor unit | Dimensions [H×W×D] | mm | 299 × 885 × 195 | 299 × 885 × 195 | 299 × 885 × 195 | 299 × 885 × 195 | ||
| Weight | kg | 11.5 | 11.5 | 11.5 | 11.5 | |||
| Outdoor unit | Dimensions [H×W×D] | mm | 550 × 800 × 285 | 550 × 800 × 285 | 550 × 800 × 285 | 714×800×285 | ||
| Weight | kg | 31 | 34 | 35 | 40 | |||
Download the brochure to view full specifications.
