Wall Mounted Air Conditioners
MSZ-GS25-80VFD
Mitsubishi Electric MSZ-GS Series wall-mounted air conditioners are available in capacities ranging from 2.5 kW to 7.8 kW. This reverse-cycle air conditioner delivers air conditioned comfort all year round.
Advanced comfort and convenience
Further enhance this air conditioner's functionality with the optional Advanced Air Filtration system, the Anti-Allergy Enzyme Filter. This clever addition effectively traps and neutralises allergens, promoting a cleaner, healthier indoor environment. The series also features a Quick Clean design that allows easy removal of the horizontal vane and quick latch fin guards with vertical vanes attached that opens out to provide easy access to a unit to keep it clean and functioning in peak condition.
Designed for the diverse Australian market, the MSZ-GS Series is ideal for a range of projects, from residential homes to townhouse developments and high-rise apartments. The series stands out with advanced features, like the Blue Fin Condenser, which provides corrosion resistance and durability against weather elements, ensuring long-lasting performance and efficiency in different environments. The GS Series is built with the quality and reliability that Mitsubishi Electric is renowned for.
The MSZ-GS Series integrates modern technology for enhanced convenience. With the optional Wi-Fi Control*1, this air conditioner becomes a smart device, easily manageable via your smartphone, tablet, or voice-activated assistants like Amazon Alexa*2 and Google Assistant*3. This integration allows you to control your indoor climate remotely, suiting the dynamic needs of contemporary living.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner, you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner, you will need a Google Home Smart speaker.
The optional Anti-Allergy Enzyme Filter works to trap allergens such as mould and bacteria by using enzymes retained in the filter to decompose them.
The MSZ-GS Series have a built-in quick clean function that allows easy removal of the horizontal vane and quick latch fin guards with vertical vanes attached that open out to provide easy access to a unit to keep it clean and functioning in peak condition. Ensure the unit is Off before utilising this feature.
The MUZ-GS Series condensers has an auto restart function that activates after the event of a power outage, so you don’t have to worry about having to manually restart the unit once the power returns.
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
Anti-corrosion treatment has been applied to the heat exchanger of the outdoor unit. This coating slows the corrosion process of the aluminium fins; this is caused by salt in the air, especially in coastal areas. (Corrosion of the heat exchanger will affect efficiency and performance.)
Set how long the air conditioner should run in increments of one hour.
Mitsubishi Electric has designed the MSZ-GS Series to satisfy the demands of the Australian project market. The product is at home in a variety of applications, including project homes, townhouse developments, highrise buildings, and accommodation facilities. It’s project focused product with the support and quality that Mitsubishi Electric is renowned for.
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

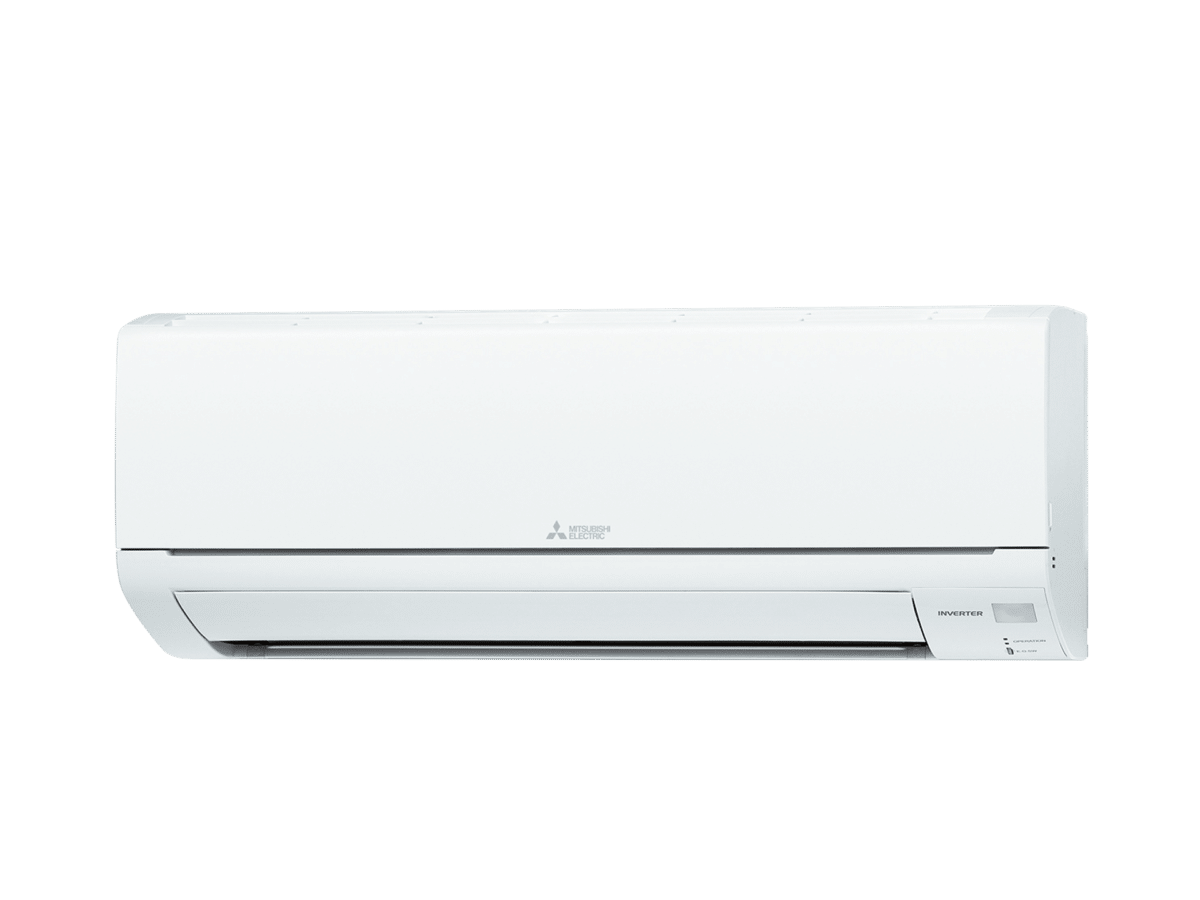

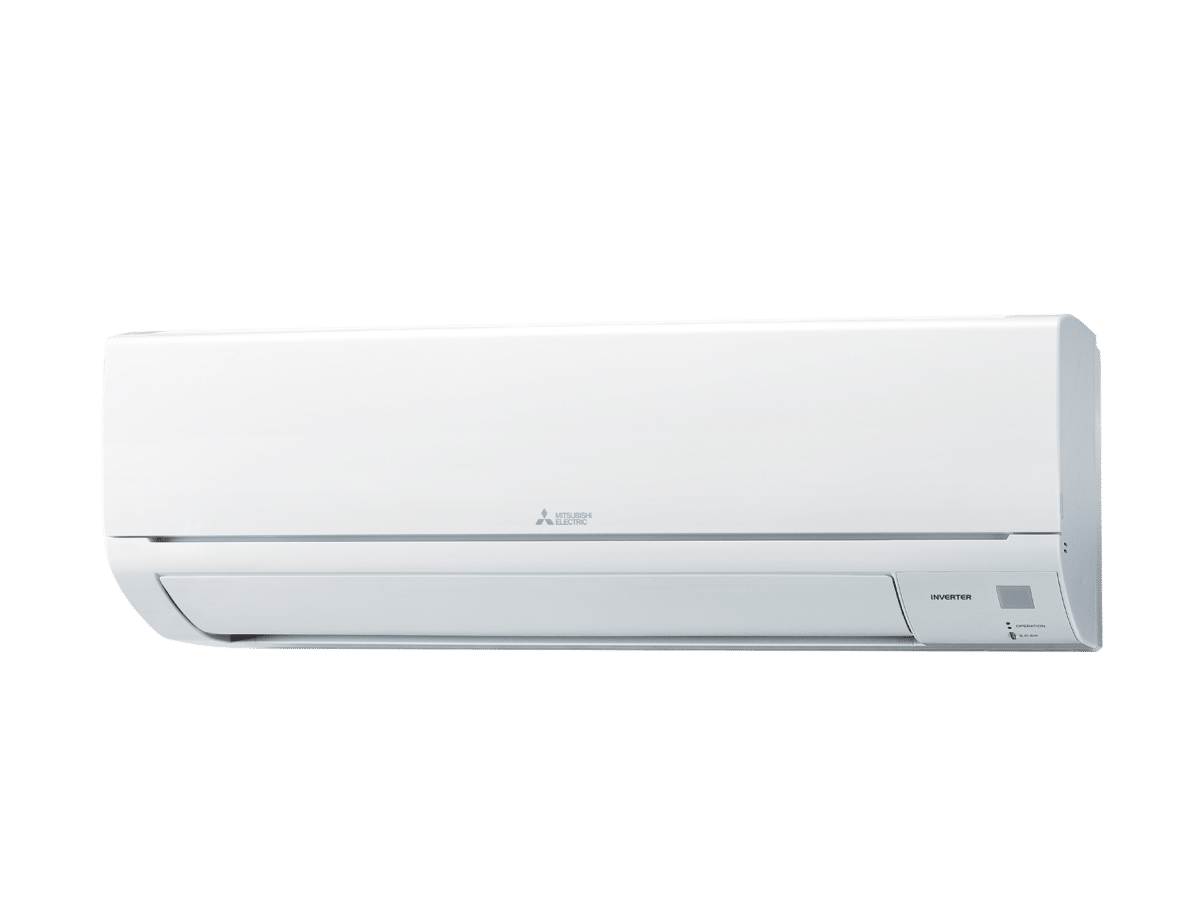

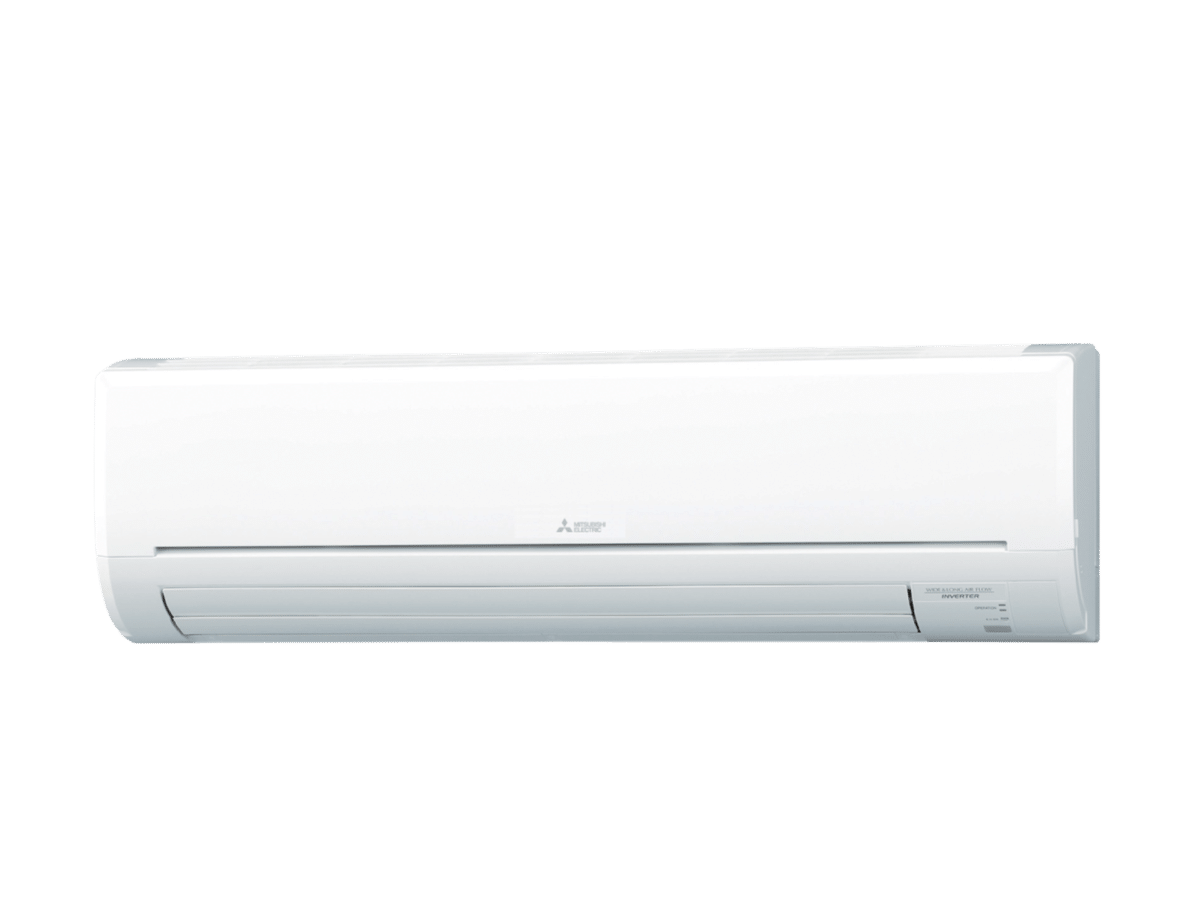

| Indoor Unit | MSZ-GS25VFD-A1 | MSZ-GS35VFD-A1 | MSZ-GS50VFD-A1 | MSZ-GS60VFD-A1 | MSZ-GS71VFD-A1 | MSZ-GS80VFD-A1 | ||
|---|---|---|---|---|---|---|---|---|

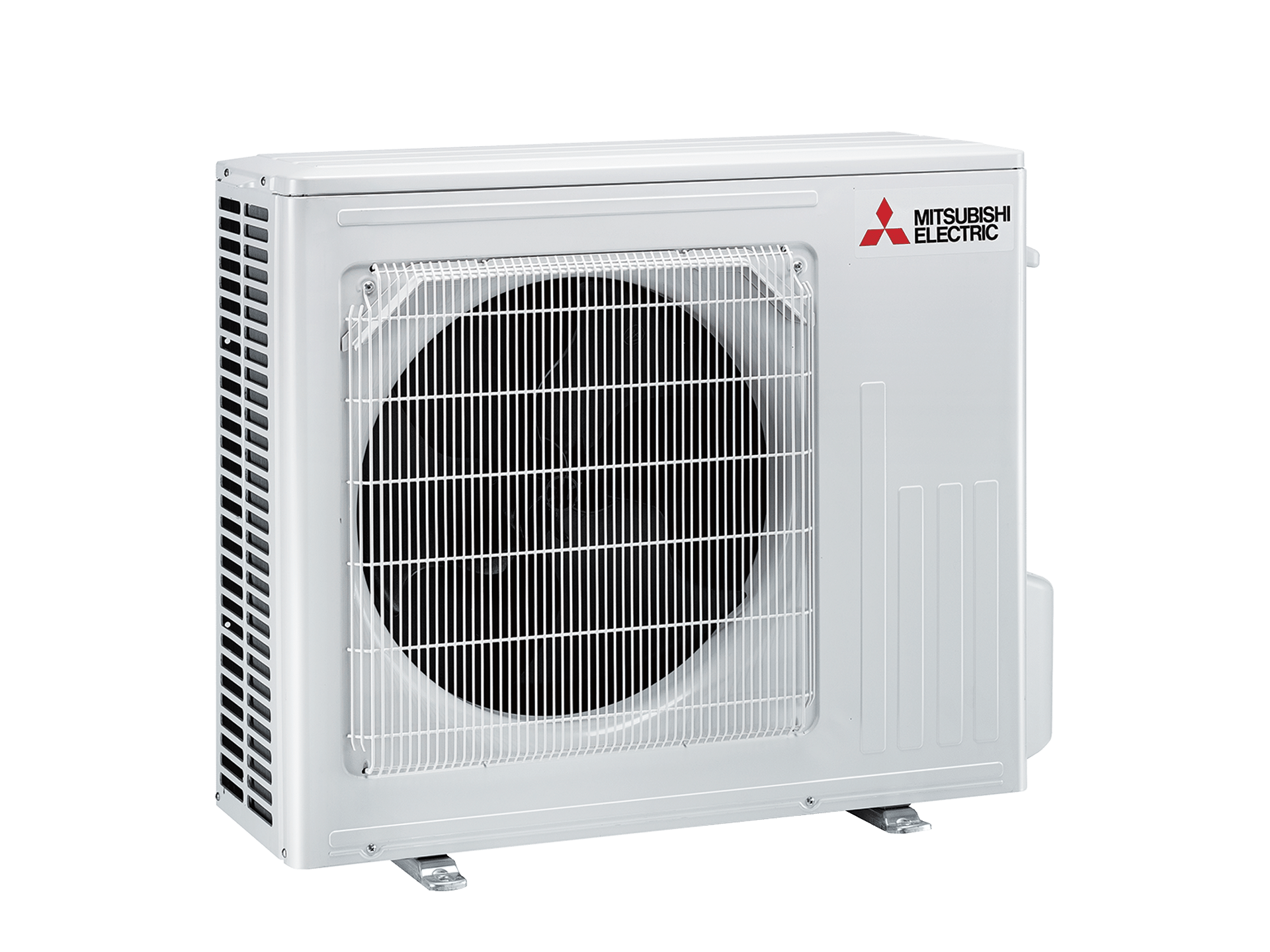

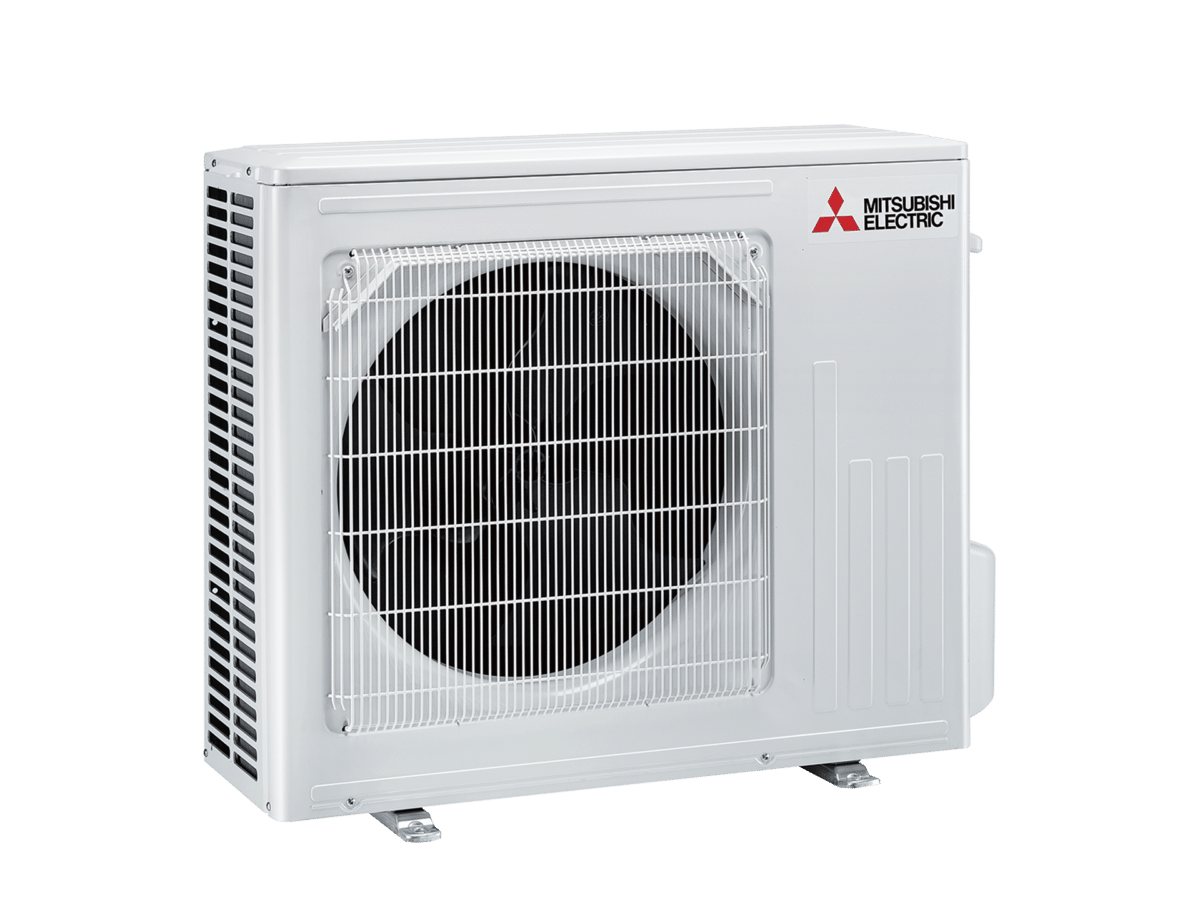

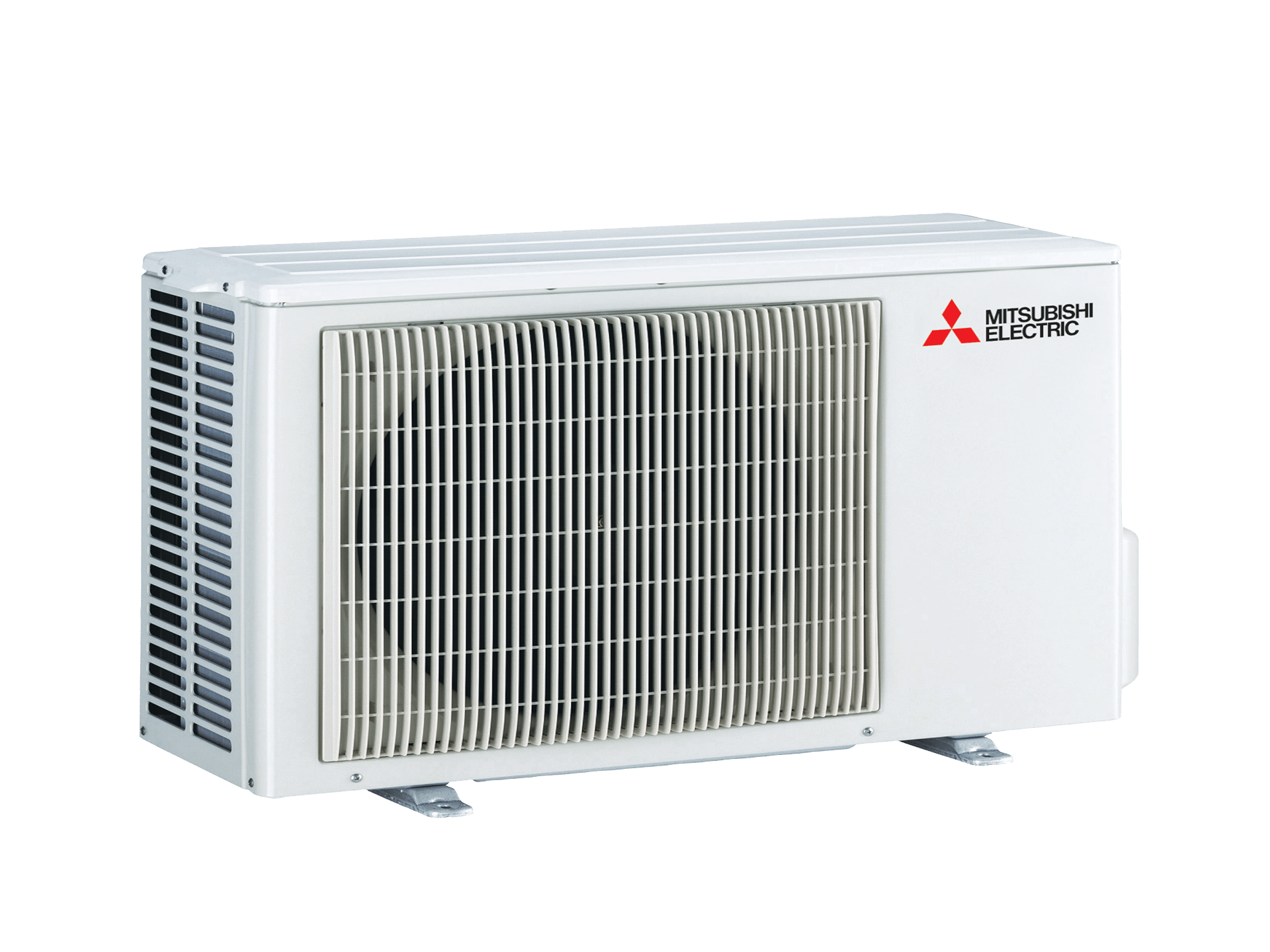

| Outdoor Unit | MUZ-GS25VFD-A1 | MUZ-GS35VFD-A1 | MUZ-GS50VFD-A1 | MUZ-GS60VFD-A1 | MUZ-GS71VFD-A1 | MUZ-GS80VFD-A1 | ||
| Refrigerant | R32 | |||||||
| Cooling | Capacity [Rated]*3 | kW | 2.5 | 3.5 | 5 | 6 | 7.1 | 7.8 |
| ZERL Star Rating*1 | Hot | 3 | 3.5 | 3.5 | 3 | |||
| Average | 2.5 | 3 | 2.5 | |||||
| Cold | 2.5 | 3 | 3.5 | 3 | ||||
| Sound Pressure Level | In [SLo-Lo-Mid-Hi-SHi] | dB(A) | 22 – 30 – 37 – 44 | 22 – 31 – 40 – 51 | 33 – 38 – 44 – 49 | 33 – 38 – 44 – 50 | 33 – 38 – 44 – 53 | |
| Out [PWL] | dB(A) | 47 (60) | 51 (64) | 53 (66) | 56 (69) | |||
| Heating | Capacity [Rated]*4 | kW | 3.1 | 3.7 | 5.5 | 6.6 | 8 | 9 |
| ZERL Star Rating*1 | Hot | 3 | 2.5 | 3 | ||||
| Average | 2.5 | 2 | 2.5 | |||||
| Cold | 2 | |||||||
| Running Current [Rated]*2 *4 | A | 3.7 | 4.3 | 6.4 | 7.6 | 10 | 11.9 | |
| Sound Pressure Level | In [SLo-Lo-Mid-Hi-SHi] | dB(A) | 23 – 30 – 37 – 44 | 23 – 30 – 37 – 45 | 33 – 38 – 44 – 49 | 33 – 39 – 45 – 51 | ||
| Out [PWL] | dB(A) | 48 (61) | 51 (64) | 56 (69) | 57 (69) | |||
| Indoor Unit | Dimensions [HxWxD] | mm | 290 x 799 x 232 | 305 x 923 x 250 | 325 x 1100 x 238 | |||
| Weight | kg | 8.5 | 12.3 | 15.2 | ||||
| Outdoor Unit | Dimensions [HxWxD] | mm | 550 x 800 x 285 | 714 x 800 x 285 | 880 x 840 x 330 | |||
| Weight | kg | 28 | 28.5 | 41 | 53 | |||
| Guaranteed Operating Range [Outdoor] | Cooling | °C | -10 ~ 46 | |||||
| Heating | °C | -15 ~ 24 | ||||||
Notes:
*1 Zoned Energy Rating Label – residential air conditioning star rating based on GEMS 2019 Determination.
*2 Rated Load Amps (RLA) is based on nominal conditions. Use Maximum Circuit Amps (MCA) for power supply infrastructure sizing, etc.
Test conditions are based on AS/NZS3823.1.1.
Rating Conditions:
*3 Cooling:
*4 Heating:
MSY-GY90VFD-A1
SLZ-M25-60FA
MSZ-EF22-50VGKD(B/S/W)
Reverse-cycle air conditioners, like the MSZ-GS Series, operate by providing both cooling and heating from a single unit. In cooling mode, they extract heat from the inside and release it outside, thereby cooling the indoor air. In heating mode, this process is reversed—the unit captures any available heat from the outside air and transfers it indoors, effectively warming the indoor space.
Portable air conditioners are single-unit systems designed for mobility. However, some models may need a window kit to vent hot air, and you may need to empty a drain pan periodically during cooling operations. According to EnergyRating.gov.au, portable air conditioners with a single duct to vent hot air will display a Zoned Energy Rating Label of no stars. While it might feel cool in front of these units, they draw in warm air from other areas, which has a negative effect on the cooling performance. They are an inefficient form of cooling.

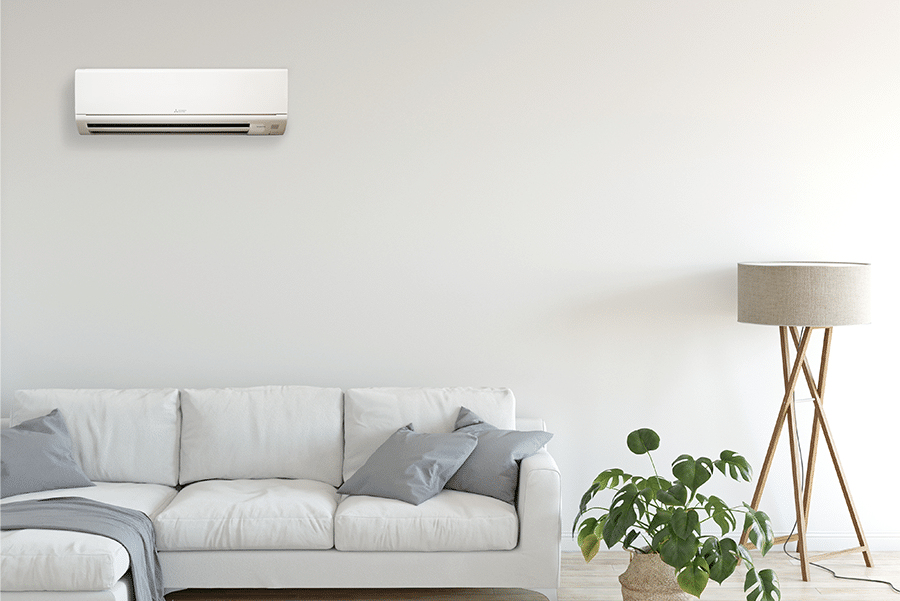

Wall mounted split system air conditioners, such as the MSZ-GS series, require permanent installation of indoor and outdoor units, which are connected by hidden refrigerant piping and an electrical connection. They are a neat solution to your comfort needs. Mitsubishi Electric air conditioners are more efficient at cooling than portable air conditioners and are one of the most efficient forms of heating.
MSZ-GS Series is well-equipped to manage the cooling and heating needs of larger spaces. The series includes models with up to 7.8 kW cooling and 9 kW heating rated capacity. Selecting the right model to match the required cooling and heating load will ensure reliable climate control throughout the year.
When selecting the most suitable air conditioning solution, consider factors such as room size, layout, insulation quality, and specific climate requirements. The MSZ-GS Series is a prime choice when you need the most essential features of an air conditioner and the reliability Mitsubishi Electric is known for. Contact an air conditioning specialist to help find the right air conditioner for your home.
