Wall Mounted Air Conditioners

MSZ-AP Series

MSZ-AP25-80VGD2

  • Capacity Range: 2.5 kW - 7.8 kW
  • Quiet Operation
  • Heating and cooling
  • Dual Barrier Coating
  • Night Mode
  • Weekly Timer
  • Vertical and Horizontal Vanes
  • Wi-Fi Control* (Optional)

Whether you want to feel refreshingly cool or warm and cosy, our MSZ-AP series is a great cooling and heating solution for single rooms and compact homes.

Set your space to the perfect temperature all year-round

MSZ-AP air conditioner is blissfully quiet

A blissfully quiet, modern design that blends into the room

We know that true comfort is just as much about dialing down noise as it is about achieving the perfect temperature. With the added ‘Quiet Mode’ setting, you can enjoy the best of both worlds. Sleep, read and relax in peace with the quiet operation of the MSZ-AP Series. Turn the volume that bit lower with the 18 dB whisper of the MSZ-AP25 in heating mode. It’s so quiet, you’ll check to see if it's on. Combined with a natural white finish and streamlined design, this split system series offers a clean, crisp look that blends in seamlessly with your interior décor.

MSZ-AP dual barrier coating

Enjoy a nightly sense of a peace with Night Mode operation

Doze off into quiet comfort and enjoy a good night’s sleep, uninterrupted, with the low-contrast Night Mode setting of the MSZ-AP Series. Stay right where you are, remotely select the function and let your air conditioner blend into the background. Fall asleep and stay asleep as it reduces LED brightness, disables alert beep noises and softens the noise level of the outdoor unit by up to 3 dB.

save-yourself-cleaning-time-with-improved-funtionality

Save yourself cleaning time with improved functionality

Spend less time cleaning and more time relaxing with an air conditioner that stays clean longer maximising its performance all year-round. With the Dual Barrier Coating of the MSZ-AP Series, the attachment of dust and greasy dirt, and other airborne contaminants to the inside of the unit is reduced. Better equipped to resist the build up of odour-causing material, the advanced coating technology developed by Mitsubishi Electric of our MSZ-AP split system air conditioners not only keeps our units pristine for longer, but makes cleaning them a breeze.

Quiet Operation_v1

Quiet Operation

A “Quiet Mode” setting has been added to the fan speed settings, ensuring super quiet operation as low as 18dB*. Perfect for the bedroom; it’s so quiet you’ll check to see if it’s on. *Model 25 in heating mode only.

Dual Barrier Coating

Dual Barrier Coating

Dual Barrier Coating reduces dust and greasy dirt from collecting on the surfaces of the air conditioner, and airborne contaminants sticking to the unit. Providing an air conditioner that is not only cleaner but also requires less cleaning.

Night Mode

Night Mode

Night Mode reduces the brightness of the operation indicator light, disables beep noises, and limits the noise level of the outdoor unit.

R32 refrigerant

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Wi-Fi Control

Wi-Fi Control

Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Optional Wi-Fi adapter required per unit. Requires an internet connection and the Wi-Fi Control App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

Plasma Quad Connect air purifying filter_MAC-100FT-E

Plasma Quad Connect air purifying filter

Optional secondary air purifying filter that connects to your air conditioner. Plasma Quad technology significantly improves indoor air quality by inhibiting six key indoor pollutants; Influenza virus, bacteria, PM2.5, allergens, mould and dust. Plasma Quad Connect helps improve indoor air quality, which is not only good for a healthier environment but can provide peace of mind and reassurance for the home, school or office. Optional part: MAC-100FT-E.

I-Save Mode

I-Save Mode

The “i-save” Mode is a simplified setting function that recalls the preferred (preset) temperature at the press of a button on the remote controller. The function ensures the most suitable air conditioning settings are used contributes to reduced power consumption.

Blue fin condenser

Blue fin condenser

Anti-corrosion treatment has been applied to the heat exchanger of the outdoor unit. This coating slows the corrosion process of the aluminium fins; this is caused by salt in the air, especially in coastal areas. (Corrosion of the heat exchanger will affect efficiency and performance.)

Long airflow_60-80

Long airflow

The high-power motor combines with the “Long” mode to push air out further, helping to provide a more even air conditioned experience in the room. (Models 60/71/80)

Vertical and horizontal vane design

Vertical and horizontal vane design

Vertical and horizontal vanes are double the size of the previous model, allowing the airflow direction to be adjusted and improving airflow control effectively.

Reverse cycle heating

Reverse cycle heating

Activate the heating mode to provide a warm and cosy space. Reverse cycle air conditioning can be a relatively efficient and economical way of heating and cooling compared to gas and electric space heaters. Mitsubishi Electric air conditioners are a quiet and clean source of heating for your home.

Full Inverter

Full Inverter

The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.

Other Features

  • Ultra quiet mode – operates at an incredible 18 dB(A) (MSZ-AP25 only in heating mode)
  • Wi-Fi Control. *Optional upgrade adapter required per unit.
  • Award winning design
  • Energy Efficient
  • R32 Refrigerant
  • Inverter compressor
  • Chargeless piping up to 7 m (MSZ-AP20), 10m (MSZ-AP25/35/42) and 15 m (MSZ-AP50/60/71/80)
Indoor unit MSZ-AP20VG(D*)-A MSZ-AP25VG(D) MSZ-AP35VG(D) MSZ-AP42VG(D) MSZ-AP50VG(D) MSZ-AP60VG(D) MSZ-AP71VG(D) MSZ-AP80VG(D) MSZ-AS90VGD-A2

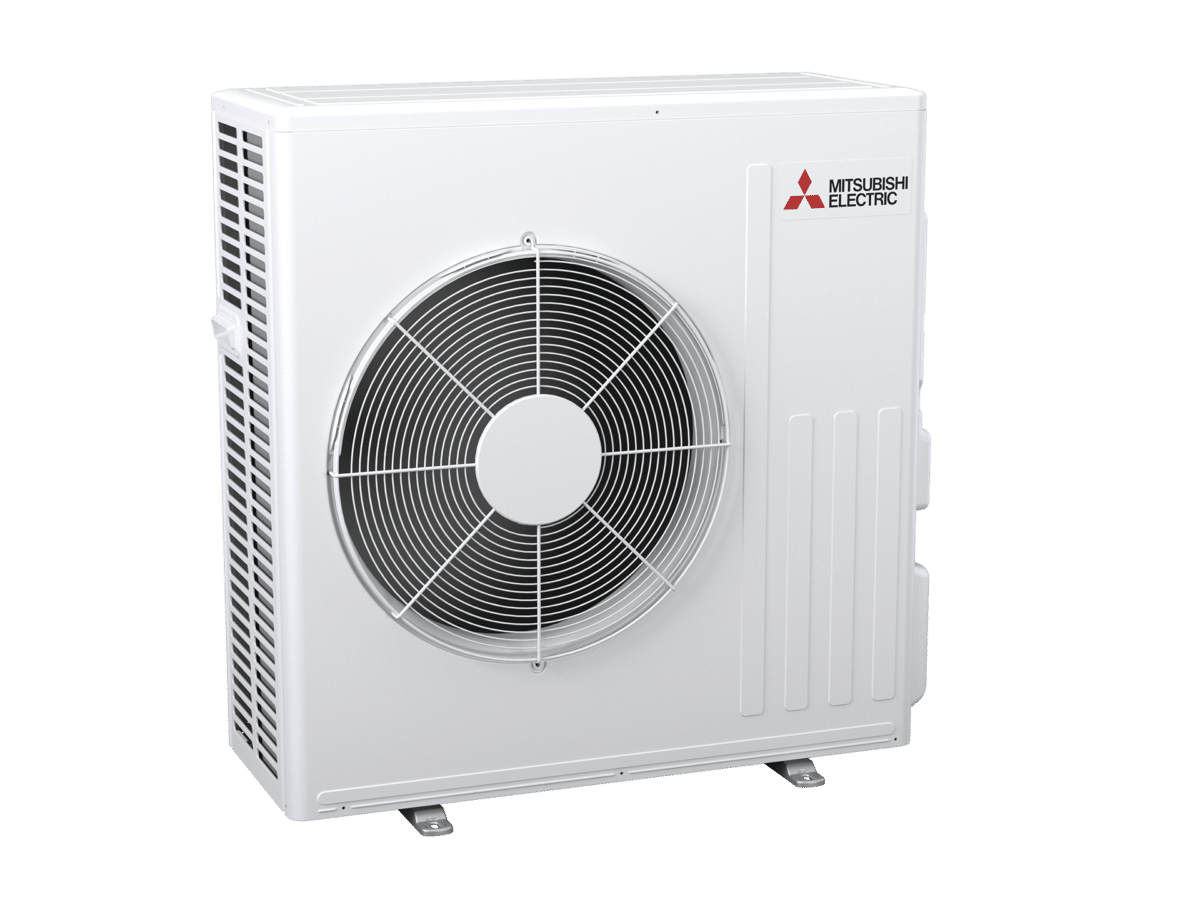

Outdoor unit MUZ-AP20VG(D*)-A MUZ-AP25VG(D)2 MUZ-AP35VG(D)2 MUZ-AP42VG(D)2 MUZ-AP50VG(D)2 MUZ-AP60VG(D)2 MUZ-AP71VG(D)2 MUZ-AP80VG(D)2 MUZ-AS90VGD-A2
Refrigerant R32 R32 R32 R32 R32 R32 R32 R32 R32
Cooling Capacity [Rated] kW 2.0 2.5 3.5 4.2 5.0 6.0 7.1 7.8 9.0
ZERL Star Rating Hot 3.5 5.5 5.0 4.0 4.0 4.0 3.5 3.5 3.5
Average 3.5 5.0 4.5 3.5 4.0 3.5 3.0 3.0 3.0
Cold 3.5 5.5 5.0 4.0 4.0 4.0 3.5 3.5 3.5
Sound Pressure Level In [Quiet-Lo-Mid-Hi-SHi] dB(A) 21 – 26 – 30 – 35 – 42 19-24-31-38-44 19-24-31-38-45 26-29-35-40-46 28-33-39-44-49 29-37-41-45-48 30-37-41-45-49 30-37-41-45-53 30 – 36 – 42 – 48 – 54
OUT (PWL)  dB(A) 47 (59) 46 (59) 50(64) 51(65) 54(69) 55(69) 56(69) 56(69) 56 (69)
Heating Capacity [Rated] kW 2.5 3.2 3.7 5.4 6.0 6.8 8.0 9.0 10.3
ZERL Star Rating Hot 3.0 3.5 3.5 3.0 3.5 3.0 3.0 3.0 3.0
Average 2.5 3.0 3.0 2.5 2.5 2.5 2.5 2.5 2.5
Cold 2.0 3.0 2.5 2.0 2.0 2.0 2.0 2.0 2.0
Sound Pressure Level In [Quiet-Lo-Mid-Hi-SHi] dB(A) 21 – 26 – 30 – 35 – 42 18-25-31-38-42 19-25-31-38-45 26-29-35-40-46 28-33-38-43-48 29-37-41-45-48 30-37-41-45-51 30-37-41-45-53 32 – 38 – 43 – 47 – 53
OUT (PWL) dB(A) 48 (61) 49 (59) 50(64) 52(65) 56(69) 57(69) 55(69) 56(69) 56 (69)
Indoor unit Dimensions [H×W×D] mm 250 x 760 x 178 299×798×219 299×798×219 299×798×219 299×798×219 325×1100×257 325×1100×257 325×1100×257 365 x 1170 x 295
Weight kg 8.2 10.5 10.5 10.5 10.5 16 17 17 20.0
Outdoor unit Dimensions [H×W×D] mm 550 x 800 x 285 550×800×285 550×800×285 550×800×285 714×800×285 714×800×285 880×840×330 880×840×330 880 x 840 x 330
Weight kg 31 34/35 34/35 35/36 40 / 41 40 / 41 55 55 53
System model name MSZAP20VGKIT MSZAP25VG2KIT MSZAP35VG2KIT MSZAP42VG2KIT MSZAP50VG2KIT MSZAP60VG2KIT MSZAP71VG2KIT MSZAP80VG2KIT
System model name (DRED Capable) Not DRED capable MSZAP25VGD2KIT MSZAP35VGD2KIT MSZAP42VGD2KIT MSZAP50VGD2KIT MSZAP60VGD2KIT MSZAP71VGD2KIT MSZAP80VGD2KIT MSZAS90VGD2KIT

MSZ-AP Air Conditioner - Technology

Let’s have a look at some clever smarts inside every Mitsubishi Electric AP Series Air Conditioner.

Mitsubishi Electric Room Air Conditioner - AP series

The AP series is the quietest air conditioner Mitsubishi Electric has ever launched, offering a peaceful indoor environment. Suitable for small to medium size rooms with a new larger line flow fan boosting performance.

DOWNLOADS

Model:

Brochure

Split Systems

Split system air conditioners for the home.

Download

Flyer

MSZ-AP Series

Wall mounted split systems.

Download

Brochure

Plasma Quad Connect

Learn more about the Plasma Quad Connect air purifying filter.

Download

Flyer

Split System Filters

Information about the effectiveness and testing criteria of Mitsubishi Electric split systems filters.

Download

SUGGESTED FOR YOU

MSY-GW Series Cooling Only

Wall Mounted Air Conditioners

MSY-GW Series Cooling Only

MSY-GW25-80VFD

  • Capacity Range: 2.5 – 8.0 kW
  • Cooling only
  • Quiet operation
  • Nano Platinum Filter
  • Wide & Long Airflow
  • Wi-Fi Control*
Read More
MSZ-AS90

Wall Mounted Air Conditioners

MSZ-AS90

MSZ-AS90VGD-A1

  • Capacity: 9 kW
  • Perfect for large open domestic living areas
  • Heating and cooling
  • Advanced air filtration
  • Dual Barrier Coating
  • Long & wide airflow operation
  • Optional Wi-Fi Control
Read More
MSY-GN Series Cooling Only

This Product Has Been Discontinued

Wall Mounted Air Conditioners

MSY-GN Series Cooling Only

MSY-GN25-80VF

  • Capacity Range: 2.5 – 8.0 kW
  • Cooling only
  • Quiet operation
  • Nano Platinum Filter
  • Wide & Long Airflow
  • Wi-Fi Control*

This product is superceded by MSY-GW Series.

Read More

FREQUENTLY ASKED QUESTIONS​

A split system air conditioning system consists of an indoor unit and one outdoor unit that is fixed to the exterior of the building. Both units are connected via refrigerant pipes and electrical wiring. When the air conditioning unit is set to Cooling mode, the indoor unit pumps cold air into the room, and the outdoor unit expels the heat that has been drawn in from the inside.

Split system air conditioners are available in several different types included wall mounted, ducted, floor console, bulkhead, and ceiling cassette.

Reverse cycle air conditioners are a type of split system air conditioner in that they consist of an indoor and outdoor unit, but with the added ability to produce both warm air and cool air. Not all split system air conditioners can do this however. The Mitsubishi Electric MSY-GW Series, for example, is specifically designed for cooling only.

A ducted air conditioner is a type of split system air conditioning as ducted systems also comprise of two units𑁋one indoor and one outdoor. The difference is that the indoor unit of a ducted air conditioner is typically concealed within the ceiling. This unit connects to a system of ducts that feed into various rooms of your home, from which cool and warm air can be delivered via vents. With the added ability to turn different rooms or areas on and off independently of one another (via optional zoned air conditioning), Mitsubishi Electric ducted air conditioners are an ideal solution for entire home heating and cooling.

Split system air conditioners work by continuously cycling a gas known as refrigerant between the interior and outside units. As the cool refrigerant is cycled through pipes (or evaporator coils) in the indoor unit, it absorbs the heat from the air that is being sucked in from the room. This air is then fan forced back into the room as cool air. At the same time, the refrigerant that has just absorbed the heat is converted into a hot gas which is then cycled through the outside unit to expel the heat and convert the gas back into a cool liquid. This process then repeats itself. In the case of heating, the same process applies but in reverse order.

Wall mounted split system air conditioners are designed to provide comfort for a single room, and are an effective option for specific rooms such as a bedroom or study, or smaller homes such as studio apartments. Ducted air conditioning systems provide heating and cooling for multiple rooms and are a better solution to cool a whole house.

A specialist air conditioning Dealer can provide advice on how much cooling capacity you need to adequately cool a whole house.

The cost of split system air conditioning is typically comprised of the price of the actual unit and the installation fee. Depending on the stockist, Mitsubishi Electric split system air conditioners can start at around $1,700 with installation costs starting at $600 depending on the type of unit and the complexity of the installation. Mitsubishi Electric recommends our Specialist Dealers  who can provide a quote for the supply and installation and help you find the right air conditioner.

Reverse cycle air conditioners are a type of split system air conditioner that has both heating and cooling capability, allowing them to blow either warm and cool air into a room. However, there are other split system air conditioners that are specifically designed for cooling only.

All MSZ-AP Series Wall Mounted Air Conditioners are equipped with a “Quiet Mode” setting to ensure super quiet operation as low as 18dB*. (*Model 24 in heating mode only). Refer to the noise levels stated in the Specifications of the relevant air conditioning brochure.

The MSZ-AP Series functionality can be expanded to allow you to connect your wall mounted air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.

This functionality requires the installation of an additional MAC-568IF-E Wi-Fi Controller for each indoor unit, the Wi-Fi Control App and a Wi-Fi connection.  The Wi-Fi Control app is available for download from the Apple App Store and Google Play Store for compatible devices.

A Wi-Fi Control app account is required for this operation and can be created via the app or web browser.
