Lossnay Ventilation

Sensible Core Lossnay Heat Exchanger

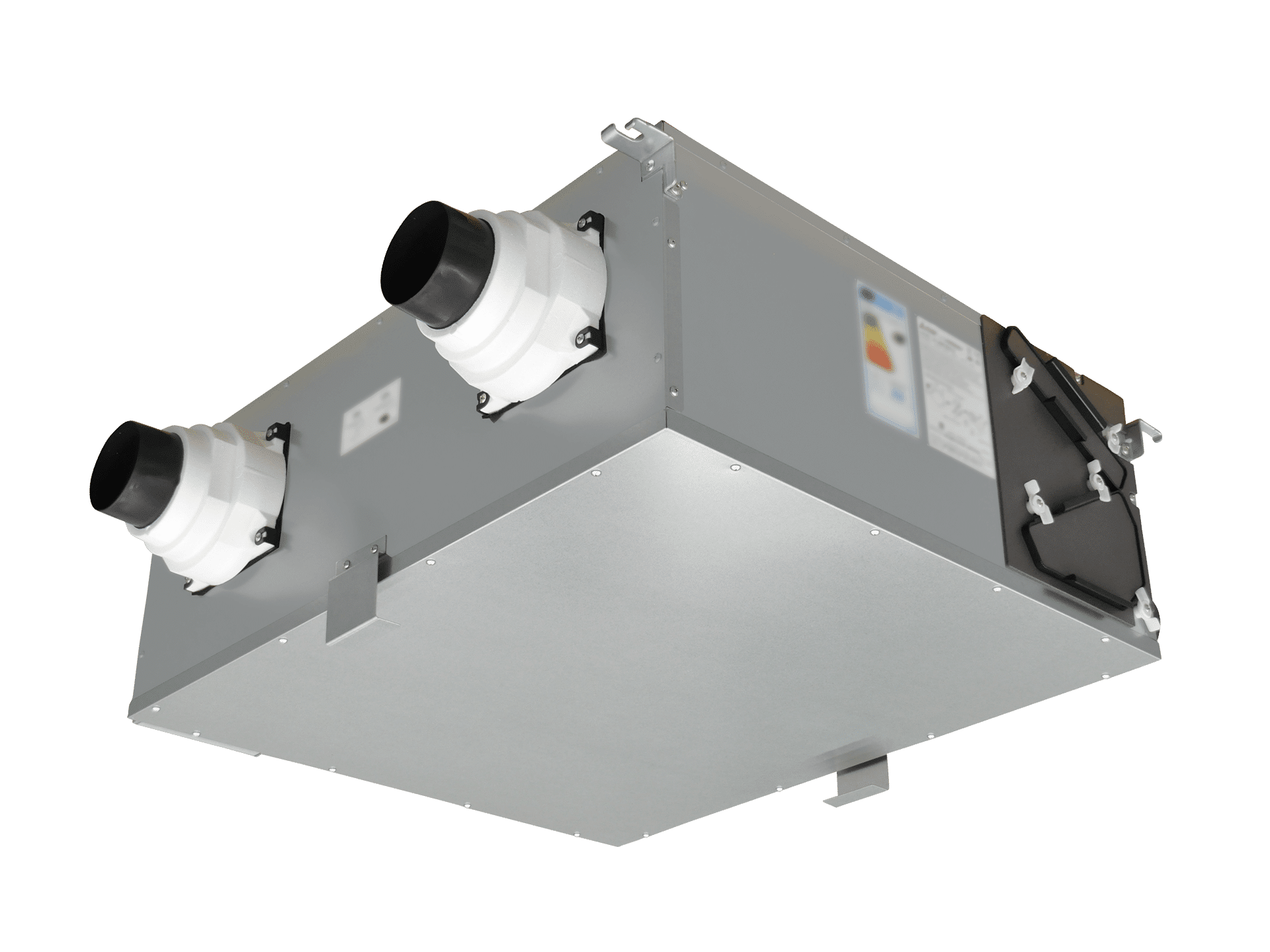

VL-220CZGV-E

The VL-220CZGV-E sensible core heat exchanger provides centralised heat recovery ventilation for residential use with sensible heat exchange.

  • Air volume 64 l/s
  • Simultaneous air supply and exhaust
  • Heat recovery ventilation
  • Removes both moisture & stale air
  • Use with Mr Slim ducted systems

Bypass damper (Optional)

The P-133DUE-E bypass damper is available as an optional part. The optional damper allows a bypass of the heat exchanger, should temperature conditions reach set levels. This can be used for free cooling during the summer months.

Filter (Supplied)

Filter (Supplied)

Filter cuts pollen and dust for fresh clean air. Replacement part no. P-220F-E. (G3 grade Classification :EN779:2012)

Heat recovery ventilation

Heat is recovered from both outgoing stale air as well as from damp areas such as kitchens and bathrooms. This heat is utilised to pre-heat incoming fresh air so your heating system is not required to work as hard to maintain desired room temperature.

High Efficiency Supply Air filter (Optional)

The supply filter can be upgraded to the P-220SHF-E option, a non-washable high efficiency filter (M6 grade Classification :EN779:2012)

Medium Efficiency Exhaust Air Filter (Optional)

The supply filter can be upgraded to the P-220EMF-E option (G4 grade Classification :EN779:2012).

Passive House Ventilation

Mitsubishi Electric Lossnay ventilators are ideal for Passivhaus/Passive House design where a Mechanical Ventilation Heat Recovery System is required. The temperature exchange efficiency for the VL-220CZGV-E sensible core Lossnay heat exchanger ranges from 82% on highest fan speed setting to 86% on lowest fan speed setting.

Simultaneous air supply and exhaust

Simultaneous air supply and exhaust

Lossnay is the ultimate home ventilation system that provides fresh clean air from outside, while removing both moisture and stale indoor air at the same time. Bringing in fresh air into the house can help improve air quality by lowering the amount of CO2.

Use with Mr Slim Ducted Systems

Lossnay can be integrated with a Mitsubishi Electric home ducted air conditioning system. The ducted system provides heating and cooling while the Lossnay ventilator brings in fresh air into the home while expelling the stale air at the same time.

The heat recovery ventilators to help to reduce the load on the ducted air conditioning system.

Other Features

  • Designed for airtight modern homes
  • Fresh air without windows open
  • Assists moisture & condensation control
  • Retains heat
  • Washable supply air filter
Model VL-220CZGV-E
Electrical power supply 220-240V/50Hz  220V/60Hz
Ventilation mode Heat recovery mode
Fan speed Fan speed 4 Fan speed 3 Fan speed 2 Fan speed 1
Running current 0.6 0.29 0.18 0.11
Input power W 80 35 18.5 8.5
Air volume m3/h 230 165 120 65
L/s 64 46 33 18
External static pressure Pa 164 84 44 13
Temperature exchange efficiency % 82 84 85 86
Noise dB 31 25 19 14
Weight kg 31
Specific energy consumption class A
