Outdoor Units

PUZ-M-KA INVERTER M Series

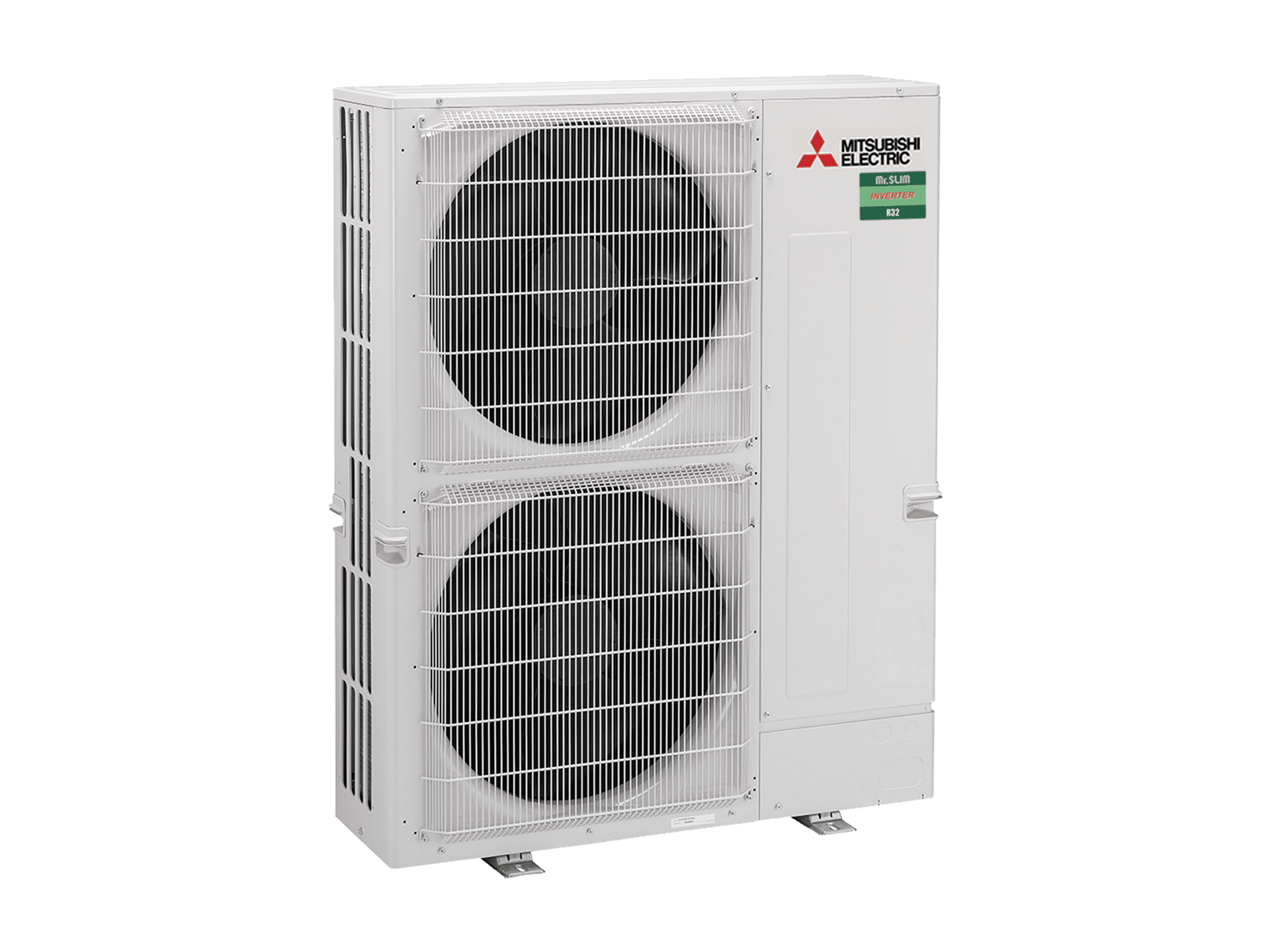

PUZ-M100-140VKA-A

  • Capacity Range: 5.0 kW - 14 kW
  • Single Phase Only
  • Compact Design
  • R32
  • Full Inverter
  • Guaranteed Operating Range

Built for the tough Australian climate, the PUZ-M INVERTER M Series outdoor units from Mitsubishi Electric offer a compact, energy-efficient solution ideal for new-build homes, apartments, and smaller houses with limited installation space. With a 26% reduction in height and 35% less weight compared to twin fan models, the PUZ-M100/125 single fan units are easier to handle, less visually intrusive, and ideally suited to narrow side paths or concealed balcony areas. Despite their compact size, these outdoor units deliver powerful heating and cooling performance with full inverter control for efficient power management and year-round comfort. Compatible with a range of indoor unit types—including ducted systems—the PUZ-M INVERTER M Series allows homeowners to enjoy the full ducted experience and advanced features like optional Wi-Fi control and smart home integration via the Mitsubishi Electric App, Amazon Alexa, or Google Assistant.

Compact Design_v2

Compact Design

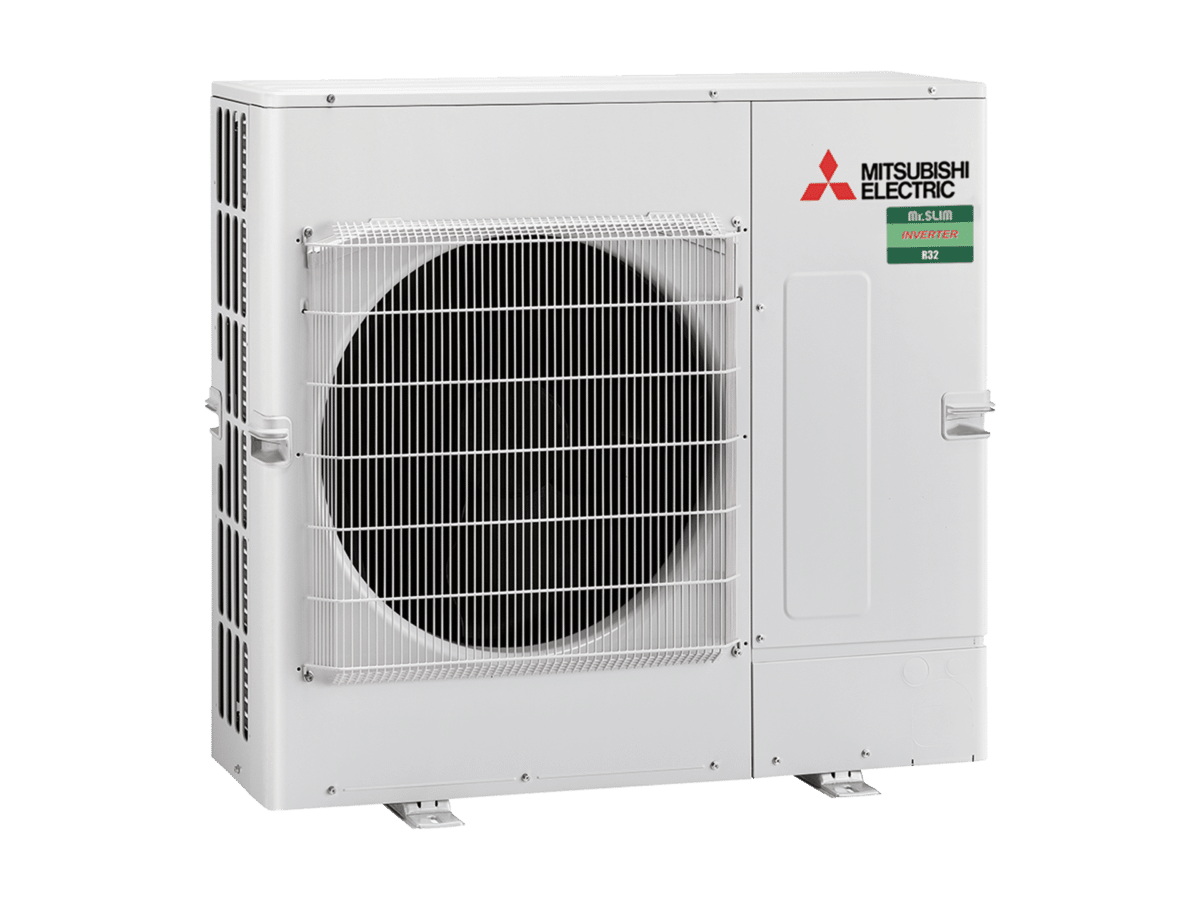

With a new compact design that is suitable for smaller spaces, installation is more flexible and less obtrusive. The compact nature of the PUZ-M Series also makes transportation and handling easier. (Models PUZ-M100/125 only).

R32 refrigerant

R32 refrigerant

R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.

Full Inverter

Full Inverter

The Full Inverter ensures a high level of performance, including the finer control of operation frequency. As a result, improved power management is applied in all heating/cooling ranges and improved comfort is achieved while consuming less energy.

Guaranteed Operating Range_v2

Guaranteed Operating Range

-5°C* to 46°C (Cooling), -5°C* to 21°C (Heating). Continue to operate when you need it most. *Optional air protection guide is required where ambient temperature is lower than -5°C.

Optional PAR-41MAA Wall mounted controller

Optional PAR-41MAA Wall mounted controller

This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.

Optional PAR-CT01MAA MA Touch Remote Controller

Optional PAR-CT01MAA MA Touch Remote Controller

The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.

Demand Response Capable_v2

Demand Response Capable

Demand Response mode is activated in response to signals sent from the power distributor at times when it is necessary to reduce peak demand.

DOWNLOADS

Model:

Brochure

Mr Slim

Mr Slim light commercial air conditioning systems.

Download

Brochure

Ducted Air Conditioning

Ducted air conditioning systems range.

Download

Installation Manual

PUZ-M100-140VKA-A

PUZ-M100-140VKA-A outdoor unit Installation Manual.

Download

Flyer

PUZ-M Series

Explore the features of the PUZ-M Series outdoor unit.

Download

FREQUENTLY ASKED QUESTIONS

The compact design of the PUZ-M100/125 units—26% lower in height and 35% lighter than twin fan models makes them ideal for tight spaces, such as balconies or narrow outdoor areas in new builds. Learn more in our news release.

The PUZ-M Series outdoor units are compatible with a variety of indoor units, including ducted models like the PEA-M and PEAD-M ranges, allowing for a full ducted experience even in compact installations such as apartments. More details in the news release.
