HVRF Indoor Units

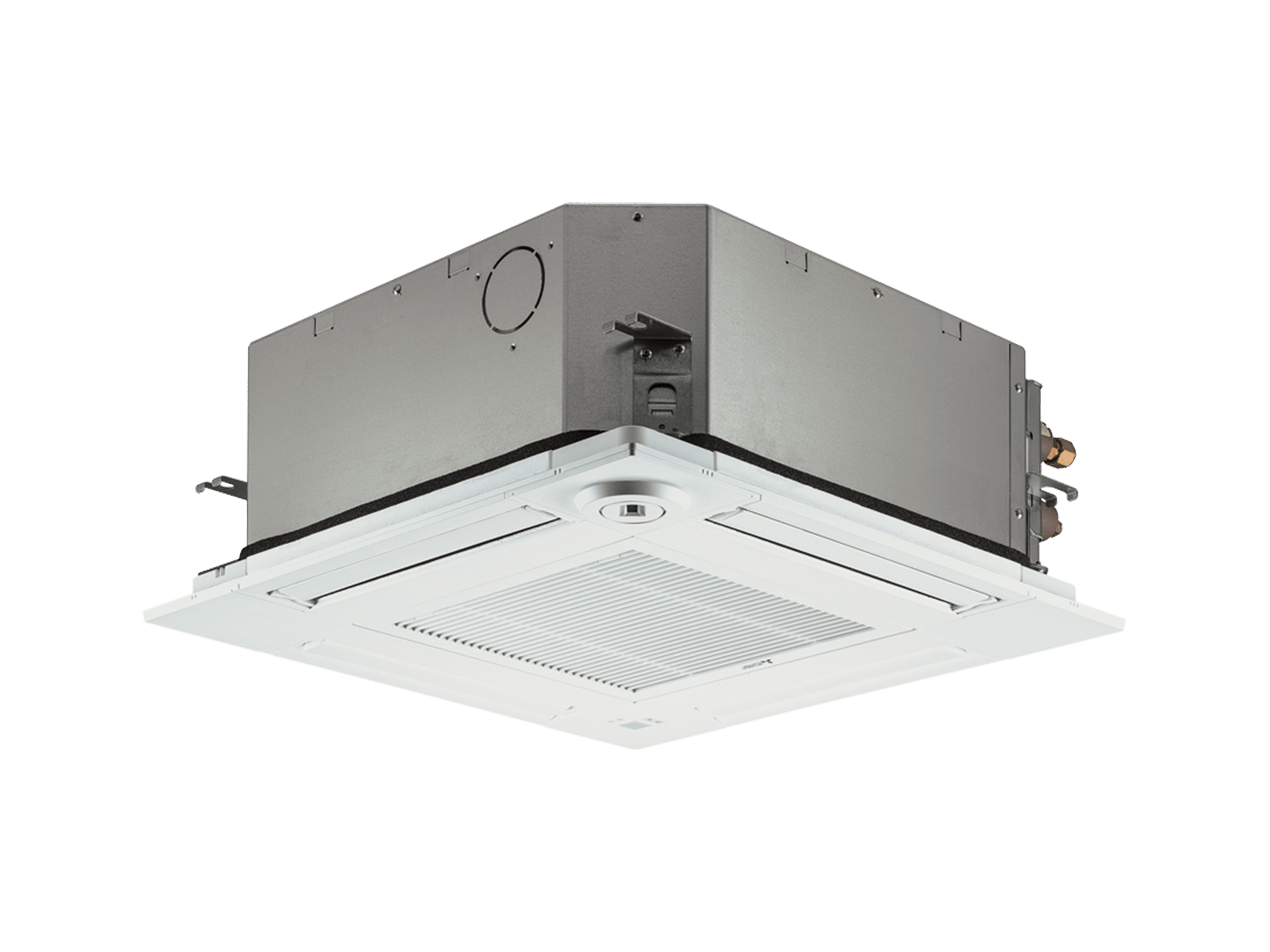

PLFY-WL10-40VFM-E
The 4-way compact ceiling cassette fits perfectly into 600 x 600 grid ceiling system and provides 4-way airflows despite its size.
The straight, square design fits into 600 mm x 600 mm ceiling construction specifications. This also matches the straight-line lighting system in the grid, thereby creating a beautiful space.
The 245 mm high slim body design and enables installation into restricted ceiling spaces.
The 245 mm high unit enables installation in restricted ceiling spaces. The panel weighs 3 kg, while the unit’s body weighs 13 kg (WL10, and WL15 models) or 14 kg (WL20, WL25, and WL32 models). These weights are 6 or 7 kg lighter than the PLFY-WL-VEM-E model, allowing easy suspension.
The improved vane design enables horizontal airflow to help reduce cold draft for optimum comfort.
The optional 3D i-See Sensor accurately detects not only the human body temperature but also the location and number of people in the room. It uses an algorithm to reduce power consumption while maintaining the comfort condition in accordance with the location and number of occupants in the room. Direct and indirect airflow settings are also available to further enhance air distribution in the room.
For projects that require a charge calculation function for individual billing, an external flow control valve can be added to the indoor unit. This enables the AE-200E central controller to estimate the power apportioning function more accurately using the capacity save method.
Optional covers are available to prevent the collection of dust and grime on the main body and hanging fixture sections. (Part No. PAC-SF81KC-E)
The unit’s rear panel has a knock-out opening where two 200 mm diameter spigots (optional duct flange Part no. PAC-SF28OF-E) can be installed to bring fresh air into the unit. This helps improve ventilation and make the kitchen comfortable.
When used in kitchens, the oil mist filter should be replaced once every two months. The system comes with 12 filter elements. After these have been used, optional elements (PAC-SG38KF-E) can be purchased.
The filter cleaning notification icon (which looks like a grid pattern), will appear on the main display when it is time to clean the filters. Wash, clean, or replace the filters when this sign appears. Refer to the indoor unit Instructions Manual for details.
If two or more indoor units are connected, filter cleaning timing for each unit may be different, depending on the filter type. The notification icon will appear when the filter on the main unit is due for cleaning.
When the filter sign is reset, the cumulative operation time of all units will be reset.
The notification icon is scheduled to appear after a certain duration of operation, based on the premise that the indoor units are installed in a space with ordinary air quality. Depending on the air quality, the filter may require more frequent cleaning.
The cumulative time at which the filter needs cleaning depends on the model.
