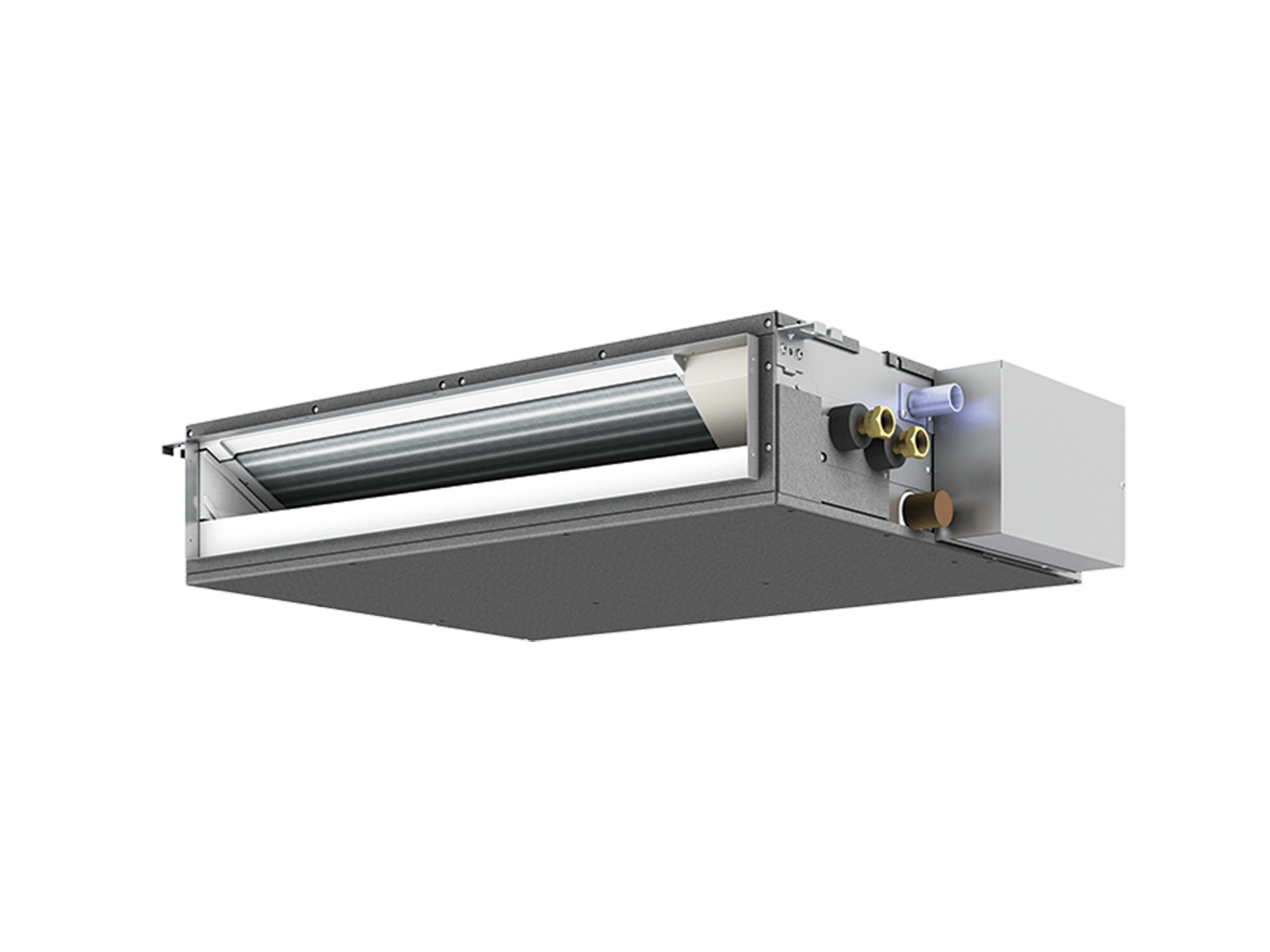

HVRF Indoor Units
PEFY-WP10-50VMS1-E
A slimline design with a height of 200 mm features a maximum external static pressure of 50 Pa, allowing installation into a narrow ceiling space. The lineup consists of up to 5.6 kW unit with the same height.
Indoor units are as quiet as 22-30 dB (A) at low speed, so they’re ideal for offices, hotel rooms, bedrooms, and other areas where quietness is required.
A thin body design with a height of no more than 200 mm (all capacity models) enables installation in a ceiling or bulkhead with a small cavity space.
Thanks to the centrifugal fan and coil design, the unit operates at a low noise, as low as 22dB (PEFY-WP15VMS1-E at low fan speed). It is best suited to a place where quietness is required.
External static pressure can be selected from 5, 15, 35 and maximum of 50 Pa to suit the ductwork layout. The units are set to 15 Pa at the time of factory shipment.
For PEFY-WP VMS1-E model, a drain pump is a standard feature that eliminates the need for a drain trap. This achieves a maximum lifting height of 550 mm. The PEFY-W VMS-A model does have built-in drain pump and it is sold separately.
