Ceiling Suspended Air Conditioning
PCA-M71HA2
The PCA-M71HA2 stainless steel ceiling suspended system is built to handle the challenges of tough commercial kitchens. Providing a comfortable air conditioning environment in commercial kitchens, features of the PCA-M71HA2 include a durable stainless steel casing that is resistant to oil and smoke and high performance oil mist filter to reduce smoke, grease and fumes from entering the air conditioner.
Built for demanding commercial environments
Featuring a durable stainless steel exterior, the PCA-M71HA2 stands up to the rigours of commercial kitchens. Resistant to oil and grease, the outer casing can be quickly wiped down to maintain a clean appearance. Internally, the separate fan casing and drain pan are both easy to access and remove, allowing for convenient on-site cleaning. This simplified maintenance process helps keep your ceiling mounted air conditioner operating at peak performance in busy spaces.
Designed to handle the airborne challenges of cooking areas, the PCA-M71HA2 comes equipped with a heavy-duty oil mist filter. This particular filtration system is 1.5 times more efficient at reducing smoke, grease and fumes before they can enter the unit (when compared to conventional filters). The disposable filter also simplifies upkeep, ensuring your ceiling mounted air conditioning system continues to function
Two 200 mm diameter spigots (optional duct flange) can be installed at the back of the unit to supply outside air into the kitchen to improve ventilation and create a more comfortable working environment for employees. For areas with higher ventilation requirements, this feature ensures you make the most of having an under ceiling mounted air conditioner and enhances its practical applications.
The unit comes with a high performance heavy duty oil mist filter. The filtration system is 1.5 times more efficient than conventional filters, effectively reducing the greasy smoke that enters the unit. The oil filter is disposable to further simplify trouble-free cleaning and maintenance.
A durable stainless steel casing that is resistant to oil and grease is provided to protect the surface of the body. Grease and stains can easily be wiped clean to keep the unit clean at all times. A separate fan casing can be disassembled to allow for easy cleaning. The drain pan can also be easily removed for on-site cleaning.
Offers customers high seasonal efficiency, advanced control options and quiet operation, whilst providing greater flexibility and ease of installation.
Two 200 mm diameter spigots (optional duct flange Part no. PAC-SF28OF-E) can be installed at the back of the unit to supply outside air into the kitchen to improve ventilation and comfort.
This attractive full dot liquid crystal display incorporates a large backlit screen and simple menus for easy operation. You can set up to 8 temperature and airflow patterns per day for seven days. Perfect for the busy home and office or retail store.
The full colour optional touch controller PAR-CT01MAA enables the control of both residential and commercial air conditioning applications. It has a customisable 3.5 inch colour LCD touch panel that makes it easy to use. Available in white or premium black finishes, suitable for any décor.
R32 enables increased energy efficiency compared to R410A, with just one third of the global warming potential, the risk of environmental harm is greatly reduced.
| Indoor unit | PCA-M71HA2 | ||
|---|---|---|---|
| Outdoor unit | PUZ-ZM7VHA2-A | ||
| Refrigerant | R32 | ||
| Power supply (V, phase, Hz) | 230V, Single-phase, 50 / 60 Hz | ||
| Cooling | Capacity (Min-Rated-Max) | kw | 3.3-7.1-8.1 |
| Total input (Rated) | kw | 2.02 | |
| AEER/EER | 3.39/3.51 | ||
| Running current (Rated) | A | 8.9 | |
| Sound Pressure Level | In (Lo-Mid-Hi) | 37-39 | |
| Out (PWL) | 47 (67) | ||
| Air Volume (In) Lo-Mid-Hi | L/S | 267-300 | |
| Heating | Capacity (Min-Rated-Max) | kw | 3.5-7.6-10.2 |
| Total input (Rated) | kw | 2.17 | |
| ACOP/COP | 3.39/3.50 | ||
| Running current (Rated) | A | 8.72 | |
| Sound Pressure Level | In (Lo-Mid-Hi) | 37-39 | |
| Out (PWL) | 51 (70) | ||
| Air Volume (In) Lo-Mid-Hi | L/S | 267-300 | |
| Max. Running Current | A | 19.43 | |
| Indoor unit | Input[Cool/Heat] (Rated) | kw | 0.10 |
| Dimensions (HxWxD) | mm | 280 x 1136 x 650 | |
| Weight | kg | 42 | |
| Outdoor unit | Dimensions (HxWxD) | mm | 943 x 950 x 330 (+25) |
| Weight | kg | 70 | |
| Breaker size | A | 25 | |
| Piping | Diameter (Gas/Liquid) | mm | 15.88 / 9.52 |
| Max. Length/Height | m | 50 / 30 | |
| Guaranteed Operating range (outdoor) | Cooling | °C*1 | -5(-15) ~ 52 |
| Heating | °C | -20 ~ 21 | |
*1 With the optional air protection guide, the operation at -15 outdoor temperature is possible
Discover the PCA-M71HA2 stainless steel ceiling suspended air conditioner.
Optional covers are available to prevent the collection of dust and grime on the main body and hanging fixture sections. (Part No. PAC-SF81KC-E)

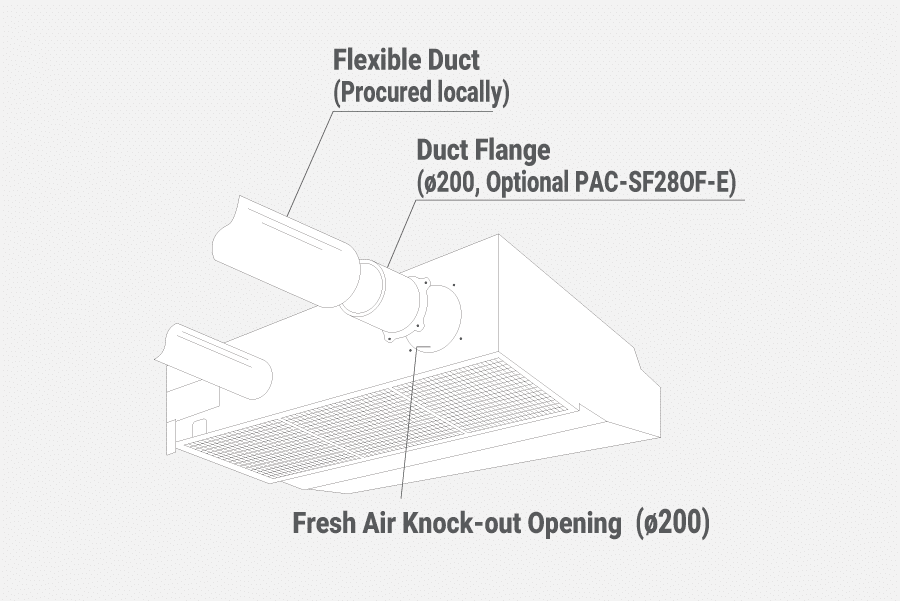

The unit’s rear panel has a knock-out opening where two 200 mm diameter spigots (optional duct flange Part no. PAC-SF28OF-E) can be installed to bring fresh air into the unit. This helps improve ventilation and make the kitchen comfortable.

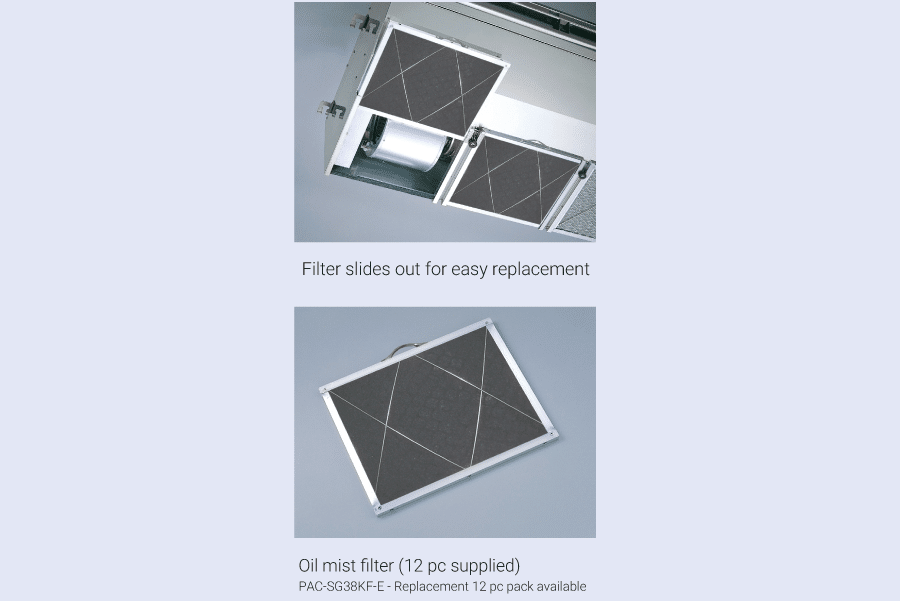

When used in kitchens, the oil mist filter should be replaced once every two months. The system comes with 12 filter elements. After these have been used, optional elements (PAC-SG38KF-E) can be purchased.
The filter cleaning notification icon (which looks like a grid pattern), will appear on the main display when it is time to clean the filters. Wash, clean, or replace the filters when this sign appears. Refer to the indoor unit Instructions Manual for details.
If two or more indoor units are connected, filter cleaning timing for each unit may be different, depending on the filter type. The notification icon will appear when the filter on the main unit is due for cleaning.
When the filter sign is reset, the cumulative operation time of all units will be reset.
The notification icon is scheduled to appear after a certain duration of operation, based on the premise that the indoor units are installed in a space with ordinary air quality. Depending on the air quality, the filter may require more frequent cleaning.
The cumulative time at which the filter needs cleaning depends on the model.

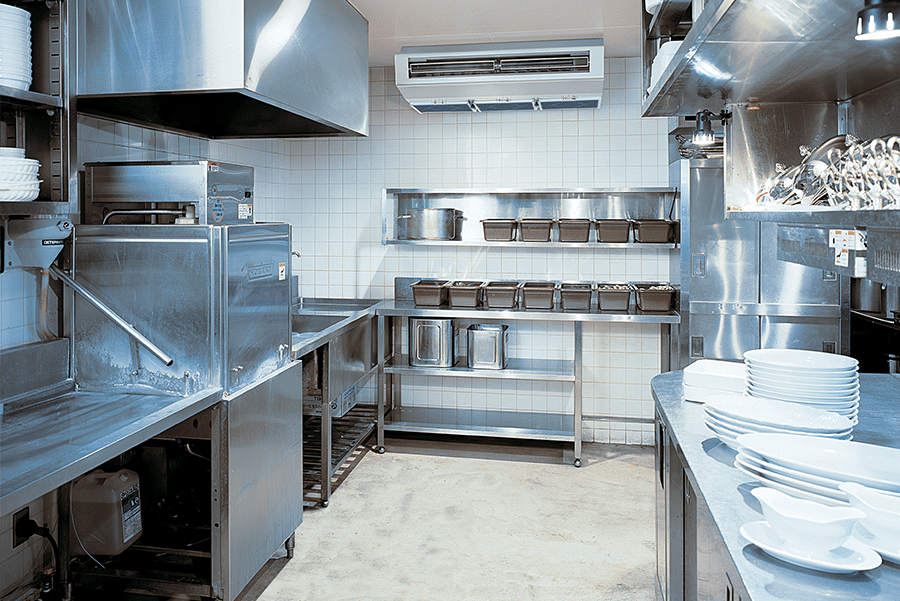

The PCA-M71HA2 ceiling mounted air conditioner is well-suited to larger, open-plan commercial/restaurant kitchens and service areas thanks to its 7.1 kW capacity. Its ceiling-suspended design helps distribute conditioned air evenly throughout the space without occupying wall or floor space, making it a practical solution where layout flexibility is required.
As an under ceiling air conditioner, the PCA-M71HA2 is designed for exposed installation without the need for a ceiling cavity. It is ideal for kitchens or commercial settings where ceiling space is limited or inaccessible, and larger, open spaces.
The optional PAR-41MAA controller allows users to program up to 8 temperature or airflow settings per day across a full 7-day schedule. This makes it easier to automate your ceiling mounted air conditioning system for enhanced comfort and energy use during busy commercial kitchen operating hours.
The PCA-M71HA2 supports drain piping on either the left or right side of the unit, giving installers more flexibility based on the kitchen’s layout. An optional lift-up drain mechanism is also available to assist with installation in spaces where gravity drainage is not feasible.
If you’re looking to explore the PCA-M71HA2 in more detail or compare it with other ceiling-suspended solutions, the following options are an ideal place to start:
Contact us if you require more information for projects.
Alternatively, contact your nearest authorised Diamond Dealer today to discuss options further.
