Centralised Air Conditioning Controllers
PAC-IF01AHC-J

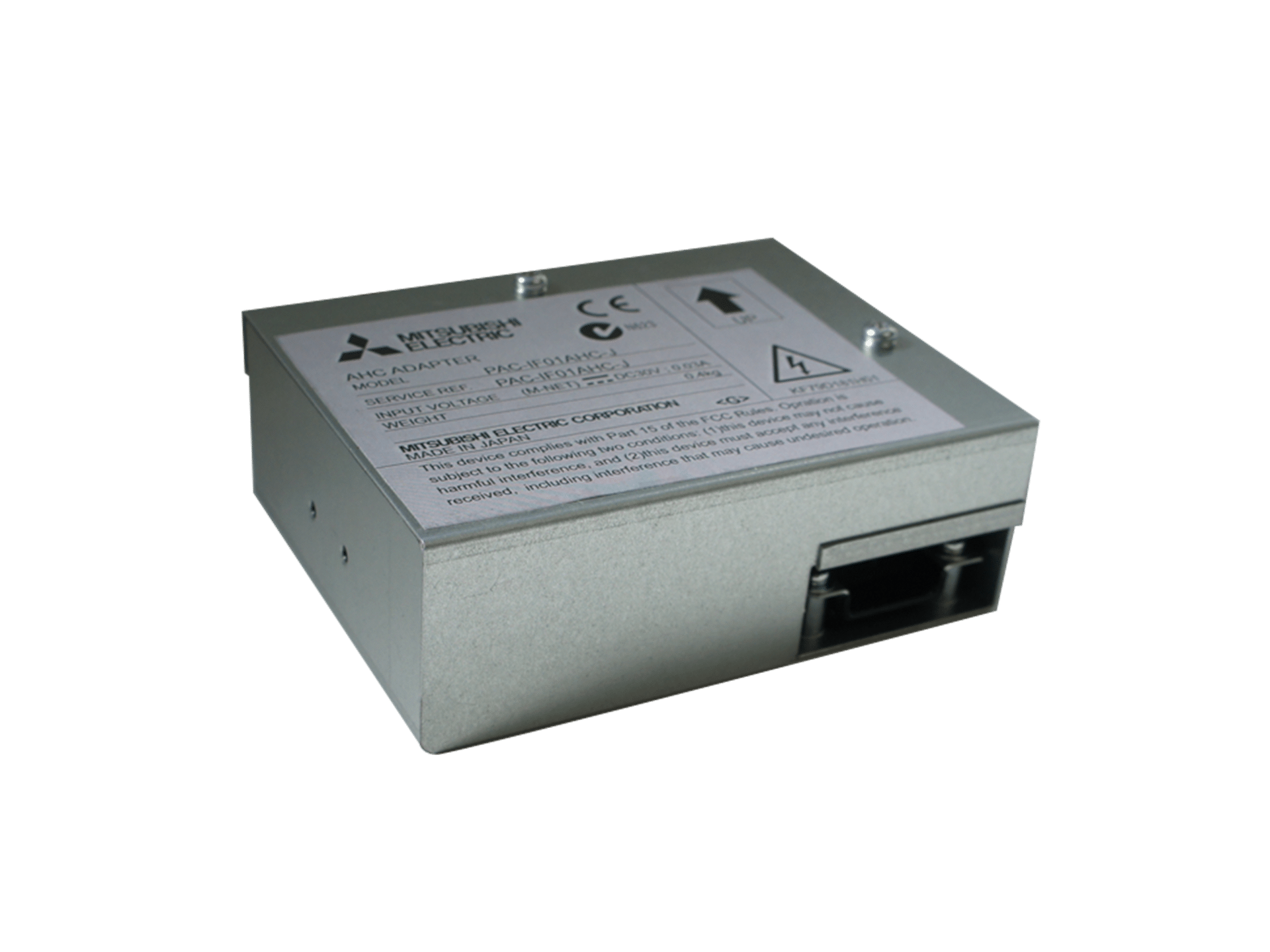

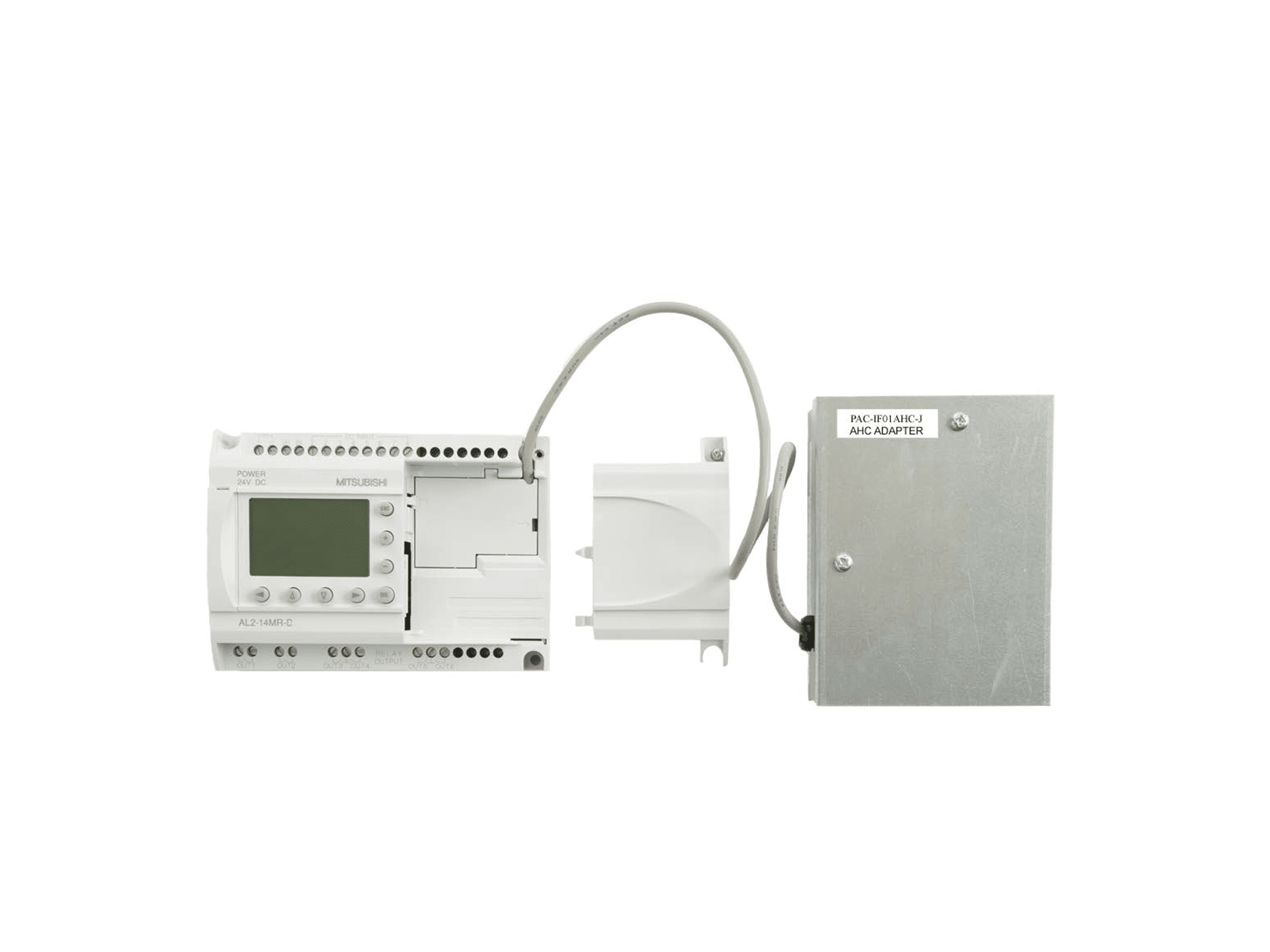

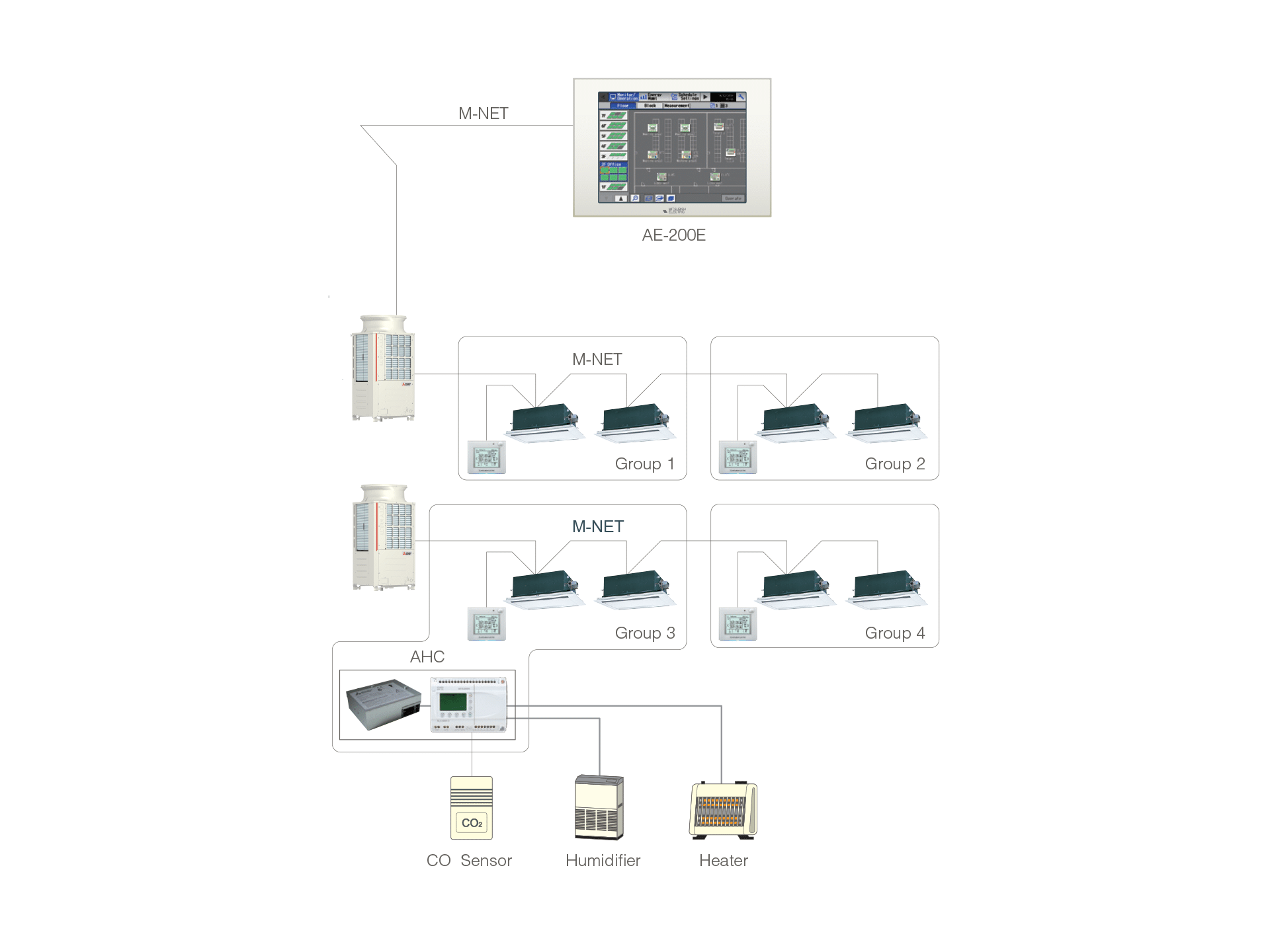

The Advanced HVAC Controller (AHC) consists of two components: the Mitsubishi Electric PAC-IF01AHC-J AHC Adapter and the ALPHA2 programmable logic controller manufactured by Mitsubishi Electric. The AHC connects the Mitsubishi Electric air conditioning network system (M-NET) to other systems.
Controls third party devices with programmable logic for a broad number of applications where a BMS system is not available. Digital and analogue control signals are available for simple on/off control or a more advanced control modulation.
Sensor reading and third party devices can be monitored by the AHC and displayed on central controller AE-200E making it easy to manage the whole building’s HVAC systems from one spot.
Interlocks the operation of third party devices with air conditioning units that are connected to the AHC. This removes the need for a third party controller when all the equipment can be controlled by the AHC along with a central controller AE-200E connected to the air conditioning units.
• Remote controller: PAR-U02MEDA
• Centralised controller: AE-200E, AE-50E, EW-50E.
Use of the AHC requires either a remote controller or a centralised controller above.
• AL2-14MR-A
• AL2-14 MR-D
• AL2-24MR-A
• AL2-24MR-D
More information: https://www.mitsubishielectric.com.au/product/alpha2-simple-application-controllers/
| Item | Specifications | ||
|---|---|---|---|
| Power supply | M-NET | 17–32 VDC | |
| Interface | M-NET transmission terminal | Exclusively for connection to M-NET | |
| Connector for ALPHA2 | Exclusively for connection to ALPHA2 | ||
| Ambient conditions | Temperature | Operating temperature range | -10°C – +55°C |
| Storage temperature range | -20°C – +60°C | ||
| Humidity | 30%–90% RH (Non-condensing) | ||
| Dimensions (W × H × D) | 116 × 90 × 40 mm | ||
| Weight | 0.4 kg | ||
| Installation conditions | Inside the metal control box * To be used in a business office or similar environment |
||
Constant year round air conditioning with 24/7 temperature sensing and control with second unit operating in duty/standby configuration.
