Simple Application Controllers

ALPHA2

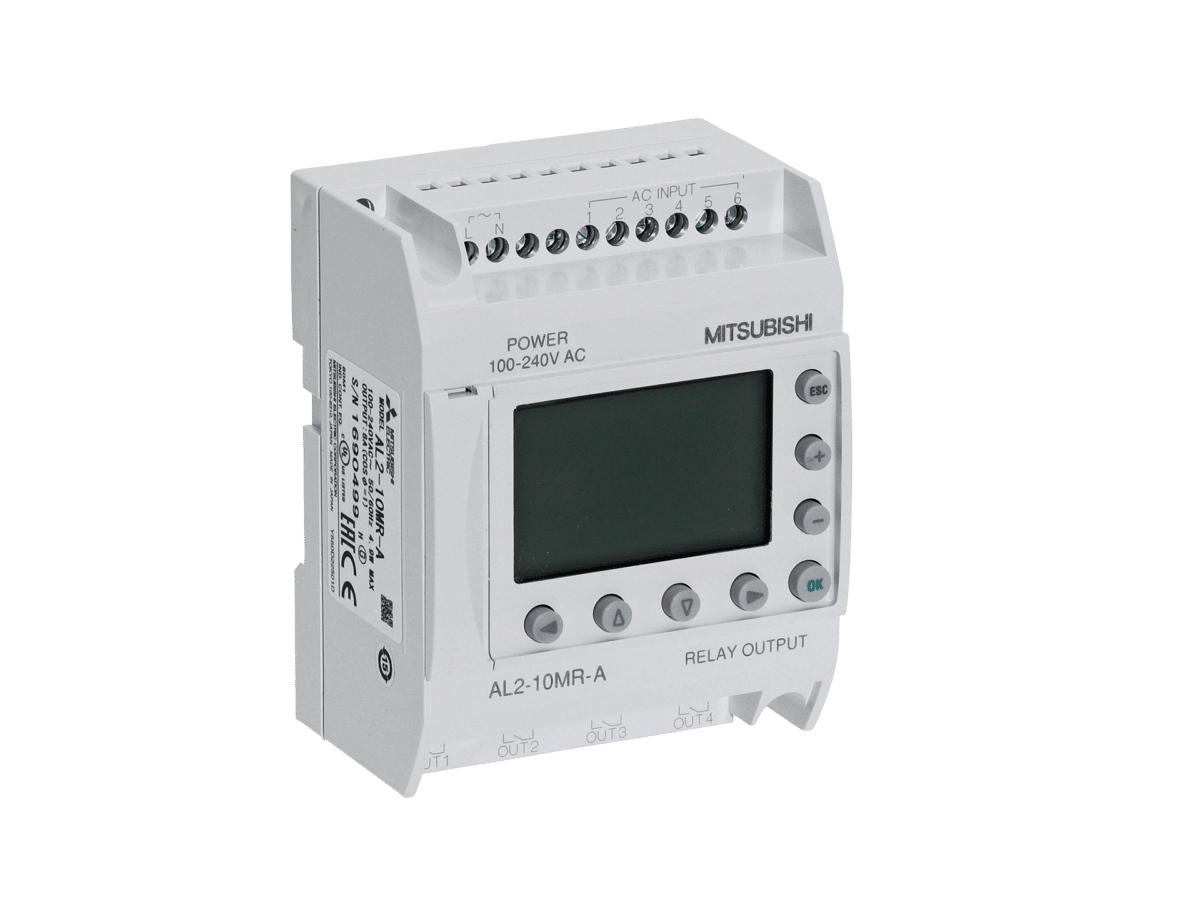

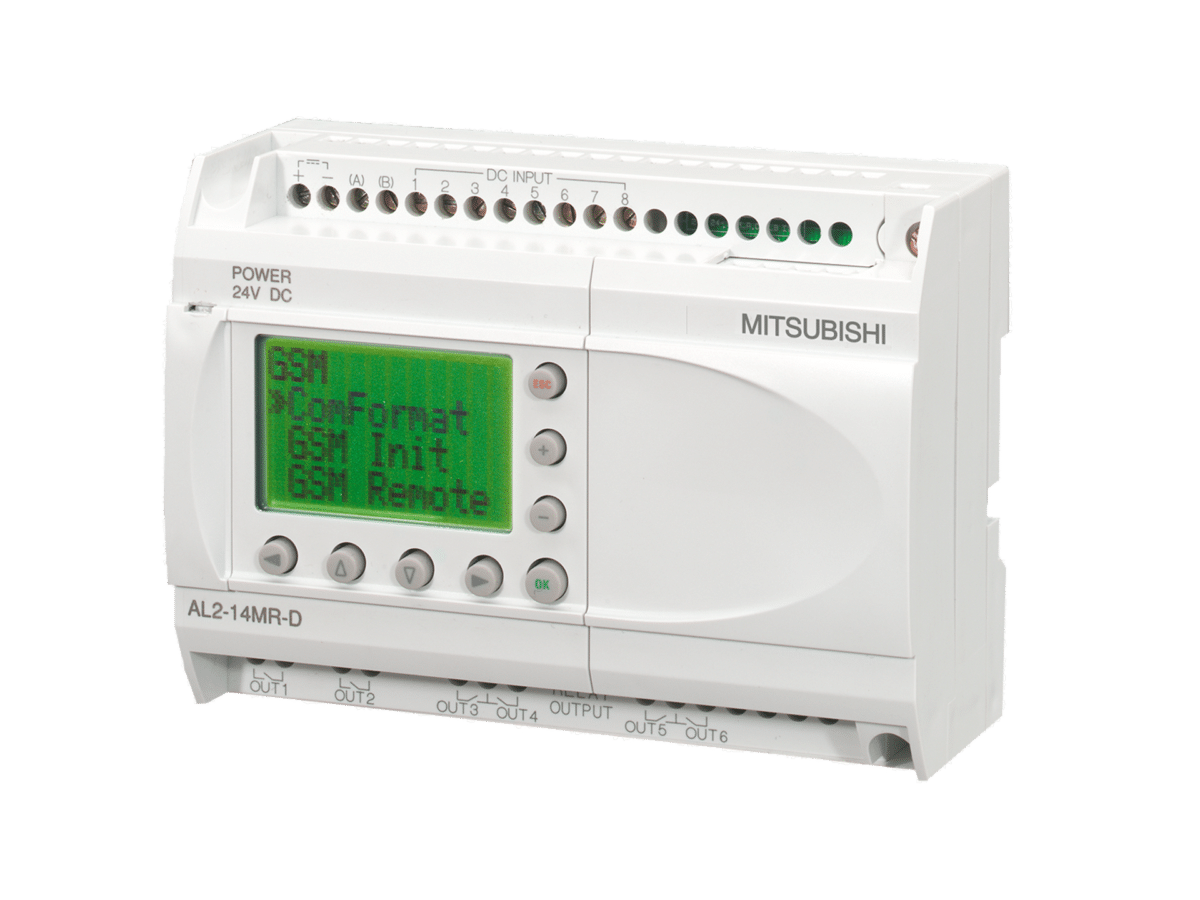

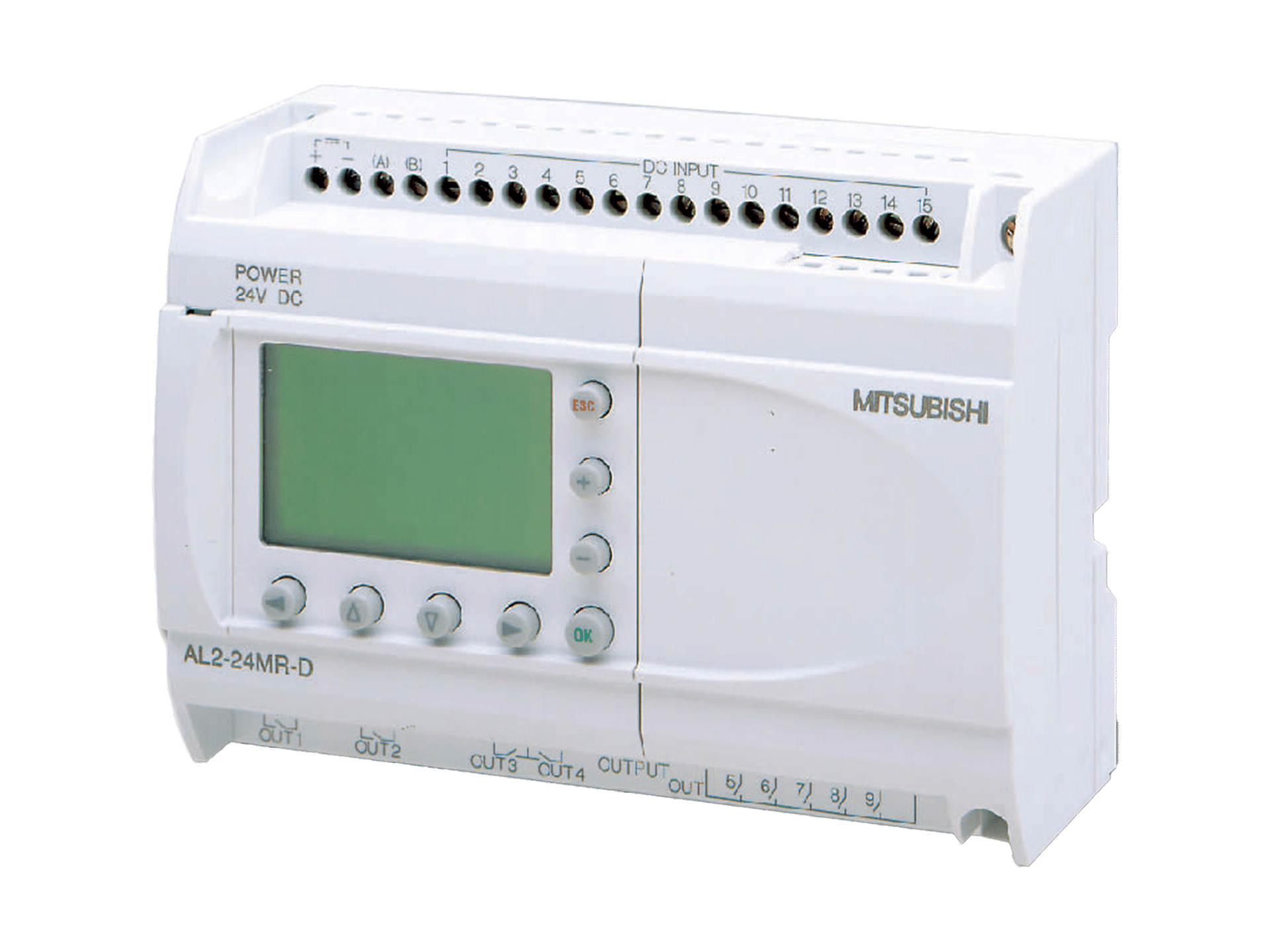

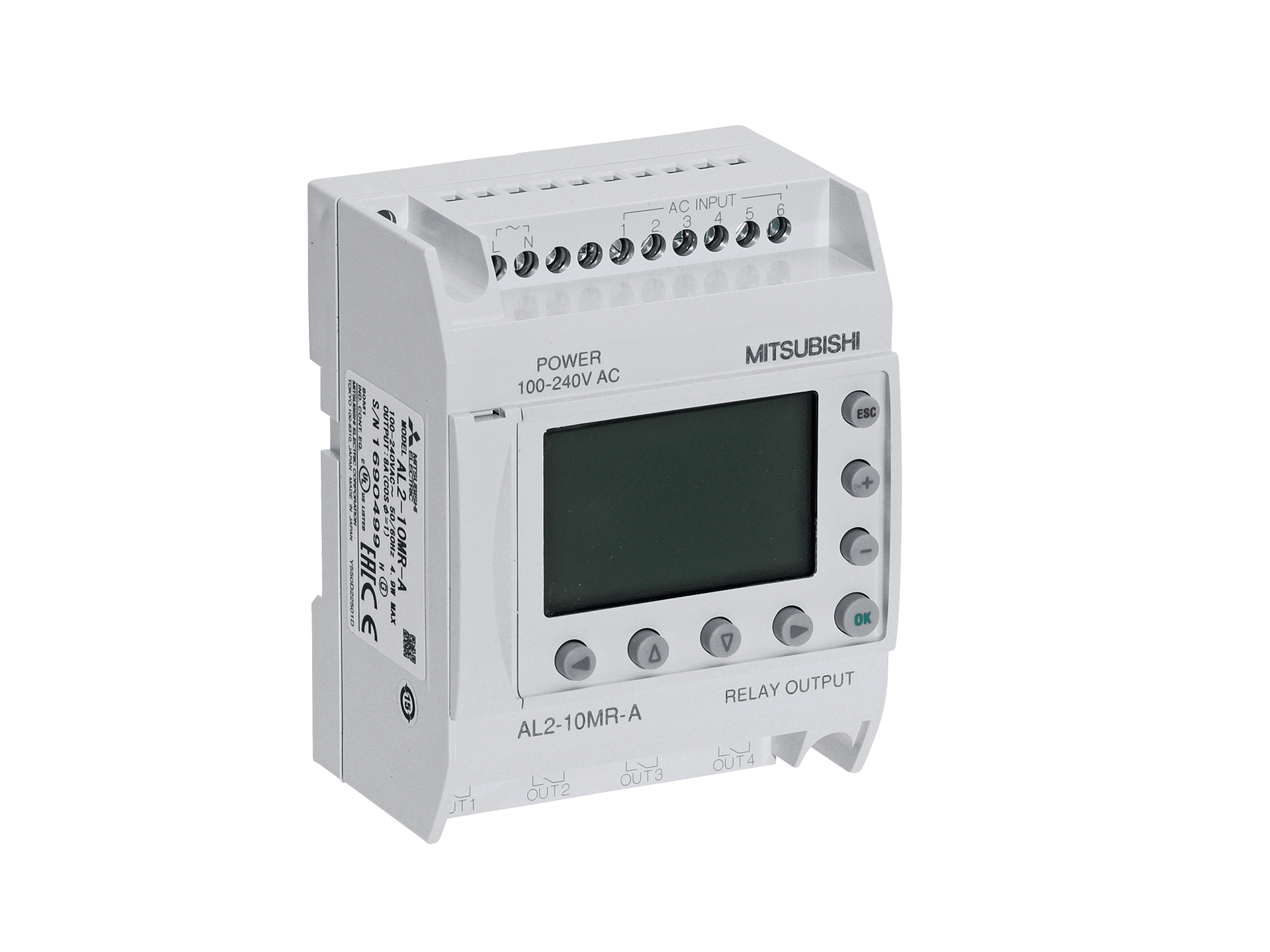

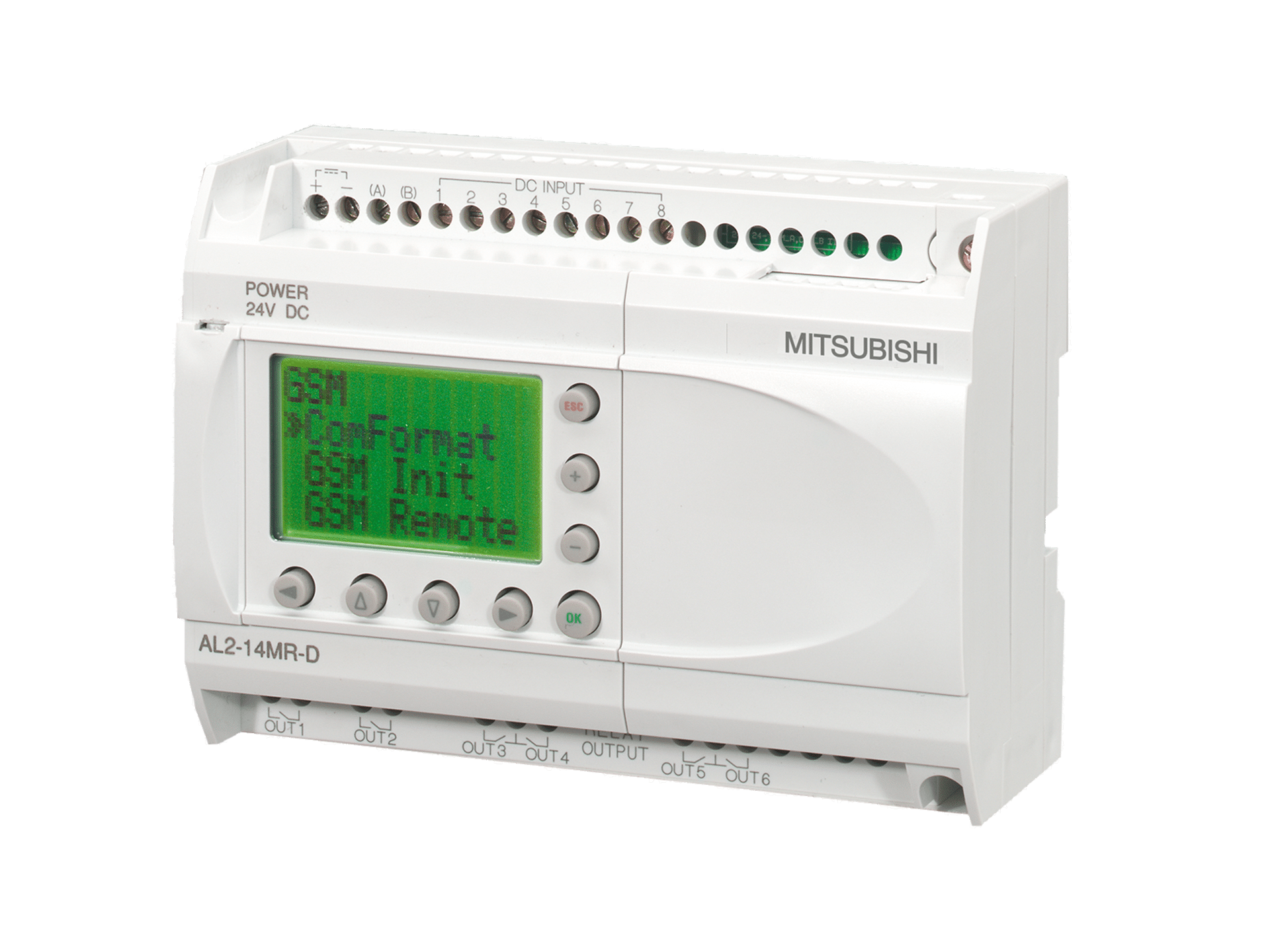

AL2-MR

  • Wide Operational Temperature
  • 200 Function Blocks
  • More flexibility

Entry level Mitsubishi Electric ALPHA2 simple application controller can be used to control applications such as lighting, temperature and water control.

The ALPHA2 controllers offer simple and reliable control for a wide range of automation applications. ALPHA2 can replace timers and counters in traditional switchboards or be used for monitoring and control of air conditioning, pumps and lighting.

Wide Operational Temperature_ALPHA2

Wide Operational Temperature

The units are designed to operate in a temperature range from -25°C to 55°C, making the Alpha controllers ideal for applications inside and out.

200 Function Blocks_ALPHA2

200 Function Blocks

Alpha controller can process up to 200 function blocks in a program which include timers, counters, analogue value processing, calendar and time functions.

More Flexibility_ALPHA2

More Flexibility

DC versions up to 8 DC inputs can be configured to be digital or analogue, providing greater flexibility with no additional modules.

Other Features

  • Integrated HMI
  • Sink or source inputs
  • Optional IO expansions
  • AC or 24 DC power supply
  • Advanced software
  • Real time clock functions
  • Program security
  • EEPROM memory
  • Network capability
  • Communication via GSM, SMS or e-mail

DOWNLOADS

Model:

Medical

Red Cross Blood Bank

Constant year round air conditioning with 24/7 temperature sensing and control with second unit operating in duty/standby configuration.

Download

Flyer

ALPHA2 Simple Application Controller

ALPHA2 can replace timers and counters in traditional switchboards or be used for monitoring and control of air conditioning, pumps and lighting.

Download
