Wall Mounted Air Conditioners
MSZ-LN25-60VG2(V/B/R)
Crafted with precision, the MSZ-LN split system air conditioner offers a harmonious blend of cutting-edge technology, sophisticated design and personalised climate control for your home.
Luxurious climate control

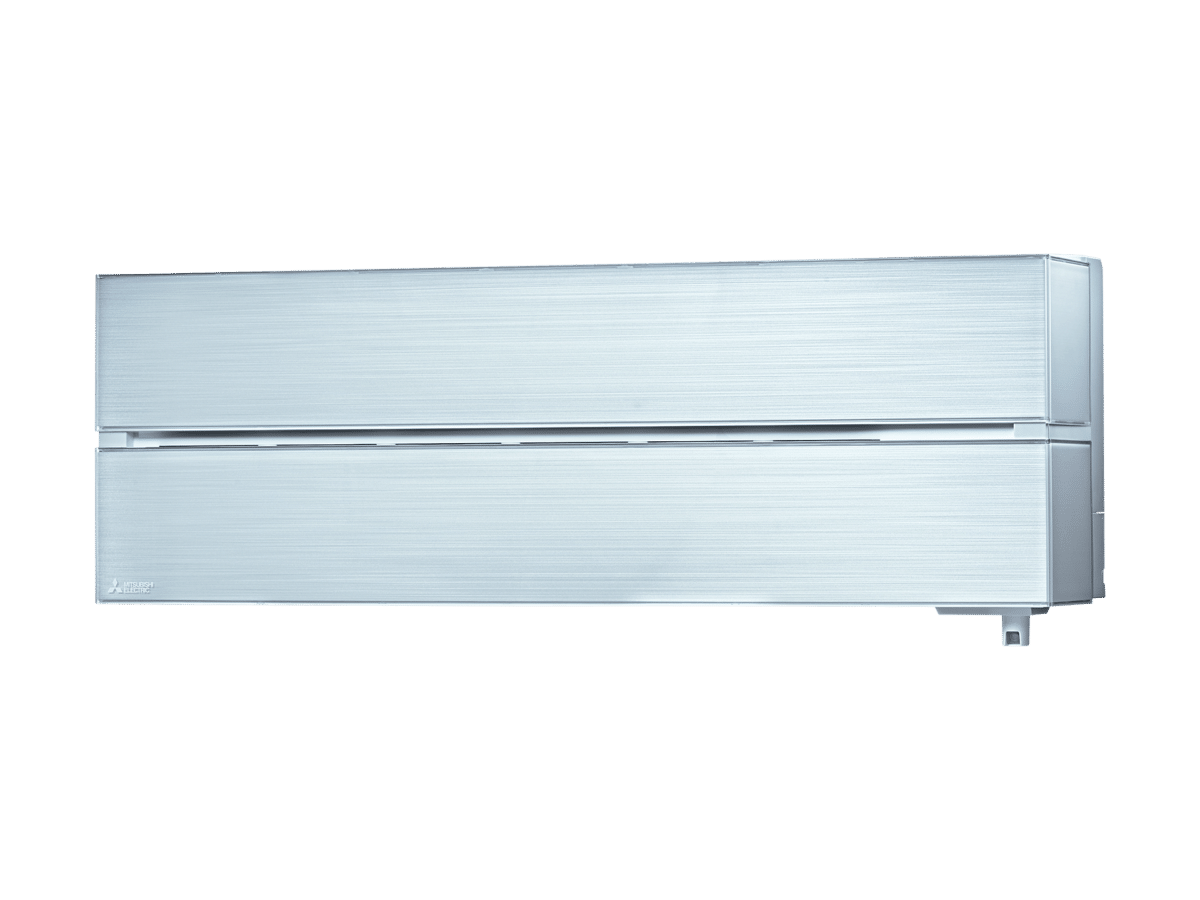

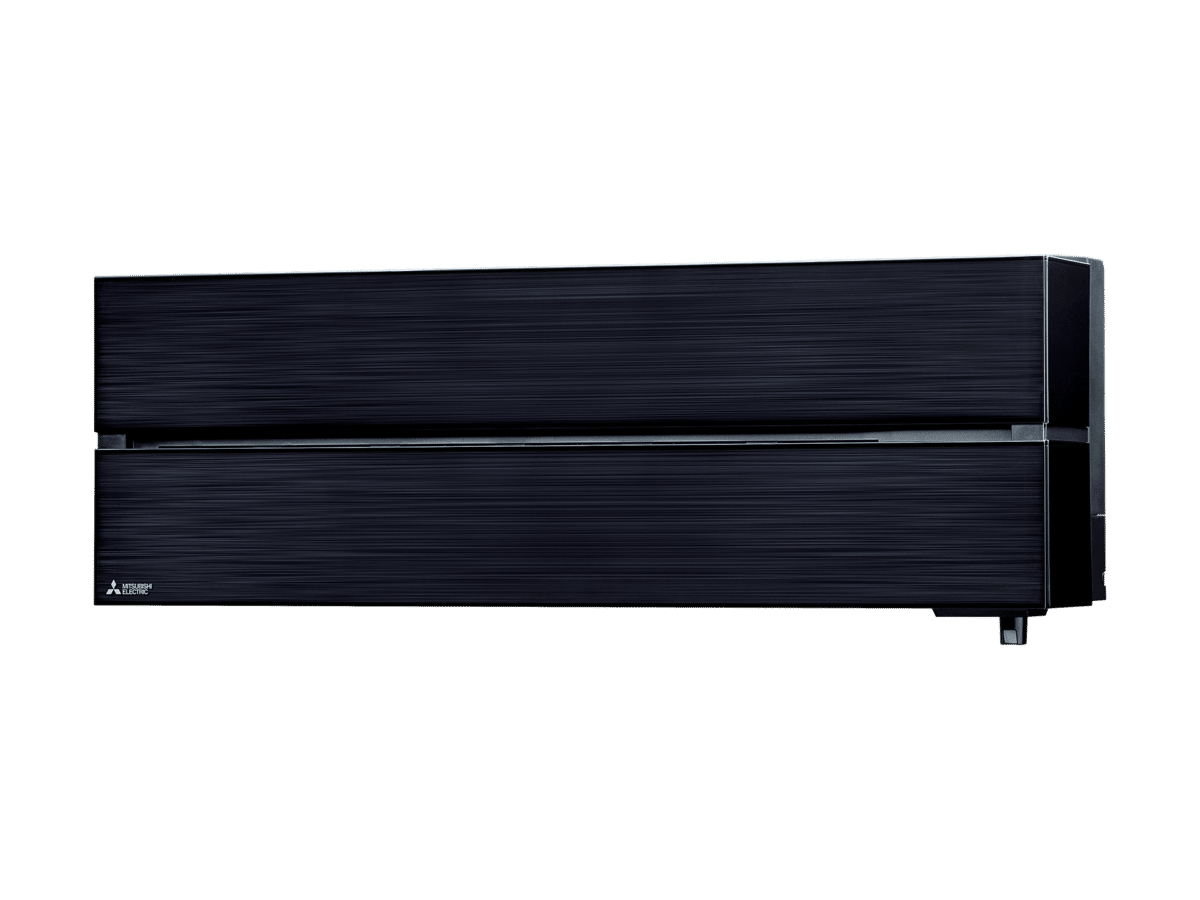

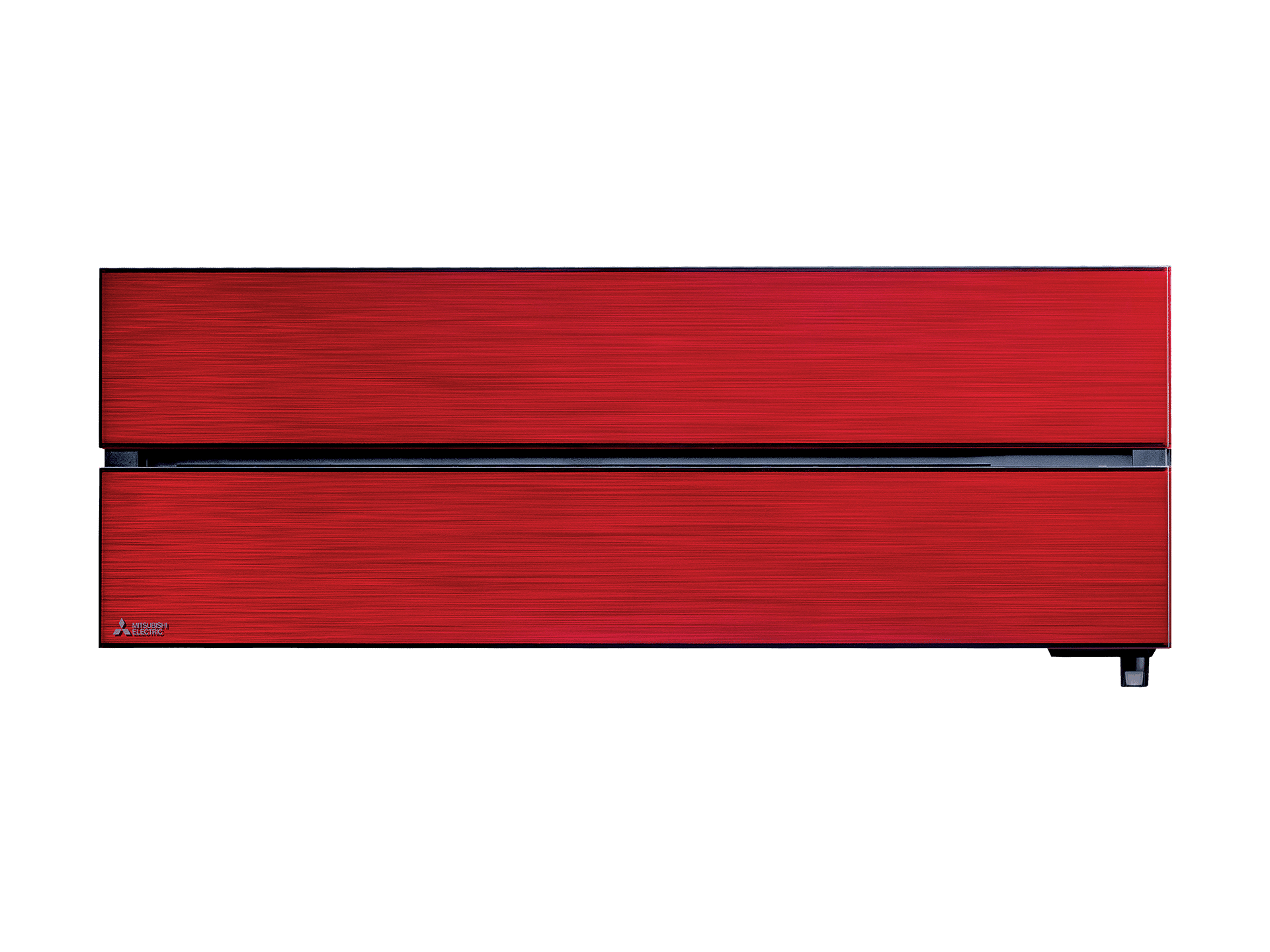

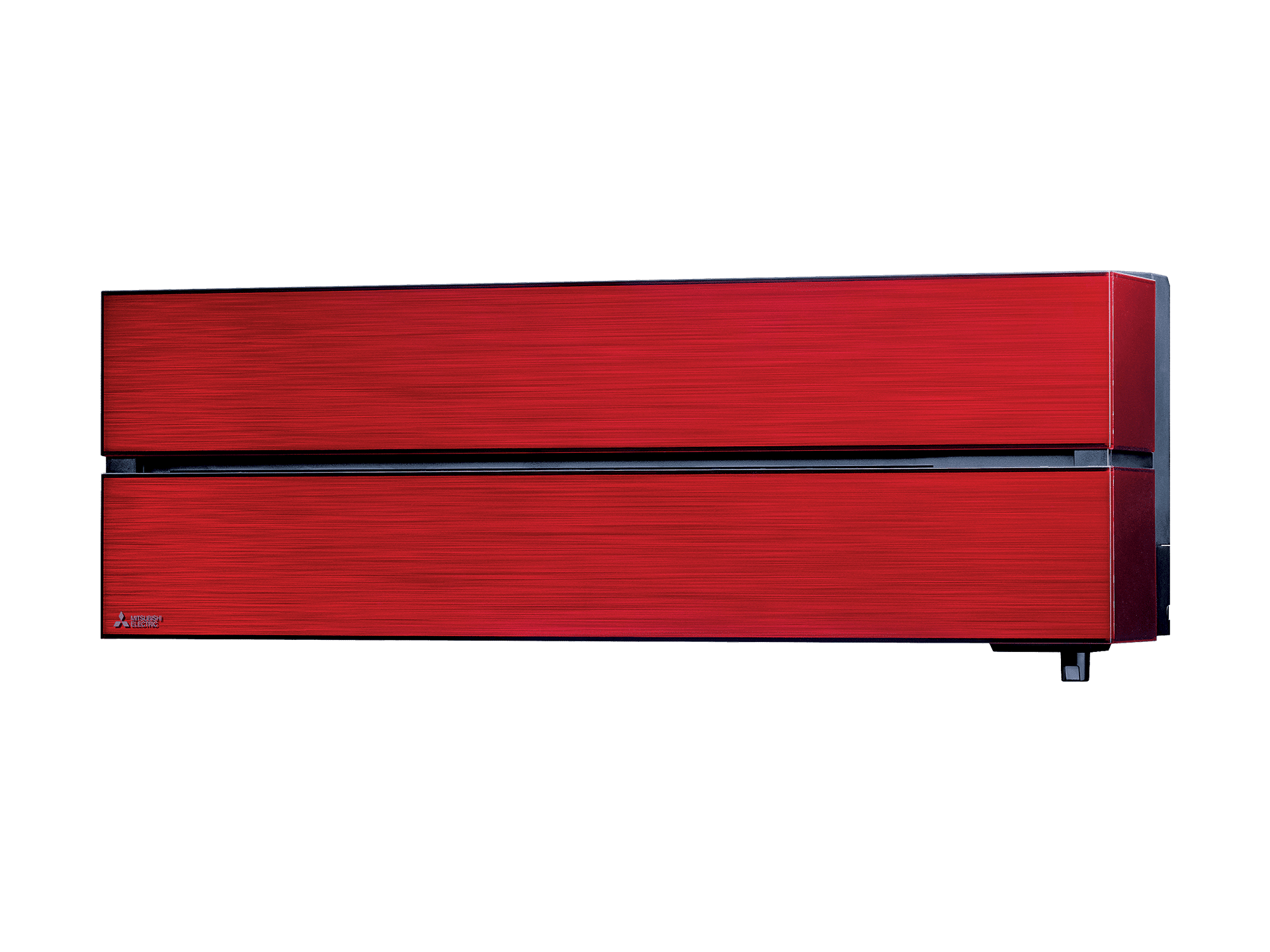

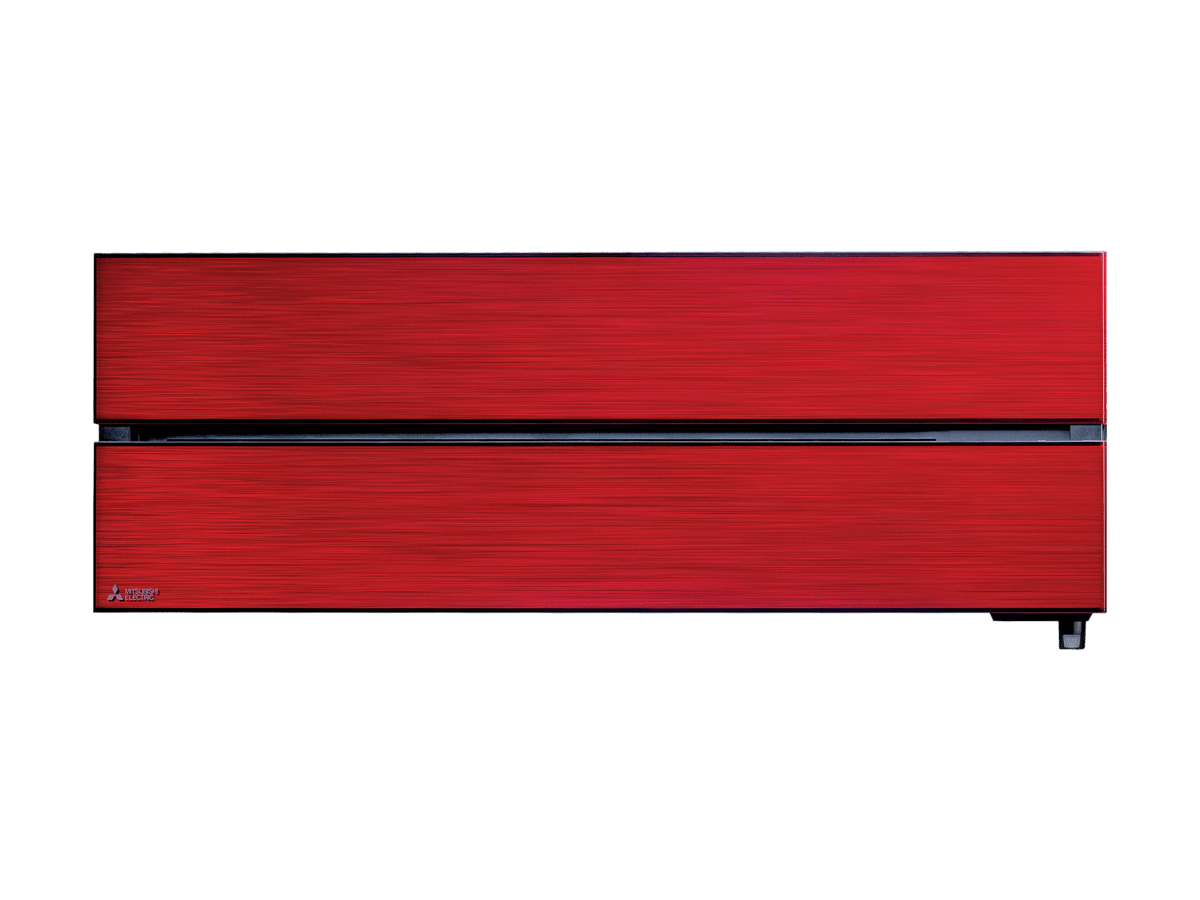

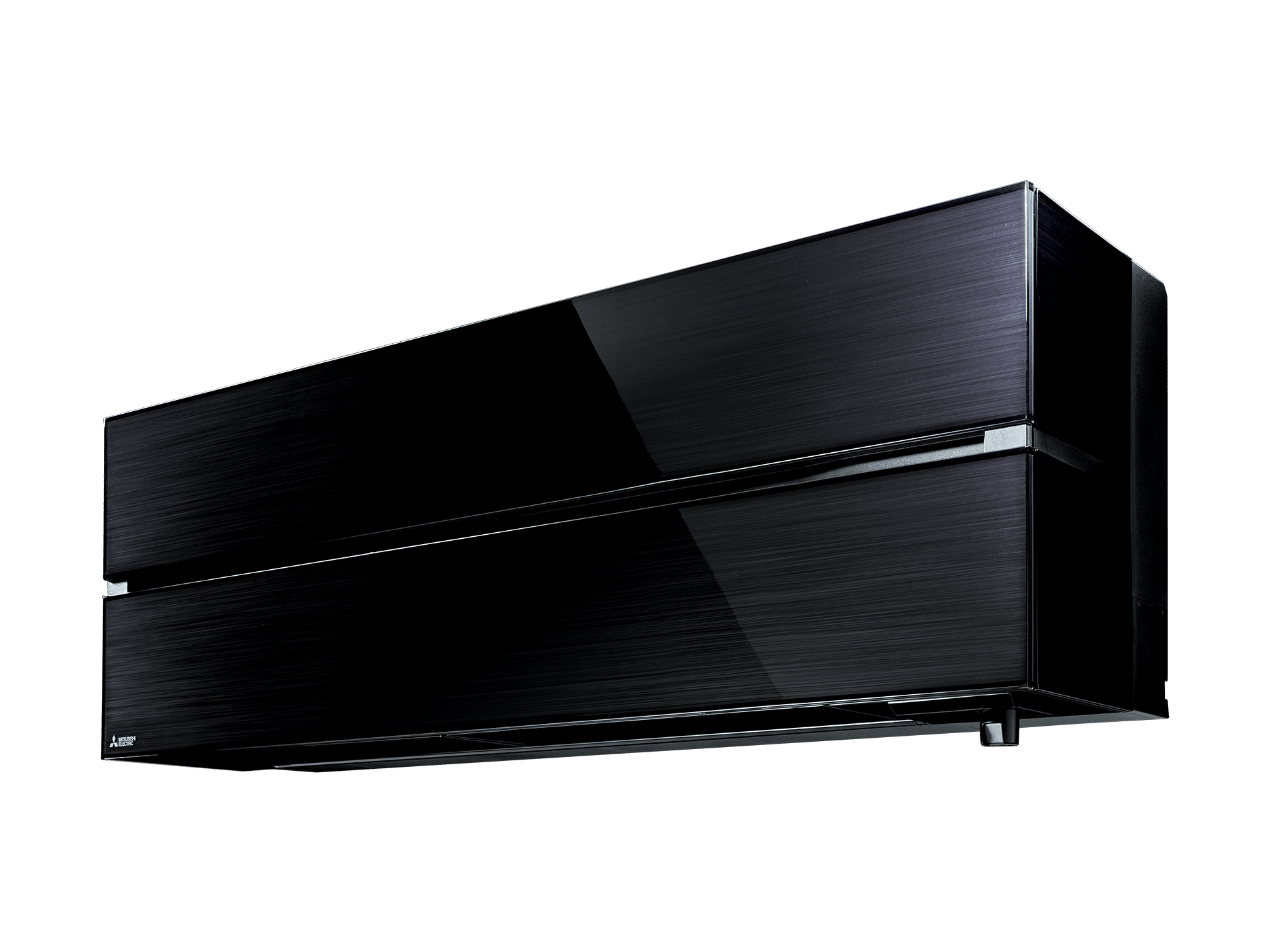

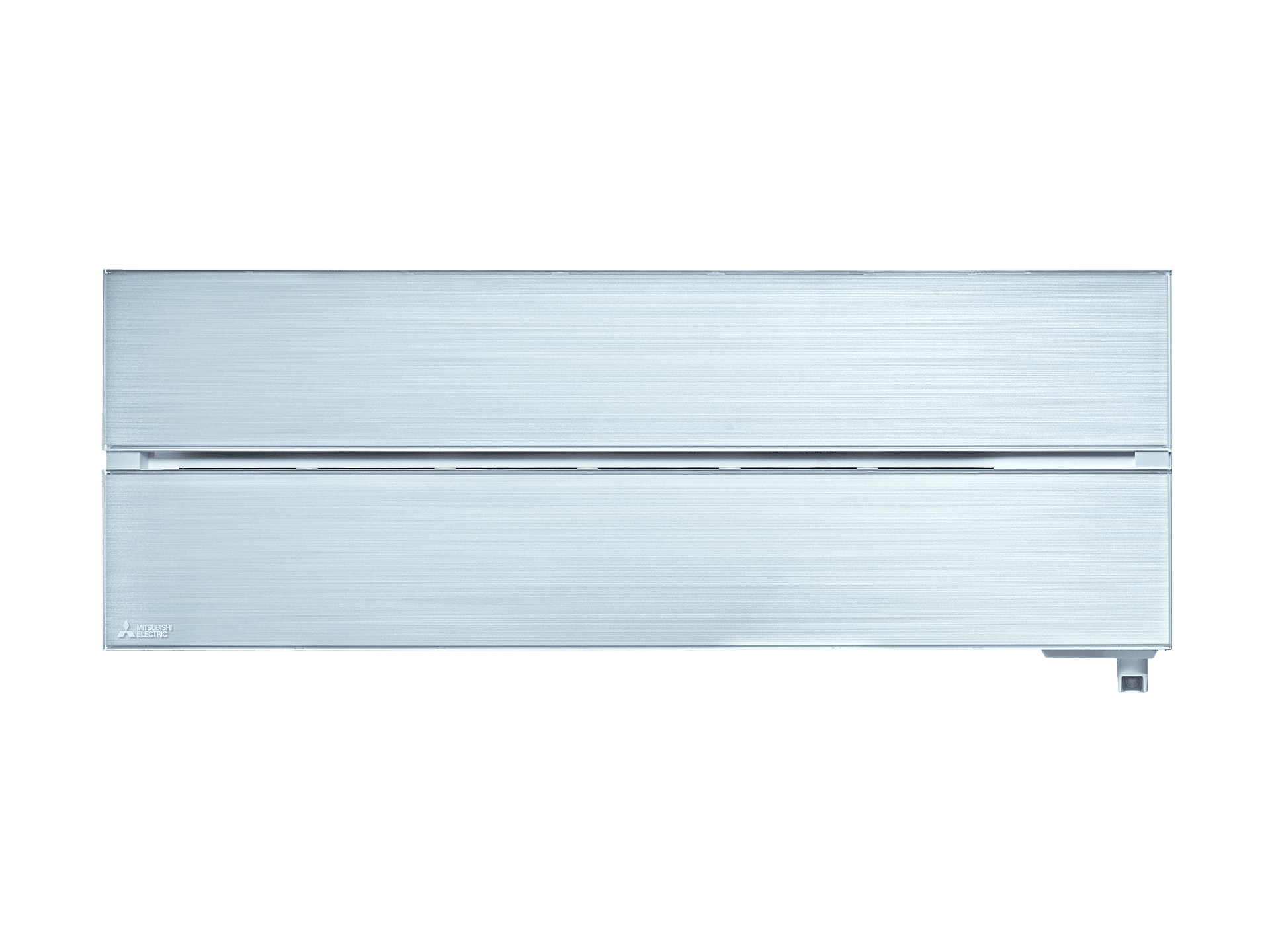

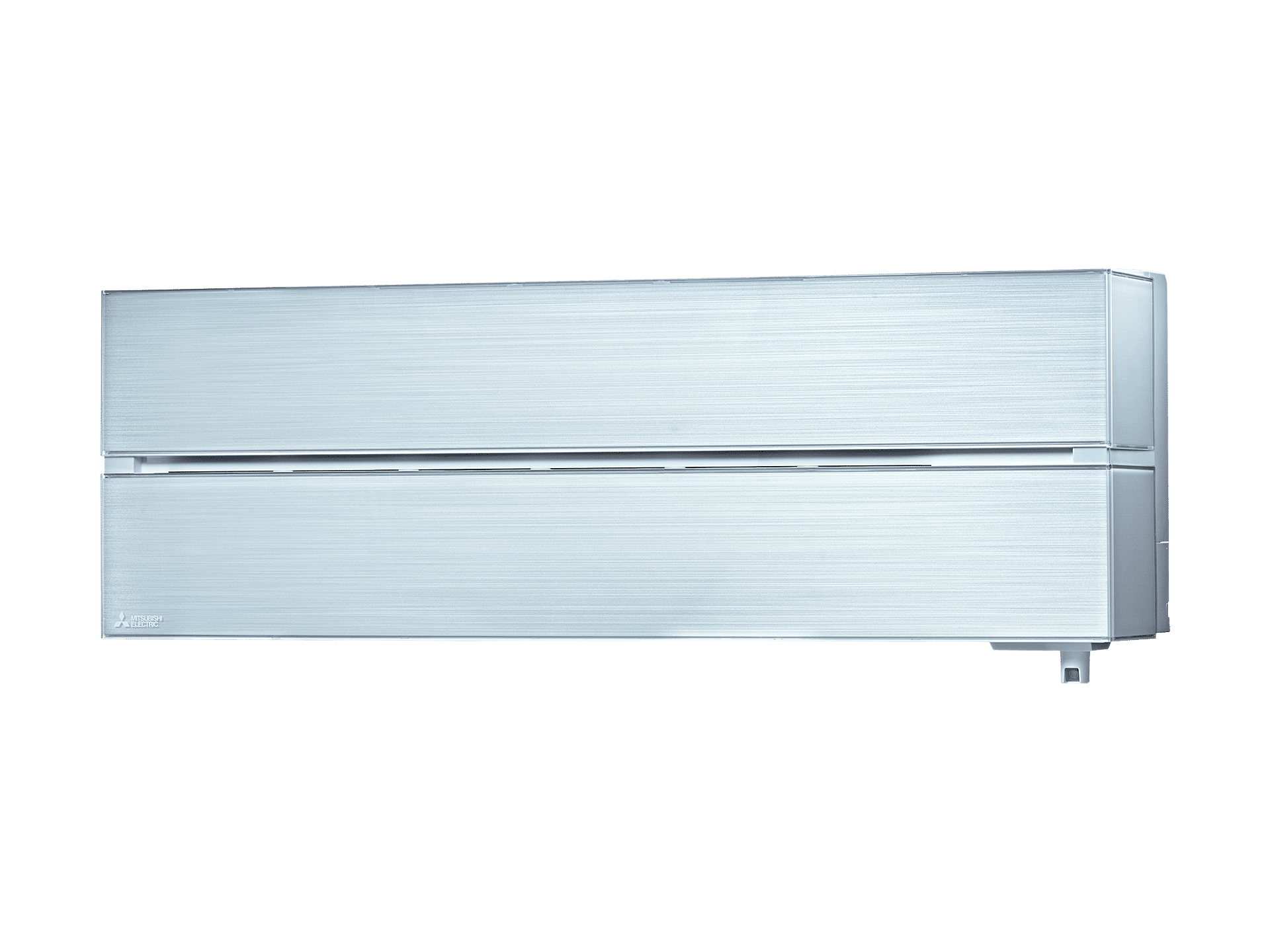

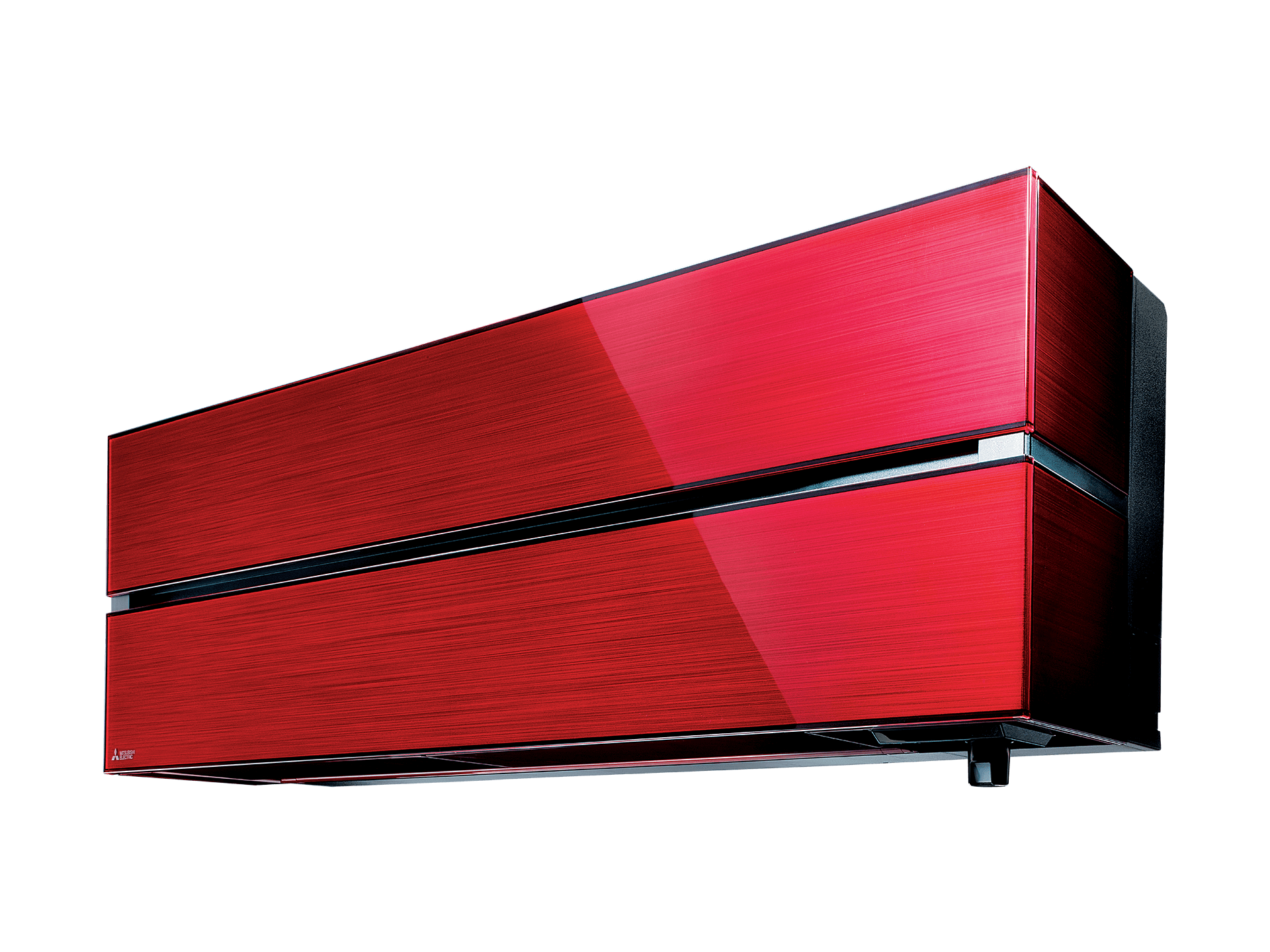

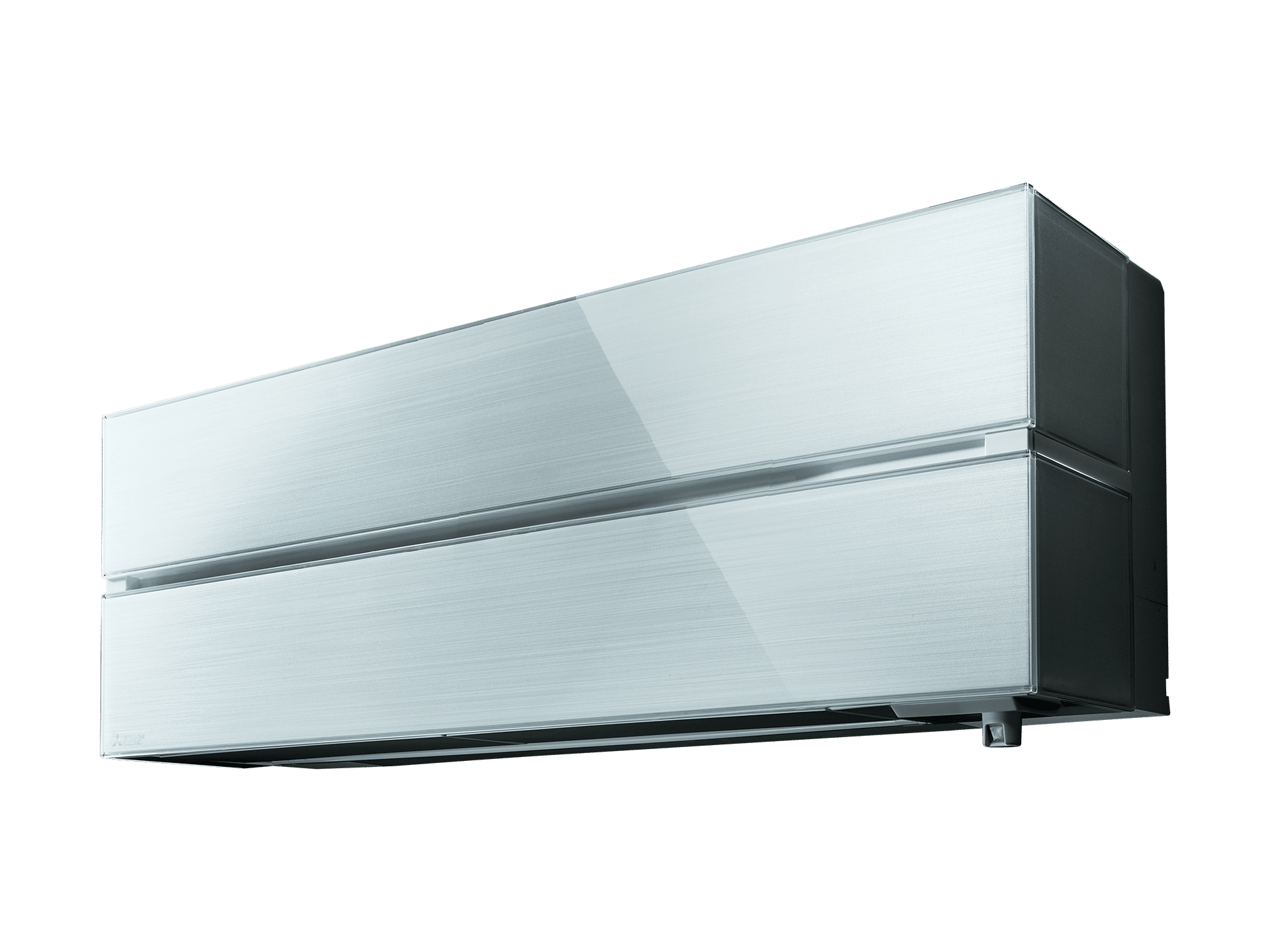

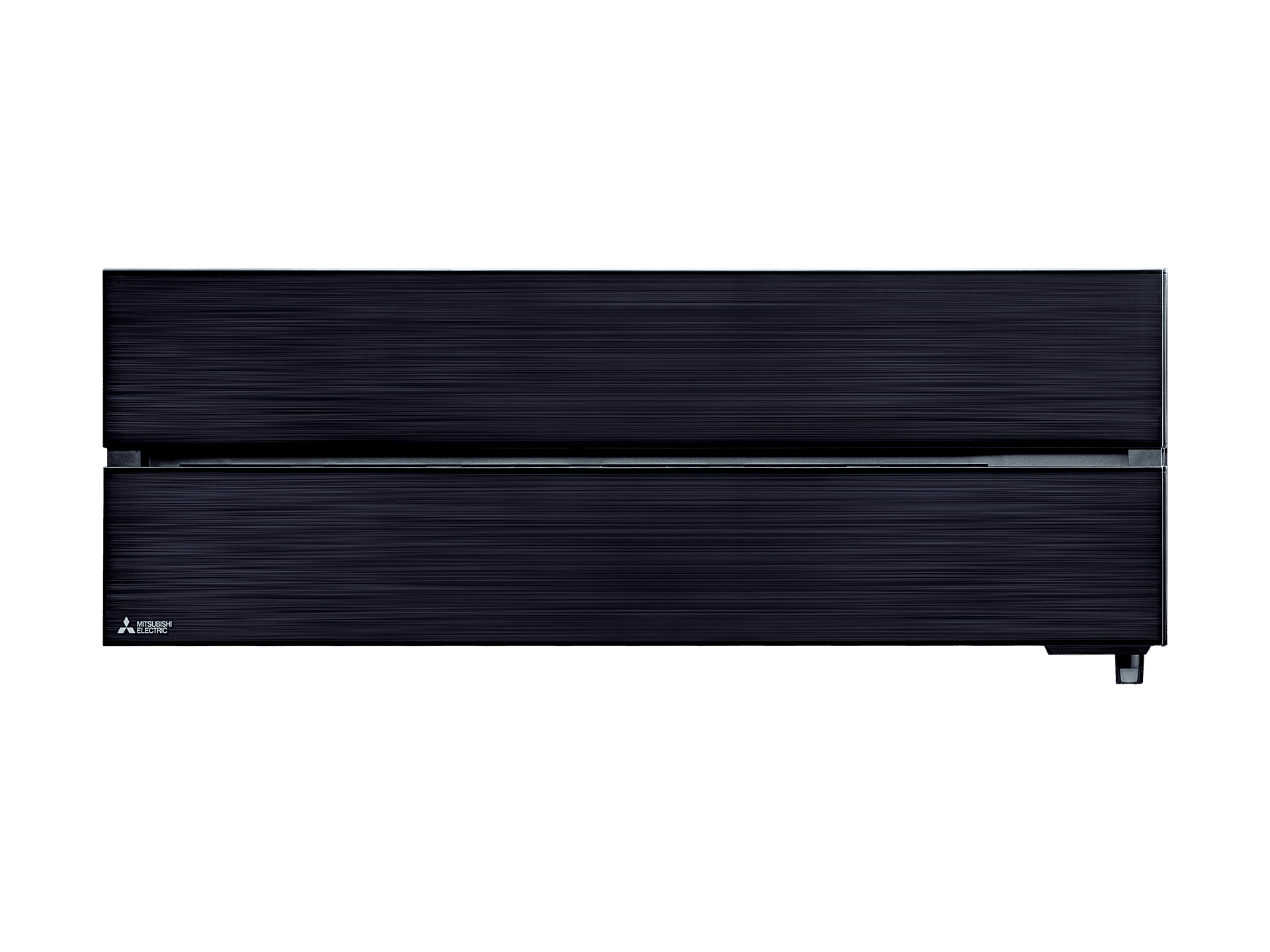

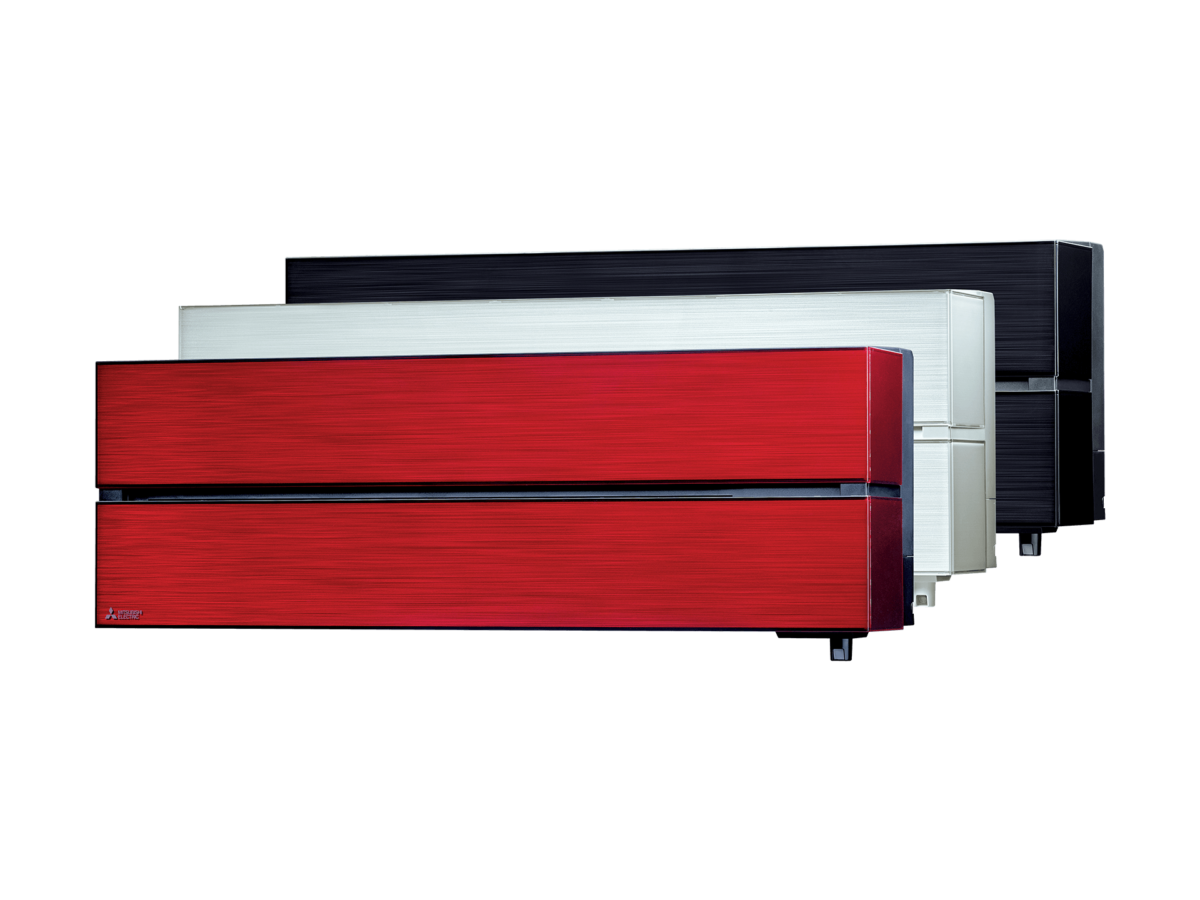

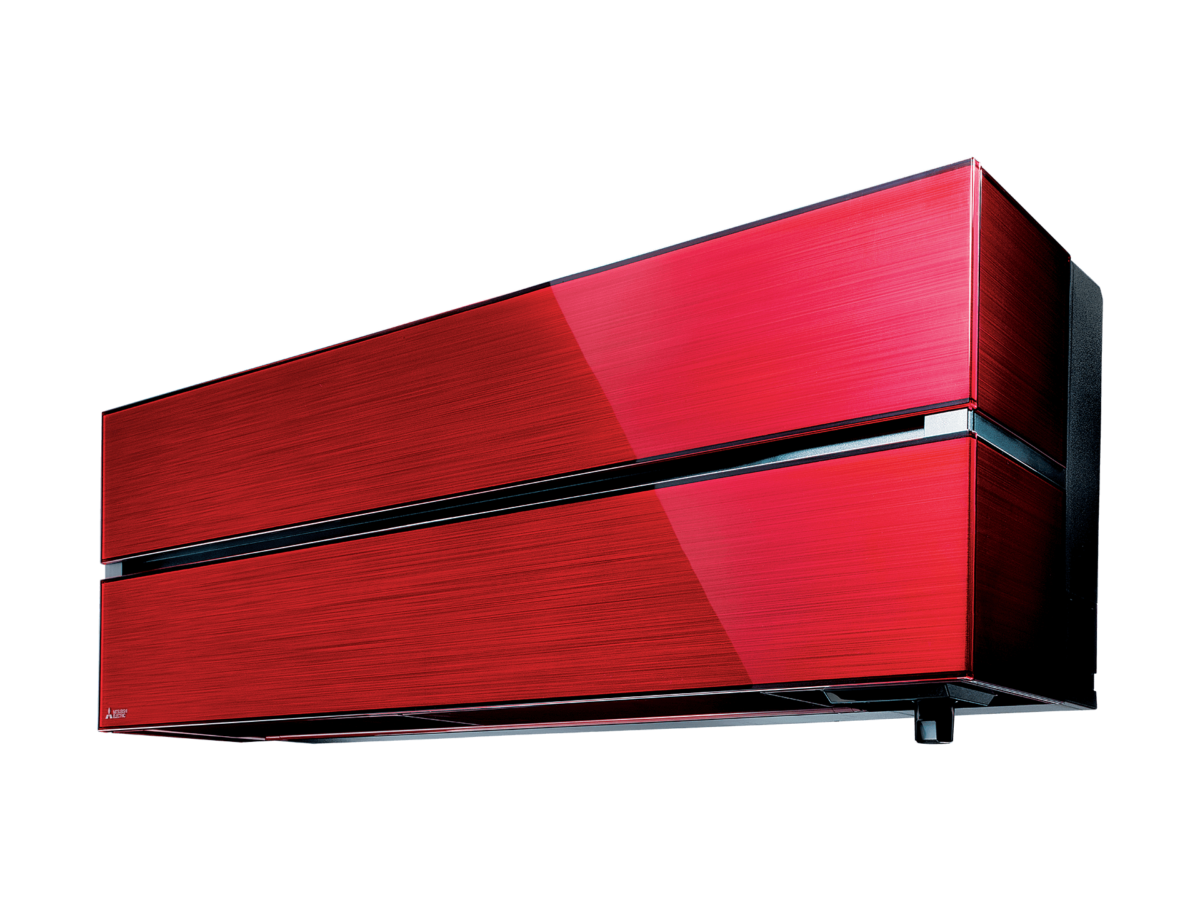

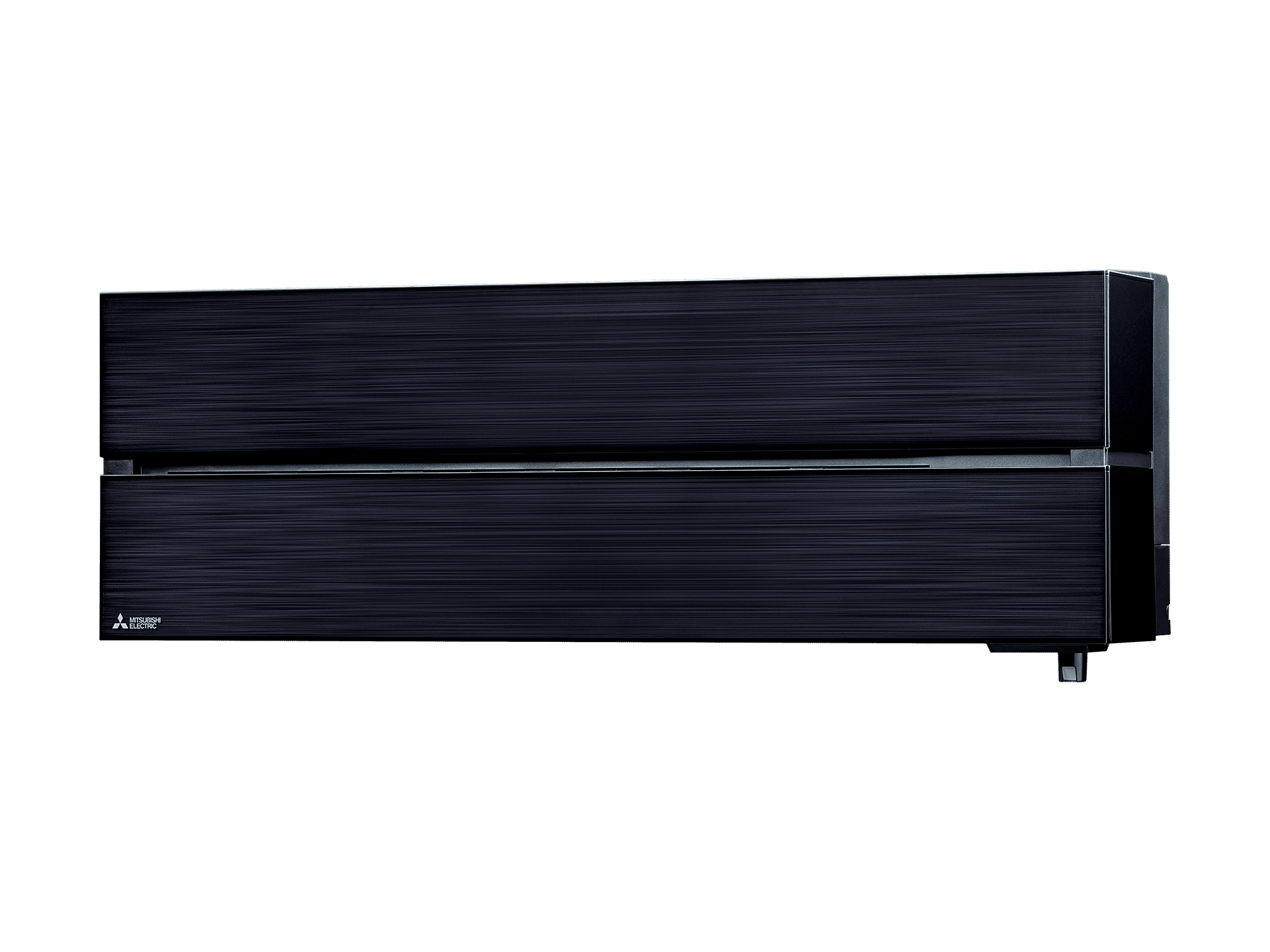

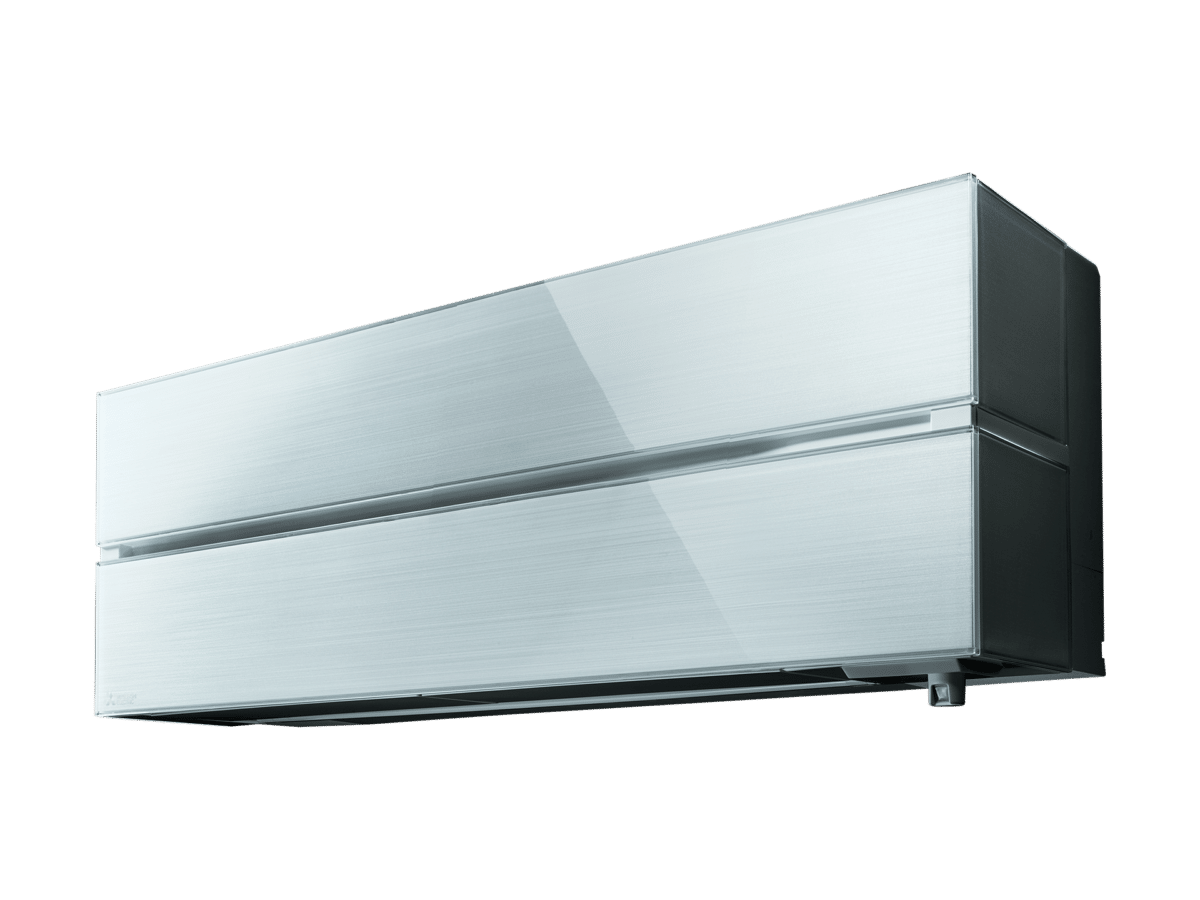

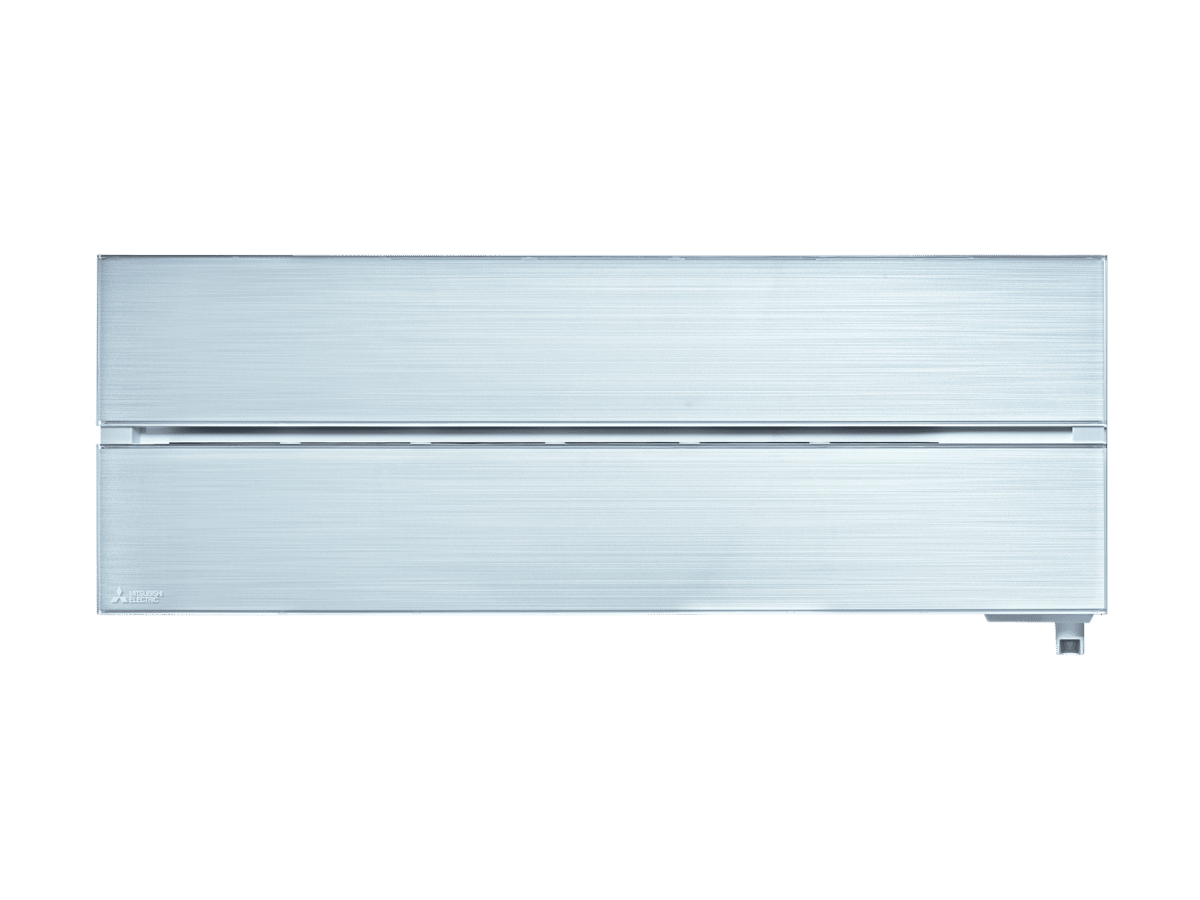

Enhance the look of any room with the striking MSZ-LN series split system air conditioner. The unique gloss finish features a brushed texture look that lends an air of modern sophistication, elevating this air conditioner from an indispensable modern appliance to a contemporary work of art. Choose from Ruby Red, Onyx Black or Pearl White.
Complementing its aesthetic appeal, the dual barrier coating ensures minimal dust and dirt accumulation, preserving the pristine appearance of your air conditioner and optimising its efficiency while helping to keep the air conditioner clean year-round. The Plasma Quad Plus Filter prioritises your health by eliminating contaminants in the air. The innovative Plasma Quad Plus Filter works by generating ions that capture contaminants as small as PM2.5 and measure 2.5 micrometres in diameter or smaller (0.0025mm), including bacteria, allergens, mould, dust and more. This wall mounted, split system air conditioner is the perfect addition to any home, providing you with a seamless look and customisable experience that caters to your needs.

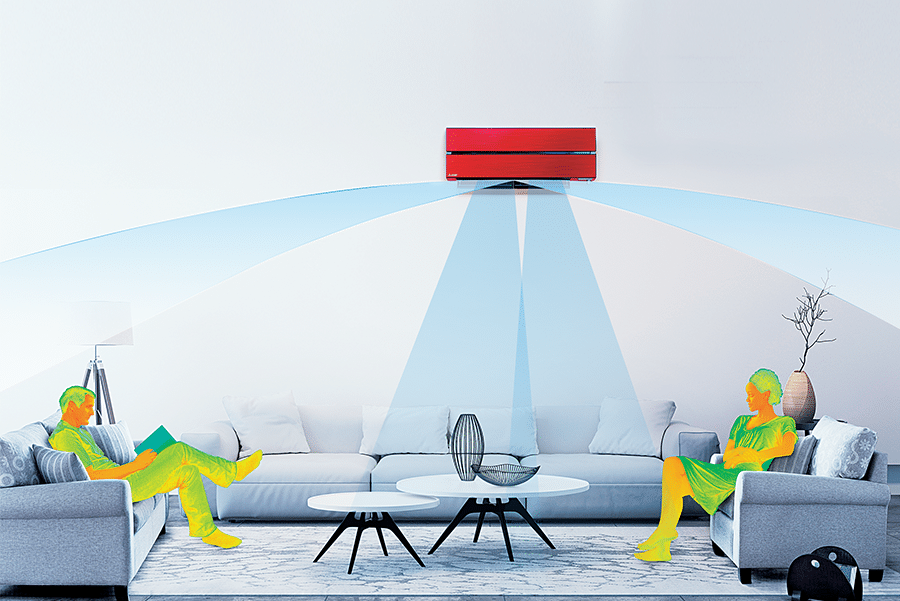

Using our advanced 3D i-See Sensor, this series of air conditioners employs a moving infrared sensor to analyse a room’s temperature in three dimensions and adjusts operation to optimise energy efficiency. The sensor detects whether there are people in the room. When no-one is in the room, the unit automatically switches to energy-saving mode. Working in conjunction with the dual split vanes, the MSZ-LN split system air conditioner provides heating or cooling to where it is needed the most. This ensures a more energy-efficient means of cooling or warming your home, while also maintaining a comfortable climate within your home.
The unique dual split vane design allows airflow to be customised to suit different areas of the room, by independently directing air up, down, left and right.
The 3D i-See Sensor is an infrared-ray sensor that measures the temperature at distant positions. While moving to the left and right, eight vertically arranged sensor elements analyse the room temperature in three dimensions.
Dual Barrier Coating reduces dust and greasy dirt from collecting on the surfaces of the air conditioner, and airborne contaminants sticking to the unit. Providing an air conditioner that is not only cleaner but also requires less cleaning.
Unlock the door to smarter heating and cooling systems, for total home comfort. This innovative technology connects your Mitsubishi Electric air conditioner to your smartphone, tablet or online account, giving you the freedom to fully control each unit on-the-go via an internet connection from anywhere in the world.
*1 Requires an internet connection and the App downloaded on your smartphone or tablet with the latest operating system available.
*2 To use Amazon Alexa to control your air conditioner you will need an Amazon Alexa Echo device.
*3 To use Google Assistant to control your air conditioner you will need a Google Home Smart speaker.

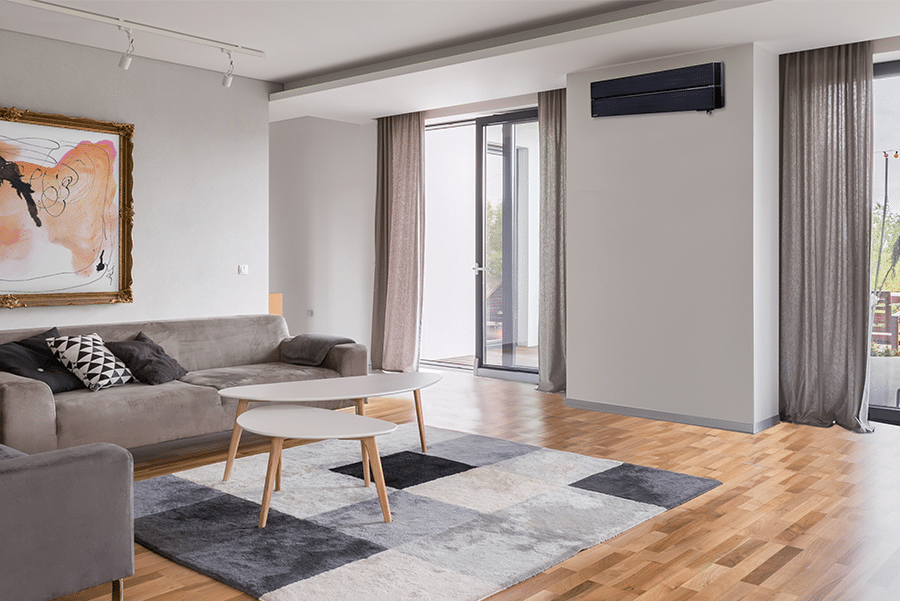

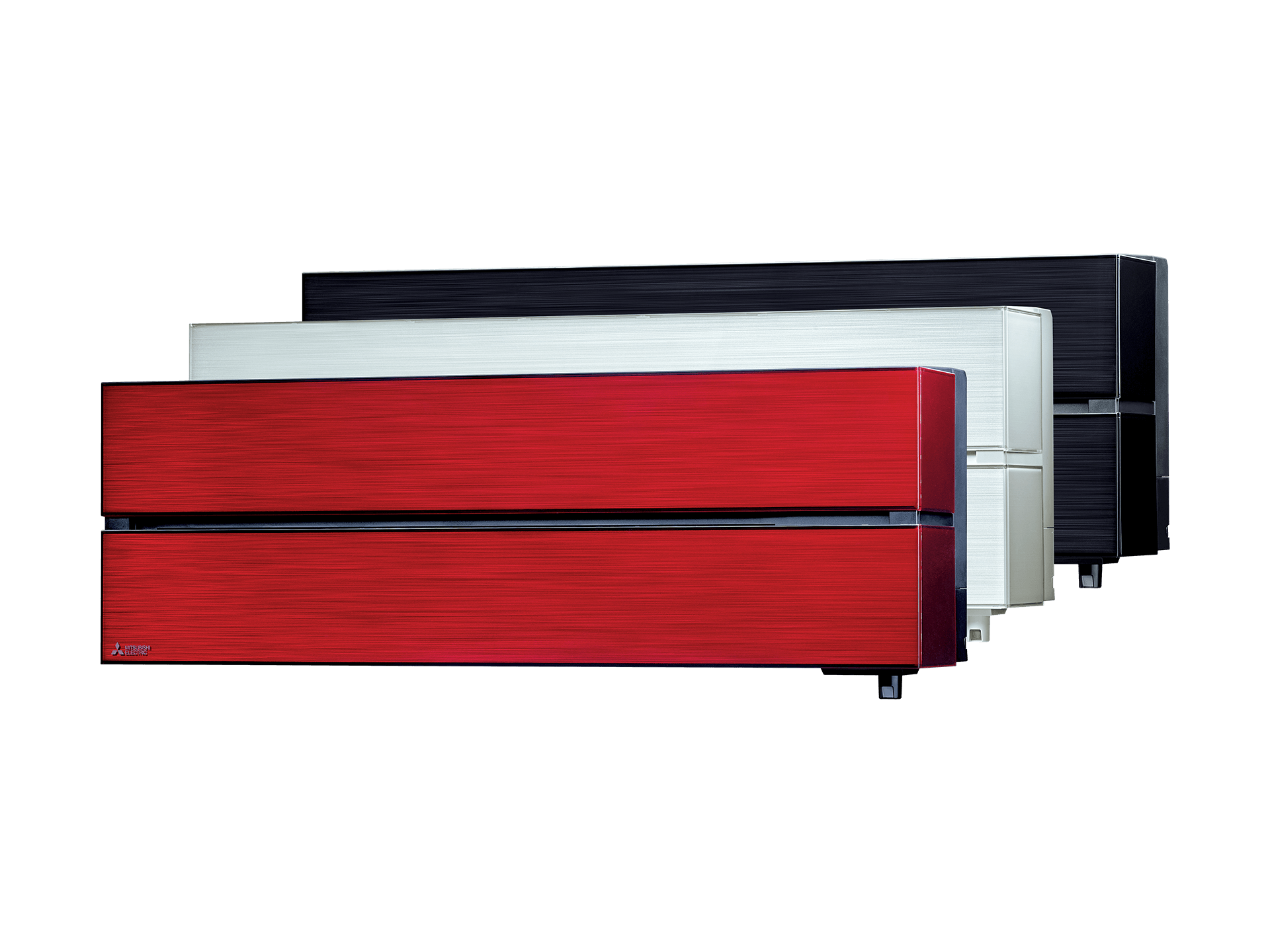

The LN Series is a wall mounted system that blends energy efficiency with a sleek and ultra modern design. The stylish design is available with a range of deep, rich colours like Pearl White, Ruby Red and Onyx Black, resulting in a premium quality feel.
Directly target people for immediate comfort or set to indirect airflow when the flow of air feels too strong.
The sensor detects whether there are people in the room. When no-one is in the room, the unit automatically switches to energy-saving mode.
An advanced, multi-stage filter system designed to effectively reduce
common allergens and bacteria and the influenza virus ensuring the
circulation of fresh, clean air back into the room.*1 *1 Testing Standard JEM1467:2015
| Indoor unit | MSZ-LN25VG2 | MSZ-LN35VG2 | MSZ-LN50VG2 | MSZ-LN60VG2 | ||||
|---|---|---|---|---|---|---|---|---|

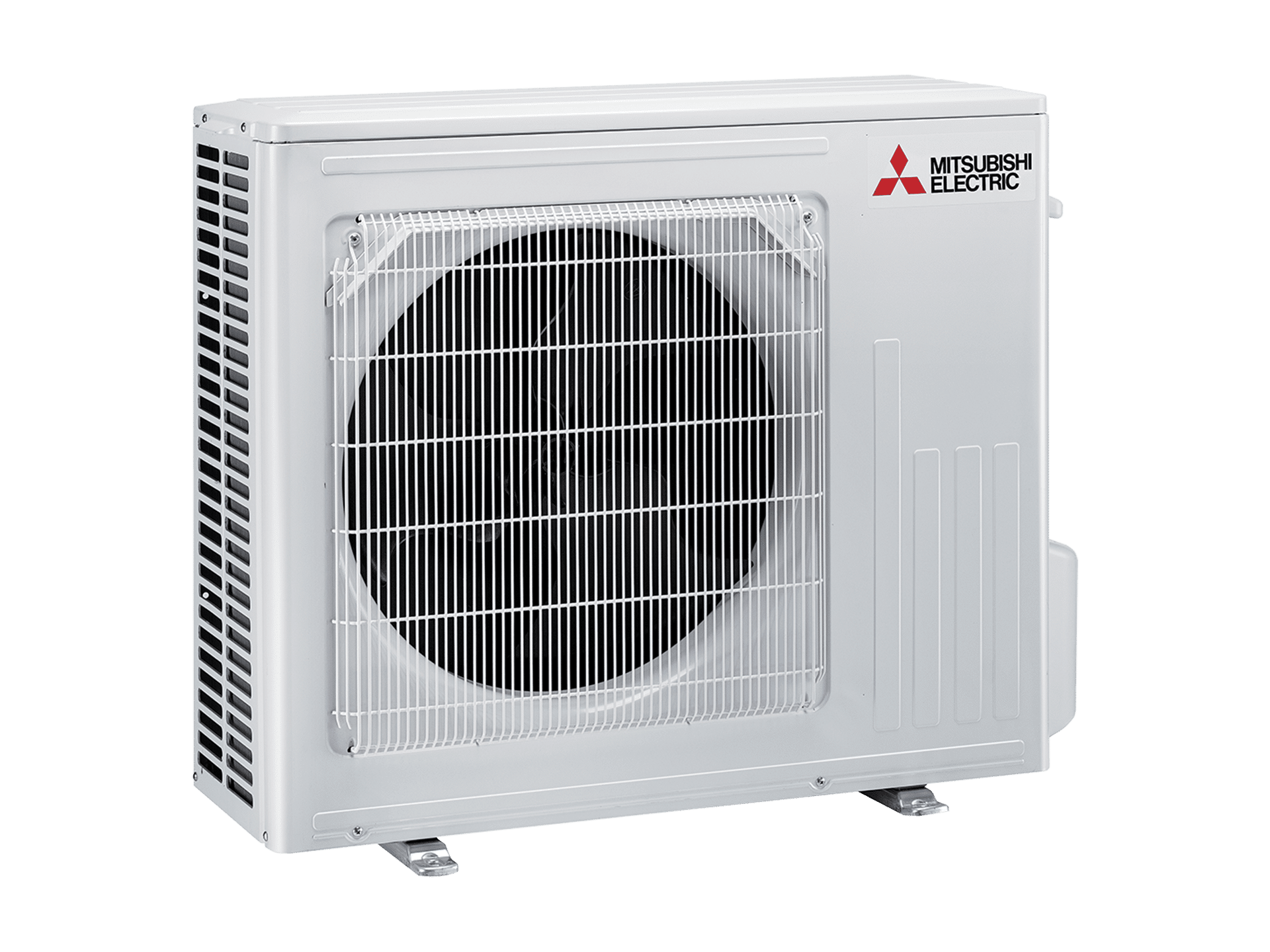

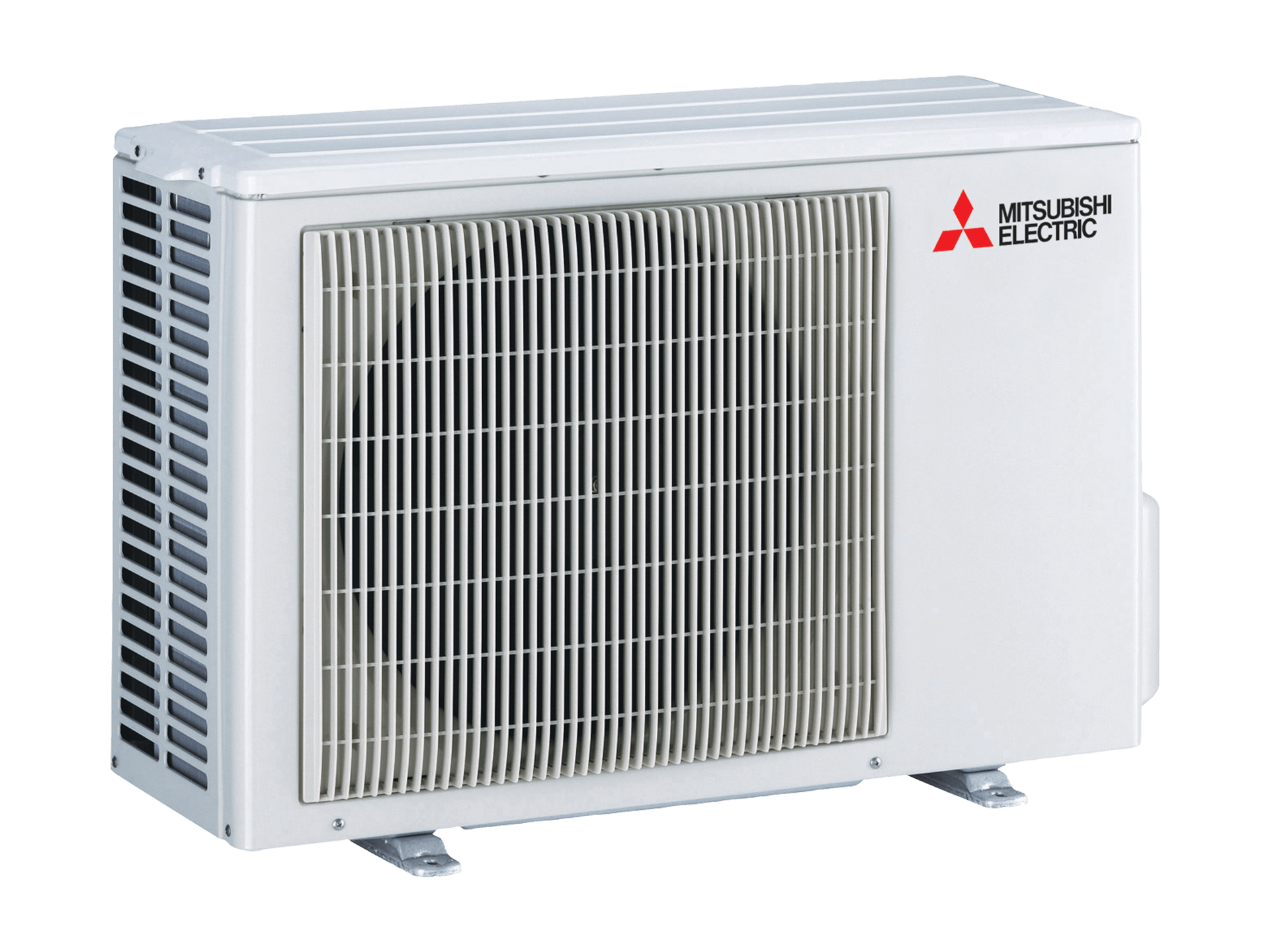

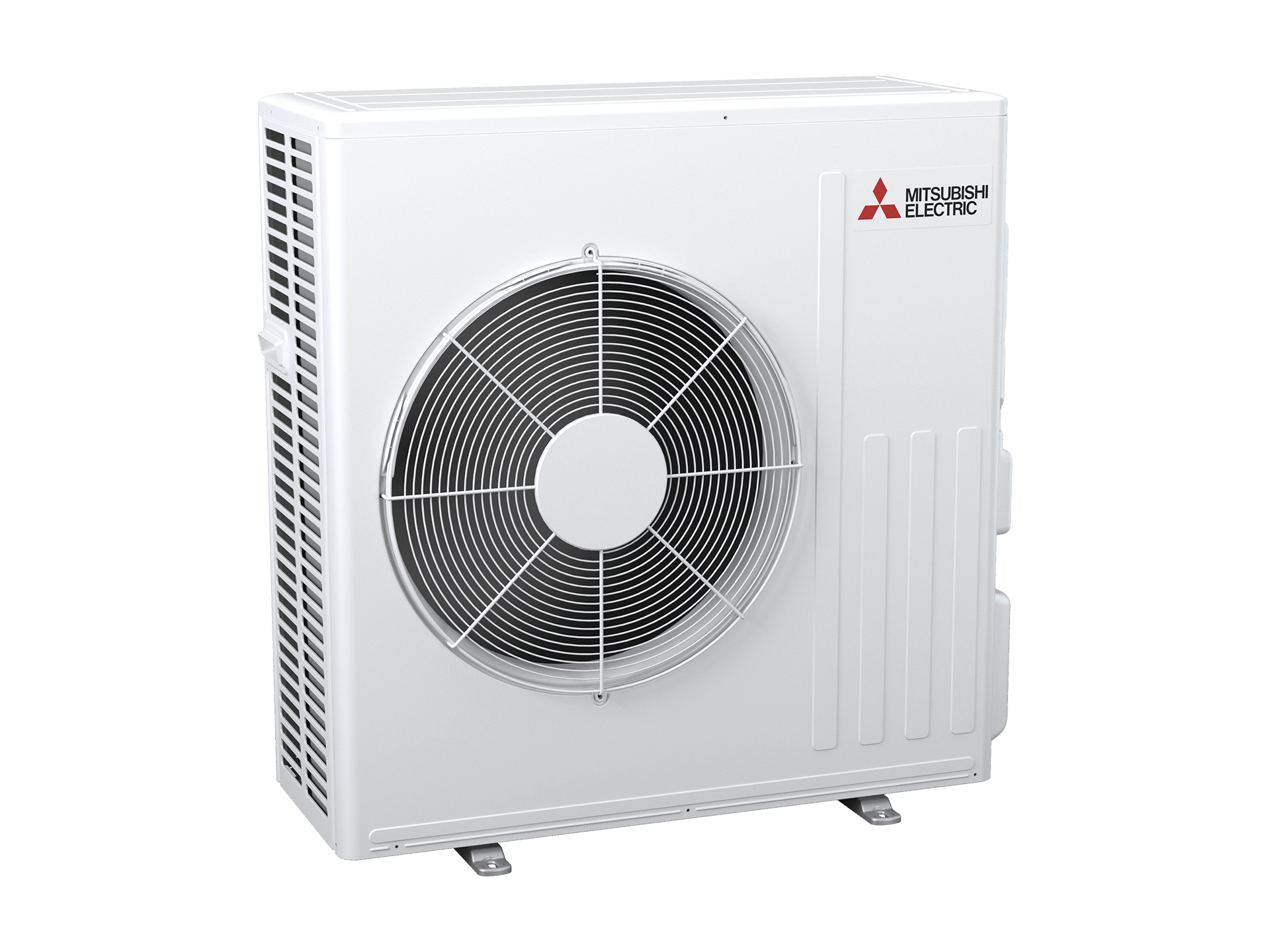

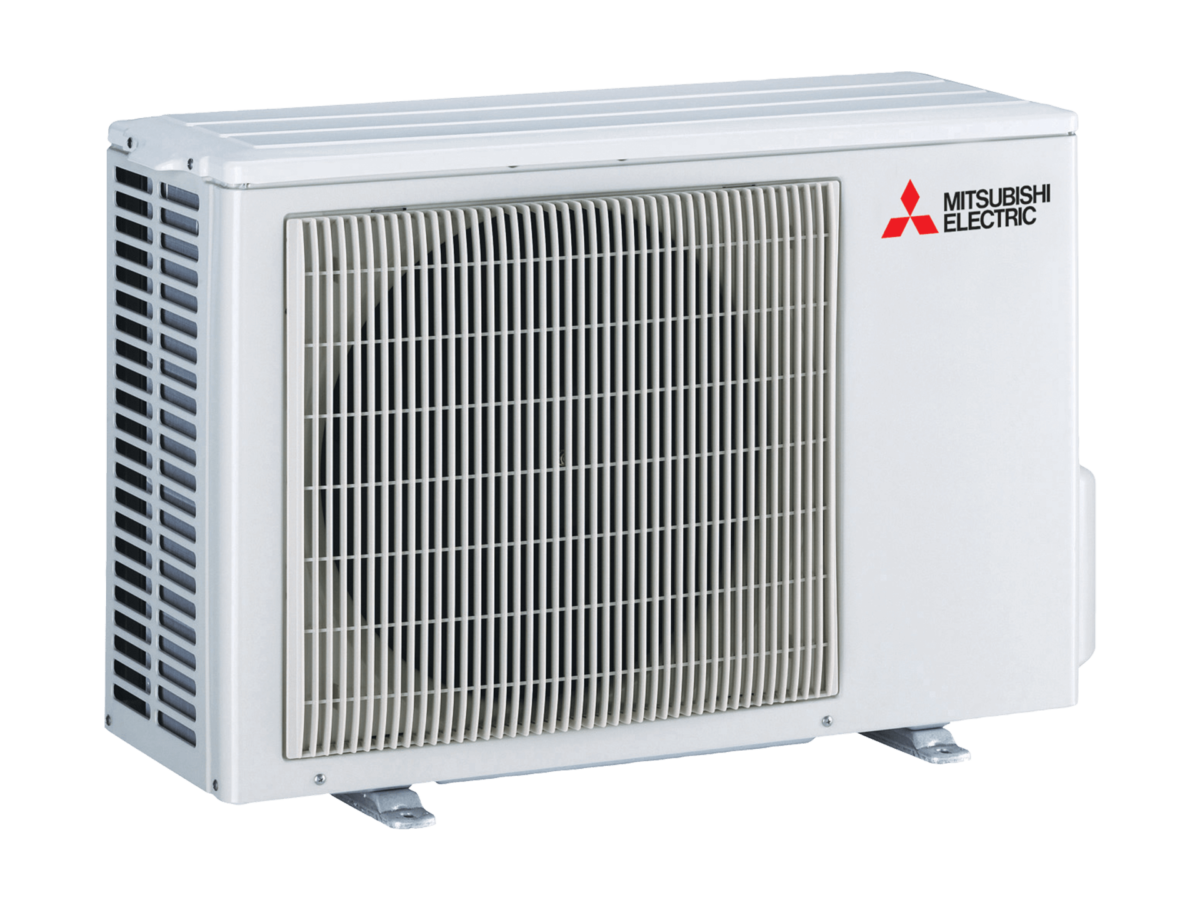

| Outdoor unit | MUZ-LN25VG2 | MUZ-LN35VG2 | MUZ-LN50VG2 | MUZ-LN60VG | ||||
| Refrigerant | R32 | R32 | R32 | R32 | ||||
| Cooling | Capacity [Rated] | kW | 2.5 | 3.5 | 5.0 | 6.1 | ||
| ZERL Star Rating | Hot | 5.0 | 4.5 | 3.5 | 3.0 | |||
| Average | 4.5 | 4.0 | 3.5 | 3.0 | ||||
| Cold | 5.0 | 4.5 | 3.5 | 3.0 | ||||
| SPL | In [Quiet-Lo-Mid-Hi-SHi] | dB(A) | 19 – 42 | 19 – 43 | 27 – 46 | 29 – 49 | ||
| OUT (PWL) | dB(A) | 46 (60) | 49 (61) | 51 (64) | 55 (65) | |||
| Heating | Capacity [Rated] | kW | 3.2 | 4.0 | 6.0 | 6.8 | ||
| ZERL Star Rating | Hot | 4.0 | 3.5 | 3.0 | 3.0 | |||
| Average | 3.5 | 3.5 | 2.5 | 2.5 | ||||
| Cold | 3.0 | 3.0 | 2.0 | 2.0 | ||||
| SPL | In [Quiet-Lo-Mid-Hi-SHi] | dB(A) | 19 – 45 | 19 – 45 | 25 – 47 | 29 – 49 | ||
| OUT (PWL) | dB(A) | 49 (61) | 50 (62) | 54 (66) | 55 (69) | |||
| Indoor unit | Dimensions [H×W×D] | mm | 307 × 890 × 233 | 307 × 890 × 233 | 307 × 890 × 233 | 307 × 890 × 233 | ||
| Weight | kg | 15.5 | 15.5 | 16 | 16 | |||

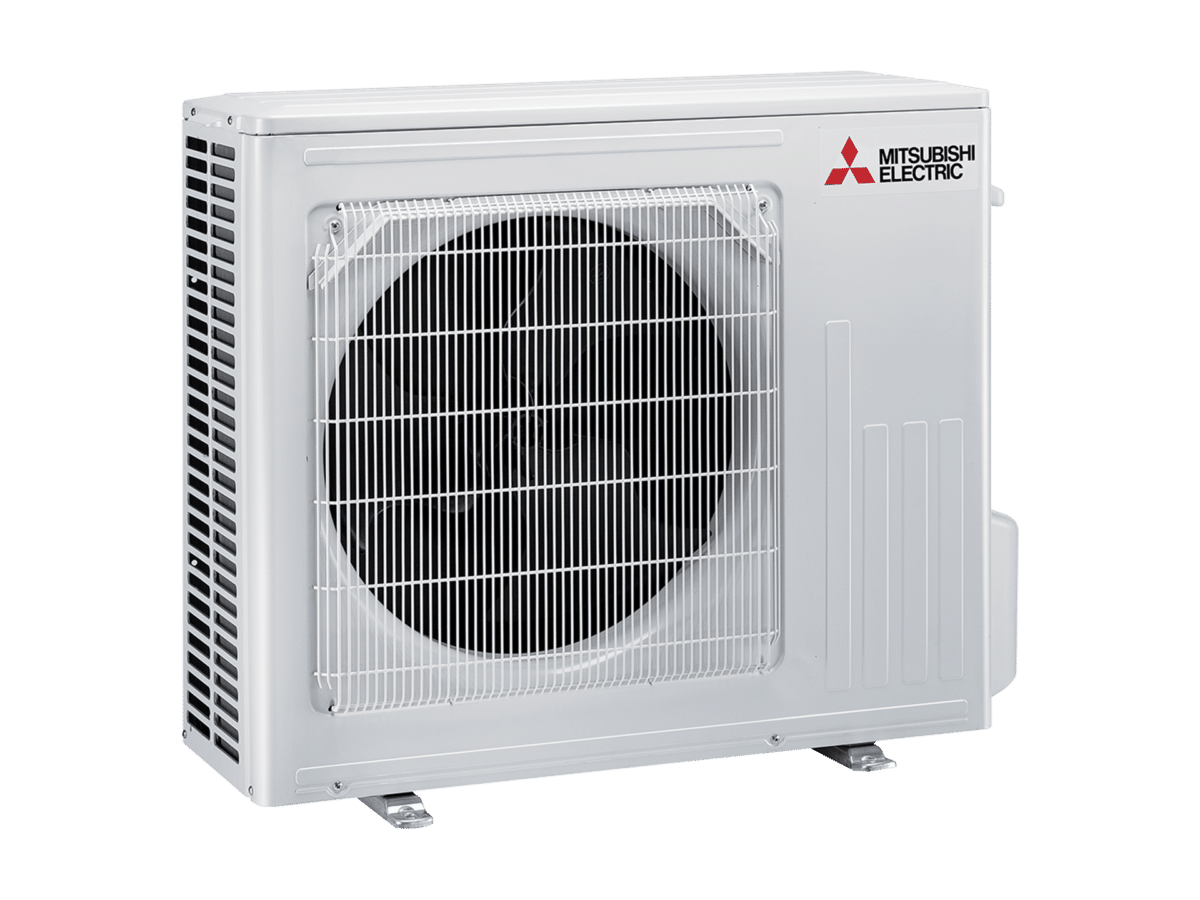

| Outdoor unit | Dimensions [H×W×D] | mm | 550 × 800 × 285 | 550 × 800 × 285 | 714 × 800 × 285 | 880 × 840 × 330 | ||
| Weight | kg | 33 | 33 | 40 | 55 | |||
| System model name | Colour | White | MSZLN25VG2VKIT3 | MSZLN35VG2VKIT3 | MSZLN50VG2VKIT3 | MSZLN60VG2VKIT3 | ||
| Black | MSZLN25VG2BKIT3 | MSZLN35VG2BKIT3 | MSZLN50VG2BKIT3 | MSZLN60VG2BKIT3 | ||||
| Red | MSZLN25VG2RKIT3 | MSZLN35VG2RKIT3 | MSZLN50VG2RKIT3 | MSZLN60VG2RKIT3 | ||||
Information about the effectiveness and testing criteria of Mitsubishi Electric split systems filters.
MFZ-KW25-60VGK
This Product Has Been Discontinued
MSY-GN25-80VF
This product is superceded by MSY-GW Series.
MSZ-EF22-50VGKD(B/S/W)
Equipped with built-in Wi-Fi control, the MSZ-LN Series comes with this advanced feature to allow users to effortlessly manage power usage, temperature and airflow remotely. Even when you’re out of proximity of your air conditioner, you can easily use your smartphone or tablet to remotely access its temperature settings, switch between different operational modes, and even set schedules for when the air conditioning unit should turn on or off.
Better still, the integration of your air conditioner with popular smart home assistants like Amazon Alexa and Google Assistant elevates the user experience and takes things to a whole new level. Using just your voice, you have complete control over your air conditioner settings without ever needing to use the remote.
This smart control capability isn’t just about comfort, but efficiency, too. By monitoring and adjusting your air conditioner’s settings on-the-go, you can ensure that you aren’t wasting energy on heating or cooling an empty home.

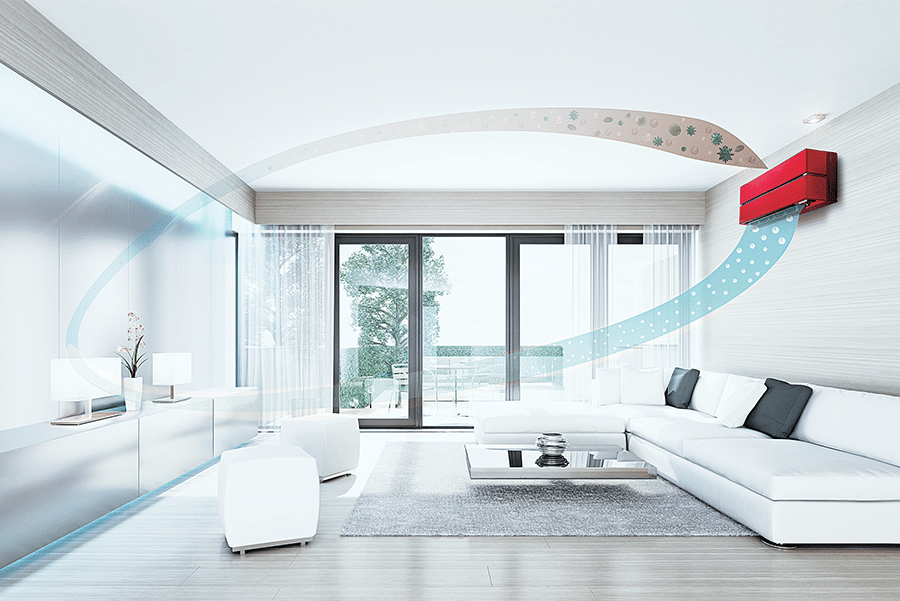

Mitsubishi Electric Plasma Quad Plus Filter is a built-in cutting-edge filtration system designed to enhance indoor air quality and improve the filters of corresponding split system air conditioners. Through its advanced two-stage plasma technology, it effectively inhibits six primary indoor pollutants, including the influenza virus, bacteria, PM2.5 particles, allergens, mould, and dust. Utilising an electrical discharge, the system captures and reduces even microscopic particles, ensuring cleaner and healthier air in both homes and offices.
Split systems are one of the more popular air conditioner types. These units are made up of two main components: an indoor unit and an outdoor unit. The indoor unit is typically mounted on an internal wall or ceiling and houses a heat exchanger, air filter, and fan. Outdoor units are generally positioned outside of a building and contain the compressor and another heat exchanger. These two units are interconnected by refrigerant pipework and electrical cables.
When operated in cooling mode, the indoor unit will draw in the warm air of a room, pass it over the evaporator coil filled with cold refrigerant and circulate it back into the room. This process cools and dehumidifies the air. When in heating mode, this mechanism is reversed, with the indoor unit absorbing heat from the air and using now heated refrigerant to warm the room instead.
If you’re ready to transform your living or workspace with this state-of-the-art air conditioner unit, there’s no better place to start than with our trusted authorised retailers. They offer expert guidance, ensuring you make an informed decision and find the right air conditioner that’s tailored to your needs. Find your nearest store and elevate your space today.
