WX Series Multi-Drawer Fridges
MR-WX700C-S-A
The 700L Multi-drawer fridge is family sized, featuring striking good looks with toughened glass front panels, presenting a luxurious finish. Packed with advanced features such as a Supercool Freezing Drawer capable of supercool freezing and hot freezing, supercool chilling case, vegetable and freezer drawers, and non-plumbed automatic ice maker. Available in Diamond White, Argent Silver and Dark Mahogany.
Freshness for the modern household
Whether you’re feeding yourself or the whole family, food storage is simple with the WX Series. Innovative modes and dedicated vegetable and freezer drawers mean you can store your food at optimal temperatures and humidity levels. Freeze food with the Supercool Freezing Drawer, capable of both Supercool Freezing (ensures food is frozen evenly) and Hot Freezing (detects hot food, up to 80°C and adjusts the airflow accordingly). The Vegetable Drawer features an always-on VitaLED lighting system that slows down the wilting process, helping to keep fruit and vegetables crisper and fresher for longer.
The contemporary exterior of the Mitsubishi Electric MR-WX700C-S-A model has been designed to integrate seamlessly into the modern home. The luxurious finish of the toughened glass panels and asymmetrical design create a premium look, offering three opulent colour options: Dark Mahogany, Diamond White and Argent Silver. With a spacious 700L capacity, this family-sized fridge is an ideal option for any household.
The unique Vacuum Insulation Panel (VIP) and Smart Cube technologies help maximise the WX Series capacity without enlarging its dimensions. The refrigerator is larger than you would expect for one with such compact dimensions. Wall thickness is reduced without any loss of efficiency – due to a unique Vacuum Insulation Panel and proprietary urethane-filling technology – while high-density urethane reinforces the walls of the refrigerator.
The 700L Multi-drawer fridge is family sized, featuring striking good looks with toughened glass front panels, presenting a luxurious finish.
Product Brand: WX Series
Product In-Stock: InStock
The number of stars on the energy rating label helps you compare the efficiency of one refrigerator to another of the same volume and similar type.
With different temperature points in the fridge, this technology efficiently cools all food, even in hard-to-cool places such as filled door pockets.
The LED light will illuminate your refrigerator while being energy efficient.
Glass front panels present a luxurious, striking finish like no other. Not only do the toughened glass panels look great, they are easy to keep clean.
The Supercool Chilling function is ideal for storing meat, fish or other perishable food at about -3˚C to 0˚C without freezing it. This provides the convenience of food ready to cook without the need to defrost it. Please note this mode must be manually set in order to function.
The Wide Chilling Case is ideal for storing processed food such as sausages, ham & dairy products, at about 0°C to 3°C. This sliding compartment also doubles as additional chilling space for drinks.
There is no need for a separate plumbing connection. The removable water tank can be filled with water and all the parts are completely washable.
Divided by a Sliding Tray at the top that can be pushed back to reveal the rest of the freezer drawer. The Freezer Drawer is roomy enough to fit bulky items such as ice cream tubs, loaves of bread and frozen vegetables. The top tray is ideal for storage and organisation of flat pack items such as meat packs.
VitaLED lighting system slows down the wilting process, helping to keep fruit and vegetables crisper and fresher for longer. The vegetable drawer features a tray at the top which is ideal for storage and organisation of smaller items.
The LED Sensor is designed to detect hot food and adjust the cold air flow directly onto the hot food. This saves time while also preserving the quality and freshness of the food. Please note this mode must be manually set in order to function.
Soft Freezing allows food to be frozen for up to three weeks in a ‘soft’ state. This means meat can be easily cut without thawing. Please note this mode must be manually set in order to function.
Ensures food is frozen evenly, minimising cell destruction, preserving its freshness, texture and locking in maximum flavour. Please note these modes must be manually set in order to function.
The Supercool Freezing Drawer offers functionality in preserving food quality without losing moisture and taste. It has two main modes, Supercool Freezing and Hot Freezing.
This two-part shelf slides back easily to halve its size, allowing taller items to be stored at the front of the refrigerator compartment.
| REFRIGERATOR | FRENCH DOOR | |
|---|---|---|
| WX Series | ||
| MODEL | MR-WX700C | |
| TOTAL | 700 | |
| Volume* (Litres) | Refrigerator Compartment | 378 |
| Freezer Compartment | 118 | |
| Ice Making Compartment | 25 | |
| Supercool Freezing Compartment | 45 | |
| Vegetable Compartment | 134 | |
| Dimensions (mm) | Width | 800 |
| Height | 1821 | |
| Depth | 738 | |
| Depth with Leg Cover | 748 | |
| Clearance Dimensions (mm) | Top | 50 |
| Left | 5 | |
| Right | 5 | |
| Back | – | |
| Energy Efficiency | ||
| Energy Star Rating* | 4 | |
| Energy Consumption (kWh/year)* | 425 | |
| Inverter Compressor | • | |
| Refrigerant Type | R600a | |
| Door Finish | ||
| Colour | Argent Silver | MR-WX700C-S-A |
| Diamond Black | MR-WX700C-B-A | |
| Dark Mahogany | MR-WX700C-BR-A | |
| Diamond White | MR-WX700C-W-A | |
| Glass Front Door | • | |
| Refrigerator Compartment | ||
| Cooling System | MULTI AIRFLOW | |
| Wide Chilled Case (Upper Case) | • | |
| Supercool Chilling Case / Chilled Case (Lower Case) | • | |
| Vegetable Case with VitaLED | – | |
| Vegetable Case with Humidity Control | – | |
| Tempered Glass Shelves | • | |
| Separable Shelf (Middle Shelf) | • | |
| Two-Way Flexi Shelf (Middle Shelf) | • | |
| Utility Case | – | |
| Water Tank Capacity for Auto Ice Maker (L) | 1.2 | |
| Bottle Pocket (Large) | 1 | |
| Bottle Pocket (Small) | 1 | |
| Adjustable Pocket (Large) | 2 | |
| Adjustable Pocket (Small) | 2 | |
| Egg Tray | 1 | |
| Egg Shelf | 1 | |
| LED Light | • | |
| Door Alarm | • | |
| Vegetable Compartment | ||
| Humidity Control | • | |
| VitaLED | • | |
| Vegetable Case (Upper) | 1 | |
| Vegetable Case (Lower) | 1 | |
| Clean Tray | 1 | |
| Door Alarm | • | |
| Freezer Compartment | ||
| Freezer Case (Upper) | 1 | |
| Freezer Case (Lower) | 1 | |
| Freezer Case (Small) | – | |
| Freezer Case (Medium) | – | |
| Freezer Case (Large) | – | |
| Door Alarm | • | |
| Supercool Freezing Compartment | ||
| Supercool Freezing | • | |
| Soft Freezing | • | |
| Hot Freezing | • | |
| Aluminium Tray | • | |
| Door Alarm | • | |
| Ice Compartment | ||
| Automatic Ice Maker (Non-Plumbed) | • | |
| Completely Washable Water Supply Parts | • | |
| Quick Ice Making Mode (min) | 75 | |
| Triple Twist Ice Tray | – | |
| Door Alarm | • | |
| Others | ||
| Smart Cube VIP (Vacuum Insulation Panel) | • | |
| Rapid Cooling | • | |
| Energy Saving Mode | • | |
| Number of Sensors | 16 | |
*Tested in accordance with AS/NZS IEC 62552-3 Standard
• Standard Feature
Also known as: MRWX700CSA, MRWX700CWA, MRWX700WA, MRWX700CBRA, MRWX700BRA
Explore the range of multi-drawer, French door, bottom mount, top mount refrigerators and upright freezer.
Learn more about the award winning WX Series multi drawer refrigerators.
Instructions on how to turn ice making on and off on the MR-WX Series.
MR-WX700C-B-A
MR-WX470F-S-A
MR-WX470F-W-A

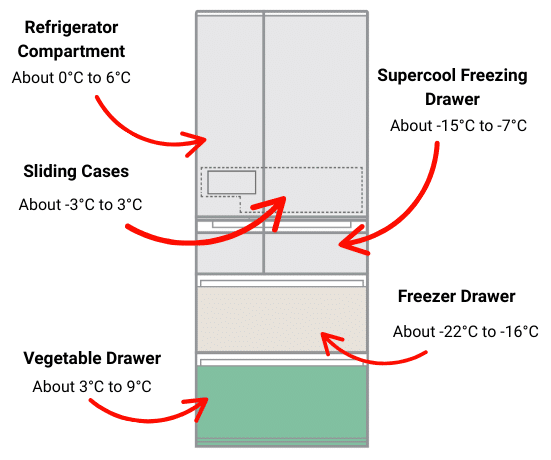

Fridge drawers are generally designed to keep your food fresh and organized. The Mitsubishi Electric 700L Multi Drawer Fridge features the main refrigerator section and four drawers. These are:
On average, fridges are one of the highest energy users in the home, contributing to roughly 13% of your electricity bill. However, the Mitsubishi Electric 700L Multi Drawer Fridge has a 4.0 Star Energy Rating and ECO Mode to assist in reducing power consumption over time.
Because refrigerators are heavy, transportation will require at least 2 people.
Start by clearing out any food, removing water from ice trays and giving the fridge a good clean. To give the fridge freezer a chance to defrost, it’s best to turn the fridge off 24 hours before transporting it—this will prevent fluids leaking out during transportation. When moving the fridge, it’s recommended to keep it upright to keep the cooling refrigerant in place. Load it onto a dolly or trolley and move it carefully. To keep the refrigerator safe in a moving truck or van, pad it with bubble wrap or blankets and secure it with straps.
To move the Mitsubishi Electric 700L Multi Drawer Fridge, follow the specific transport advice and safety recommendations on page 35 of the user manual.
Successfully moving a fridge requires proper preparation and following a few key steps. By having the correct information and planning ahead, you can make the process hassle-free. In our fridge moving guide, we answer the top 10 frequently asked questions about how to move a fridge and provide professional advice to help you confidently navigate the process. We cover everything from transporting the fridge to securing its parts so that you can ensure a safe and stress-free move.
