WX Series Multi-Drawer Fridges

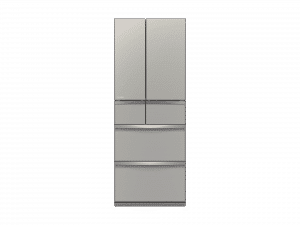

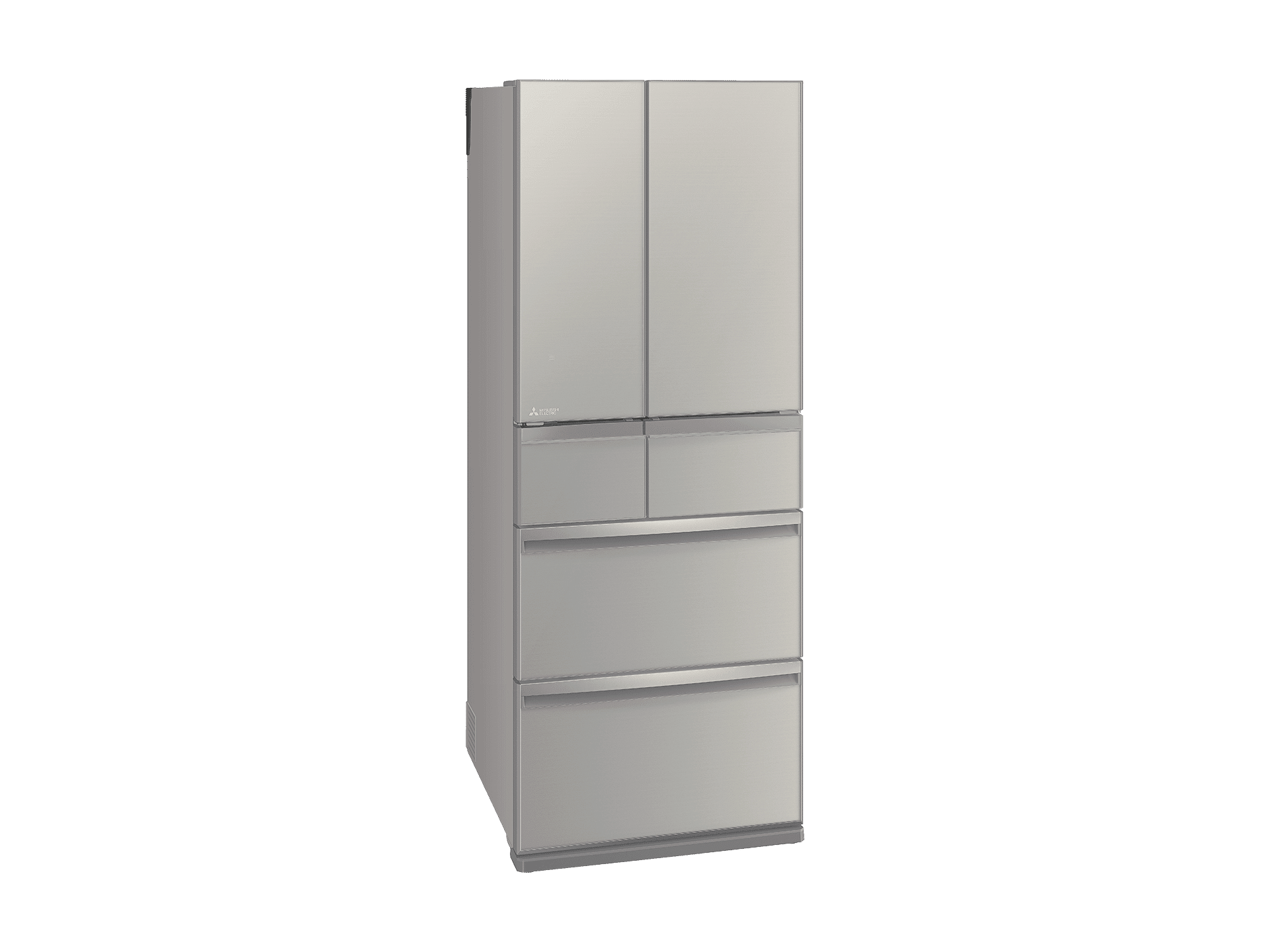

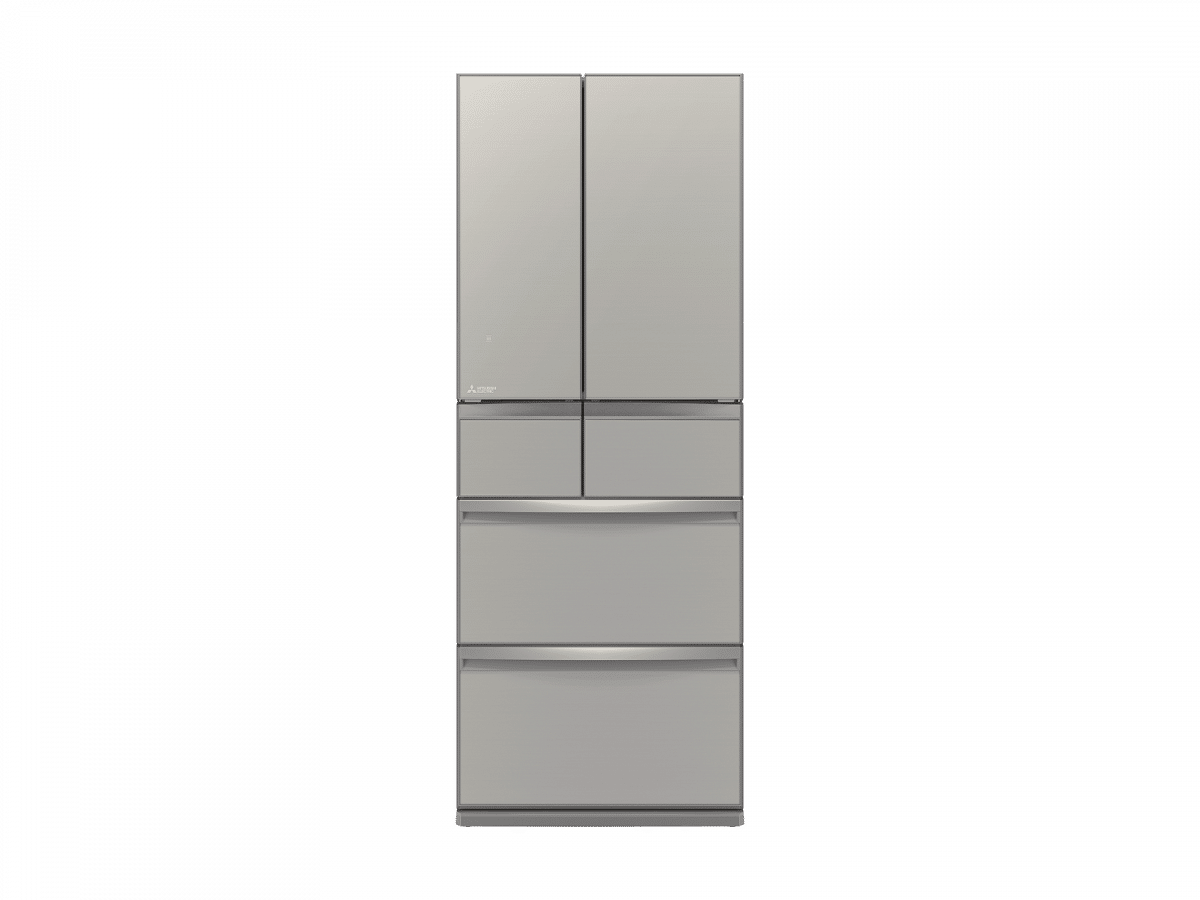

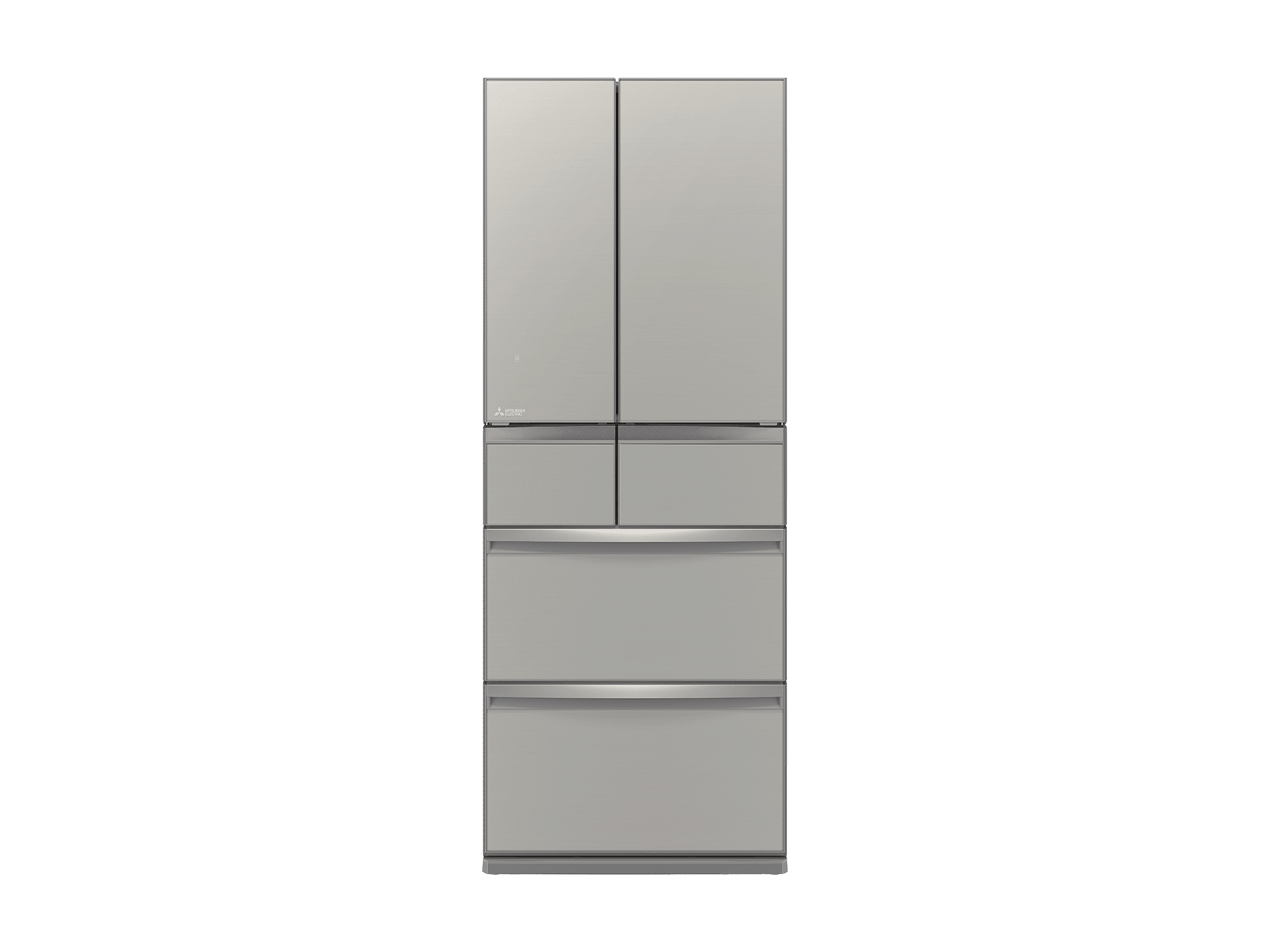

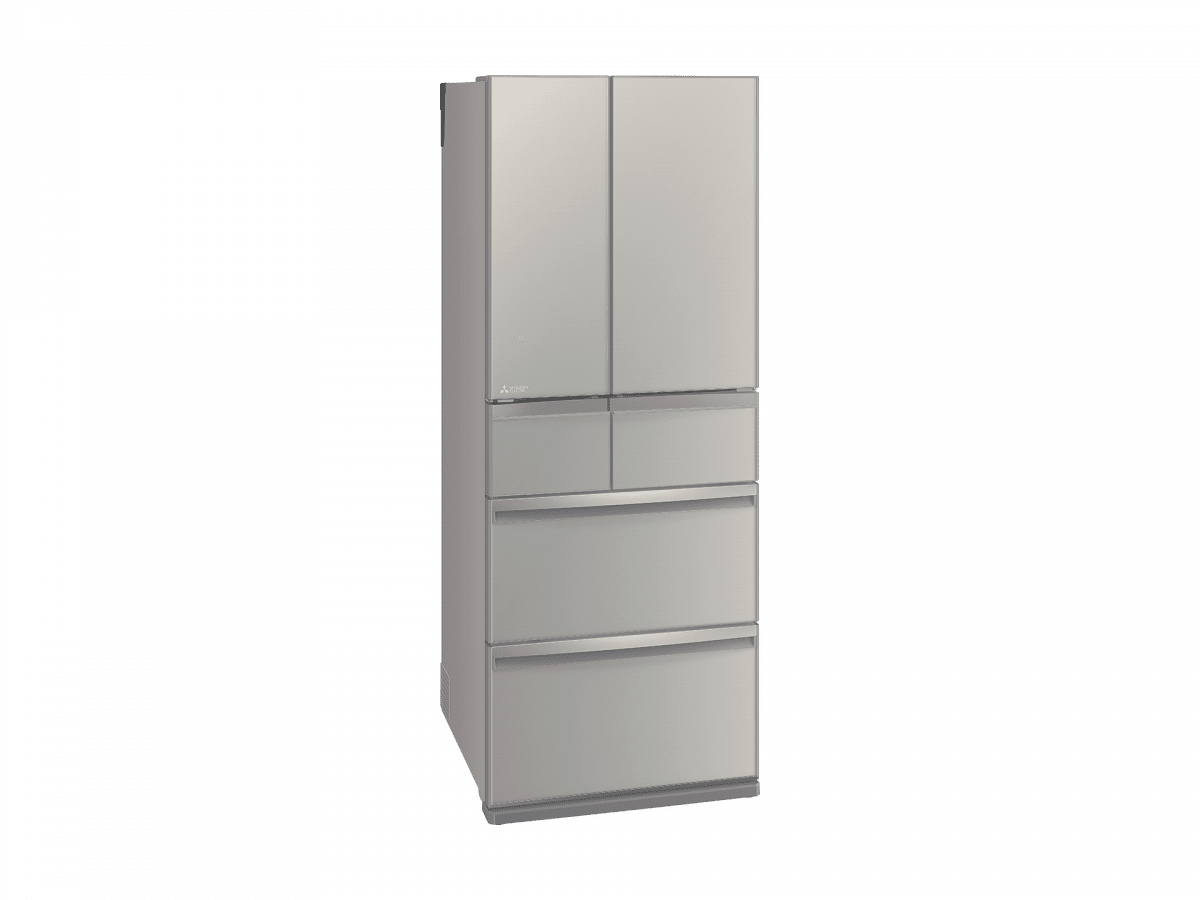

MR-WX470F-S-A

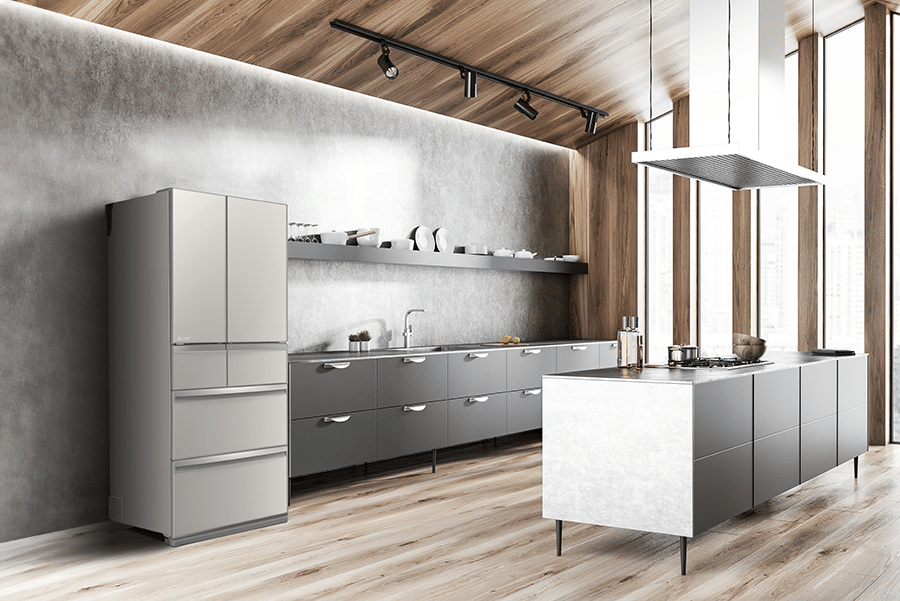

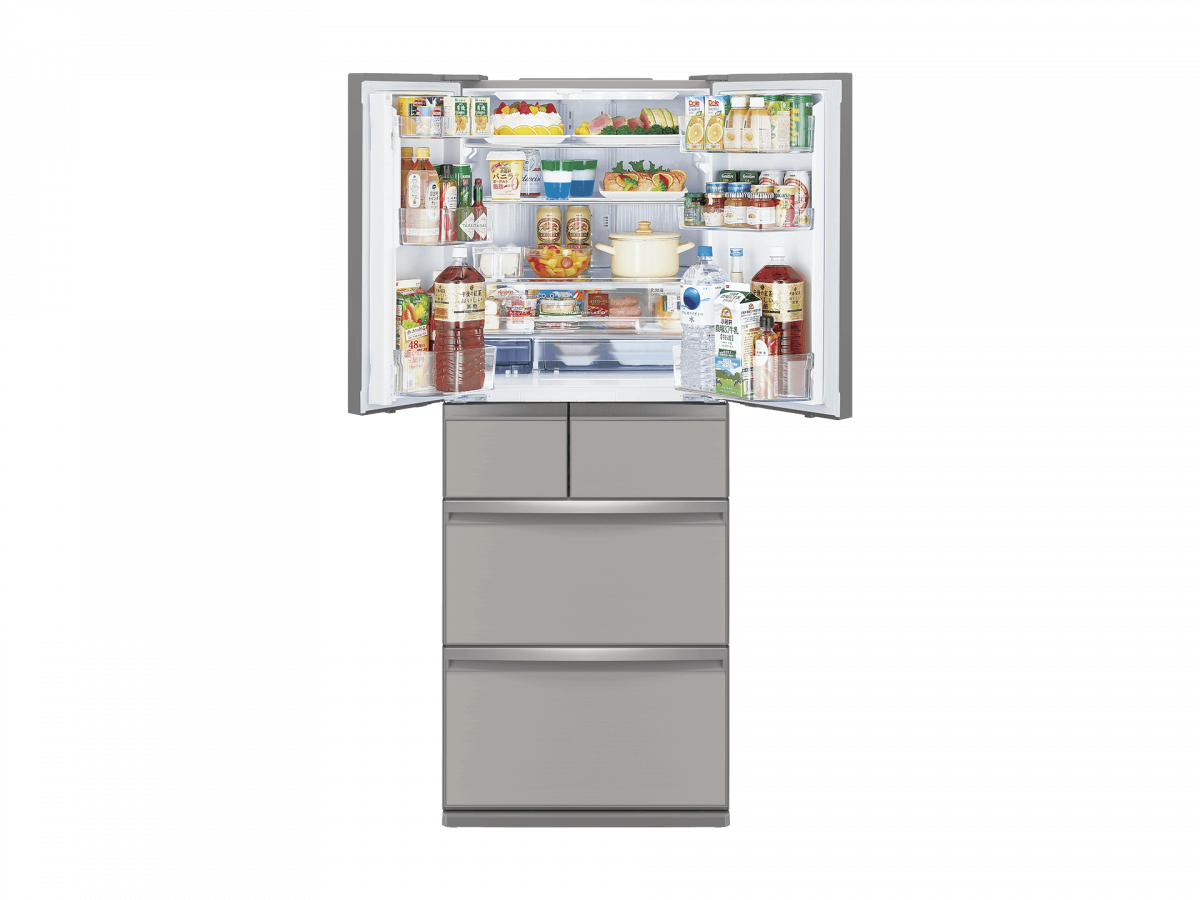

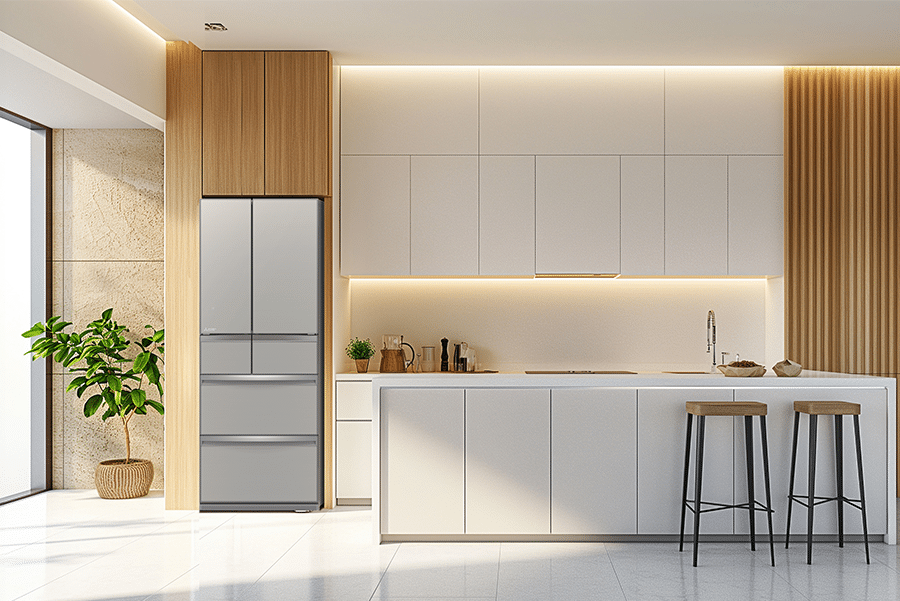

The 470 litre usable capacity multi drawer fridge has a small footprint, and large capacity. Designed for smaller homes and units, featuring striking looks with toughened glass front panels, presenting a luxurious finish. Packed with advanced features such as a Supercool Freezing Drawer capable of supercool freezing and hot freezing, supercool chilling case, vegetable and freezer drawers, and non-plumbed automatic ice maker. Available in Diamond White and Argent Silver.
The number of stars on the energy rating label helps you compare the efficiency of one refrigerator to another of the same volume and similar type.
With different temperature points in the fridge, this technology efficiently cools all food, even in hard-to-cool places such as filled door pockets.
The LED light will illuminate your refrigerator while being energy efficient.
Glass front panels present a luxurious, striking finish like no other. Not only do the toughened glass panels look great, they are easy to keep clean.
The Supercool Chilling function is ideal for storing meat, fish or other perishable food without freezing it. This provides the convenience of food ready to cook without the need to defrost it. Please note this mode must be manually set in order to function.
The Wide Chilling Case is ideal for storing processed food such as sausages, ham & dairy products, at about 0°C to 3°C. This sliding compartment also doubles as additional chilling space for drinks.
VitaLED lighting system slows down the wilting process, helping to keep fruit and vegetables crisper and fresher for longer. The vegetable drawer features a tray at the top which is ideal for storage and organisation of smaller items.
Divided by a Sliding Tray at the top that can be pushed back to reveal the rest of the freezer drawer. The Freezer Drawer is roomy enough to fit bulky items such as ice cream tubs, loaves of bread and frozen vegetables. The top tray is ideal for storage and organisation of flat pack items such as meat packs.
There is no need for a separate plumbing connection. The removable water tank can be filled with water and all the parts are completely washable.
This two-part shelf slides back easily to halve its size, allowing taller items to be stored at the front of the refrigerator compartment.
The Supercool Freezing Drawer offers functionality in preserving food quality without losing moisture and taste. It has two main modes, Supercool Freezing and Hot Freezing.
Ensures food is frozen evenly, minimising cell destruction, preserving its freshness, texture and locking in maximum flavour. Please note these modes must be manually set in order to function.
The LED Sensor is designed to detect hot food and adjust the cold air flow directly onto the hot food. This saves time while also preserving the quality and freshness of the food. Please note this mode must be manually set in order to function.
Soft Freezing allows food to be frozen for up to three weeks in a ‘soft’ state. This means meat can be easily cut without thawing. Please note this mode must be manually set in order to function.
| REFRIGERATOR | FRENCH DOOR | |
|---|---|---|
| WX Series | ||
| MODEL | MR-WX470F | |
| TOTAL | 470 | |
| Volume* (Litres) | Refrigerator Compartment | 230 |
| Freezer Compartment | 89 | |
| Ice Making Compartment | 23 | |
| Supercool Freezing Compartment | 30 | |
| Vegetable Compartment | 98 | |
| Width | 650 | |
| Dimensions (mm) | Height | 1696 |
| Depth | 699 | |
| Depth with Leg Cover | 709 | |
| Top | 25 | |
| Left | 5 | |
| Clearance Dimensions (mm) | Right | 5 |
| Back | – | |
| Energy Efficiency | ||
| Energy Star Rating* | 4 | |
| Energy Consumption (kWh/year)* | 340 | |
| Inverter Compressor | • | |
| Refrigerant Type | R600a | |
| Door Finish | ||
| Colour | Argent Silver | MR-WX470F-S-A |
| Diamond White | MR-WX470F-W-A | |
| Glass Front Door | • | |
| Refrigerator Compartment | ||
| Cooling System | Multi Airflow | |
| Wide Chilled Case (Upper Case) | • | |
| Supercool Chilling Case / Chilled Case (Lower Case) | • | |
| Vegetable Case with VitaLED | – | |
| Vegetable Case with Humidity Control | – | |
| Tempered Glass Shelves | • | |
| Separable Shelf (Middle Shelf) | – | |
| Two-Way Flexi Shelf (Middle Shelf) | • | |
| Utility Case | – | |
| Water Tank Capacity for Auto Ice Maker (L) | 1.2 | |
| Bottle Pocket (Large) | 1 | |
| Bottle Pocket (Small) | 1 | |
| Adjustable Pocket (Large) | 2 | |
| Adjustable Pocket (Small) | 2 | |
| Egg Tray | 1 | |
| Egg Shelf | 1 | |
| LED Light | • | |
| Door Alarm | • | |
| Vegetable Compartment | ||
| Humidity Control | • | |
| VitaLED | • | |
| Vegetable Case (Upper) | 1 | |
| Vegetable Case (Lower) | 1 | |
| Clean Tray | – | |
| Door Alarm | • | |
| Freezer Compartment | ||
| Freezer Case (Upper) | 1 | |
| Freezer Case (Lower) | 1 | |
| Freezer Case (Small) | – | |
| Freezer Case (Medium) | – | |
| Freezer Case (Large) | – | |
| Door Alarm | • | |
| Supercool Freezing Compartment | ||
| Supercool Freezing | • | |
| Soft Freezing | • | |
| Hot Freezing | • | |
| Aluminium Tray | • | |
| Door Alarm | • | |
| Ice Compartment | ||
| Automatic Ice Maker (Non-Plumbed) | • | |
| Completely Washable Water Supply Parts | • | |
| Quick Ice Making Mode (min) | 85 | |
| Triple Twist Ice Tray | – | |
| Door Alarm | • | |
| Others | ||
| Smart Cube VIP (Vacuum Insulation Panel) | • | |
| Rapid Cooling | • | |
| Energy Saving Mode | • | |
| Number of Sensors | 16 | |
*Tested in accordance with AS/NZS IEC 62552-3 Standard
• Standard Feature
