Mitsubishi Electric award winning fridge

WX Series Multi-Drawer Fridges

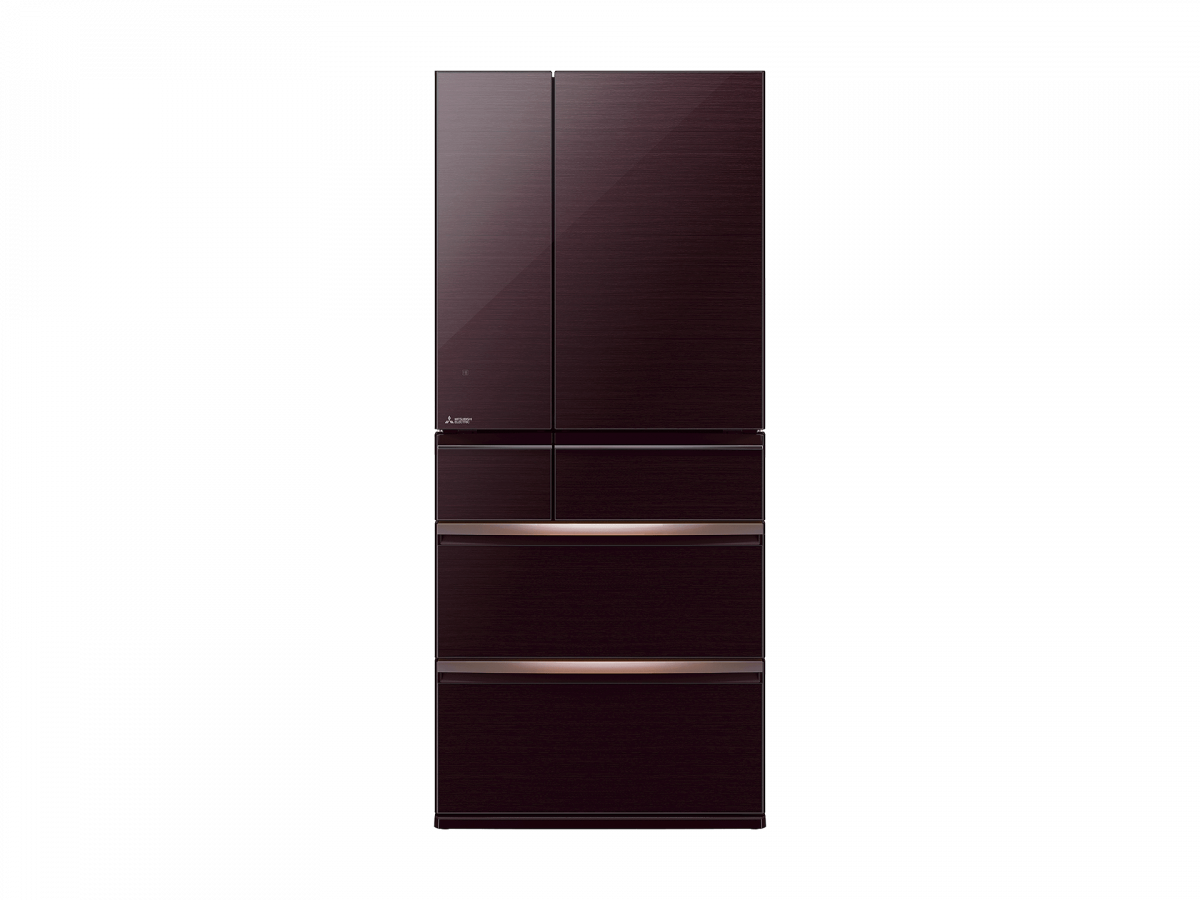

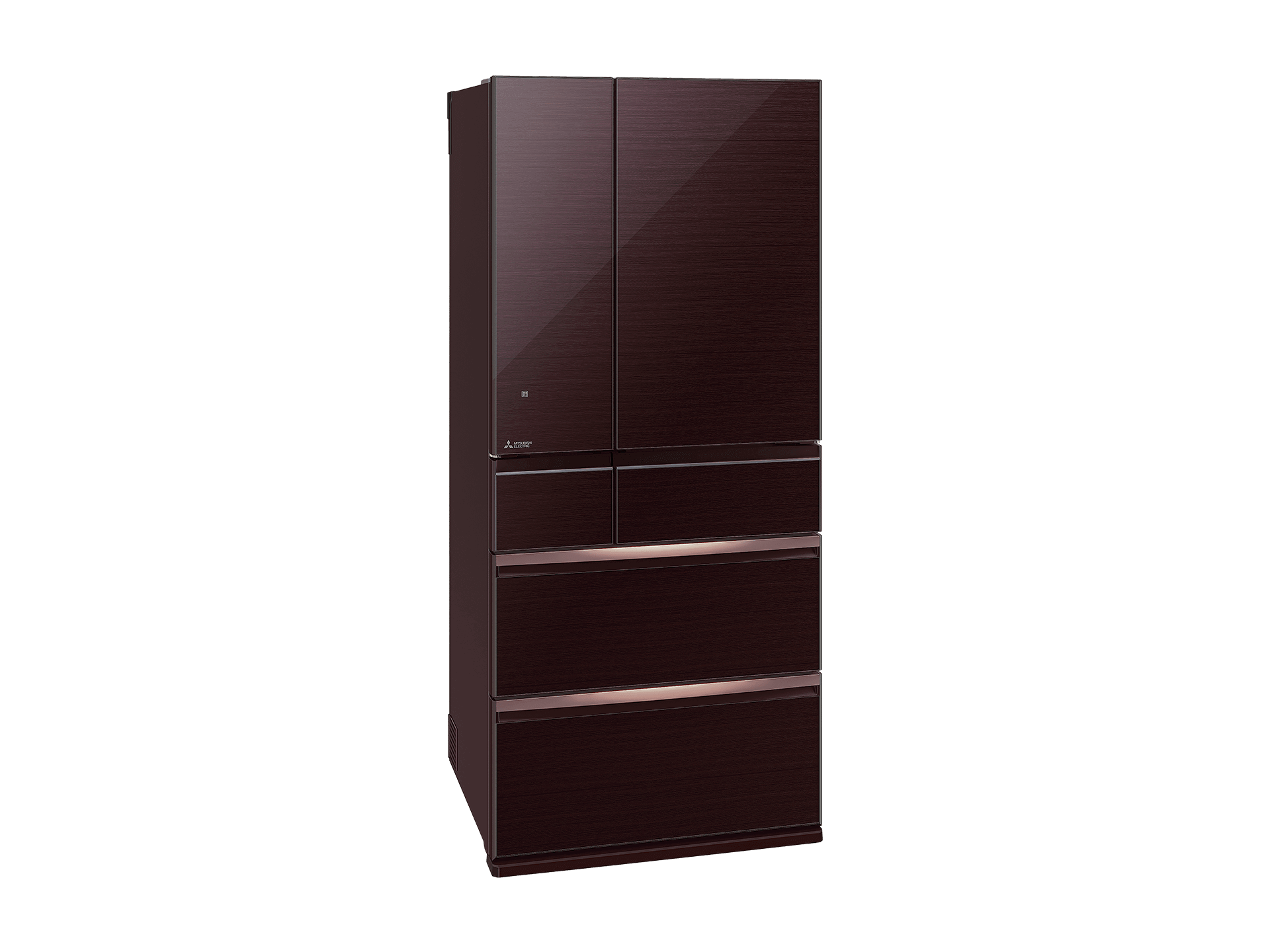

700L Multi Drawer – Dark Mahogany

MR-WX700C-BR-A

  • 4.0 star energy rating
  • Multi airflow system
  • Automatic ice maker
  • Glass door finish
  • Hot freezing technology
  • Supercool freezing
  • Humidity control
  • Vacuum Insulation Panel

Innovation meets elegance with the 700L Multi Drawer Fridge in sophisticated Dark Mahogany. Exuding luxury with its toughened glass panels, efficient cooling, spacious storage and advanced freezing features, no contemporary kitchen is complete without this fridge.

Fusing aesthetics with functionality

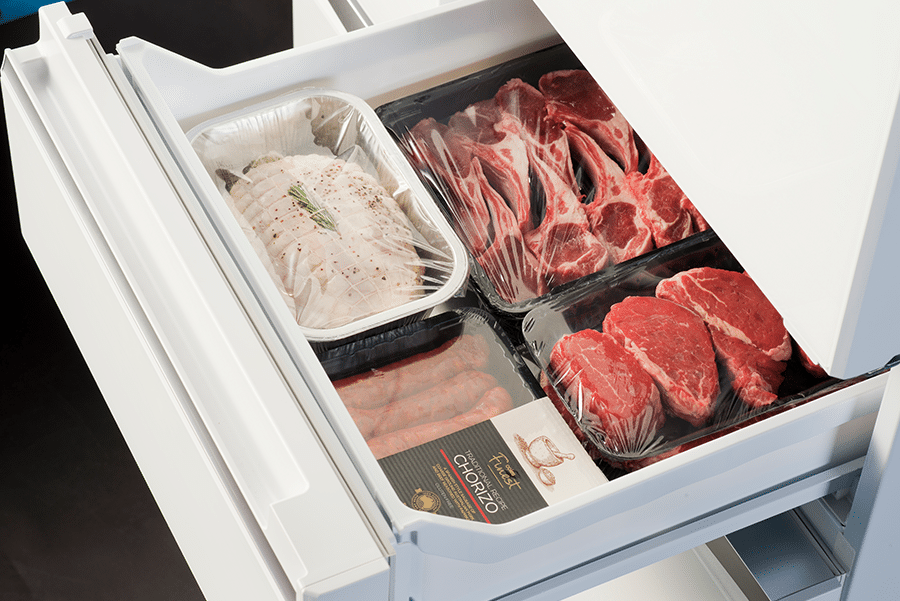

MR-WX700C-BR-A-supercool-freezing-drawer-900x601

Innovative freezing features for modern needs

Unpleasant textures and a loss of quality for frozen food is a thing of the past with the hot freezing and soft freezing features of the 700L Multi Drawer Fridge. By manually setting hot freezing mode, your freezer will adjust cold airflow to hot food and help preserve both its taste and texture. Its soft freezing function allows for easy cutting of meat without requiring it to thaw completely. Both of these modes are available in the supercool freezing drawer and, once activated, will ensure your food retains its maximum flavour and texture.

MR-WX700C-BR-A dark fridge for modern kitchens

Versatility & aesthetics at their best

Designed to blend into your contemporary decor seamlessly, the 700L Multi Drawer fridge exudes luxury and functionality. Crafted with sleek toughened glass front panels that are as striking as they are effortless to clean, this refrigerator complements any modern kitchen. Enjoy the convenient automatic ice maker and versatility of its vegetable drawer, equipped with VitaLED that helps to keep your greens fresher for longer. With ample storage space available, plentiful shelving space and glass finishes, this fridge elevates your kitchen experience and ensures you have a cool refreshment for hot summer days without the hassle of ice trays.

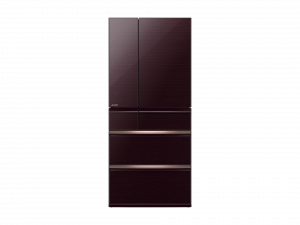

700L Multi Drawer – Dark Mahogany fridge

Advanced cooling for freshness

The 700L Multi Drawer fridge, equipped with multiple temperature points and 16 sensors, including 8 dedicated to temperature monitoring, ensures your food remains crisp and fresh for longer. With the added benefit of a multi airflow system, even harder-to-reach areas like fridge door compartments receive uniform cooling, preserving the quality of your groceries. Additionally, the supercool chilling case allows you to store perishables such as meat and fish without the need for defrosting, maintaining optimal temperatures for all your cooking needs.

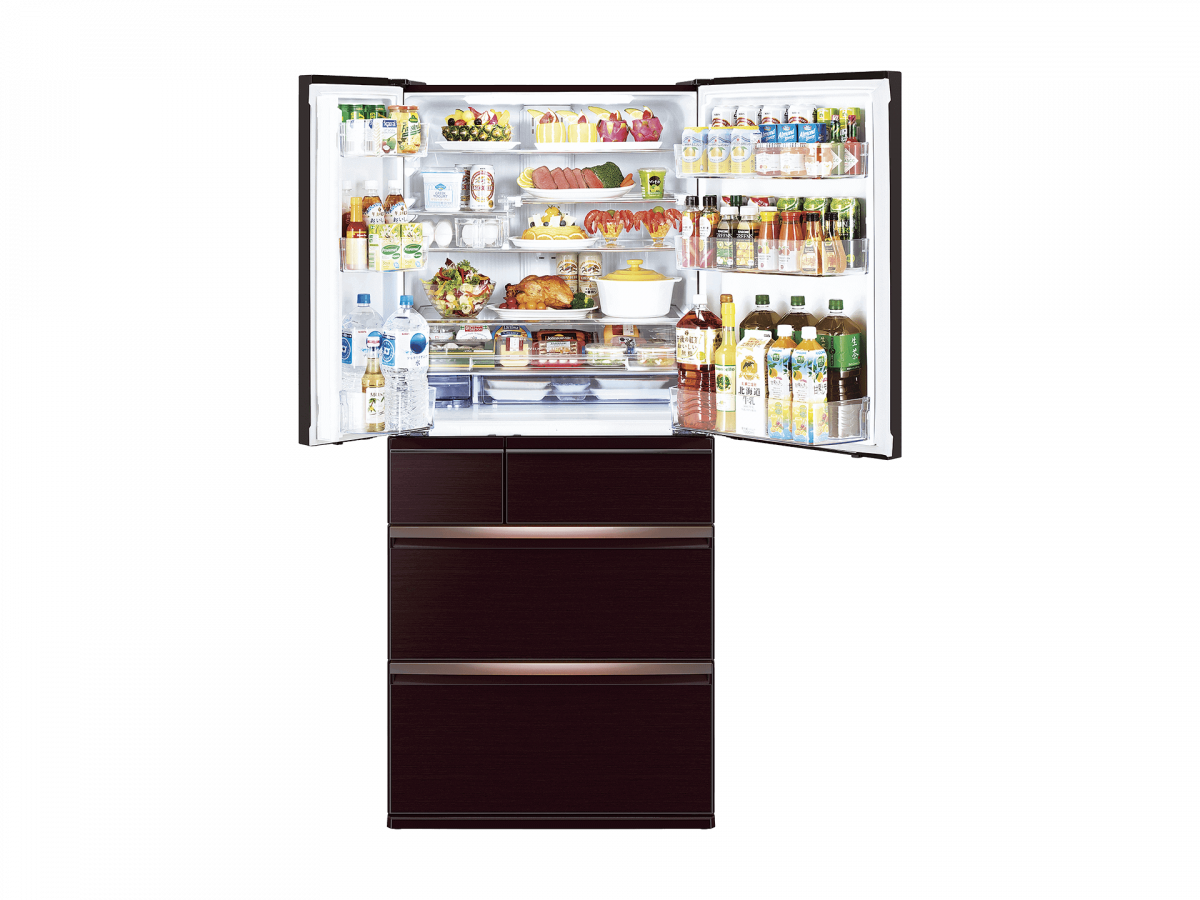

700L Multi Drawer – Dark Mahogany

This multi drawer family sized 700 litre usable capacity fridge is packed with advanced features such as a Supercool Freezing Drawer.

Product Brand: WX Series

Product In-Stock: InStock

Editor's Rating:
5
Energy Rating - 4.0 Star

Energy Rating - 4.0 Star

The number of stars on the energy rating label helps you compare the efficiency of one refrigerator to another of the same volume and similar type.

Multi Airflow System

Multi Airflow System

With different temperature points in the fridge, this technology efficiently cools all food, even in hard-to-cool places such as filled door pockets.

LED Light

LED Light

The LED light will illuminate your refrigerator while being energy efficient.

Glass Door Finish

Glass Door Finish

Glass front panels present a luxurious, striking finish like no other. Not only do the toughened glass panels look great, they are easy to keep clean.

Supercool Chilling Case

Supercool Chilling Case

The Supercool Chilling function is ideal for storing meat, fish or other perishable food without freezing it. This provides the convenience of food ready to cook without the need to defrost it. Please note this mode must be manually set in order to function.

Wide Chilling Case

Wide Chilling Case

The Wide Chilling Case is ideal for storing processed food such as sausages, ham & dairy products, at about 0°C to 3°C. This sliding compartment also doubles as additional chilling space for drinks.

Automatic Ice Maker_WX

Automatic Ice Maker

There is no need for a separate plumbing connection. The removable water tank can be filled with water and all the parts are completely washable.

Freezer Drawer_WX

Freezer Drawer

Divided by a Sliding Tray at the top that can be pushed back to reveal the rest of the freezer drawer. The Freezer Drawer is roomy enough to fit bulky items such as ice cream tubs, loaves of bread and frozen vegetables. The top tray is ideal for storage and organisation of flat pack items such as meat packs.

Vegetable Drawer with VitaLED_WX

Vegetable Drawer with VitaLED

VitaLED lighting system slows down the wilting process, helping to keep fruit and vegetables crisper and fresher for longer. The vegetable drawer features a tray at the top which is ideal for storage and organisation of smaller items.

Hot Freezing

Hot Freezing

The LED Sensor is designed to detect hot food and adjust the cold air flow directly onto the hot food. This saves time while also preserving the quality and freshness of the food. Please note this mode must be manually set in order to function.

Soft Freezing

Soft Freezing

Soft Freezing allows food to be frozen for up to three weeks in a ‘soft’ state. This means meat can be easily cut without thawing. Please note this mode must be manually set in order to function.

Supercool Freezing

Supercool Freezing

Ensures food is frozen evenly, minimising cell destruction, preserving its freshness, texture and locking in maximum flavour. Please note these modes must be manually set in order to function.

Supercool Freezing Drawer

Supercool Freezing Drawer

The Supercool Freezing Drawer offers functionality in preserving food quality without losing moisture and taste. It has two main modes, Supercool Freezing and Hot Freezing.

Two Way Flexi Glass Shelf_WX

Two Way Flexi Glass Shelf

This two-part shelf slides back easily to halve its size, allowing taller items to be stored at the front of the refrigerator compartment.

Other Features

  • Made in Japan
  • Vacuum Insulation Panel
  • Smart Cube design
  • Glass door finish
  • Multi temperature setting
  • Eco Mode
  • Humidity Control
  • External touch control panel
  • Two-way flexi shelf
  • Multi airflow system
  • 2 Adjustable feet
  • Inverter technology
  • 10 year compressor, 5 year parts & labour warranty
REFRIGERATOR FRENCH DOOR
WX Series
MODEL MR-WX700C
TOTAL 700
Volume* (Litres) Refrigerator Compartment 378
Freezer Compartment 118
Ice Making Compartment 25
Supercool Freezing Compartment 45
Vegetable Compartment 134
Width 800
Dimensions (mm) Height 1821
Depth 738
Depth with Leg Cover 748
Top 50
Left 5
Clearance Dimensions (mm) Right 5
Back
Energy Efficiency
Energy Star Rating* 4
Energy Consumption (kWh/year)* 425
Inverter Compressor
Refrigerant Type R600a
Door Finish
Colour Argent Silver MR-WX700C-S-A
Dark Mahogany MR-WX700C-BR-A
Diamond White MR-WX700C-W-A
Glass Front Door
Refrigerator Compartment
Cooling System MULTI AIRFLOW
Wide Chilled Case (Upper Case)
Supercool Chilling Case / Chilled Case (Lower Case)
Vegetable Case with VitaLED
Vegetable Case with Humidity Control
Tempered Glass Shelves
Separable Shelf (Middle Shelf)
Two-Way Flexi Shelf (Middle Shelf)
Utility Case
Water Tank Capacity for Auto Ice Maker (L) 1.2
Bottle Pocket (Large) 1
Bottle Pocket (Small) 1
Adjustable Pocket (Large) 2
Adjustable Pocket (Small) 2
Egg Tray 1
Egg Shelf 1
LED Light
Door Alarm
Vegetable Compartment
Humidity Control
VitaLED
Vegetable Case (Upper) 1
Vegetable Case (Lower) 1
Clean Tray 1
Door Alarm
Freezer Compartment
Freezer Case (Upper) 1
Freezer Case (Lower) 1
Freezer Case (Small)
Freezer Case (Medium)
Freezer Case (Large)
Door Alarm
Supercool Freezing Compartment
Supercool Freezing
Soft Freezing
Hot Freezing
Aluminium Tray
Door Alarm
Ice Compartment
Automatic Ice Maker (Non-Plumbed)
Completely Washable Water Supply Parts
Quick Ice Making Mode (min) 75
Triple Twist Ice Tray
Door Alarm
Others
Smart Cube VIP (Vacuum Insulation Panel)
Rapid Cooling
Energy Saving Mode
Number of Sensors 16

*Tested in accordance with AS/NZS IEC 62552-3 Standard

• Standard Feature

Also known as: MRWX700CSA, MRWX700CWA, MRWX700WA, MRWX700CBRA, MRWX700BRA

DOWNLOADS

Model:

Brochure

Refrigeration Range 2024

Explore the range of multi-drawer, French door, bottom mount and top mount refrigerators.

Download

Flyer

WX Series Multi-Drawer

Learn more about the award winning WX Series multi drawer refrigerators.

Download

CAD file

MR-WX700C

MR-WX700C DWG CAD file.

Download

User Manual

MR-WX700C

MR-WX700C User Manual.

Download

Outlines

MR-WX700C

Internal and external dimensions and installation space required.

Download

Guide, User Manual

How to set Ice Making

Instructions on how to turn ice making on and off on the MR-WX Series.

Download

Warranty Cards

Refrigerators

Refrigerator range warranty card.

Download

SUGGESTED FOR YOU

470L Multi Drawer – Argent Silver

WX Series Multi-Drawer Fridges

470L Multi Drawer – Argent Silver

MR-WX470F-S-A

  • 4.0 star energy rating
  • Multi airflow system
  • Automatic ice maker
  • Glass door finish
  • Hot freezing technology
  • Supercool freezing
  • Humidity control
  • Vacuum Insulation Panel
Read More
700L Multi Drawer – Argent Silver

WX Series Multi-Drawer Fridges

700L Multi Drawer – Argent Silver

MR-WX700C-S-A

  • 4.0 star energy rating
  • Multi airflow system
  • Automatic ice maker
  • Glass door finish
  • Hot freezing technology
  • Supercool freezing
  • Humidity control
  • Vacuum Insulation Panel
Read More
700L Multi Drawer – Diamond White

WX Series Multi-Drawer Fridges

700L Multi Drawer – Diamond White

MR-WX700C-W-A

  • 4.0 Star energy rating
  • Multi airflow system
  • Glass door finish
  • Supercool chilling case
  • Vegetable drawer with VitaLED
  • Automatic ice maker
  • Unique vacuum insulation panel
  • Hot, soft & supercool freezing
Read More

FREQUENTLY ASKED QUESTIONS

With a 4.0 Star Energy Rating and Inverter compressor, this fridge is designed for energy efficient operation. The energy label allows users to gauge its efficiency relative to other models of a similar size. Additionally, the Eco Mode optimises energy consumption, making it a perfect choice for modern homes that seek to be energy saving conscious.

The Supercool Freezing Drawer is designed to freeze food evenly, preserving its freshness and flavour. It offers two main modes: supercool freezing and hot freezing. These modes ensure that food retains its moisture, taste, and texture, providing a superior freezing experience. When hot freezing is active, cool airflow will ensure that ice crystals don’t form on your food and ruin its texture or taste. Conversely, supercool freezing retains the quality of your food by freezing it evenly and locking in the flavour. Both settings need to be manually switched on in order to function.

Equipped with VitaLED lighting, the vegetable drawer slows down the wilting process of greens. This ensures that your fruits and vegetables remain fresh for even longer. Additionally, the drawer features a tray at the top for organised storage of smaller items and will allow you to separate fruits and vegetables with ease.

Besides the luxurious Dark Mahogany, this model is also available in Diamond White and Argent Silver, offering you a range of choices to complement your kitchen decor.

Unlike many ice and water dispensers that require a direct connection to your kitchen’s water supply, the 700L Multi Drawer Fridge’s ice dispenser eliminates that hassle. Just fill the removable water tank, and you’ll have ice ready whenever you need it. Plus, for added convenience, all parts are washable, meaning you can enjoy clean, hygienic ice for longer.

While many consumers are familiar with stainless steel finishes, the toughened glass front panels of our 700L Multi Drawer Fridge are designed for both aesthetics and durability. They offer a luxurious finish that’s easy to clean and maintain while remaining resistant to scratches.

Plumbing-free fridges, like our Dark Mahogany 700L Multi Drawer Fridge, offer a significant advantage in flexibility. There’s no need to tie your fridge location to your kitchen’s water supply, allowing for easier installation and potential relocation when moving. With our non-plumbed automatic ice maker, you get all the benefits of the ice maker without the usual constraints.
