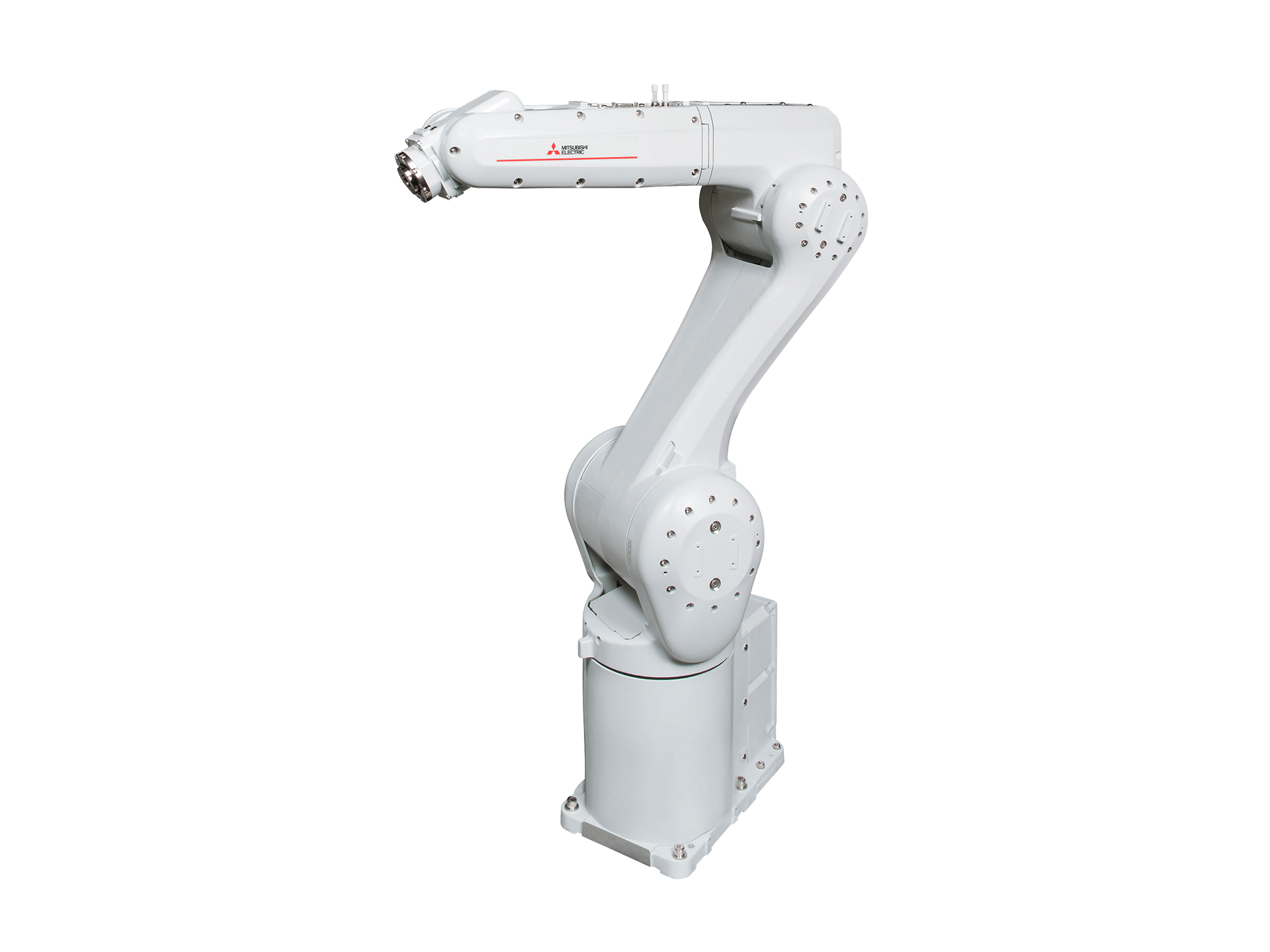

Vertical Industrial Robot
RV-8-12CRL
Slim & Compact RV-CR Series vertical industrial robot offering a High Level of Utility and Design. Its structure features minimal protrusions, resulting in reduced interference with surroundings when the robot operates. This makes it suited to integration with automation cells and manufacturing equipment.
A smooth, curved design complements the slim arm and compact joints. The external design is marked by minimalist, functional design. Supporting a wide variety of functions and options such as the tracking function, additional axis control, 2D vision sensor, force sensor, 3D vision sensor, MELFA Smart Plus, and network base card, MELFA RV-CR series are useful in various situations.
Uses a battery-less motor that does not require periodic battery replacement. This allows improved torque characteristics, accuracy, and responsiveness while substantially reducing the size and weight. This adds up to much better robot performance and greater compactness.
RV-8/12CRL includes a parallel I/O interface card in the controller as standard. 32 inputs and 32 outputs can be externally inputted/outputted, which can be used for gripper control and peripheral equipment control.
Compatible with an optional network base card that supports four major networks, enabling system configuration using devices from various manufacturers and communication with higher-level devices.
| Type | RV-8CRL | RV-12CRL |
|---|---|---|
| Maximum load capacity | 8kg | 12kg |
| Maximum reach radius | 931mm | |
| 1504mm |
