HVRF Indoor Units

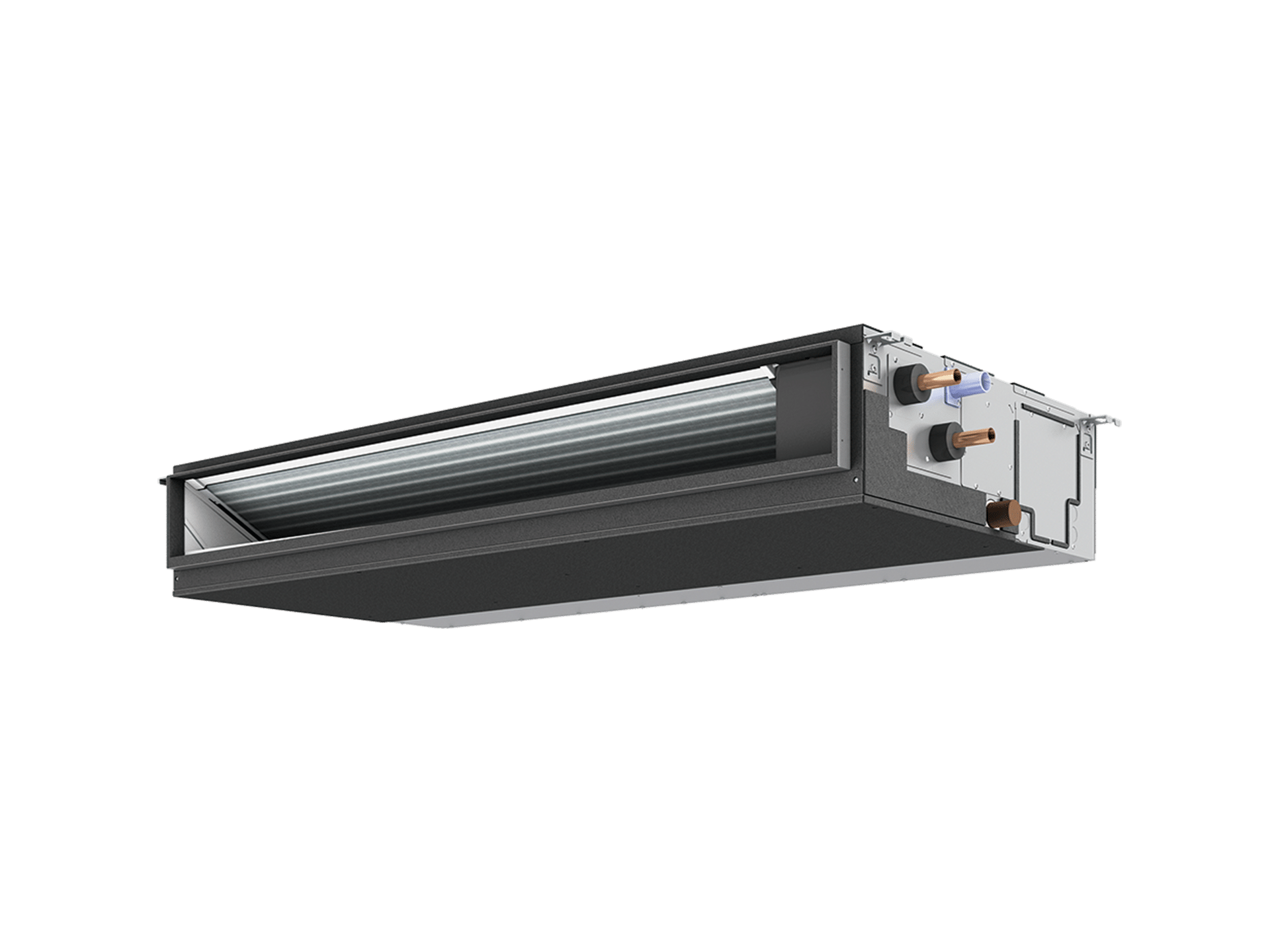

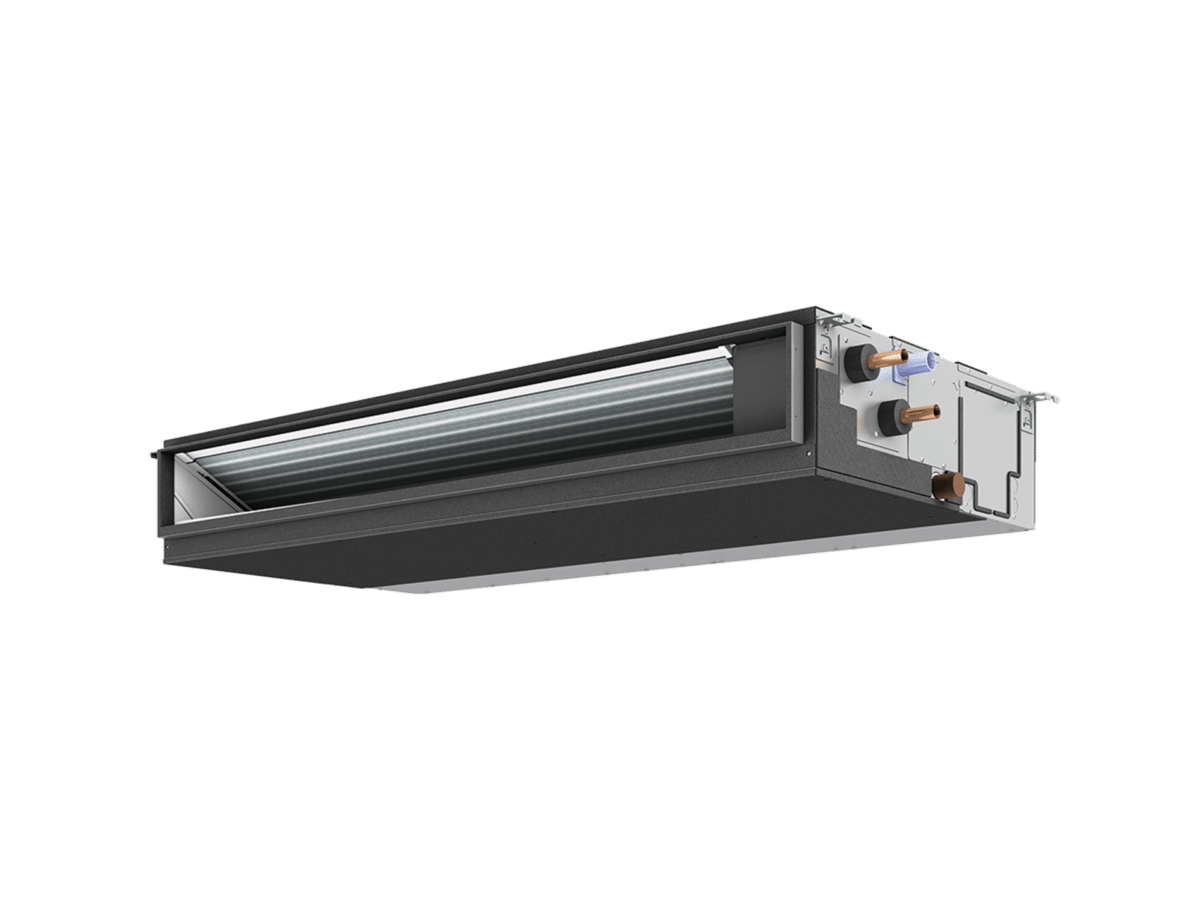

PEFY-W20-125VMA2-A
A maximum external static pressure of 150 Pa and the slim 250mm height body provide design flexibility for narrow ceiling spaces. The line-up consists of up to 14 kW with the same height.
A compact design with a height of 250 mm (all capacity models) enables the installation in a tight ceiling space.
Five external static pressure settings provide flexibility for duct design and air outlet configuration. On all capacity models, settings range to a maximum of 150 Pa.
Where a bottom air inlet is required, the unit can be re-configured by switching the panel and air filter locations. This allows for installation in a tight space. (The unit is shipped with a rear inlet configuration.) *Please note and take into design consideration that units with a bottom air inlet have higher noise levels than those with a rear inlet.
The lineup consists of two variants: models with built-in drain pump and the ones without built-in drain pump. This allows more freedom in piping layout design. *Units with an "L" at the end of the model name are without a built-in drain pump.
With built-in flow control valve, charge calculation function (with capacity save method) can be performed by AE-200E central controller for individual billing.
