Single Room Air Conditioner
MFZ-KW25-60VGK
Discover innovation and slim sophistication with the MFZ-KW Series floor air conditioner. This unobtrusive and quiet air conditioner delivers cool and warm air with style and efficiency and is perfectly suited to modern homes.
A fusion of elegance and performance
Operating at a quiet volume and engineered with a slim, stylish design, the MFZ-KW Series of floor standing air conditioners offer quality comfort without compromising on aesthetics. The removable base allows the indoor unit to be recessed into the wall during installation, significantly reducing the depth from 215 mm to 145 mm to create a seamless look without sacrificing performance. Paired with its capacity to pass piping and electrical connections through the floor, the MFZ-KW Series’ versatility accommodates a variety of installation patterns and requirements that make it ideal for a range of modern interior and heritage-listed properties.
These floor standing units feature a powerful blower to provide warm or cool air in a downward, upward or simultaneous flow, ensuring occupants can always enjoy an even airflow and ideal temperatures. Utilising three uniquely shaped vanes, the MFZ-KW Series’ design controls the airflow to provide you with a system that allows you to customise your comfort just the way you like it. Whether you require some cool air on a hot summer’s day or heating on cold evenings, the MFZ-KW Series gives you comfort all year round.
Enhancing overall air quality and swiftly heating the room, you can enjoy the comfort of warm air thanks to the MFZ-KW Series’ Rapid Heating. By effectively controlling airflow, these floor standing air conditioners boast the ability to rapidly raise the temperature of your space using a more efficient airflow. Air is blown out in a downward direction and subsequently drawn back into the unit to be heated quickly, making the process of heating your room as swift as it is effortless and the MFZ-KW25-60VGK the perfect choice for your home.
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.
A contemporary slimline design that can be recessed into your wall to significantly reduce the indoor unit’s depth from 215mm to 145mm, approximately a 33% decrease. Also features a removable base, it is the ideal solution to provide compact, unobtrusive installation.

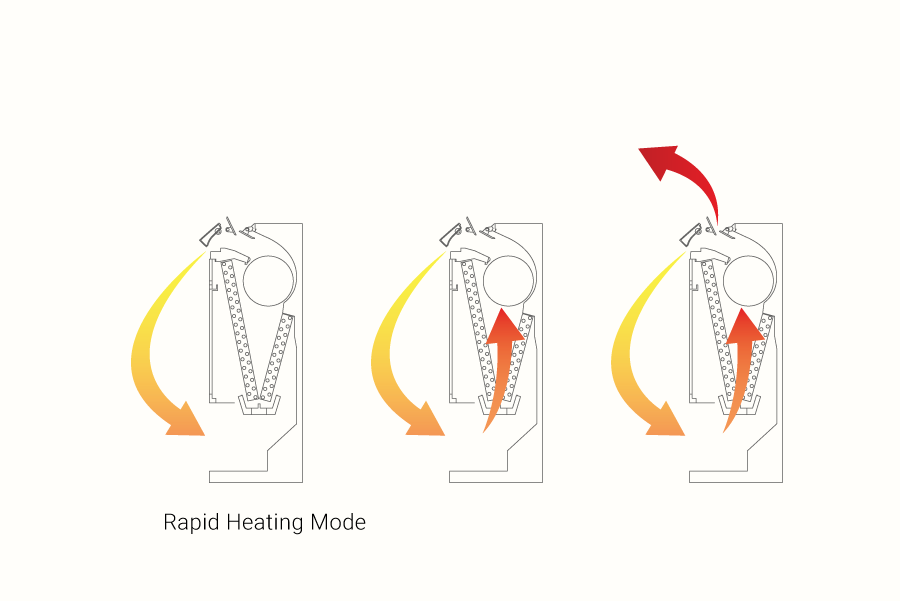

Rapid heating technology enables warm air to be blown out in a downward direction and then sucked back into the unit to quickly raise the temperature of the air being blown out. This ensures that the perfect room temperature is reached faster.
The “Quiet Mode” fan speed setting ensures quiet operation, as low as 18dB(A) in heating mode; it’s so quiet you’ll check to see if it’s on.* Models 25/35/42. Tested in an anechoic chamber according to EN 12102-1:2017.
Temperature settings and On/Off control can be managed over a period of one week using the Weekly Timer.
Unlock the door to smarter heating and cooling systems, for total home comfort. Connecting your compatible Mitsubishi Electric air conditioner to your smartphone, tablet or online account, gives you the freedom to control each unit on-the-go via an internet connection from anywhere in the world. * Account and Internet Connection Required.* Account and Internet Connection Required.
The Nano Platinum Deodorising Filter reduces airborne bacteria while improving air quality. The optional Electrostatic Anti-Allergy Enzyme Filter assists in the reduction of common allergens.*
* Bacteria: Testing Standard JIS L1902. Allergens (Cat allergen & pollen): Testing Standard Elisa Sandwich
The “i-save” Mode is a simplified setting function that recalls the preferred (preset) temperature by pressing a single button on the remote controller. Press the same button twice in repetition to immediately return to the previous temperature setting.
The outdoor unit includes a demand response enabling device (DRED), allowing your electricity provider to activate and control the system at 3 preprogrammed modes, in response to signals sent from the electricity provider at times when it is necessary to help reduce peak demand.*
* This requires an additional adapter from your power provider and is installed in accordance with AS/NZS 4755.3.1:2014.
‘Econo Cool’ is an intelligent temperature control feature used during manual cooling operation that adjusts the amount of air directed towards the body based on the air-outlet temperature. When selected, the microprocessor automatically applies a 2°C offset to the set temperature and adjusts airflow to help maintain perceived comfort.
By combining temperature offset control with airflow adjustment, Econo Cool helps maintain a comfortable room environment without relying solely on a lower temperature setting.
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.
| Indoor Unit | MFZ-KW25VGK | MFZ-KW35VGK | MFZ-KW42VGK | MFZ-KW50VGK | MFZ-KW60VGK | |||
|---|---|---|---|---|---|---|---|---|
| Outdoor Unit | MUFZ-KW25VG2 | MUFZ-KW35VG2 | MUFZ-KW42VG2 | MUFZ-KW50VG2 | MUFZ-KW60VG2 | |||
| Cooling | Capacity [Rated]*1 | kW | 2.5 | 3.5 | 4.2 | 5 | 6.1 | |
| Capacity [Min-Max] | kW | 0.70 – 3.40 | 0.70 – 3.80 | 0.70 – 5.00 | 0.70 – 5.70 | 0.70 – 6.50 | ||
| Total Input [Rated]*1 | kW | 0.57 | 0.87 | 1.11 | 1.32 | 1.73 | ||
| Total Input [Min-Max] | kW | 0.19 – 0.89 | 0.19 – 1.01 | 0.19 – 1.68 | 0.31 – 1.95 | 0.31 – 2.25 | ||
| TCSPF (Residential) | Hot / Average / Cold | 5.56 / 5.09 / 5.18 | 5.33 / 4.96 / 5.12 | 4.72 / 4.43 / 4.54 | 4.58 / 4.32 / 4.41 | 4.46 / 4.22 / 4.36 | ||
| ZERL (Residential) Star Rating*2 | Hot / Average / Cold | 4 / 3.5 / 3.5 | 3.5 / 3 / 3.5 | 3 / 2.5 / 3 | 3 / 2.5 / 2.5 | 2.5 / 2.5 / 2.5 | ||
| Sound Pressure Level | In [Quiet-SHi] | dBA | 20 – 44 | 20 – 44 | 20 – 51 | 27 – 44 | 27 – 53 | |
| Out (PWL) | dBA | 48 (61) | 48 (61) | 48 (62) | 53 (66) | 53 (66) | ||
| Air Volume (In) [Quiet-SHi] (Speeds) | L/s | 65 – 172 (5) | 65 – 172 (5) | 65 – 228 (5) | 102 – 177 (5) | 102 – 250 (5) | ||
| Heating | Capacity [Rated]*1 | kW | 3.4 | 4.3 | 5.4 | 5.8 | 6.5 | |
| Capacity [Min-Max] | kW | 0.23 – 4.60 | 0.23 – 6.00 | 0.23 – 6.70 | 1.20 – 8.20 | 1.20 – 8.80 | ||
| Total Input [Rated]*1 | kW | 0.78 | 1.14 | 1.43 | 1.53 | 1.88 | ||
| Total Input [Min-Max] | kW | 0.13 – 1.35 | 0.13 – 2.38 | 0.13 – 2.40 | 0.37 – 3.30 | 0.37 – 3.43 | ||
| HSPF (Residential) | Hot / Average / Cold | 4.62 / 4.36 / 4.08 | 4.59 / 4.14 / 3.74 | 4.67 / 4.17 / 3.7 | 4.67 / 4.2 / 3.79 | 4.64 / 4.05 / 3.56 | ||
| ZERL (Residential) Star Rating*2 | Hot / Average / Cold | 3 / 2.5 / 2.5 | 3 / 2.5 / 2 | 3 / 2.5 / 2 | 3 / 2.5 / 2 | 3 / 2.5 / 2 | ||
| Sound Pressure Level | In [Quiet-SHi] | dBA | 18 – 44 | 18 – 44 | 18 – 51 | 29 – 50 | 29 – 51 | |
| Out (PWL) | dBA | 46 (59) | 47 (60) | 47 (61) | 56 (69) | 56 (69) | ||
| Air Volume (In) [Quiet-SHi] (Speeds) | L/s | 58 – 173 (5) | 58 – 173 (5) | 58 – 235 (5) | 100 – 233 (5) | 100 – 243 (5) | ||
| Indoor Unit | Dimensions [H×W×D] | mm | 600 x 750 x 215 | 600 x 750 x 215 | 600 x 750 x 215 | 600 x 750 x 215 | 600 x 750 x 215 | |
| Weight | kg | 15 | 15 | 15 | 15 | 15 | ||
| Outdoor Unit | Dimensions [H×W×D] | mm | 550 x 800 x 285 | 550 x 800 x 285 | 550 x 800 x 285 | 880 x 840 x 330 | 880 x 840 x 330 | |
| Weight | kg | 35 | 35 | 35 | 54 | 54 | ||
| Max. Running Current | A | 9.9 | 9.9 | 10.1 | 15.3 | 15.4 | ||
| Piping | Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø12.70 | ø6.35/ø12.70 | |
| Max. Length/Height | m | 20/12 | 20/12 | 20/12 | 30/15 | 30/15 | ||
| Refrigerant Amount [Pre-Charged] | kg | 1 | 1 | 1 | 1.3 | 1.3 | ||
| View full specs | ||||||||
| Indoor Unit | MFZ-KW25VGK | MFZ-KW35VGK | MFZ-KW42VGK | MFZ-KW50VGK | MFZ-KW60VGK | |||
|---|---|---|---|---|---|---|---|---|
| Outdoor Unit | MUFZ-KW25VG2 | MUFZ-KW35VG2 | MUFZ-KW42VG2 | MUFZ-KW50VG2 | MUFZ-KW60VG2 | |||
| Refrigerant | R32 | R32 | R32 | R32 | R32 | |||
| Cooling | Capacity [Rated]*1 | kW | 2.5 | 3.5 | 4.2 | 5 | 6.1 | |
| Capacity [Min-Max] | kW | 0.70 – 3.40 | 0.70 – 3.80 | 0.70 – 5.00 | 0.70 – 5.70 | 0.70 – 6.50 | ||
| Total Input [Rated]*1 | kW | 0.57 | 0.87 | 1.11 | 1.32 | 1.73 | ||
| Total Input [Min-Max] | kW | 0.19 – 0.89 | 0.19 – 1.01 | 0.19 – 1.68 | 0.31 – 1.95 | 0.31 – 2.25 | ||
| EER | 4.39 | 4.02 | 3.78 | 3.79 | 3.53 | |||
| AEER | 4.32 | 3.98 | 3.75 | 3.76 | 3.51 | |||
| TCSPF (Residential) | Hot | 5.56 | 5.33 | 4.72 | 4.58 | 4.46 | ||
| Average | 5.09 | 4.96 | 4.43 | 4.32 | 4.22 | |||
| Cold | 5.18 | 5.12 | 4.54 | 4.41 | 4.36 | |||
| ZERL (Residential) Star Rating*2 | Hot | 4 | 3.5 | 3 | 3 | 2.5 | ||
| Average | 3.5 | 3 | 2.5 | 2.5 | 2.5 | |||
| Cold | 3.5 | 3.5 | 3 | 2.5 | 2.5 | |||
| Running Current [Rated]*3 | A | 2.9 | 4.1 | 5.1 | 5.9 | 7.5 | ||
| Sound Pressure Level | In [Quiet-Lo-Mid-Hi-SHi] | dBA | 20 – 26 – 32 – 38 – 44 | 20 – 26 – 32 – 38 – 44 | 20 – 28 – 36 – 43 – 51 | 27 – 31 – 35 – 39 – 44 | 27 – 35 – 39 – 46 – 53 | |
| Out (PWL) | dBA | 48 (61) | 48 (61) | 48 (62) | 53 (66) | 53 (66) | ||
| Air Volume (In) [Quiet-Lo-Mid-Hi-SHi] | L/s | 65 – 80 – 107 – 135 – 172 | 65 – 80 – 107 – 135 – 172 | 65 – 88 – 125 – 163 – 228 | 102 – 112 – 133 – 155 – 177 | 102 – 133 – 160 – 205 – 250 | ||
| Heating | Capacity [Rated]*1 | kW | 3.4 | 4.3 | 5.4 | 5.8 | 6.5 | |
| Capacity [Min-Max] | kW | 0.23 – 4.60 | 0.23 – 6.00 | 0.23 – 6.70 | 1.20 – 8.20 | 1.20 – 8.80 | ||
| Total Input [Rated]*1 | kW | 0.78 | 1.14 | 1.43 | 1.53 | 1.88 | ||
| Total Input [Min-Max] | kW | 0.13 – 1.35 | 0.13 – 2.38 | 0.13 – 2.40 | 0.37 – 3.30 | 0.37 – 3.43 | ||
| COP | 4.36 | 3.77 | 3.78 | 3.79 | 3.46 | |||
| ACOP | 4.31 | 3.74 | 3.75 | 3.77 | 3.44 | |||
| HSPF (Residential) | Hot | 4.62 | 4.59 | 4.67 | 4.67 | 4.64 | ||
| Average | 4.36 | 4.14 | 4.17 | 4.2 | 4.05 | |||
| Cold | 4.08 | 3.74 | 3.7 | 3.79 | 3.56 | |||
| ZERL (Residential) Star Rating*2 | Hot | 3 | 3 | 3 | 3 | 3 | ||
| Average | 2.5 | 2.5 | 2.5 | 2.5 | 2.5 | |||
| Cold | 2.5 | 2 | 2 | 2 | 2 | |||
| Running Current [Rated]*3 | A | 3.8 | 5.1 | 6.5 | 6.8 | 8.3 | ||
| Sound Pressure Level | In [Quiet-Lo-Mid-Hi-SHi] | dBA | 18 – 25 – 31 – 38 – 44 | 18 – 25 – 31 – 38 – 44 | 18 – 27 – 36 – 44 – 51 | 29 – 35 – 40 – 45 – 50 | 29 – 35 – 41 – 47 – 51 | |
| Out (PWL) | dBA | 46 (59) | 47 (60) | 47 (61) | 56 (69) | 56 (69) | ||
| Air Volume (In) [Quiet-Lo-Mid-Hi-SHi] | L/s | 58 – 75 – 102 – 135 – 173 | 58 – 75 – 102 – 135 – 173 | 58 – 83 – 125 – 170 – 235 | 100 – 128 – 157 – 193 – 233 | 100 – 128 – 162 – 208 – 243 | ||
| Max. Running Current | A | 9.9 | 9.9 | 10.1 | 15.3 | 15.4 | ||
| Indoor Unit | Dimensions [H×W×D] | mm | 600 x 750 x 215 | 600 x 750 x 215 | 600 x 750 x 215 | 600 x 750 x 215 | 600 x 750 x 215 | |
| Weight | kg | 15 | 15 | 15 | 15 | 15 | ||
| Outdoor Unit | Dimensions [H×W×D] | mm | 550 x 800 x 285 | 550 x 800 x 285 | 550 x 800 x 285 | 880 x 840 x 330 | 880 x 840 x 330 | |
| Weight | kg | 35 | 35 | 35 | 54 | 54 | ||
| Piping | Diameter [Liquid/Gas] | mm | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø9.52 | ø6.35/ø12.70 | ø6.35/ø12.70 | |
| Max. Length/Height | m | 20/12 | 20/12 | 20/12 | 30/15 | 30/15 | ||
| Guaranteed Operating Range [Outdoor] | Cooling | °C | -10 ~ 46 | -10 ~ 46 | -10 ~ 46 | -10 ~ 46 | -10 ~ 46 | |
| Heating | °C | -15 ~ 24 | -15 ~ 24 | -15 ~ 24 | -15 ~ 24 | -15 ~ 24 | ||
| Refrigerant Amount [Pre-Charged] | kg | 1 | 1 | 1 | 1.3 | 1.3 | ||
| System model name | MKW25VG2A2KIT | MKW35VG2A2KIT | MKW42VG2A2KIT | MKW50VG2A2KIT | MKW60VG2A2KIT | |||
Notes:
*1 The Capacity (rated), Total Input (rated) and Running Current (rated) are determined under conditions T1 (cooling) or H1 (heating) of AS/NZS 3823.1.1
Cooling: Indoor 27°CDB/19°CWB, Outdoor 35°CDB/24°CWB
Heating: Indoor 20°CDB/15°CWB, Outdoor 7°CDB/6°CWB
*2 ZERL (Residential) refers to ‘Zoned Energy Rating Label’ residential star rating based on GEMS 2019 Determination.
*3 Rated Load Amps (RLA) is based on nominal conditions. Use Maximum Circuit Amps (MCA) for power supply infrastructural sizing, etc.
* The information provided on this product page is intended as a high-level overview only. For comprehensive technical or product details, refer to the product’s specifications and documentation. Colours depicted in this product page may vary slightly from the actual product. Images presented are not to scale and are for illustrative purposes only. Suitable access for warranty and service is required.
Cyber Security Compliance: To learn more about our commitment to security and to view our Cyber Security Statement of Compliance for Wi-Fi enabled products, please click here.
