Heat Pump Range

The concept behind the Heat Recovery System

Heat pumps have become increasingly important in the world as a technology to improve energy efficiency and reduce CO2 emissions. The idea behind this is that the waste heat from a cooling process can be recovered and made available for other processes. Thus, this precious heat can be reutilised for several reasons:
• Pre-heating of domestic hot water
• Industrial processes
• Dehumidification
• Heating of areas

The advantage of heat recovery is that it requires less gas, oil, or electricity and, therefore, lower operating costs. Thus, it offers customers an approach to meeting their CO2 emission reduction targets.

Air source heat pumps

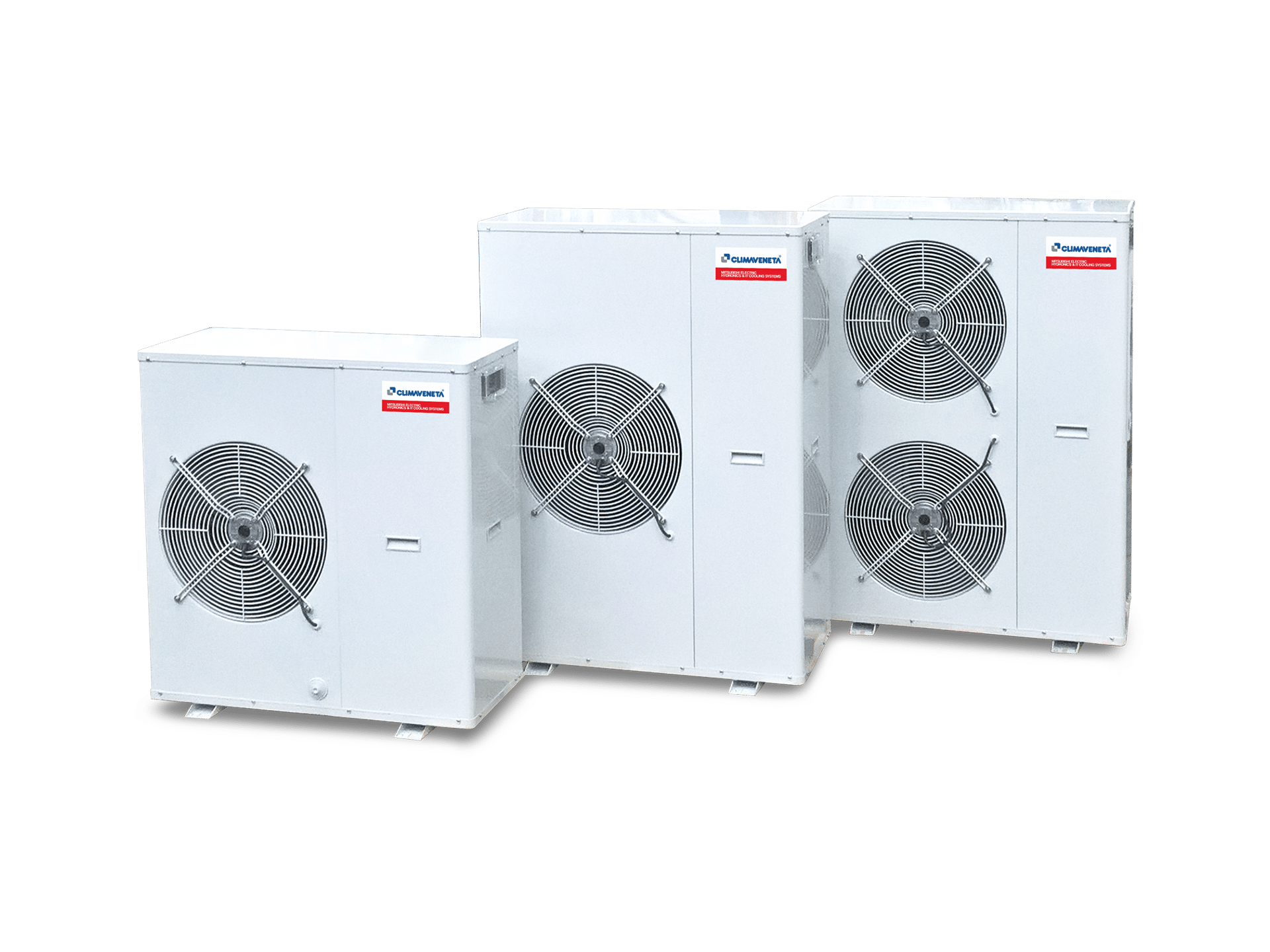

Air source systems are usually installed outdoors. They are more economical and easier to install compared to water source units, as they do not require integration into the building. Fixed speed compressor solutions include NX2-N, NECS-N, AW-HT and i-BX series. Among the inverter solutions dedicated to high efficiency are the innovative Climaveneta i-NX-N range featuring inverter scroll compressors and top-level efficiency i-FX-N with inverter screw compressors.

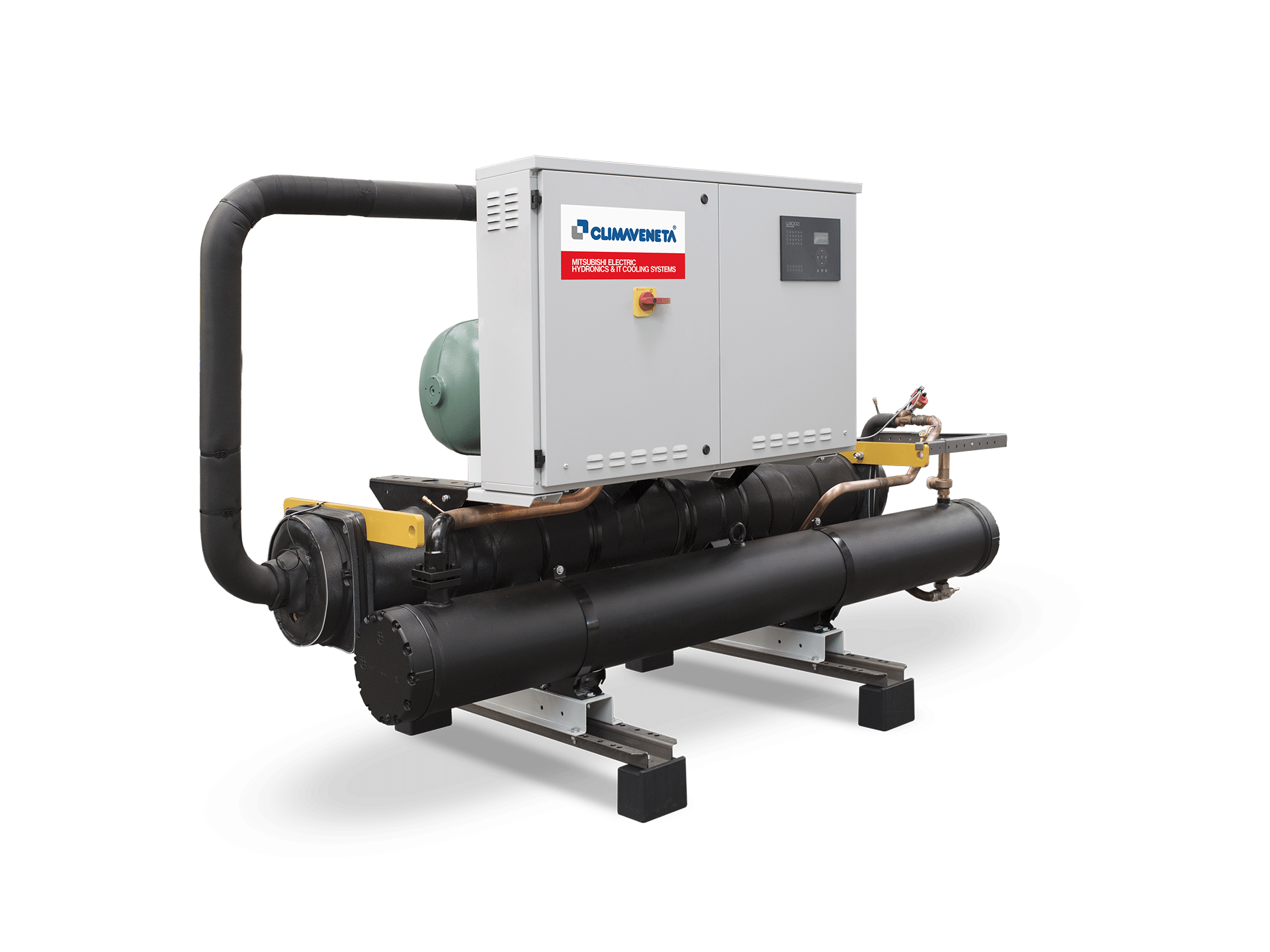

Water source heat pumps

Water source units, usually installed indoors, must be connected to an external cooling system. When it comes to available power, water-cooled models offer the widest choice. The utility circuit does not require frost protection as there are no low external temperatures. The noise levels of indoor units can be adapted to individual needs via different types of enclosures. Through custom cooling system setup, it is also possible to achieve noise levels to meet local requirements.

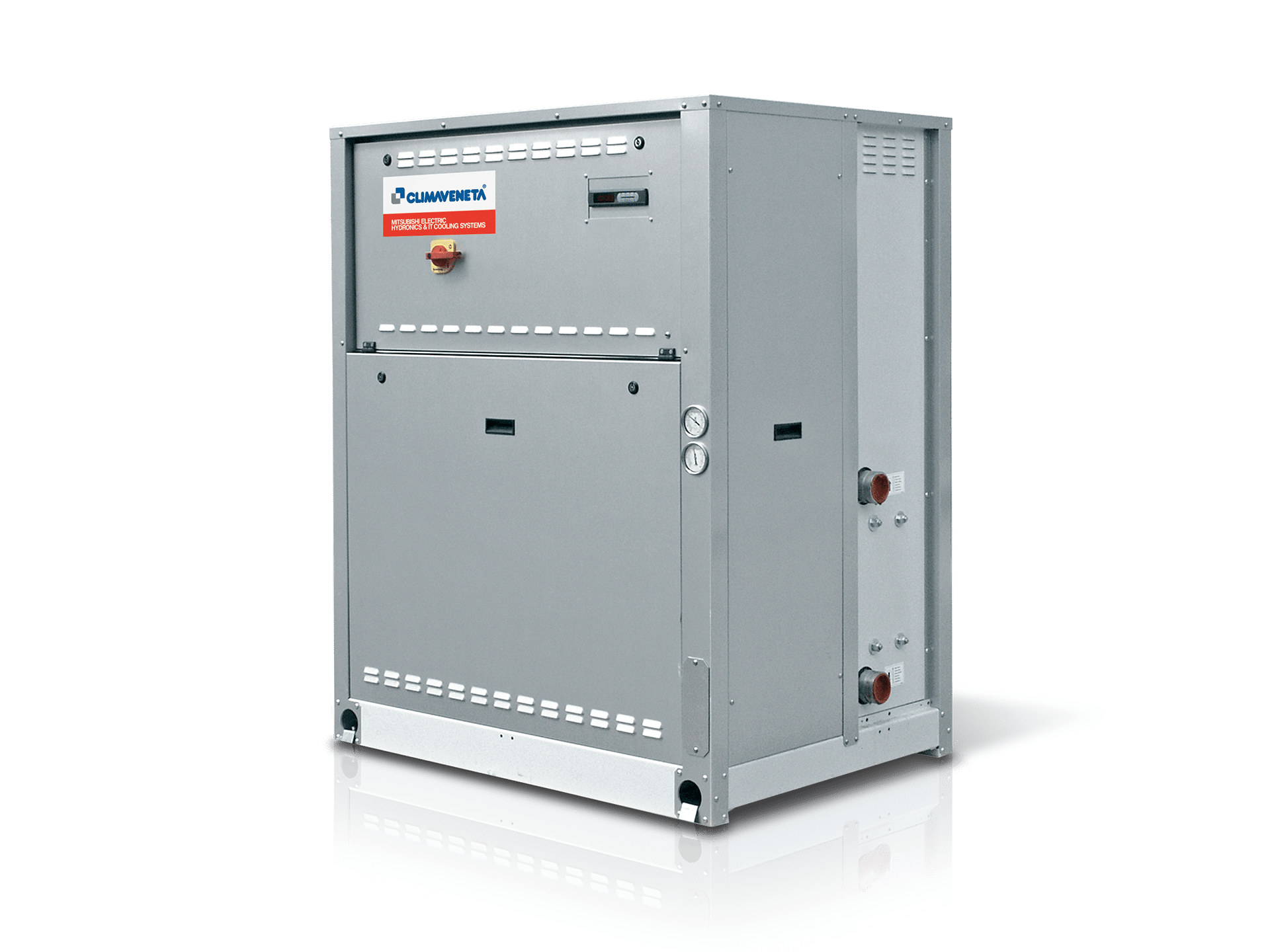

Climaveneta's offering spans reversible units, heating-only solutions, and heating solutions for high temperatures (such as the EW-HT range).

Easy-to-install solution

Climaveneta heat pumps are ready-to-use solutions. Neither probes nor connection pipes to wells are needed, making these units ideal for both new and replacement constructions.

For commercial and residential buildings

Whether you need to heat your home or a commercial building, Climaveneta heat pumps are the key solution for your heating and cooling needs. The air source heat pump can pre-heat domestic hot water or move heat from one area of the building to another.

A further key application is replacing old boiler systems where the existing water distribution plant based on radiators must be retained. This situation is typical in commercial and public buildings such as schools and office buildings, as well as blocks of buildings for residential use, where it is common practice to have a centralised heating and cooling system.

Application in Industrial facilities

Heat pumps can deliver high energy-saving potential with industrial and process applications.

Heat recovery is a cost-effective practice in the industrial sector, especially where processes involve many heat transfers: machines, motors, and molds must be cooled, whereas material streams, air flows, and working fluids must be heated or pre-heated.

Heat pumps represent the most important opportunity to recover and move this heat from one process to another, avoiding any kWh waste. They can significantly reduce fossil fuel consumption and greenhouse gas emissions in drying, washing, evaporation and distillation processes in a variety of applications. Industries that can benefit from this technology include food and beverage plastic or industrial processing, textiles, and chemicals, or also facilities space heating through high temperature ceiling radiant panels.

Low GWP refrigerant options

Climaveneta heat pumps are available with the innovative R513A and R454B refrigerant gases, which represent low-GWP alternatives to R134a and R410A units.

Combining a reduced refrigerant charge with a low GWP refrigerant, these units boast a low level of CO2eq, making them the perfect choice for any new future-proofed installation.
