HMI
GOT2000 Series
The GT27 Series offers a powerful and intuitive HMI experience, combining advanced features and user-friendly programming to streamline your operations.

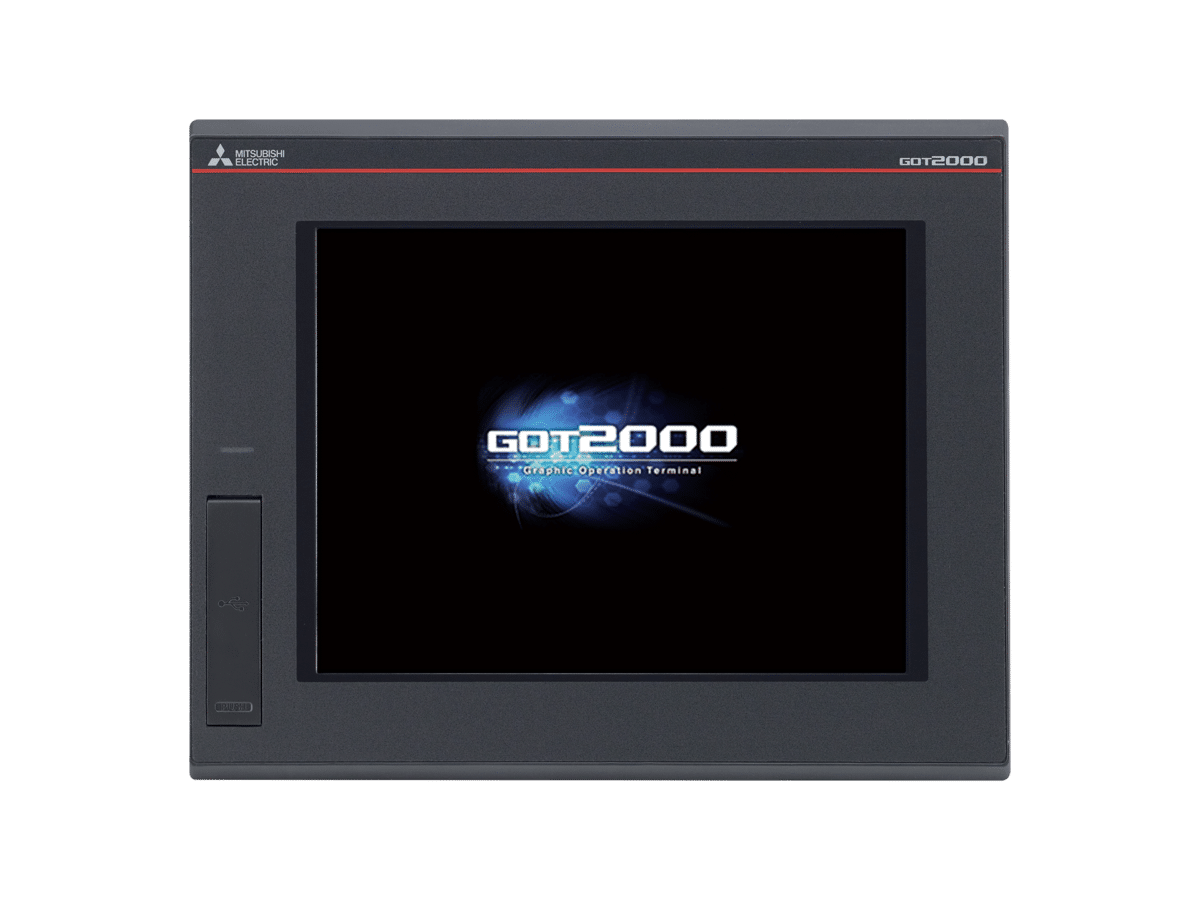

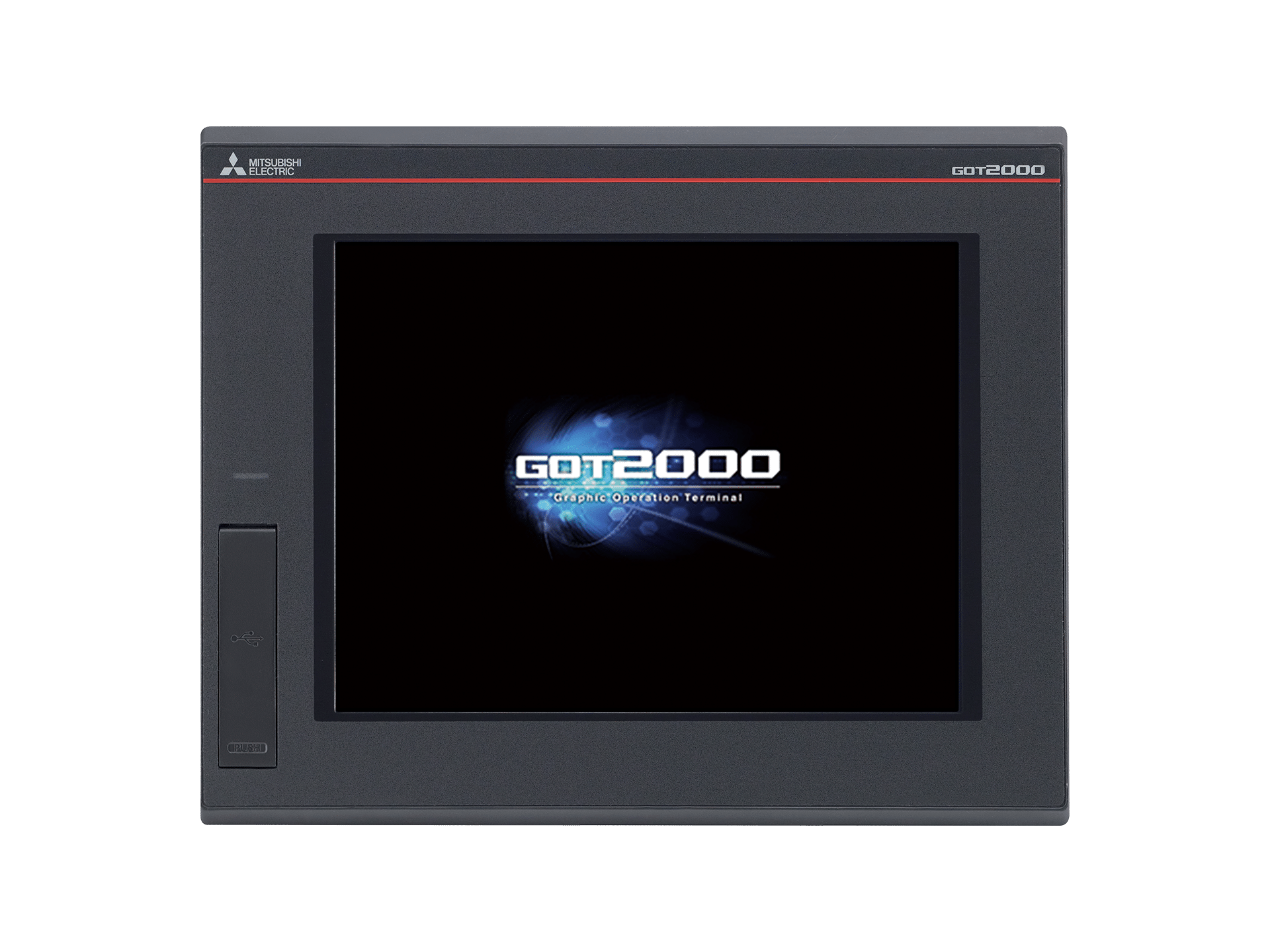

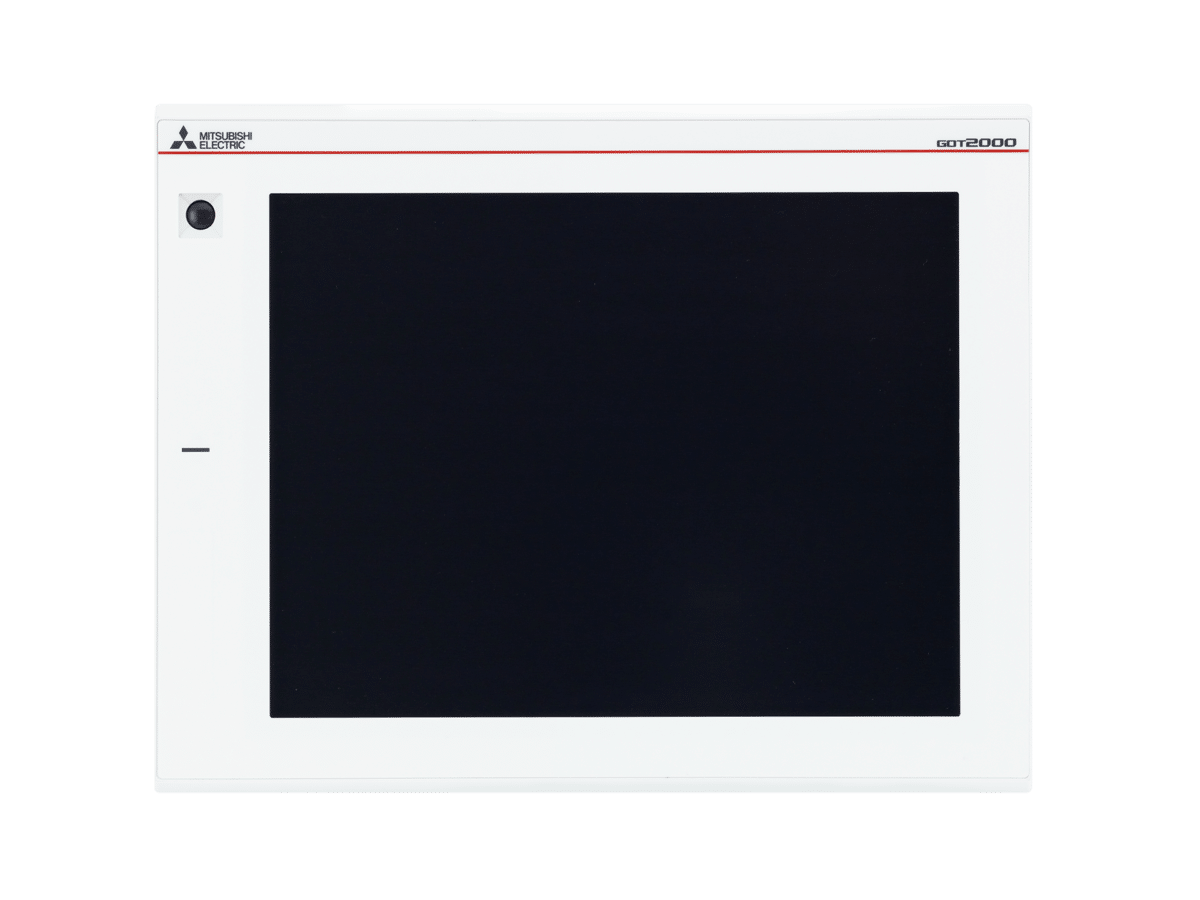

The Mitsubishi Electric GT27 Series of graphic operator terminals offer powerful features and a high-resolution 65K colour touchscreen. The GT27 provides high-capacity data processing, ensuring smooth screen operation even when running multiple tasks, such as logging, script, alarm, or device data transfer. In addition, image recording, image playback, video image input, and RGB output are available*. All functions of GOT2000 can be used on GT27 models. A tablet-like gesture function is also included as standard.
*Excluding GT2705.
Tablet like gesture functionality. The temperature sensor automatically detects an operator approaching the unit and displays the screen.
GOT acts as a monitor to display images recorded by a video camera or saved on a personal computer. There is no need for additional monitors.
Connect to a personal computer and transfer data with the mini USB port. Use the USB memory to transfer project data or read data to or from the GOT. A USB mouse, keyboard, barcode reader, or RFID reader can also be connected.
| Specifications | GT2705-VTBD-GF | GT2708-STBA-GF GT2708-STBD-GF | GT2708-VTBA-GF GT2708-VTBD-GF | GT2710-STBA-GF GT2710-STBD-GF | GT2710-VTBA-GF GT2710-VTBD-GF GT2710-VTWA-GF GT2710-VTWD-GF | GT2712-STBA-GF GT2712-STBD-GF GT2712-STWA-GF GT2712-STWD-GF | GT2715-XTBA-GF GT2715-XTBD-GF | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Display Unit | Type | 5.7”, TFT, LCD, 65536 colours |
8.4”, TFT, LCD, 65536 colours |
10.4”, TFT, LCD, 65536 colours |
12.1”, TFT, LCD, 65536 colours |
15”, TFT, LCD, 65536 colours |
|||||||||||||
| Resolution (Pixel) | 640 x 480 | 800 x 600 | 640 x 480 | 800 x 600 | 640 x 480 | 800 x 600 | 1024 x 768 | ||||||||||||
| Power Supply | A Types | – | 100 – 240 V AC | ||||||||||||||||
| D Types | 24 V DC | ||||||||||||||||||
| Memory Capacity | (ROM) | 32 MB | 57 MB | ||||||||||||||||
| (RAM) | 80 MB | 128 MB | |||||||||||||||||
| Memory Card | 1 (SD memory card) | ||||||||||||||||||
| Keyboard Type | Touch-panel | ||||||||||||||||||
| Function Keys | Touch keys | ||||||||||||||||||
| LED Indicators | 1 (power) | ||||||||||||||||||
| Interfaces | Ethernet (TCP/IP), RS232, RS422/485, USB, SD card slot | ||||||||||||||||||
| Multimedia Capability | – | Optional | |||||||||||||||||
| Real-Time Clock | Integrated | ||||||||||||||||||
| Network Communication | Ethernet (TCP/IP), CC-Link (IE), Modbus®, RS232, RS422/485, A bus, Q bus, MELSECNET/10/H | ||||||||||||||||||
| -GF Types Include | CC-Link IE field network communication unit GT15-J71GF13-T2 | ||||||||||||||||||
| Extension Interface (Communication/ Option Unit) | 1 port (max. 3 units/4 channels) | ||||||||||||||||||
| IP Rating (Front) | IP67* | ||||||||||||||||||
| Dimensions (WxHxD) | mm | 167 x 139 x 60 | 241 x 194 x 52 | 303 x 218 x 52 | 316 x 246 x 52 | 397 x 300 x 60 | |||||||||||||
| Weight | kg | 1.0 | 1.5 | 2.1 | 2.4 | 4.5 | |||||||||||||
