HMI
GOT2000 Series
The Mitsubishi Electric GT25 Series of graphic operator terminals offer a wide variety of specifications to suit every system.

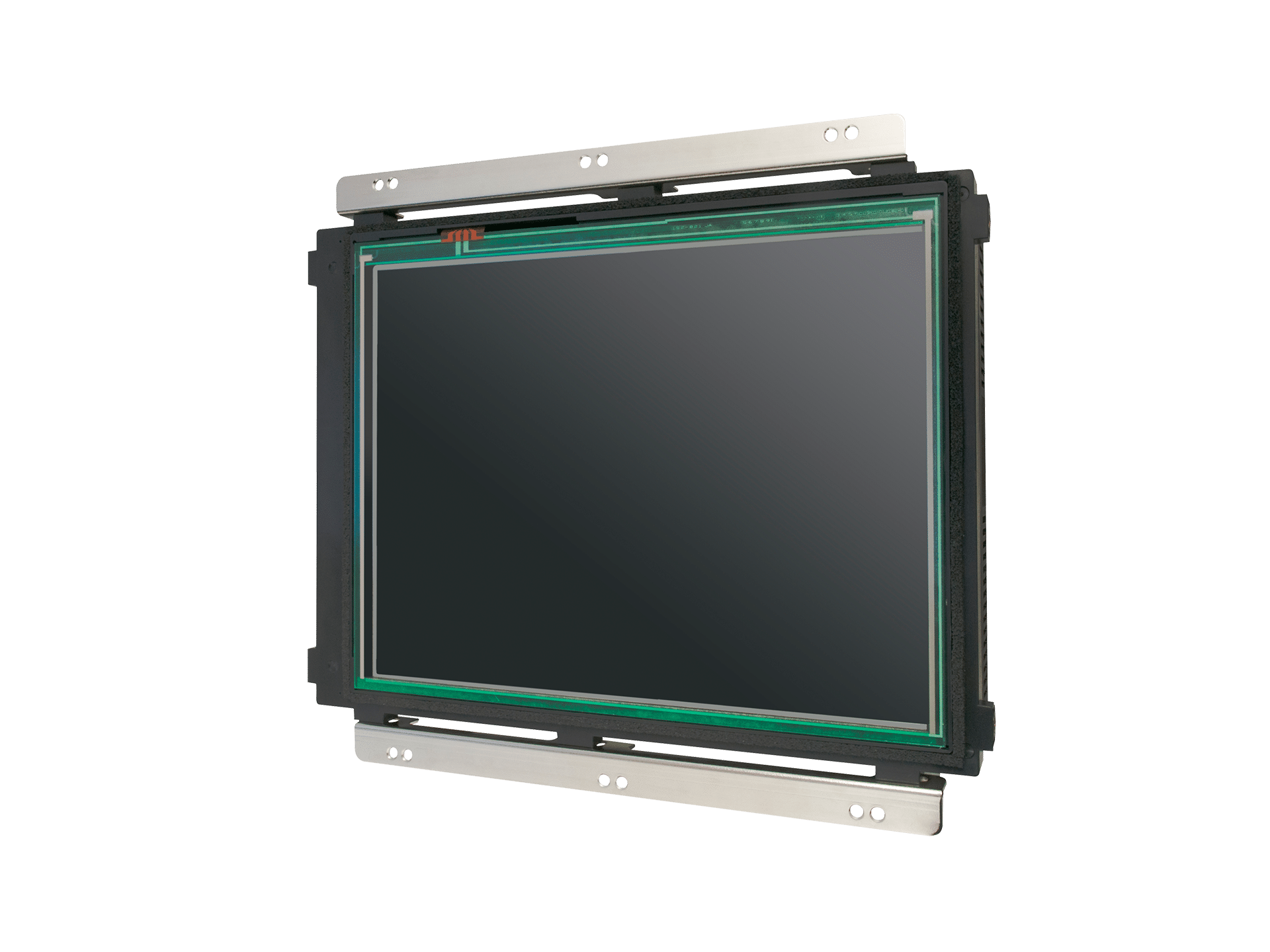

Special models of the GT25 include a wide model 7” and 10” in a choice of silver and black; a rugged model with metal housing and a wide operating temperature range; an open frame model perfect for machine design; and a handy model providing HMI functionality in the palm of your hand. All GT25 models can be programmed with GT Works 3 engineering software.
By connecting a personal computer to the front USB interface on the GOT, the GOT acts as a transparent gateway to enable startup and adjustment of equipment. Users do not have to bother with opening the electrical cabinet or changing cable connections.
Communication interfaces such as Ethernet, RS-232, RS-422/485, USB host/device and SD memory card are standard features. High-capacity data processing ensures smooth screen operation even when multiple tasks, such as logging, script, alarm, or device data transfer, are running.
Connect to a personal computer and transfer data with the mini USB port. Use the USB memory to transfer project data or read data to or from the GOT. A USB mouse, keyboard, barcode reader, or RFID reader can also be connected.

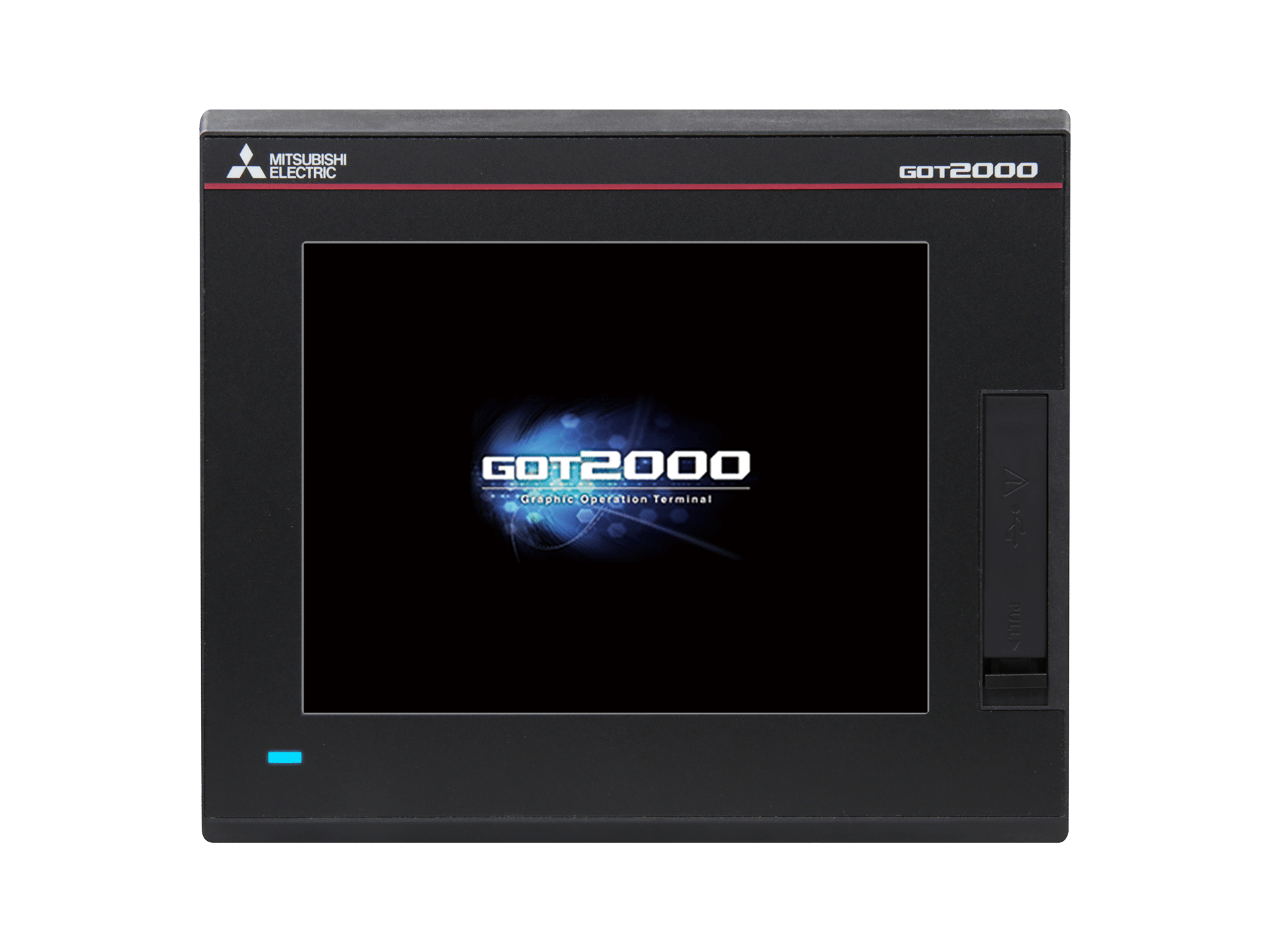

GT25 standard model |
|||||||
| Specifications | GT2505-VTBD | GT2508-VTBA-GF GT2508-VTBD-GF | GT2508-VTWA-GF GT2508-VTWD-GF | GT2510-VTBA-GF GT2510-VTBD-GF | GT2510-VTWA-GF GT2510-VTWD-GF | GT2512-STBA-GF GT2512-STBD-GF | |
|---|---|---|---|---|---|---|---|
| Display unit | Type | 5.7”, TFT, LCD, 65536 colours | 8.4”, TFT, LCD, 65536 colours | 10.4”, TFT, LCD, 65536 colours | 12.1”, TFT, LCD, 65536 colours | ||
| Resolution (pixel) | 640 x 480 | 800 x 600 | |||||
| Power supply | A types | – | 100 – 240 V AC | ||||
| D types | 24 V DC | ||||||
| Memory capacity | (ROM) | 32 MB | |||||
| (RAM) | 80 MB | ||||||
| Memory card | 1 (SD memory card) | ||||||
| Keyboard type | Touch-panel | ||||||
| Function keys | Touch keys | ||||||
| LED indicators | 1 (power) | ||||||
| Interfaces | Ethernet (TCP/IP), RS232, RS422/485, USB, SD card slot | ||||||
| Real-time clock | Integrated | ||||||
| Network communication | Ethernet (TCP/IP), CC-Link (IE), Modbus®, RS232, RS422/485, A bus, Q bus, MELSECNET/10/H | ||||||
| -GF types include | CC-Link IE field network communication unit GT15-J71GF13-T2 | ||||||
| Extension interface (communication/option unit) | 1 port (max. 3 units/4 channels) | ||||||
| IP rating (front) | IP67* | ||||||
| Dimensions (WxHxD) | mm | 164 x 139 x 53.5 | 241 x 194 x 52 | 303 x 218 x 52 | 316 x 246 x 52 | ||
| Weight | kg | 0.6 | 1.5 | 2.1 | 2.4 | ||

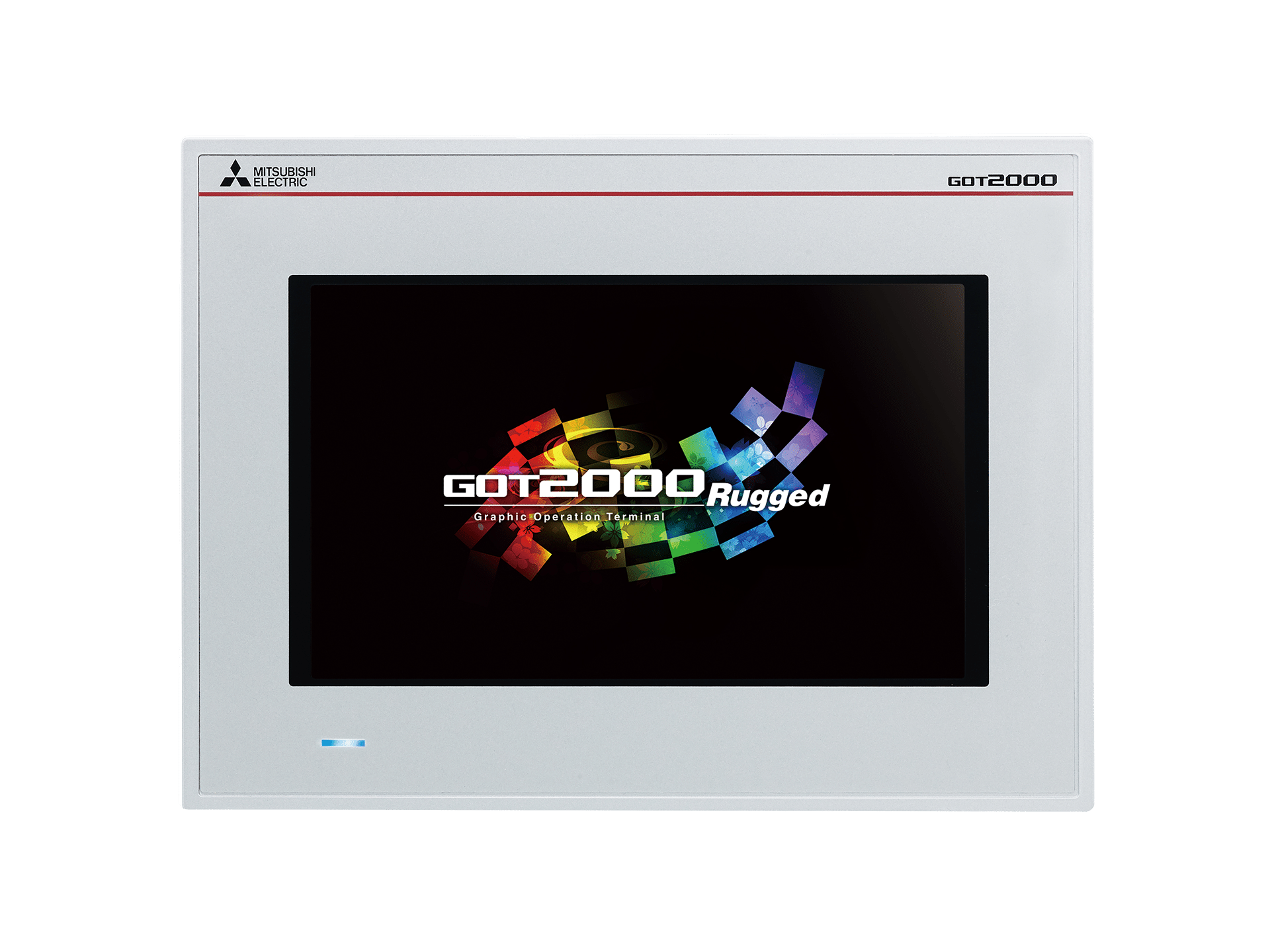

GT25 wide model |
|||||
| Specifications | GT2507-WTSD | GT2507-WTBD | GT2510-WXTSD | GT2510-WXTBD | |
|---|---|---|---|---|---|
| Display unit | Type | 7”, TFT, LCD, 65536 colours | 10.1”, TFT, LCD, 65536 colours | ||
| Resolution (pixel) | 800 x 480 | 1280 x 800 | |||
| Colour frame | Silver | Black | Silver | Black | |
| Power supply | 24 V DC | ||||
| Memory capacity | (ROM) | 32 MB | |||
| Memory card | 1 (SD memory card) | ||||
| Keyboard type | Touch-panel | ||||
| Function keys | Touch keys | ||||
| LED indicators | 1 (power) | ||||
| Interfaces | Ethernet (TCP/IP), RS232, RS422/485, USB, SD card slot | ||||
| Multimedia capability | Sound output | ||||
| Real-time clock | Integrated | ||||
| Network communication possibilities | Ethernet (TCP/IP), CC-Link (IE), Modbus®, RS232, RS422/485, A bus, Q bus, MELSECNET/10/H | ||||
| IP rating (front) | IP67* | ||||
| Dimensions (WxHxD) | mm | 164 x 139 x 53.5 | 303 x 218 x 52 | ||
| Weight | kg | 0.6 | 2.1 | ||
