HMI

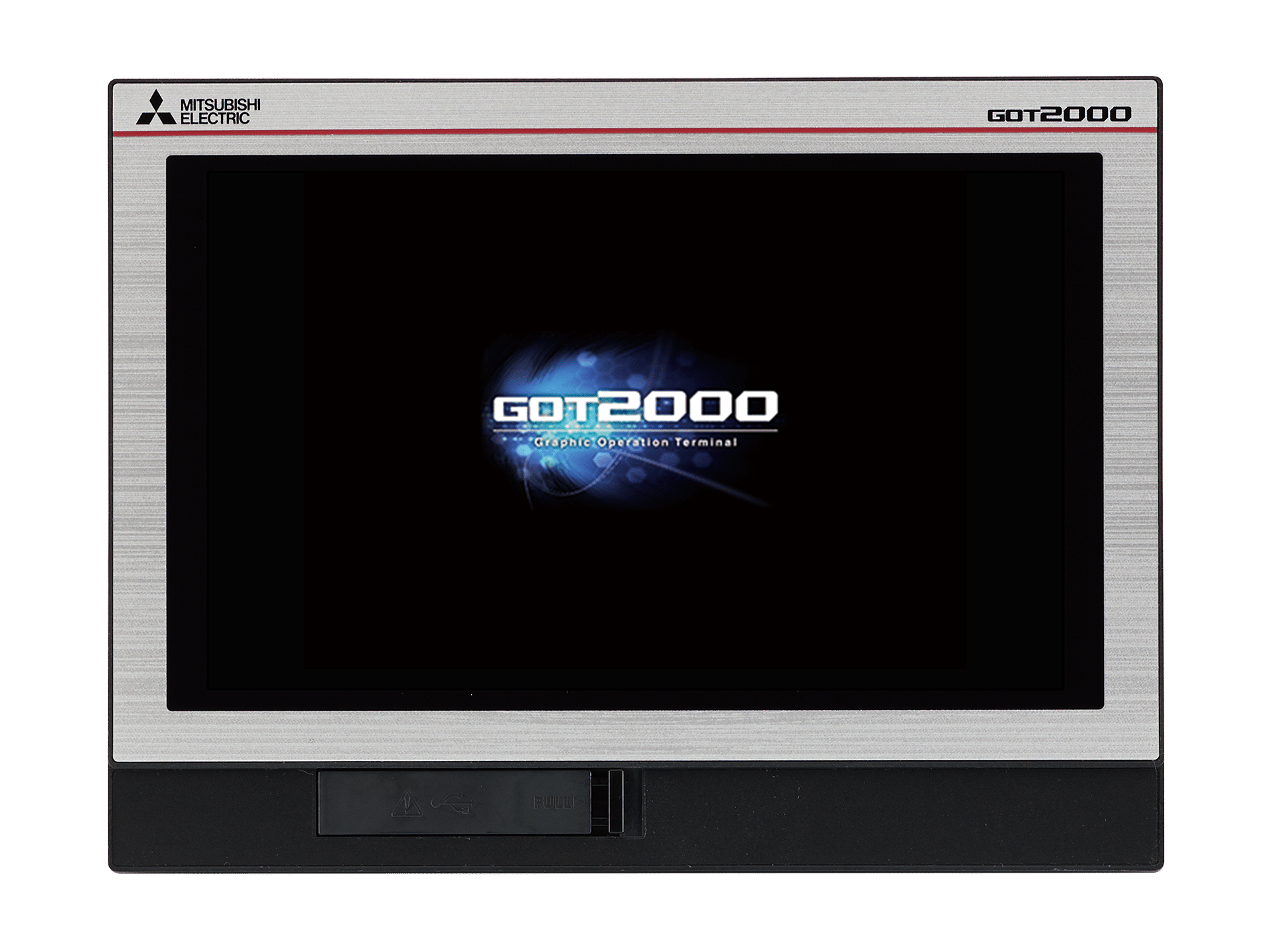

GT2107-WTSD/WTBD
High resolution, 800 × 480 dot display realised in a compact body.
The Mitsubishi Electric GT2107 Series features a stunning 7” widescreen display with high-resolution 800×480 graphics and a 65K colour touchscreen. This graphic operator terminal (GOT) enables users to easily configure and build modern applications using GT Works3 engineering software, compatible with all GOT2000 models. Additional resources, including programming software, cables, and interface adapters, are available for purchase from Mitsubishi Electric automation distributors.
By connecting a personal computer to the front USB interface on the GOT, the GOT acts as a transparent gateway to enable startup and adjustment of equipment. Users do not have to bother with opening the electrical cabinet or changing cable connections.
Back up important PLC programs and parameters to an SD card. In case of unexpected trouble, backed-up programs can be instantly restored to the PLC.
*A separate SD card is required.
Uniformly manage data of FA devices connected to GOT. Data can be collected at any arbitrary time, which is useful for analysis and feedback.
*A separate SD card is required.
| Specifications | GT2104-RTBD | GT2107-WTSD | GT2107-WTBD | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Display Unit | Type | 4.3”, TFT, 65536 colours | 7”, TFT, 65536 colours | ||||||
| Resolution (Pixel) | 480 x 272 | 800 x 480 | |||||||
| Colour Frame | Black | Silver | Black | ||||||
| Power Supply | 24 V DC | ||||||||
| Memory Capacity (ROM) | 9 MB | 15 MB | |||||||
| Memory Card | 1 (SD memory card) | ||||||||
| Keyboard Type | Touch-panel | ||||||||
| Function Keys | Touch keys | ||||||||
| Interfaces | Ethernet, RS232, RS422/485, USB | ||||||||
| Real-Time Clock | Intergrated | ||||||||
| Network Communication Possibilities | Ethernet, RS232, RS422/485 | ||||||||
| IP Rating (Front) | IP67* | ||||||||
| Dimensions (WxHxD) (mm) | 128 x 102 x 40 | 189 x 142 x 48 | |||||||
| Weight (kg) | 0.3 | 0.7 | |||||||
