HMI

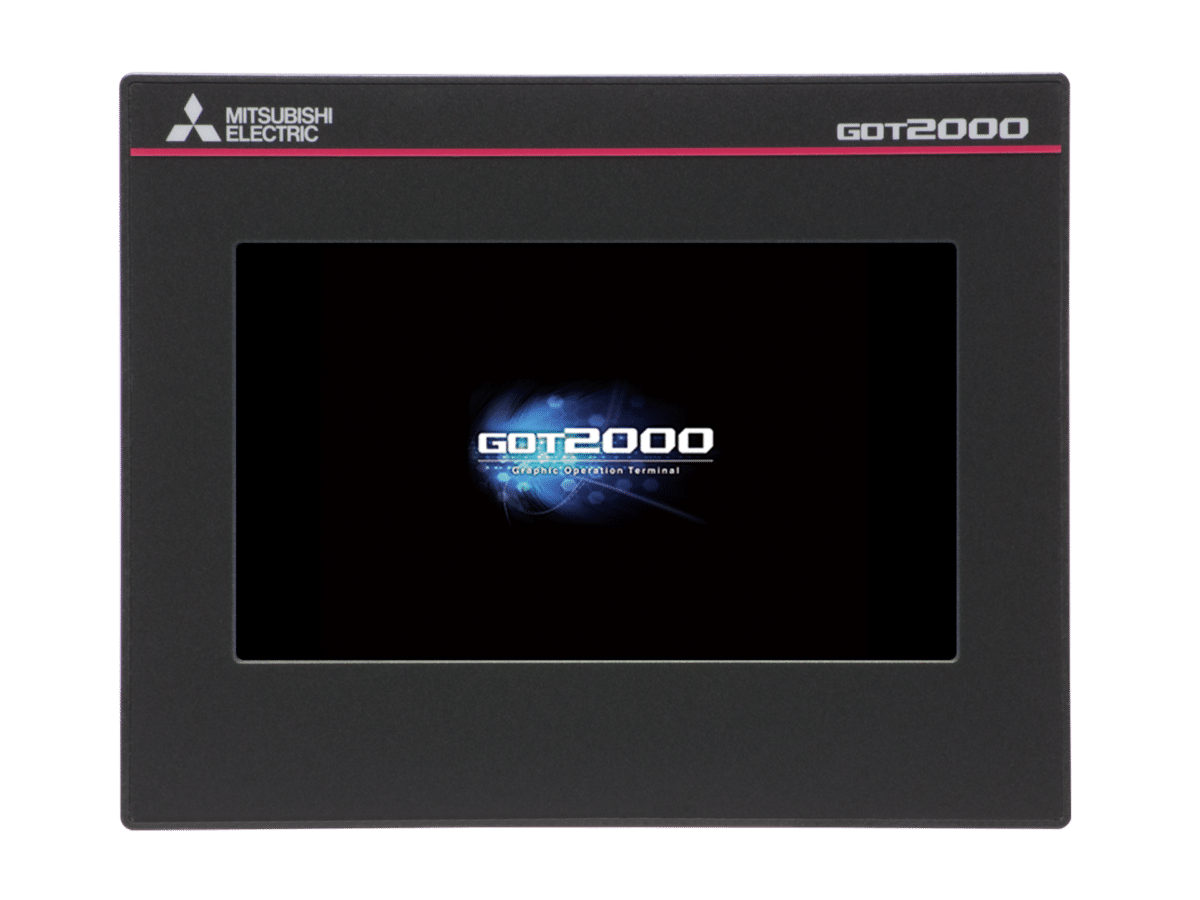

GT2104-RTBD
High resolution, 480 × 272 dot display realised in a compact body.
The Mitsubishi Electric GT2104 Series offers a high-resolution, 65K colour touchscreen in a compact 4.3” widescreen format. This graphic operator terminal (GOT) allows users to easily configure and build modern applications using GT Works3 engineering software, compatible with all GOT2000 models. Additional resources, including programming software, cables, and interface adapters, are available for purchase from Mitsubishi Electric automation distributors.
Back up important PLC programs and parameters to an SD card. In case of unexpected trouble, backed-up programs can be instantly restored to the PLC.
*A separate SD card is required.
Uniformly manage data of FA devices connected to GOT. Data can be collected at any arbitrary time, which is useful for analysis and feedback.
*A separate SD card is required.
| Specifications | GT2104-RTBD | GT2107-WTSD | GT2107-WTBD | ||||||
|---|---|---|---|---|---|---|---|---|---|
| Display Unit | Type | 4.3”, TFT, 65536 colours | 7”, TFT, 65536 colours | ||||||
| Resolution (Pixel) | 480 x 272 | 800 x 480 | |||||||
| Colour Frame | Black | Silver | Black | ||||||
| Power Supply | 24 V DC | ||||||||
| Memory Capacity (ROM) | 9 MB | 15 MB | |||||||
| Memory Card | 1 (SD memory card) | ||||||||
| Keyboard Type | Touch-panel | ||||||||
| Function Keys | Touch keys | ||||||||
| Interfaces | Ethernet, RS232, RS422/485, USB | ||||||||
| Real-Time Clock | Intergrated | ||||||||
| Network Communication Possibilities | Ethernet, RS232, RS422/485 | ||||||||
| IP Rating (Front) | IP67* | ||||||||
| Dimensions (WxHxD) (mm) | 128 x 102 x 40 | 189 x 142 x 48 | |||||||
| Weight (kg) | 0.3 | 0.7 | |||||||
