Climaveneta Chillers

Controls, Monitoring and Optimisation Systems

  • ClimaPRO+ - complex HVAC plant optimisation
  • DATACENTER MANAGER+ control and manage hydronic groups of chillers
  • HPC System controller and optimiser
  • SEQUENCER monitors sequence of hydronic units in the HVAC system

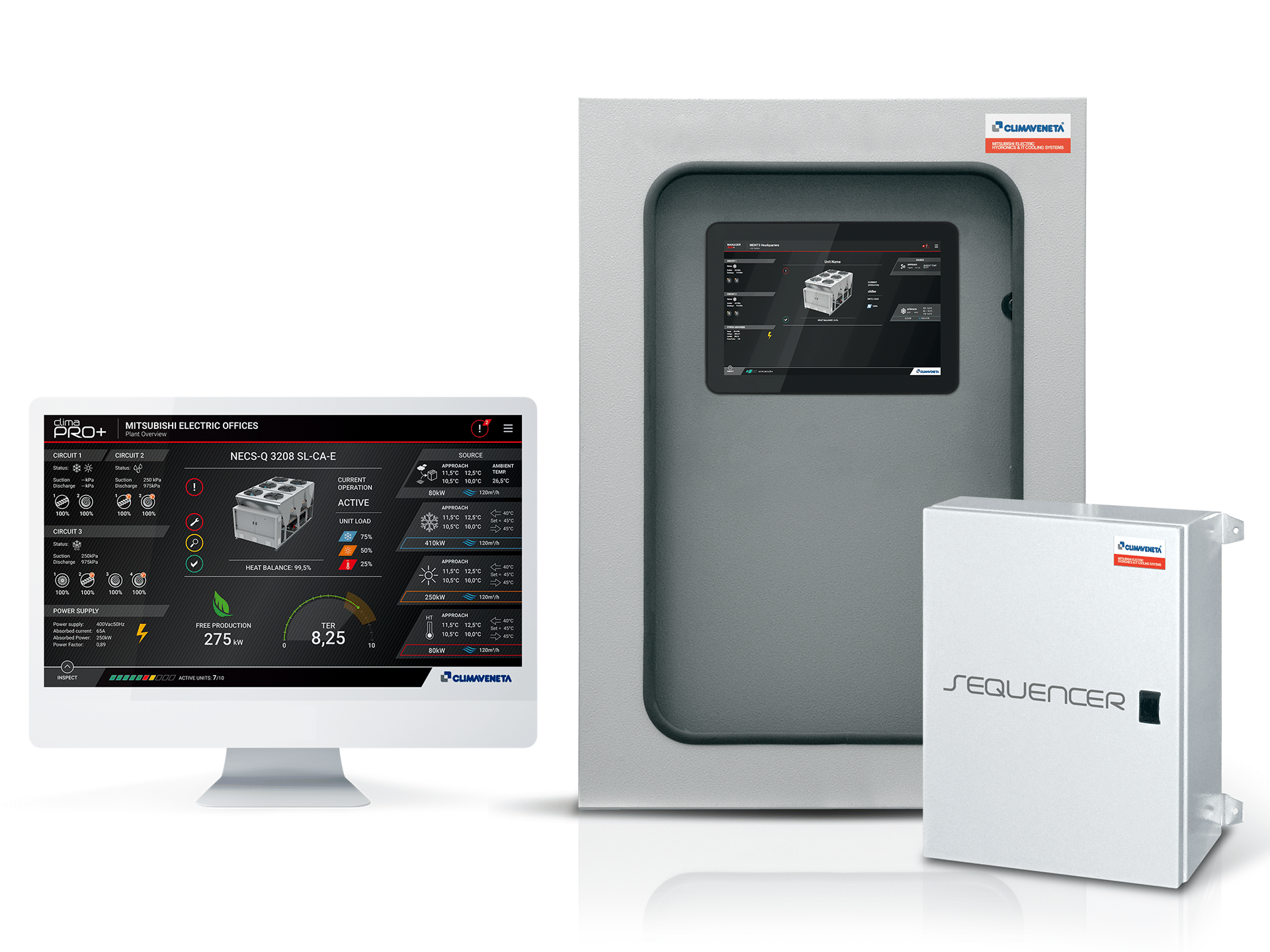

We offer a complete range of solutions for controlling and optimising your HVAC plant operation, as well as specialised service and preventive maintenance software.

In commercial buildings, HVAC systems consume almost half of the total energy, and over 30% of that energy comes from the plant room. HVAC equipment needs a control system to regulate its operation. Constant monitoring is needed to compare the actual state (for example, temperature) with a target state. Thus, the control system can intervene and take action to resolve potential issues.

When designing HVAC systems, engineers try their best to make it as simple and compact while still being able to perform at the highest level and as efficiently as possible. Stringent energy standards for modern buildings have increased the complexity of HVAC plant design, and our frenetic lifestyle also means we can’t be present to check equipment physically. That is why the need for remotely commanded and real-time control of HVAC systems is crucial. The ability to change setpoints and set schedules, analyse performance data for preventative maintenance and set custom notifications to alert crucial staff of any temperature or system issues immediately.

HVAC plant controls, monitoring and optimisation systems

ClimaPRO+ - complex HVAC plant optimisation

ClimaPRO+

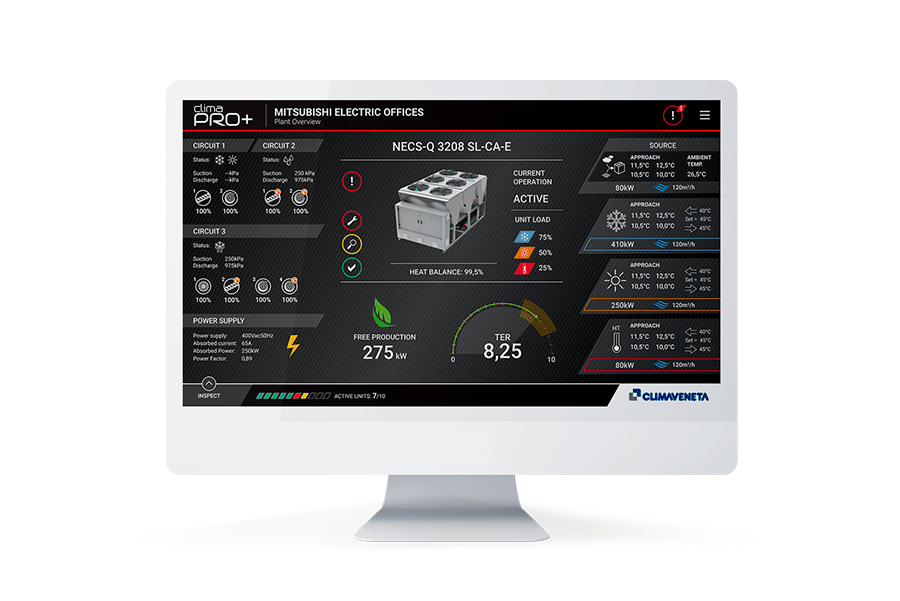

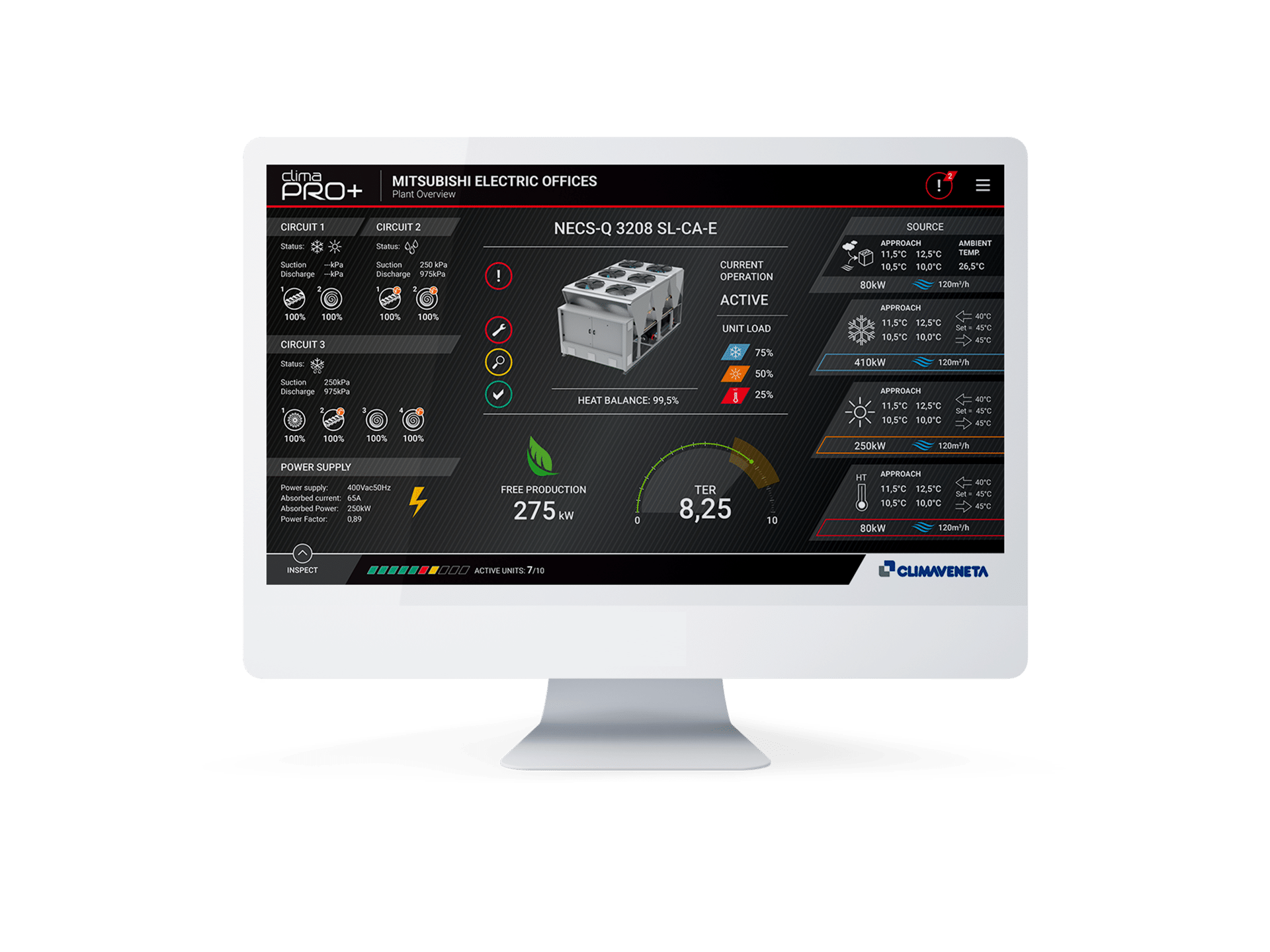

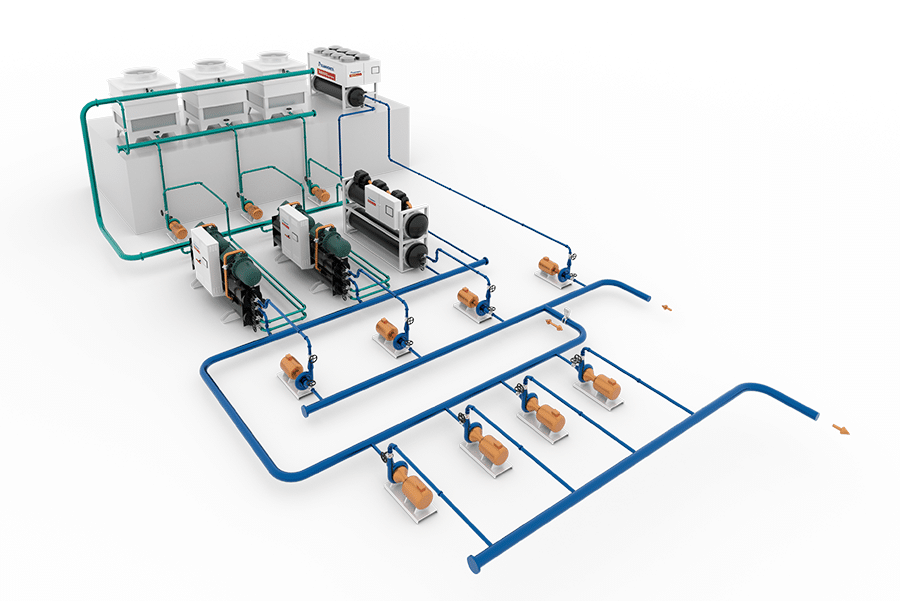

The ClimaPRO+ is an innovative solution for optimising any centralised plant room for Comfort, Process, and IT Cooling applications. Thanks to simplified accessibility to plant metrics and operating parameters, ClimaPRO+ monitors current unit operation in real time, translating the data into clear and easy-to-read reports and predicting operational problems that may occur in the plant room. ClimaPRO+ reliably controls the plant room, preventing any downtime, thus always making any mission-critical business applications available. This makes ClimaPRO+ the perfect solution for process applications and data centres, where cooling must be ensured 24/7. With extreme precision, the software adjusts any type of source on both the primary and secondary circuits, thus ensuring energy savings up to 40% higher than those of manually controlled plants. The smart control system allows units featuring non-homogeneous technologies to work in synergy, exploiting the technology of each product at its peak performance according to the actual plant demand.

MANAGER3000-Plus

MANAGER3000+

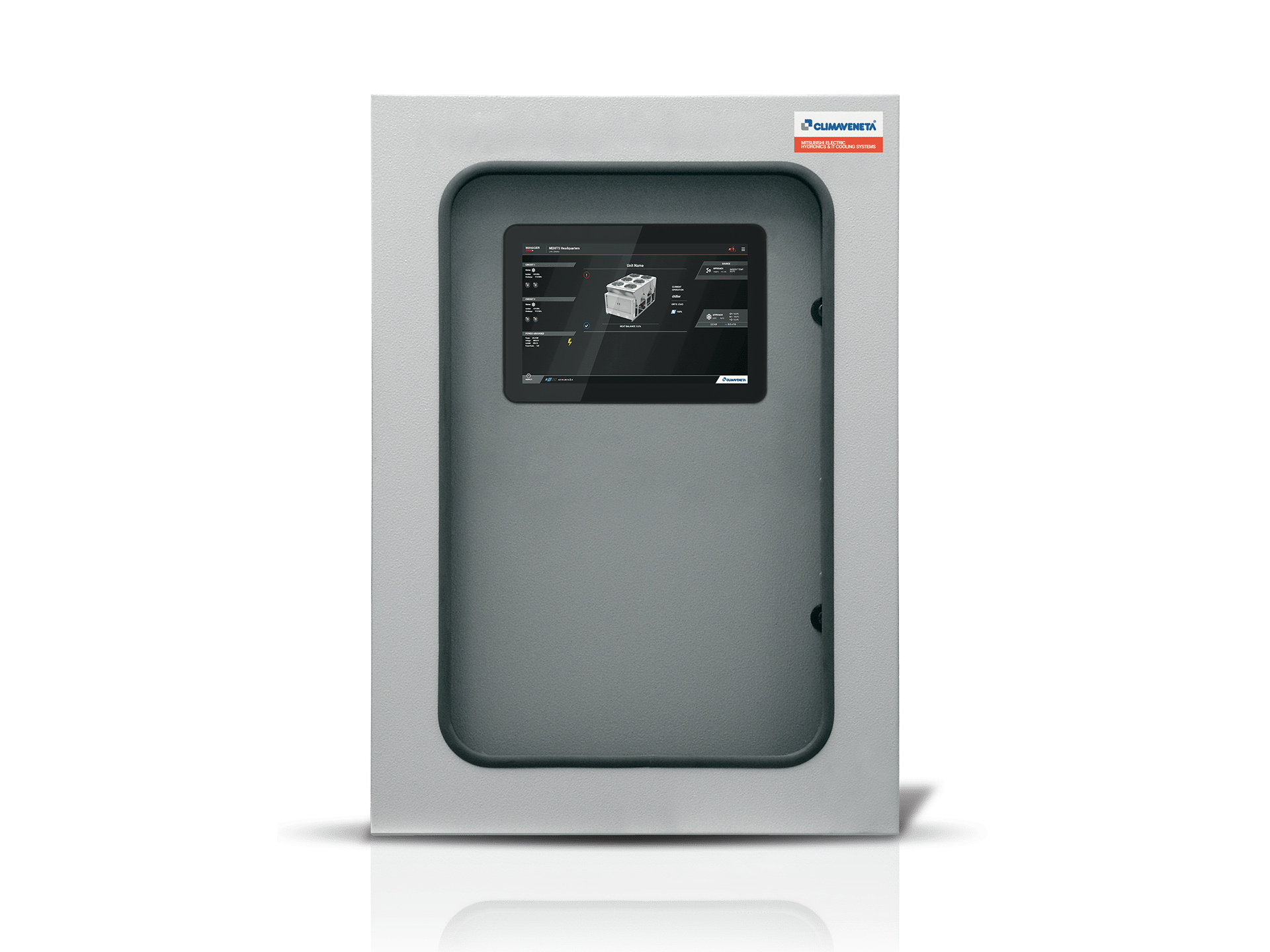

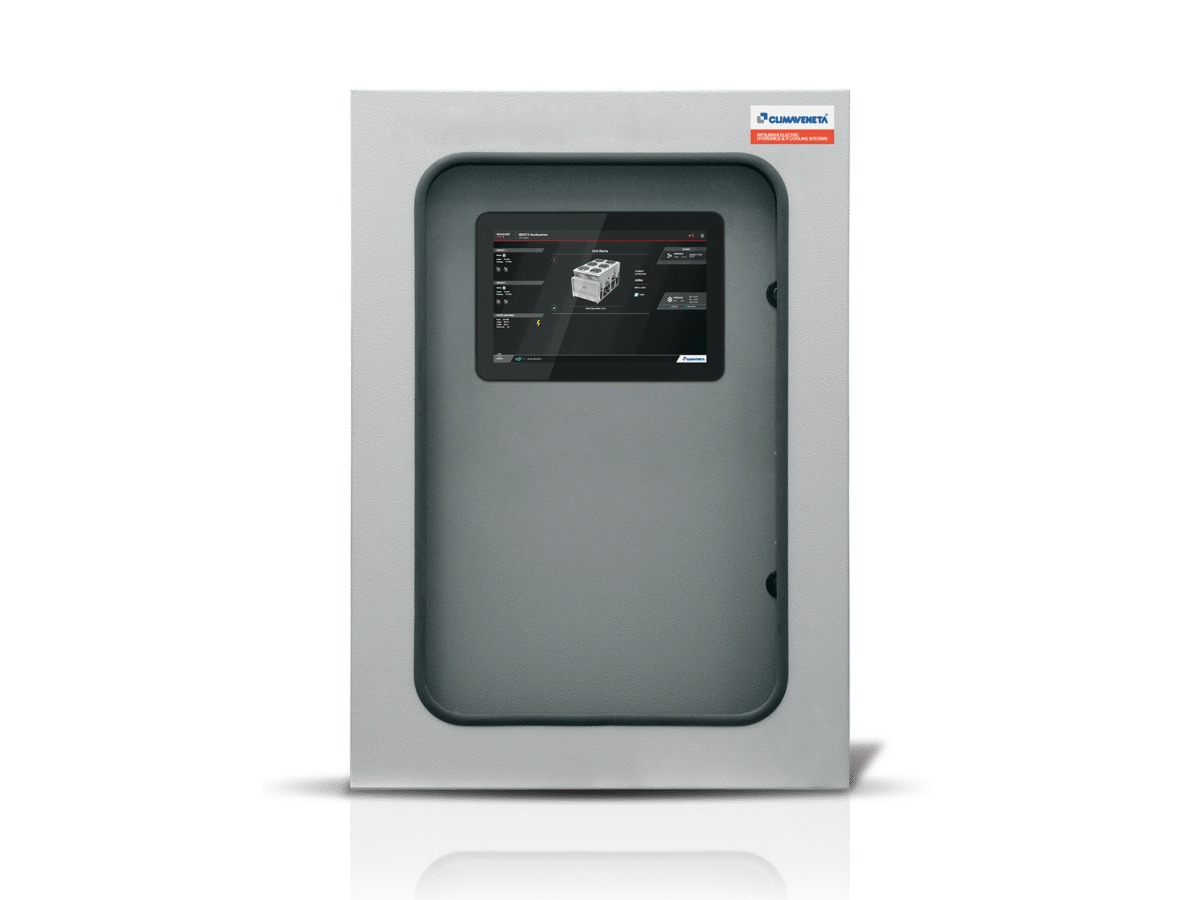

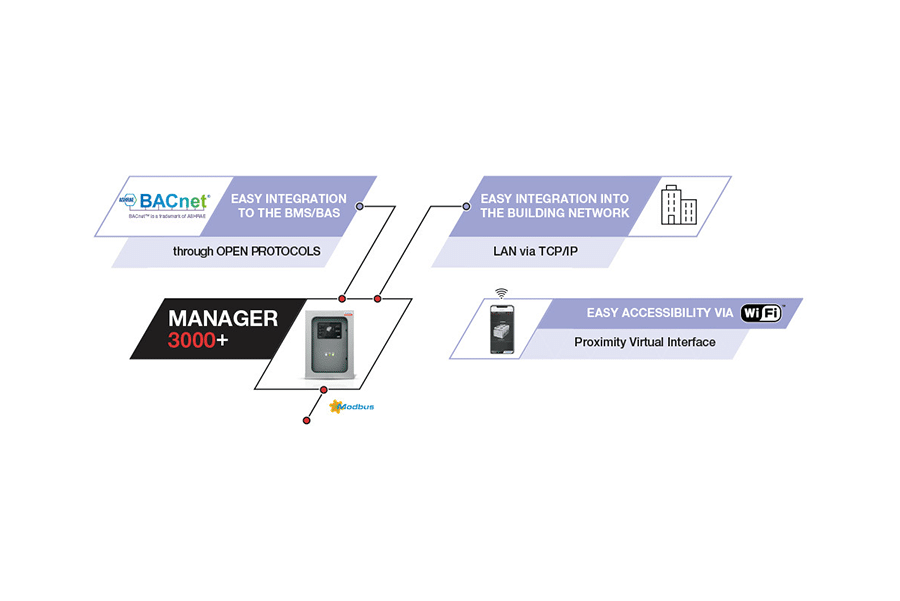

Factory-engineered plant room control for chillers, heat pumps, and units that produce hot and chilled water simultaneously and independently. MANAGER 3000+ is the ideal solution for efficiently controlling and managing hydronic groups of chillers in a centralised plant room. Thanks to unique control algorithms, MANAGER3000+ selects the best sequencing for unit operation, smartly manages heat loads according to plant demand, and gives users a valid monitoring tool to check plant conditions. This ensures stable and reliable control in any condition, complying with the strictest standards of ‘uptime’ required in comfort and process cooling applications.

ClimaPRO+ - complex HVAC plant optimisation

DATA CENTER MANAGER

DATA CENTER MANAGER is a centralised management and control system specifically designed for data centre applications. Through advanced logic specifically developed for Mitsubishi Electric units, the software manages the operation of the indoor chilled water CRAC units with the outdoor chillers. The indoor unit’s regulation is demanded by the Master unit, which uses a smart algorithm named ADS (Adaptive Set Point) to instantaneously detect the real heat loads inside the data centre and transfer such information to the external group of chillers, thus optimising their functioning and resources to provide maximum global efficiency. The results range up to a 70% efficiency improvement to the air conditioning system whilst significantly decreasing the data centre’s global PUE value (Power Usage Effectiveness).

ClimaPRO+

The ClimaPRO+ is an innovative solution for optimising any centralised plant room for Comfort, Process, and IT Cooling applications.

ClimaPRO+ monitors current unit operation in real time, translating the data into clear and easy-to-read reports and predicting operational problems that may occur in the plant room. ClimaPRO+ reliably controls the plant room, preventing any downtime, thus always making any mission-critical business applications available. This makes ClimaPRO+ the perfect solution for process applications and data centres, where cooling must be ensured 24/7. With extreme precision, the software adjusts any type of source on both the primary and secondary circuits, thus ensuring energy savings up to 40% higher than those of manually controlled plants.

DATACENTER MANAGER+

DATA CENTER MANAGER is a centralised management and control system specifically designed for data centre applications. Through advanced logic specifically developed for Mitsubishi Electric units, the software manages the operation of the indoor chilled water CRAC units with the outdoor chillers.

The indoor unit’s regulation is demanded by the Master unit, which uses a smart algorithm named ADS (Adaptive Set Point) to instantaneously detect the real heat loads inside the data centre and transfer such information to the external group of chillers, thus optimising their functioning and resources to provide maximum global efficiency.

The results range up to a 70% efficiency improvement to the air conditioning system whilst significantly decreasing the data centre’s global PUE value (Power Usage Effectiveness).

HPC System controller and optimiser

Hydronic Plant Connect (HPC) is a new control logic, completely integrated into the units’ controller, that allows the management of the entire hydronic IT cooling plant, from the chillers to the indoor conditioners, including pumps and feeding valves.

The result is a unique algorithm, currently patent-pending, that can enhance system efficiency by leveraging partial loads, redundant units, and favourable ambient conditions. The system relies on proprietary devices and a devoted infrastructure: a KIPLAN network connects 1 LAN group of external chillers (up to 8 units, with Multimanager) to up to 20 LAN groups of indoor chilled water units (up to 15 units per group).

HPC manages chillers, CRAHs, and pumps, optimising the entire chilled water IT Cooling system. Working on time intervals, HPC evaluates the operating conditions of each component and adjusts the working parameters to maximise the overall efficiency.

HPC is extremely versatile and easy to use. Its plug-and-play features make it the winning solution not only for large structures but also for small or medium-sized data centres and future proofing system expansions.

SEQUENCER HVAC hydronic unit system sequence monitoring

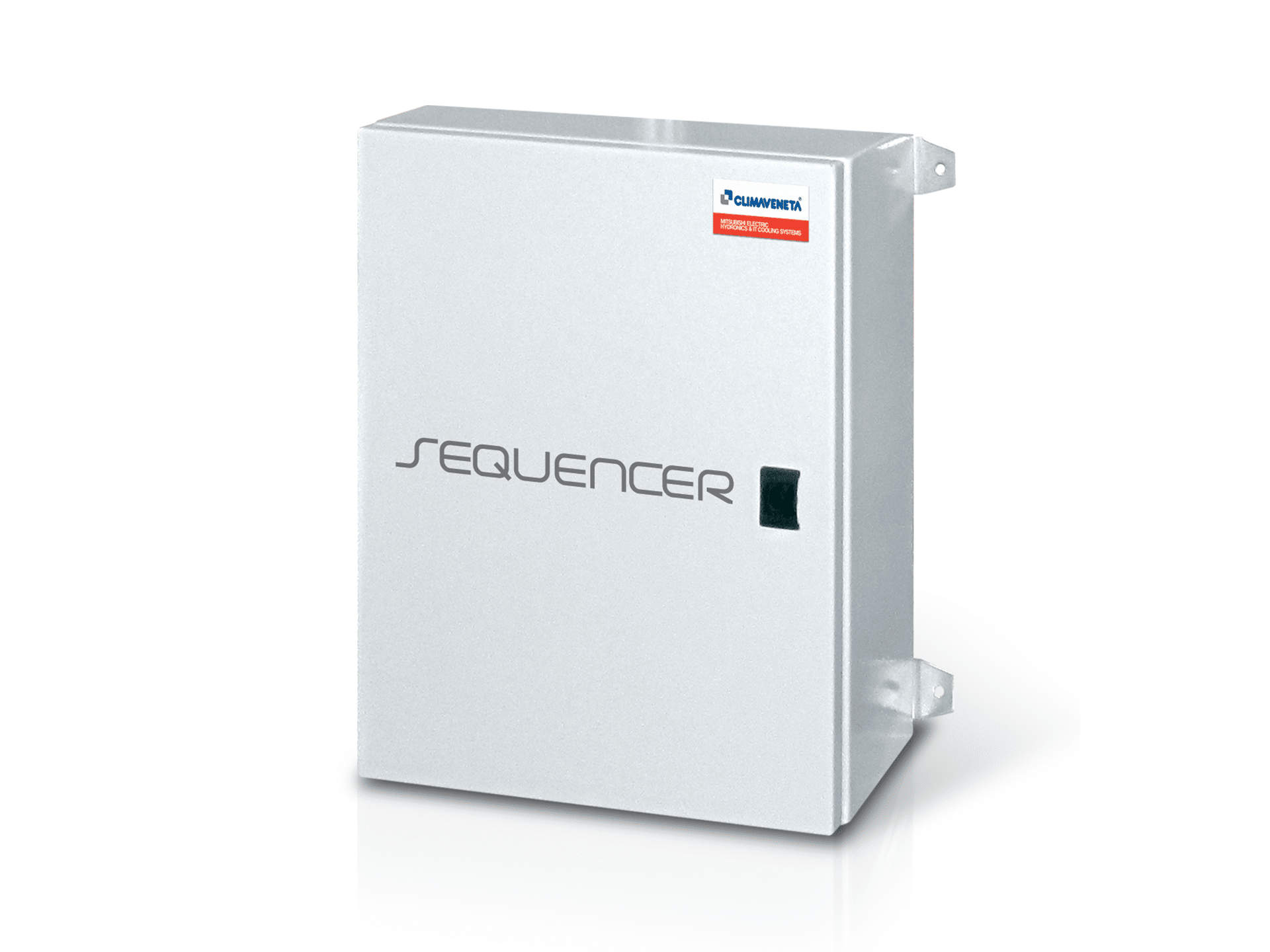

Specially designed for use in Comfort and Process applications, SEQUENCER monitors the sequence of hydronic units in the HVAC system by ensuring the activation of units based on load requests received from the system. Its software ensures the equal distribution of the resources' hours of operation or activates a priority sequence according to the type of unit or the need to produce domestic hot water.
